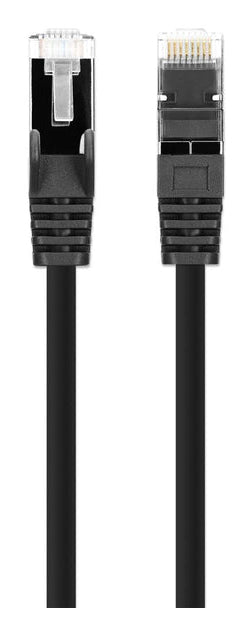

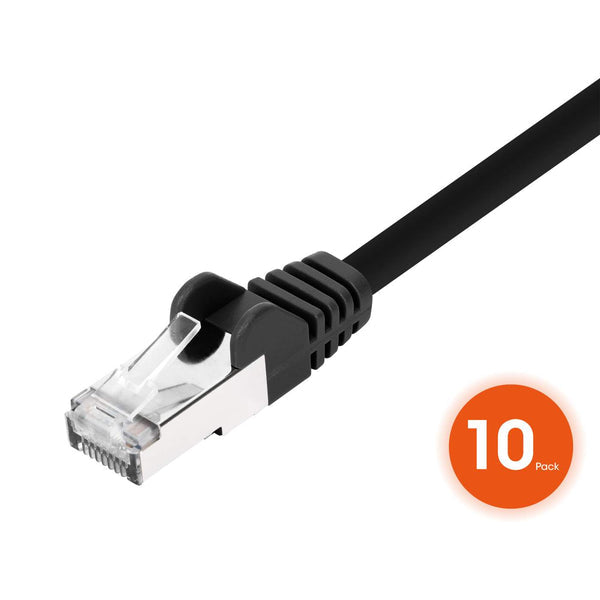

Intellinet 745017 networking cable Black 0.15 m Cat8.1 U/FTP (STP)
Stock: 0 units
Description
Description
Product overview

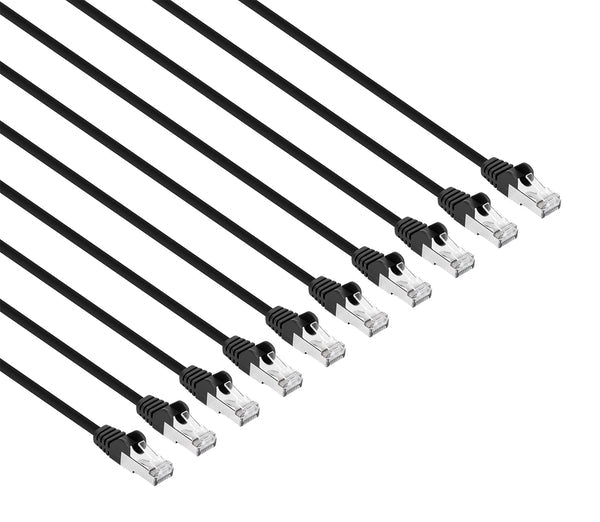

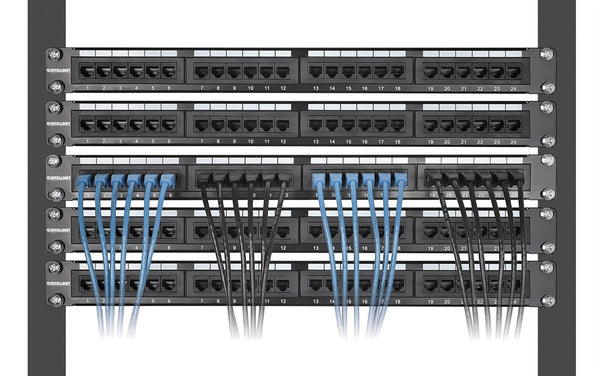

Cat8 Ethernet Cable, 10 pcs - U/FTP, 40G, 2000 MHz LAN patch cord - future-proof high-end connections in data centers and more. Establish your high-performance network connections, especially for Top of Rack (ToR) and Middle of Row (MoR) installations in data centers, with this Cat8.1 U/FTP Network Patch Cable from Intellinet Network Solutions. It supports 40 Gbps data transmissions with frequencies up to 2 GHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Strong, yet slim, space-saving design. This stranded cable offers all the benefits of a standard Cat8.1 network cable but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet. The cable's reduced size also means it is more flexible, which makes it a perfect choice for installation around corners and in tight-space cable runs. Pure copper cable with gold-plated contacts for perfect conductivity. As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this cable contains 100% pure bare copper for perfect conductivity. This Cat8 Ethernet Cable is therefore compliant with the highest data-cable requirements and is ideal for use in PoE applications. Gold plating on the contacts makes them corrosion-resistant in every environment. Snag-free Boot Design. The snag-free boot design makes all patch cables from Intellinet Network Solutions the perfect choice for high-density...
Why choose the Intellinet 745017 networking cable Black 0.15 m Cat8.1...?
The Intellinet 745017 networking cable Black 0.15 m Cat8.1 U/FTP (STP) is a networking cables from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product colour: Black; Cable length: 0.15 m; Cable standard: Cat8.1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product colour | Black |
| Cable length | 0.15 m |
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable type | Straight-through cable |
| Cabling technology | 40GBase-T |
| Ethernet interface type | 25 Gigabit Ethernet, 40 Gigabit Ethernet |
| Networking standards | IEEE 802.3bt |
| AWG wire size | 30 |
| Data transfer rate | 40000 Mbit/s |
| Frequency | 2000 MHz |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Doesn't contain | Cadmium, Lead, Mercury |
| Compliance certificates | CE, REACH, RoHS |
| Certification | ISO/IEC 11801 EN 50173-1 ANSI/TIA-568.2-D |
| Outer diameter | 4.8 mm |

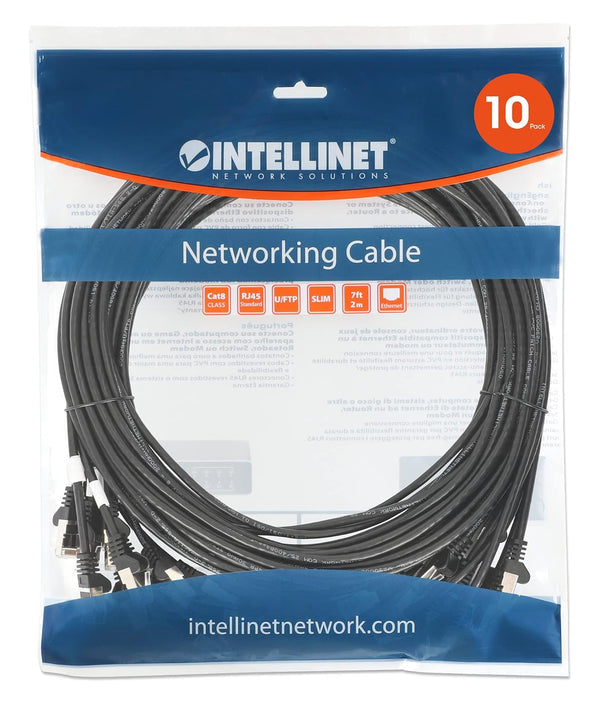

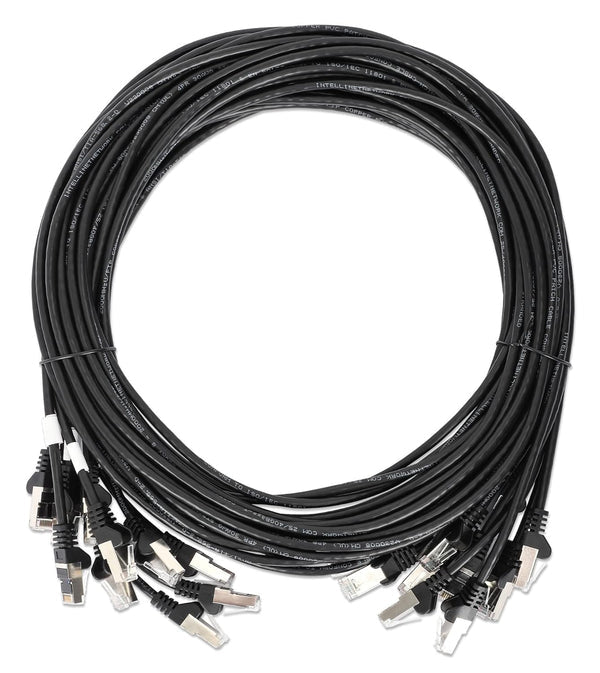

| Quantity per pack | 10 pc(s) |
| Package type | Bag |
| Brand | Intellinet |
| Manufacturer part number | 745017 |
| GTIN / UPC | ['0766623745017', '766623745017'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
