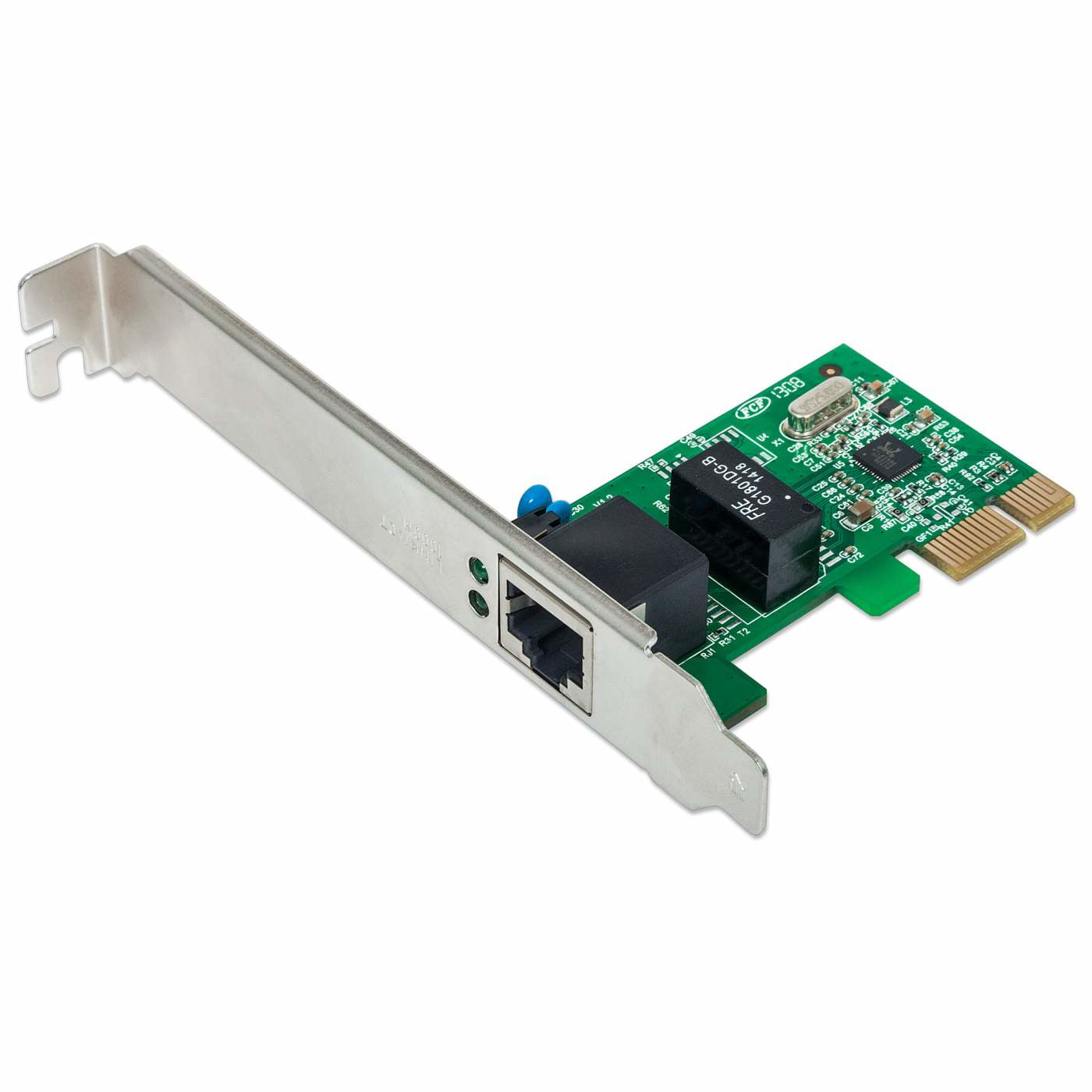

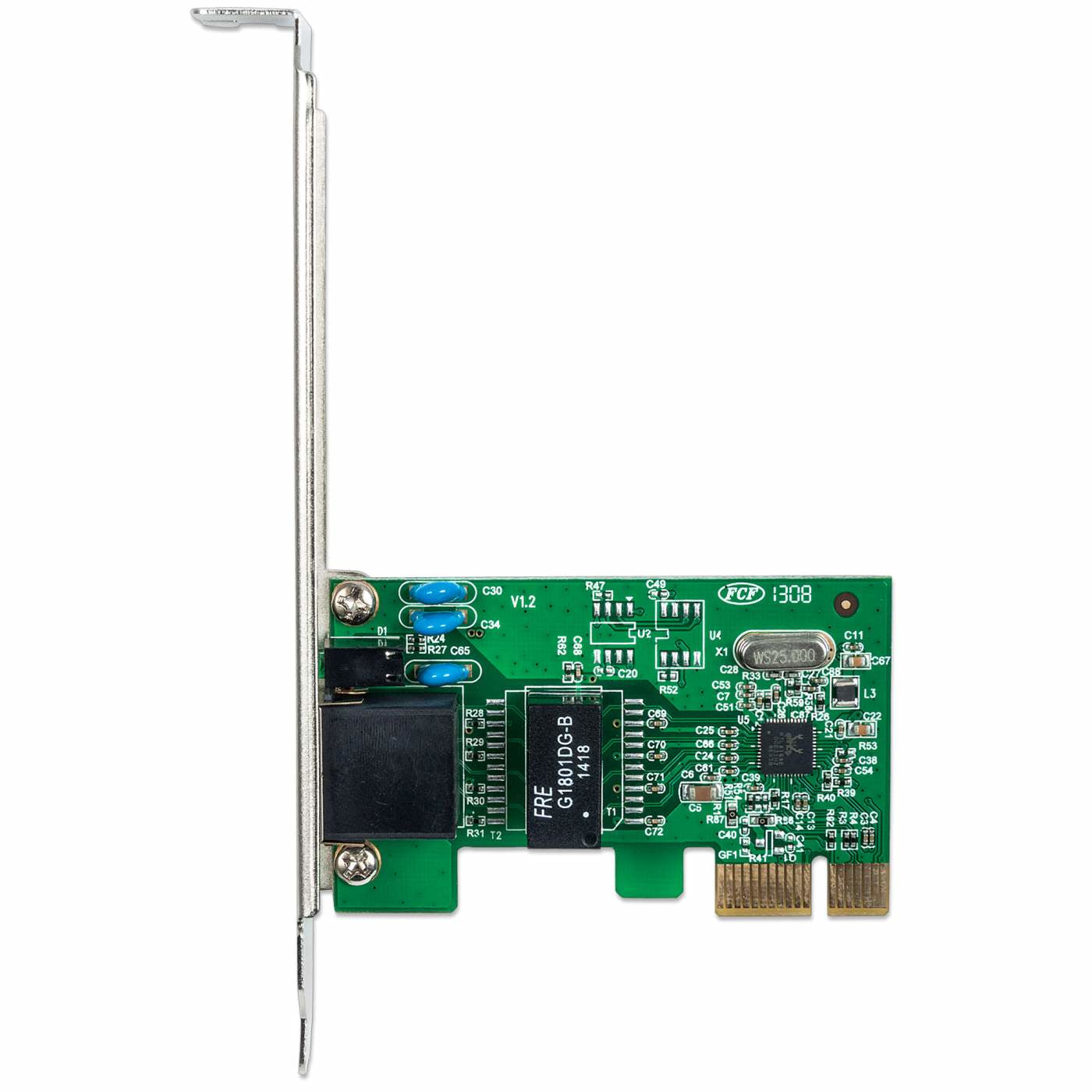

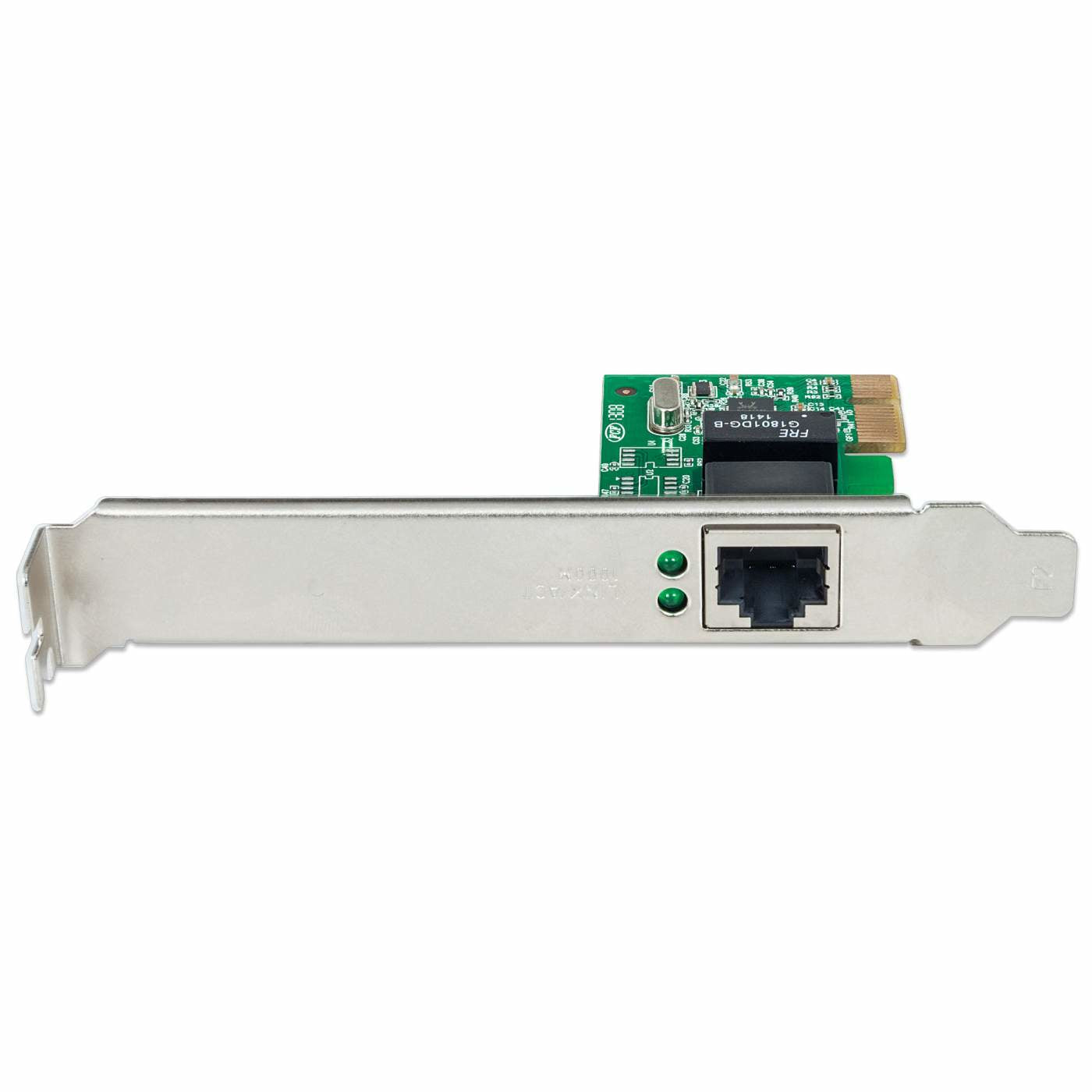

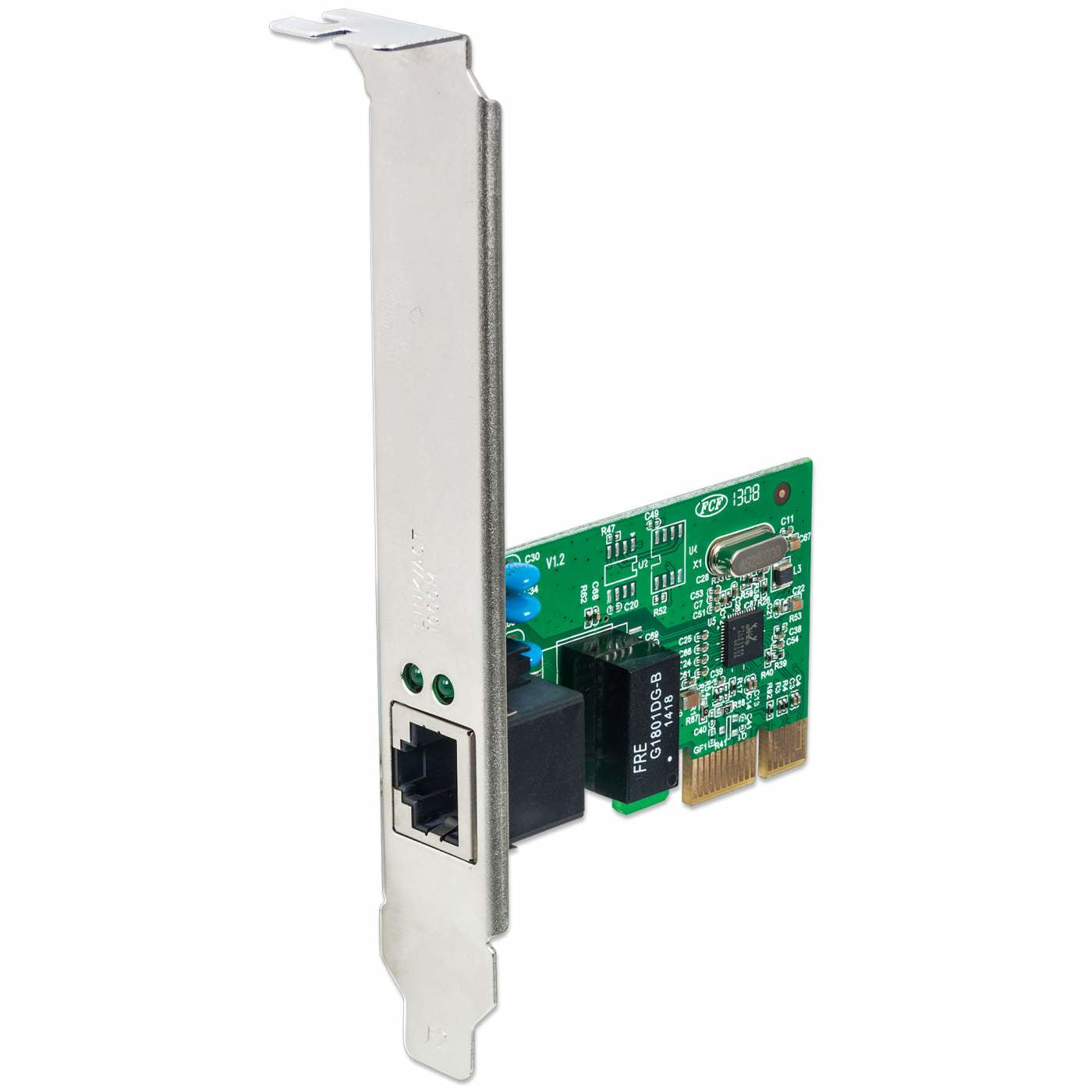

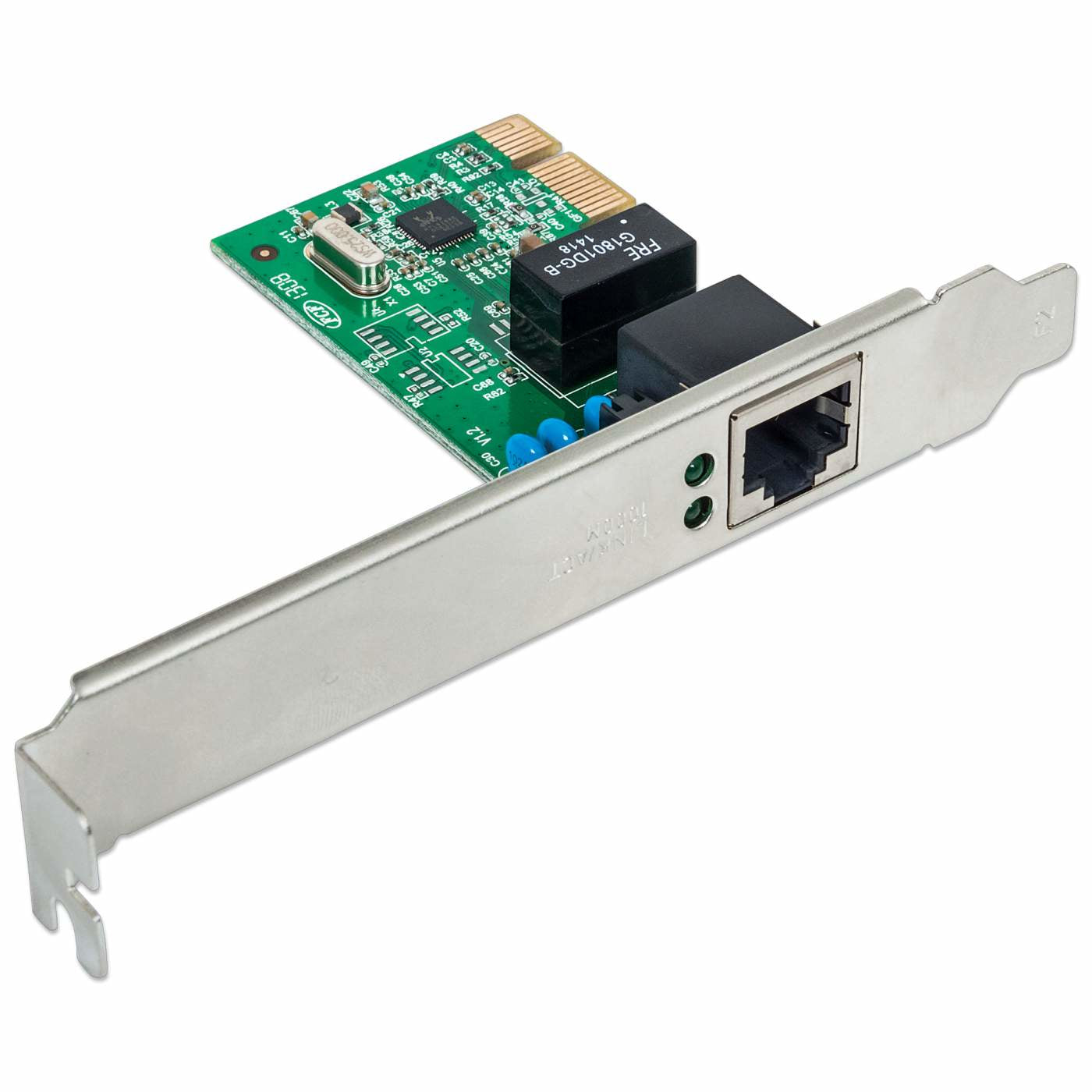

Intellinet Gigabit PCI Express Network Card, 10/100/1000 Mbps PCI Express RJ45 Ethernet Card
Stock: 0 units
Description
Description
Product overview
The Gigabit PCI Express Network Card is a high-performance network adapter. It supports the PCI Express bus architecture, which provides faster throughput than the current 32- and 64-bit PCI bus architectures. And there is no need to switch to fibre optic cable - The Intellinet Network Solutions Gigabit PCI Express Network Card allows you to run Gigabit speeds over your existing copper wire network cable. Faster Throughput. The PCI Express host interface supports throughput rates of up to 2 Gbps when running in full duplex mode, ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications. Auto-Negotiation. The Gigabit PCI Express Network Card will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet. Full Duplex. When running in full duplex mode, the Gigabit PCI Express Network Card provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet). Built-In Diagnostics. The Gigabit PCI Express Network Card comes standard with crossover detection and auto correction capabilities that make installation and maintenance a snap. Remote Power On. The Wake-On-LAN feature allows you to power on your desktop PC from anywhere on the network.
Why choose the Intellinet Gigabit PCI Express Network Card, 10/100/1000...?
The Intellinet Gigabit PCI Express Network Card, 10/100/1000 Mbps PCI... is a network cards from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Host interface: PCI Express; Interface: Ethernet. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Full duplex | Yes |
| Component for | PC |
| Internal | Yes |
| Certification | FCC & CE |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 122 mm |
| Depth | 254 mm |
| Height | 89 mm |
| Weight | 108.3 g |
| Manual | Yes |
| Compliance certificates | Federal Communications Commission (FCC) |
| Harmonized System (HS) code | 85176990 |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Supported data transfer rates | 10/100/1000 MBit/s |
| Link/Act LED | Yes |
| Brand | Intellinet |
| Manufacturer part number | 522533 |
| GTIN / UPC | ['0766623522533', '766623522533'] |
