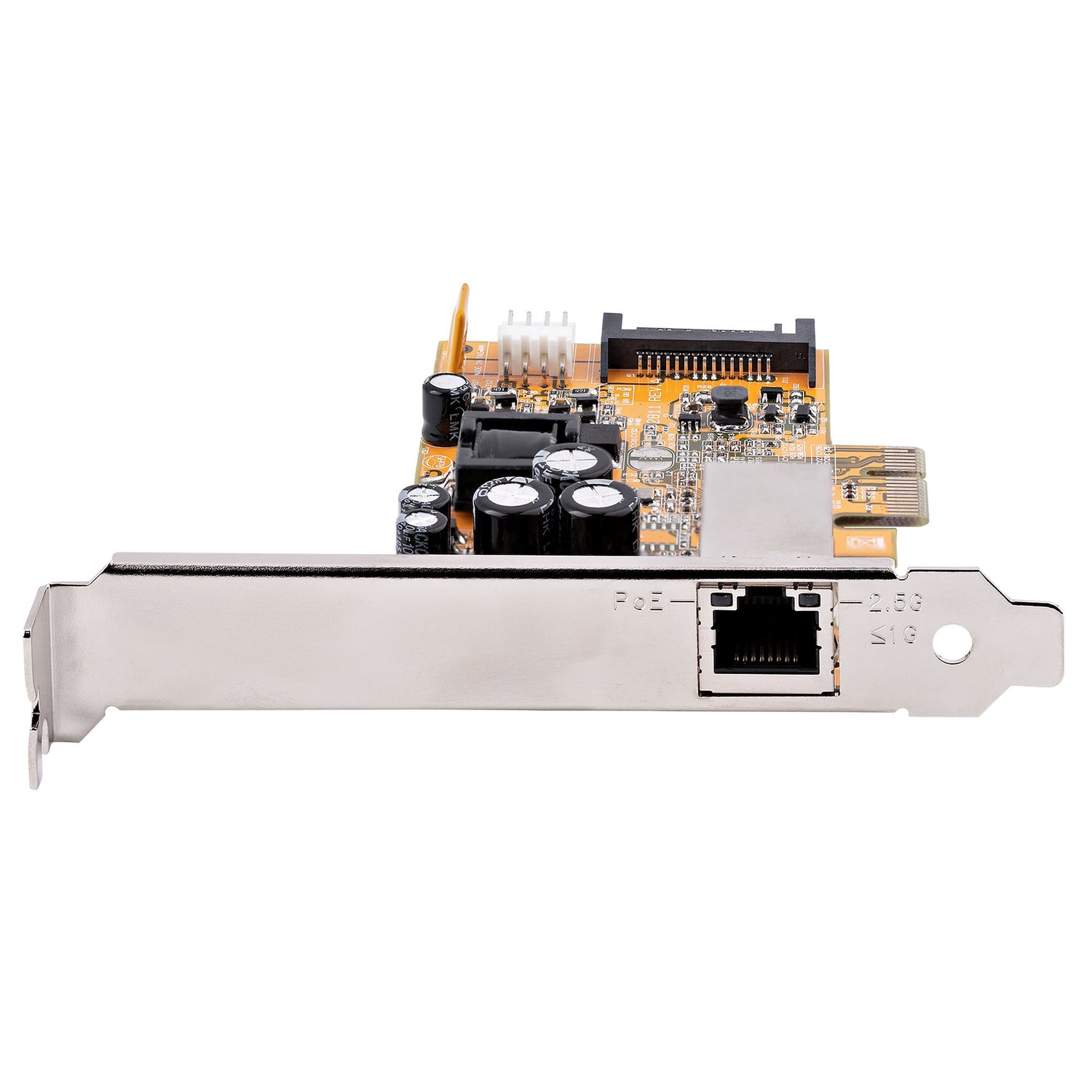

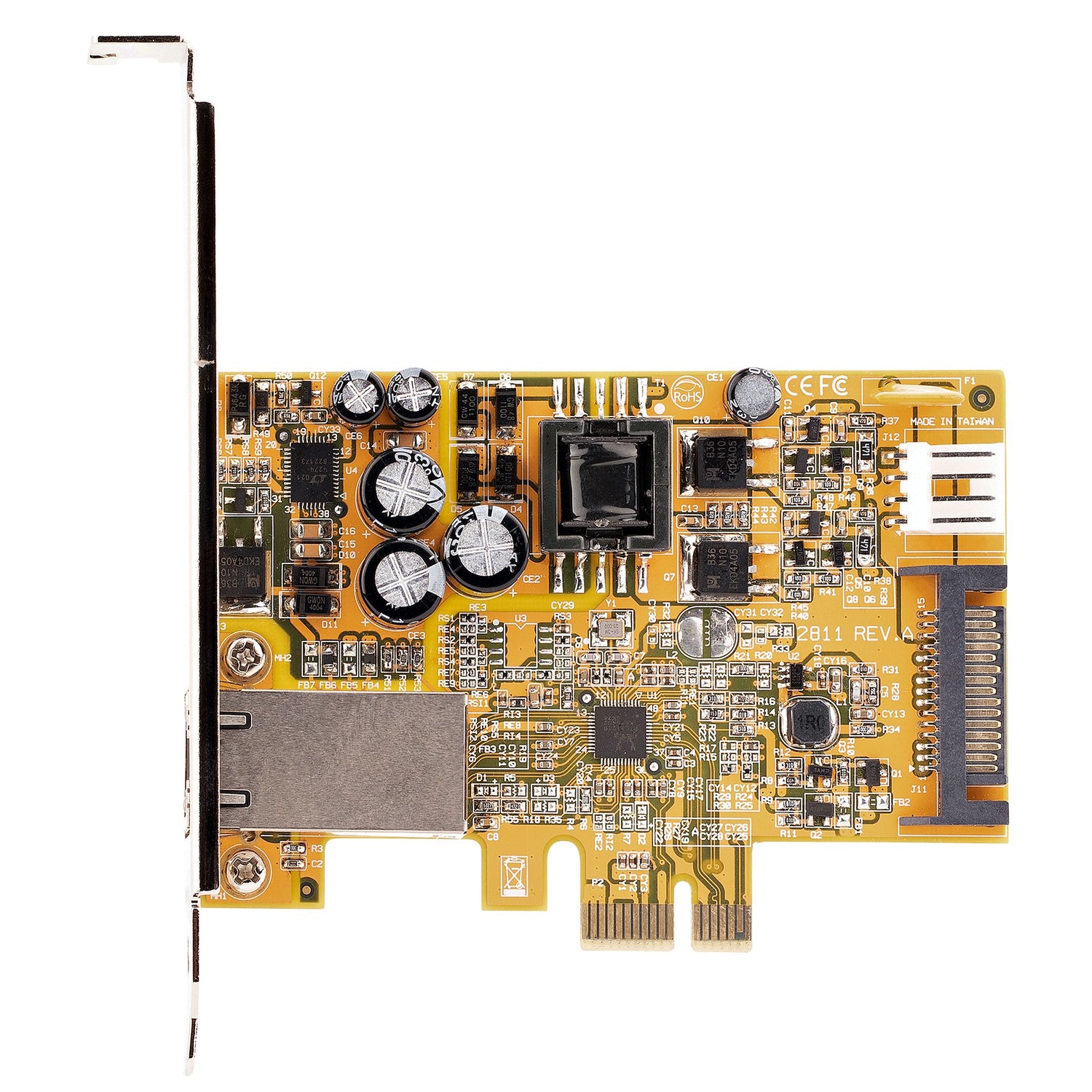

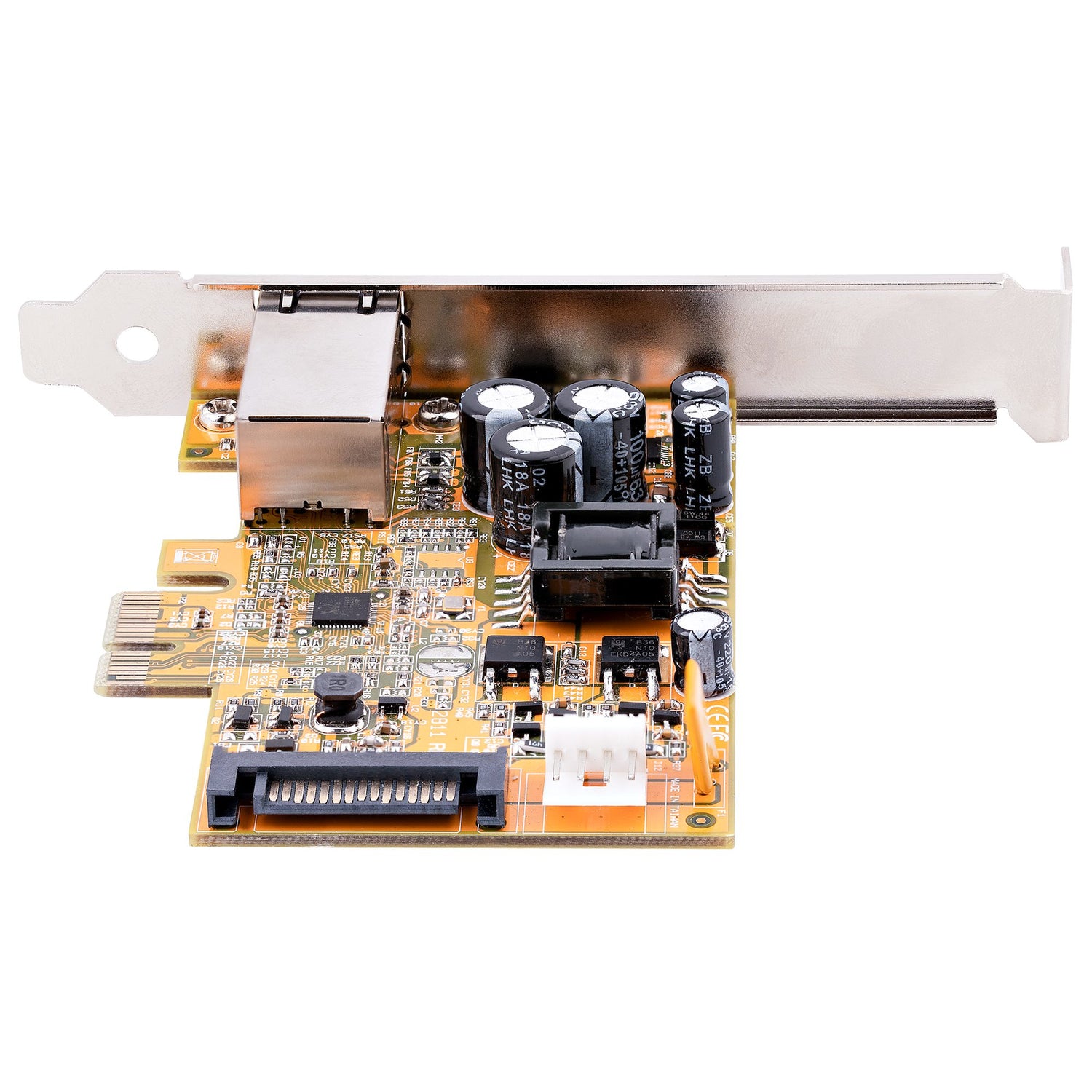

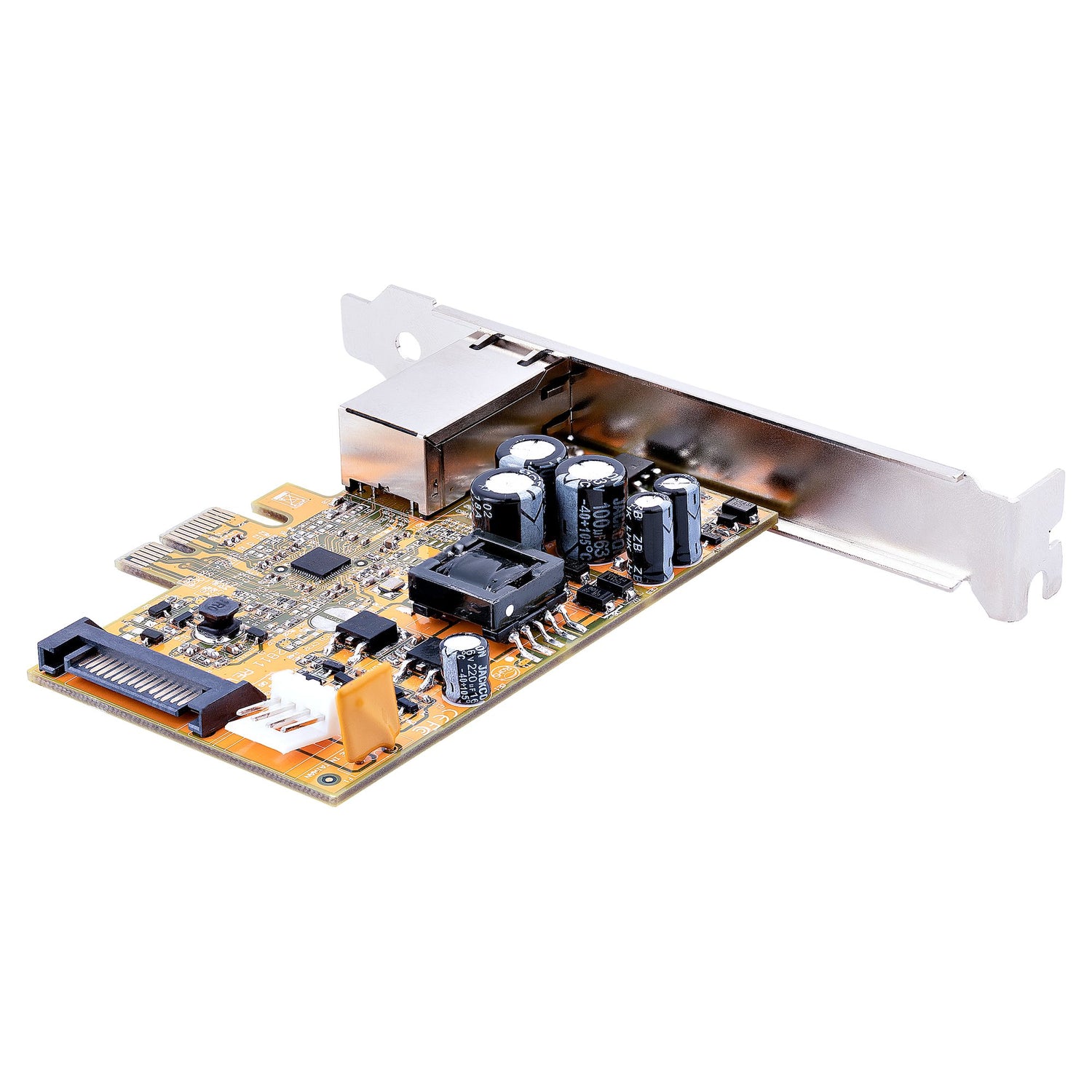

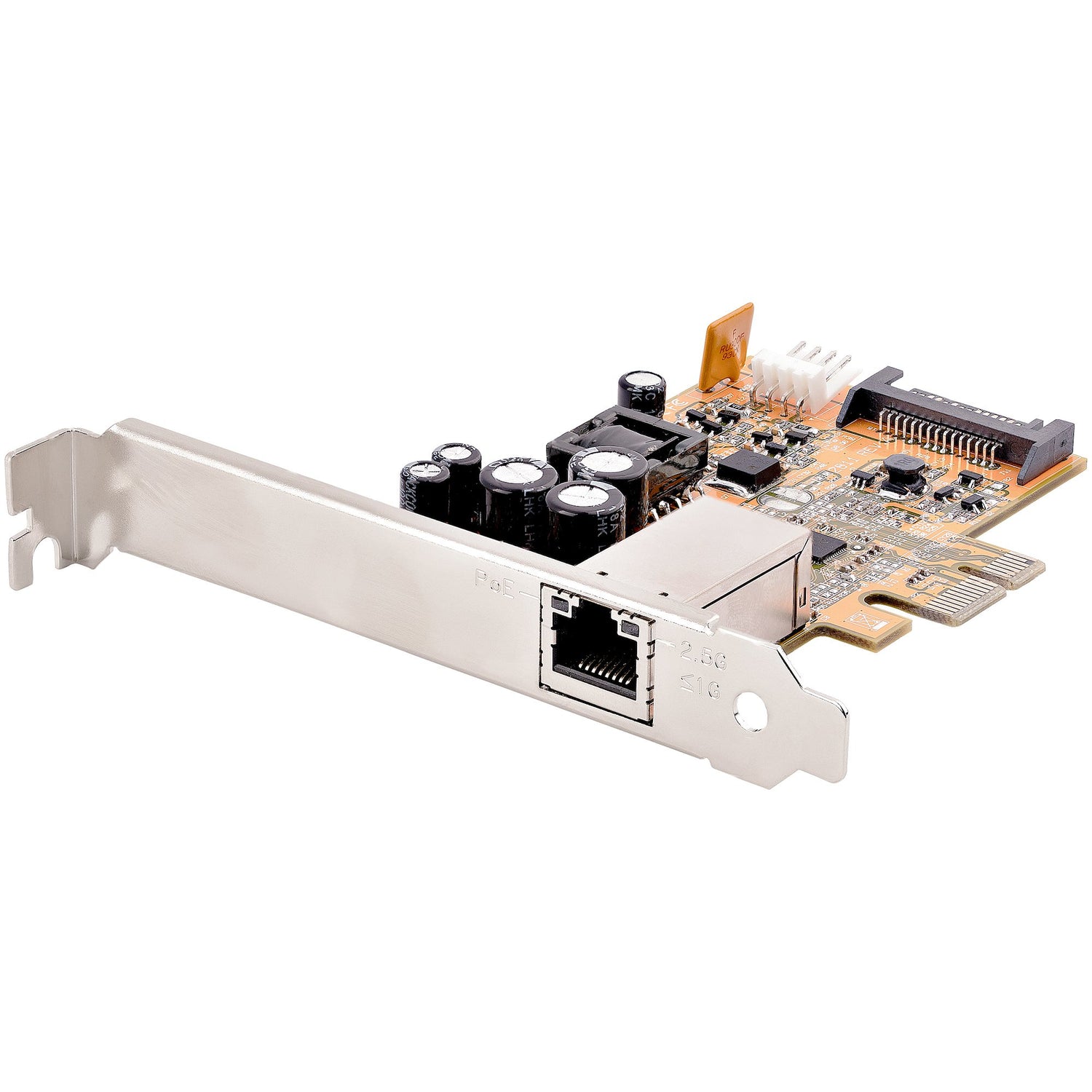

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux - TAA
Stock: 0 units
Description
Description
Product overview

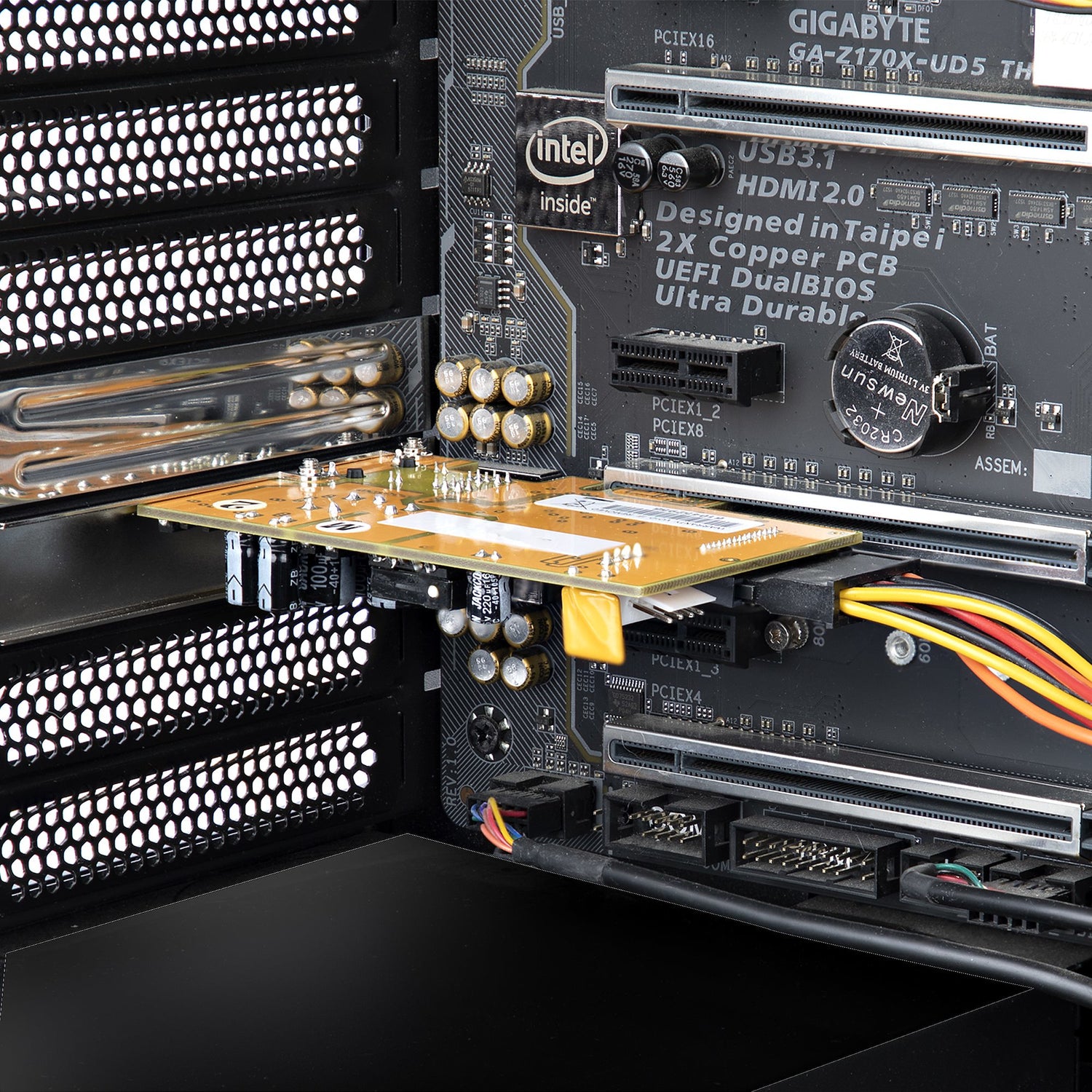

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation. Versatile Network PoE Card The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points. Enhance Existing Hardware The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment. Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE. This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
Why choose the StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet...?
The StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card... is a network cards from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Host interface: PCI Express; Interface: Ethernet. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| PCI version | 2.1 |
| PCI Card form factor | Full-height (low-profile) |
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| VLAN tagging | Yes |
| Maximum operating distance | 100 m |
| Component for | PC/Server |
| Internal | Yes |
| Chipset | Realtek RTL8125B |
| LED indicators | Yes |
| Output voltage | 48 V |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability compliance | Yes |
| Width | 63 mm |
| Depth | 95 mm |
| Height | 15 mm |
| Weight | 220 g |
| Package width | 144 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 220 g |
| Mounting brackets included | Yes |
| Brand | StarTech.com |
| Manufacturer part number | ST1000PEXPSE |
| GTIN / UPC | ['0065030893107', '065030893107'] |
