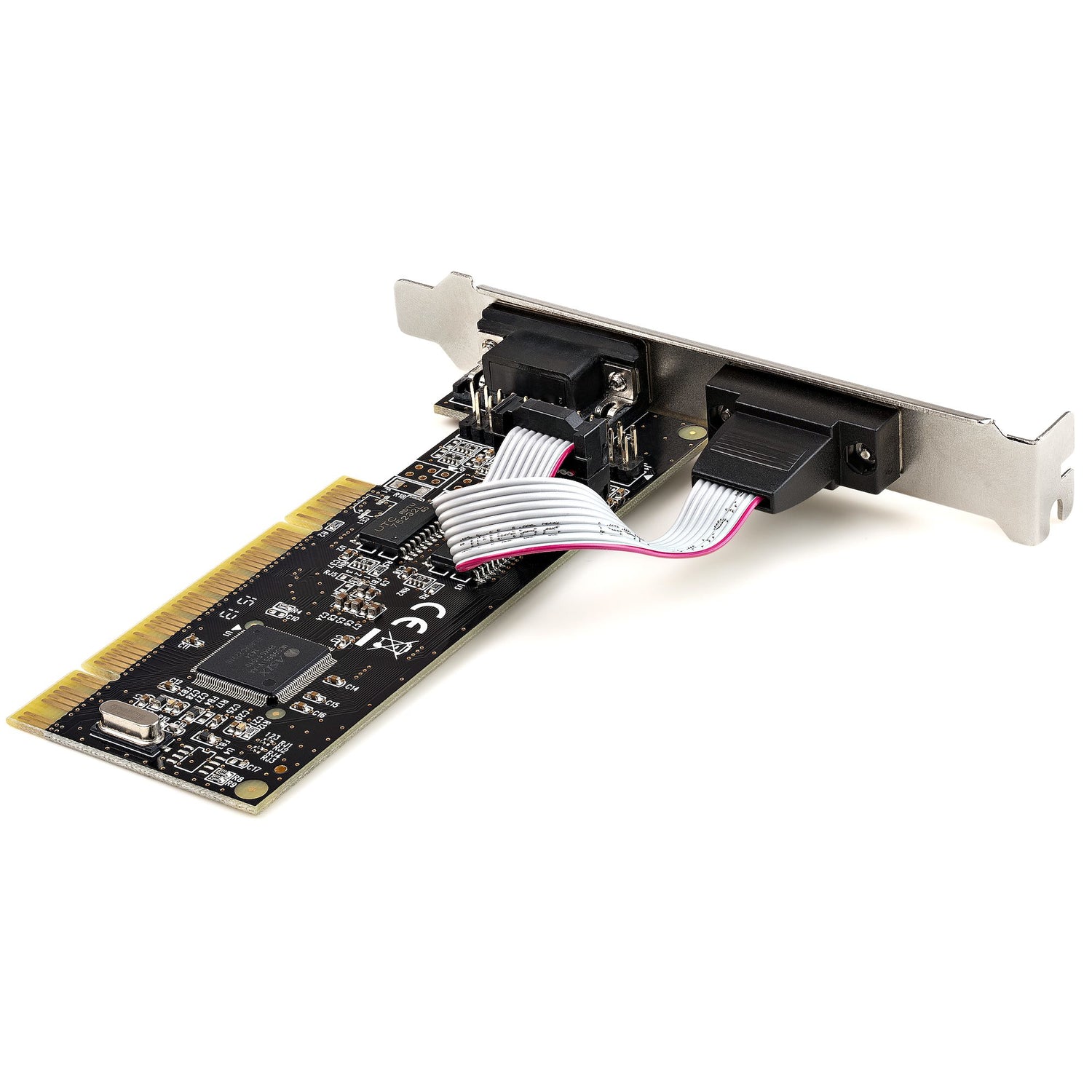

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card
Stock: 200 units
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 ...
Description
Description
Product overview

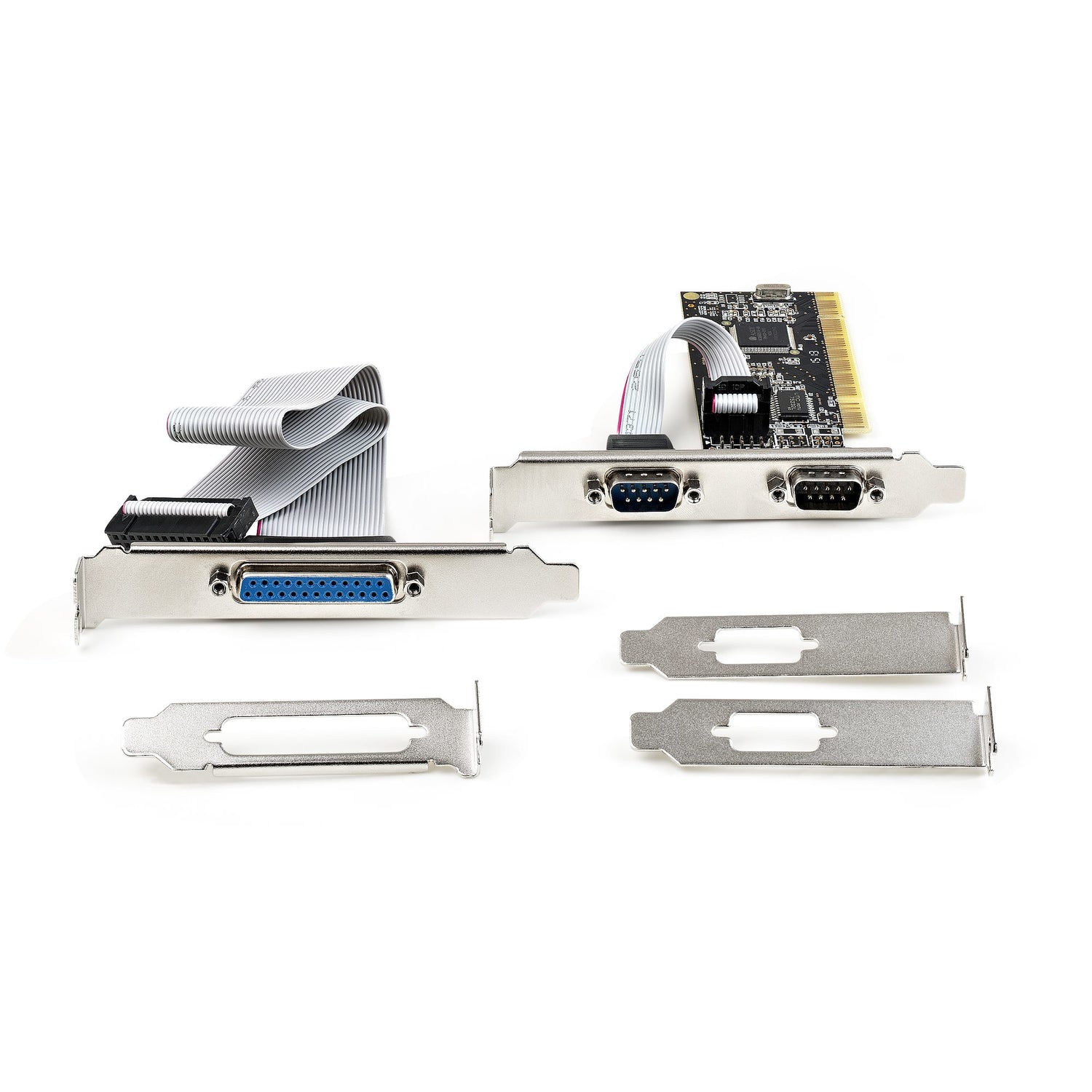

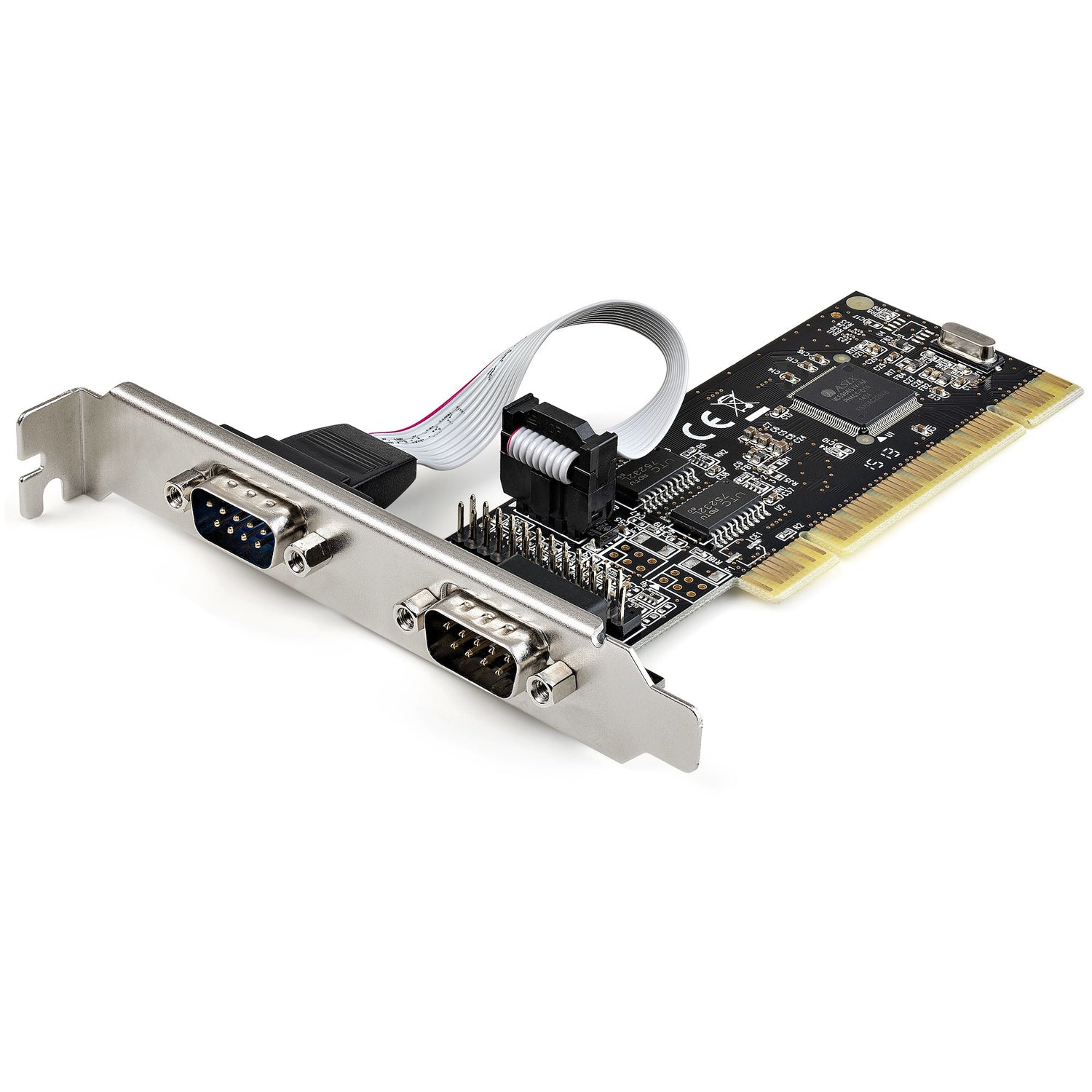

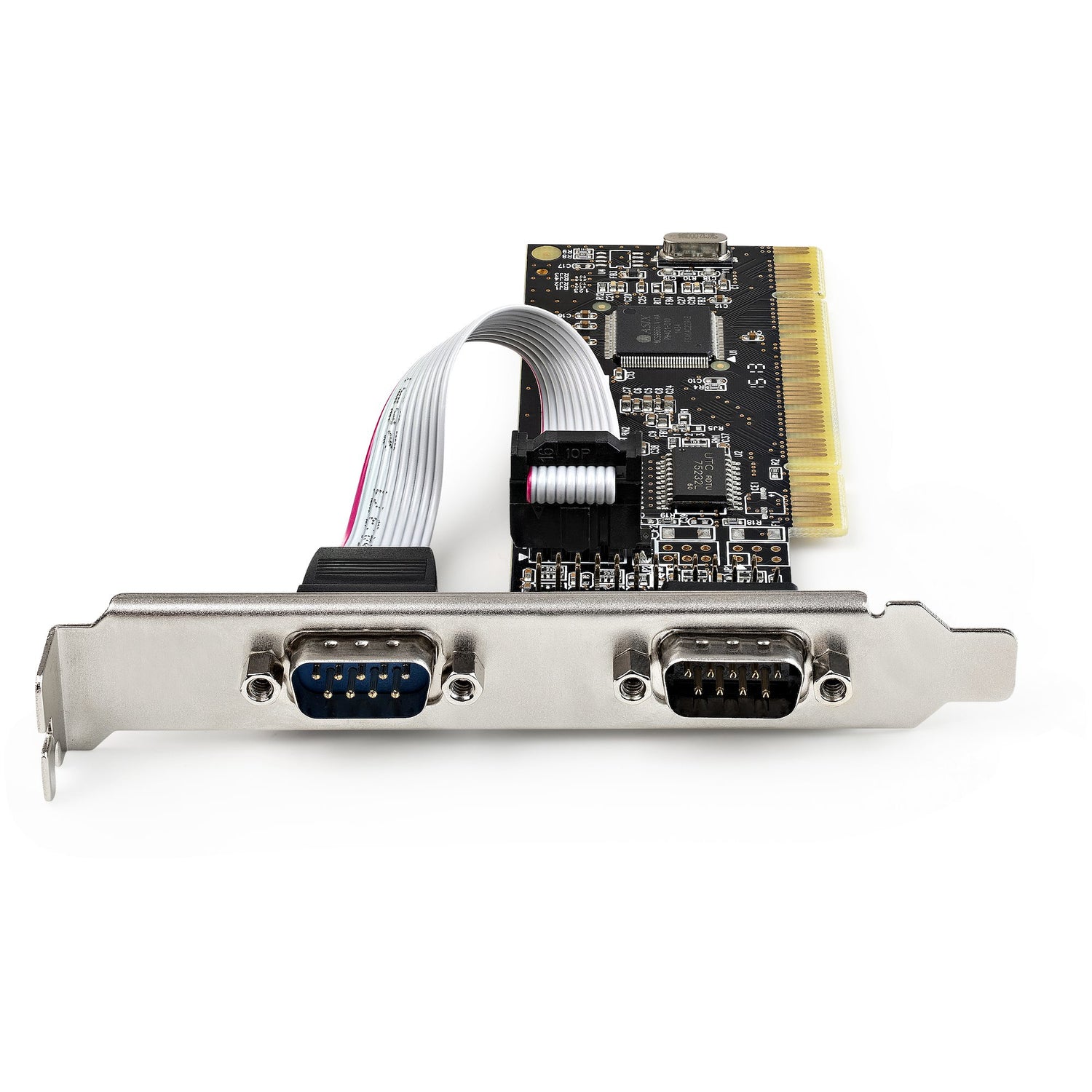

PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty This PCI 1x Parallel and 2x Serial Combo Card installs into a single PCI slot in your computer (occupying 2 to 3 expansion slots, depending on profile), and adds a DB25 IEEE 1284 parallel port and two DB9 RS 232 serial ports to your system. Adds an LPT Parallel Port The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps. Adds a COM Serial Port The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit. Wide Installation Compatibility With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor. PCI2S1P2 is...
Why choose the StarTech.com PCI Serial Parallel Combo Card with Dual...?
The StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCI/PCI-X; Output interface: Serial; Expansion card form factor: Full-height / Low-profile. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Internal | Yes |
| Product colour | Black |
| Chipset | Asix - MCS9865 |
| Data transfer rate (max) | 0.0015 Gbit/s |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | CE, RoHS |
| Width | 21.6 mm |
| Depth | 134 mm |
| Height | 120 mm |
| Weight | 141 g |
| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 190 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 340 mm |
| Brand | StarTech.com |
| Manufacturer part number | PCI2S1P2 |
| GTIN / UPC | ['0065030891301', '065030891301'] |
