Brainboxes PX-306 interface cards/adapter Internal RS-232
Stock: 0 units
Description
Description
Product overview

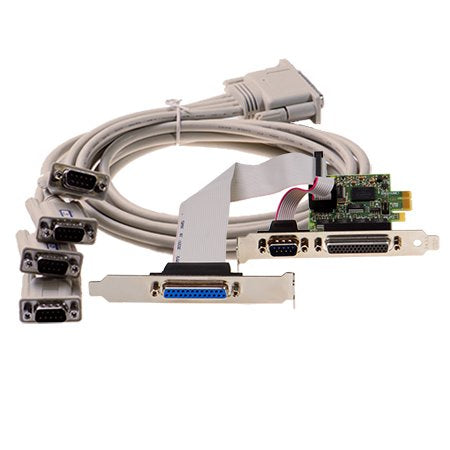

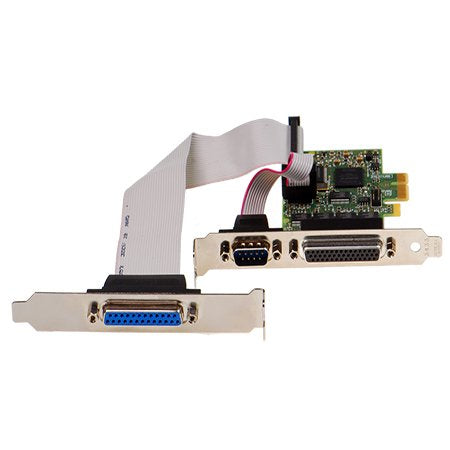

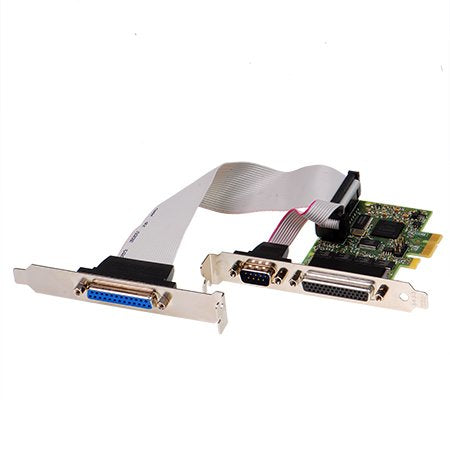

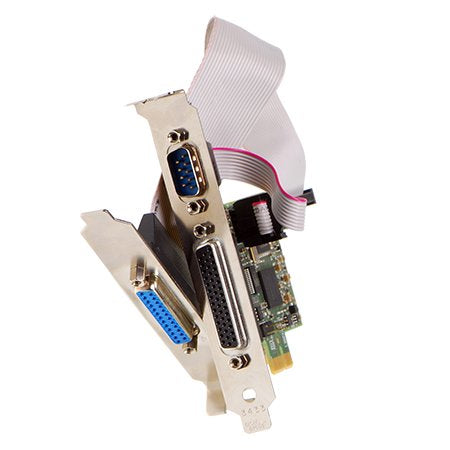

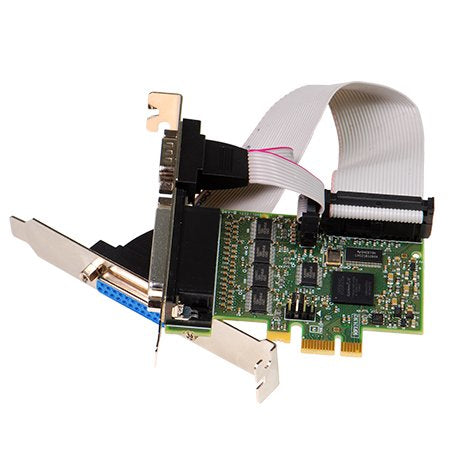

PCI Express Card providing five RS232 serial ports and one LPT port (5 industry standard 9 pin D RS232 ports via a quad cable and 1 x 9 Pin D on a fly lead plus a 25 pin D LPT port on a flylead). Brainboxes' own BB16C958 Uart provides datatransfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Linux.
Why choose the Brainboxes PX-306 interface cards/adapter Internal RS-232?
The Brainboxes PX-306 interface cards/adapter Internal RS-232 is a interface cards/adapters from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: RS-232; Expansion card form factor: Low-profile. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | RS-232 |
| Expansion card form factor | Low-profile |
| Serial ports quantity | 5 |
| Serial interface type | RS-232 |
| Internal | Yes |
| Product colour | Green, Silver |
| Certification | AEO, C-TPAT, Microsoft Certified Gold Partner, WEEE, EMC: CE TAA |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Supports EPP and ECP | Yes |
| Flow control support | Yes |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7... |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server 10, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64 |
| Compliance certificates | RoHS |
| Width | 60 mm |
| Depth | 240 mm |
| Height | 170 mm |
| Weight | 653 g |
| Quantity | 1 |
| Cables included | Printer, RS-232 |
| Package width | 80 mm |
| Package depth | 200 mm |
| Package height | 135 mm |
| Package weight | 1.23 kg |
| Brand | Brainboxes |
| Manufacturer part number | PX-306 |
| GTIN / UPC | ['0837324002942', '837324002942'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
