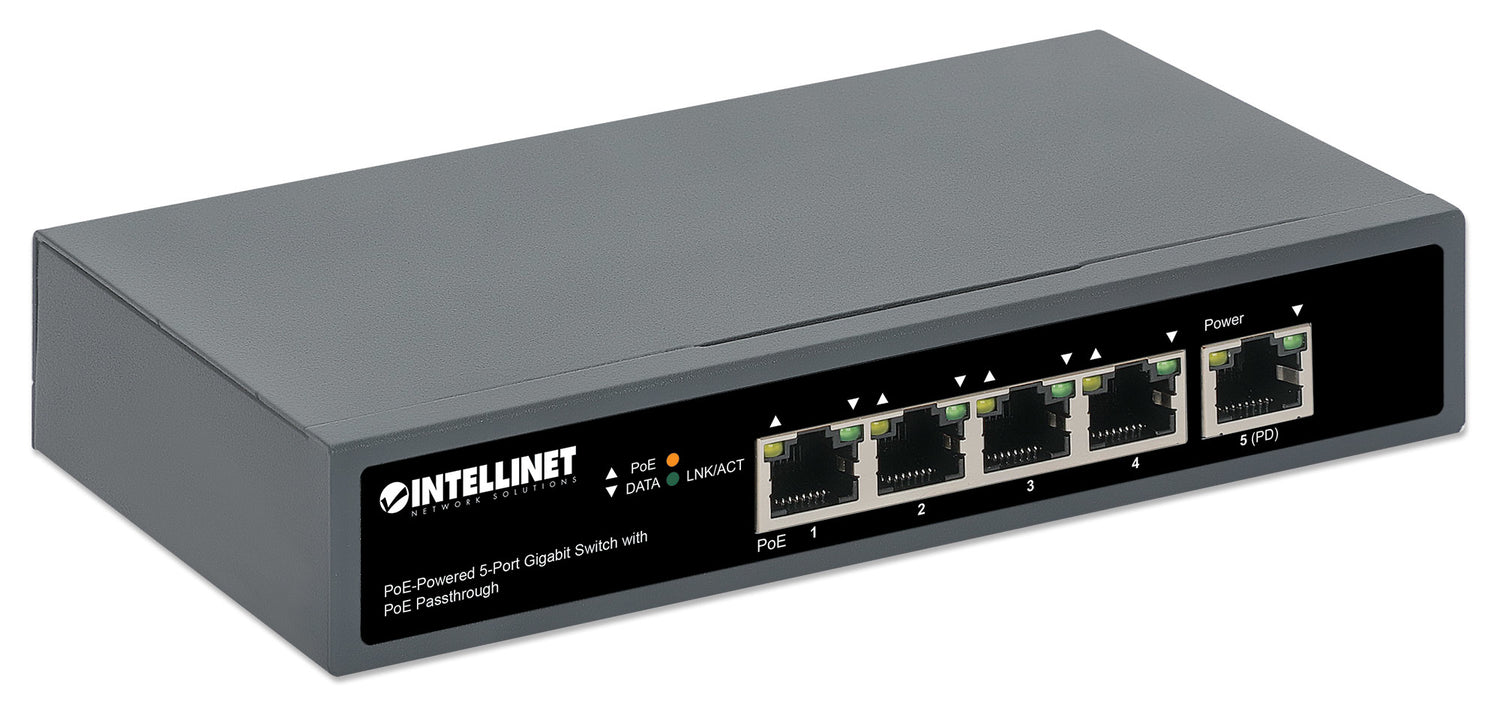

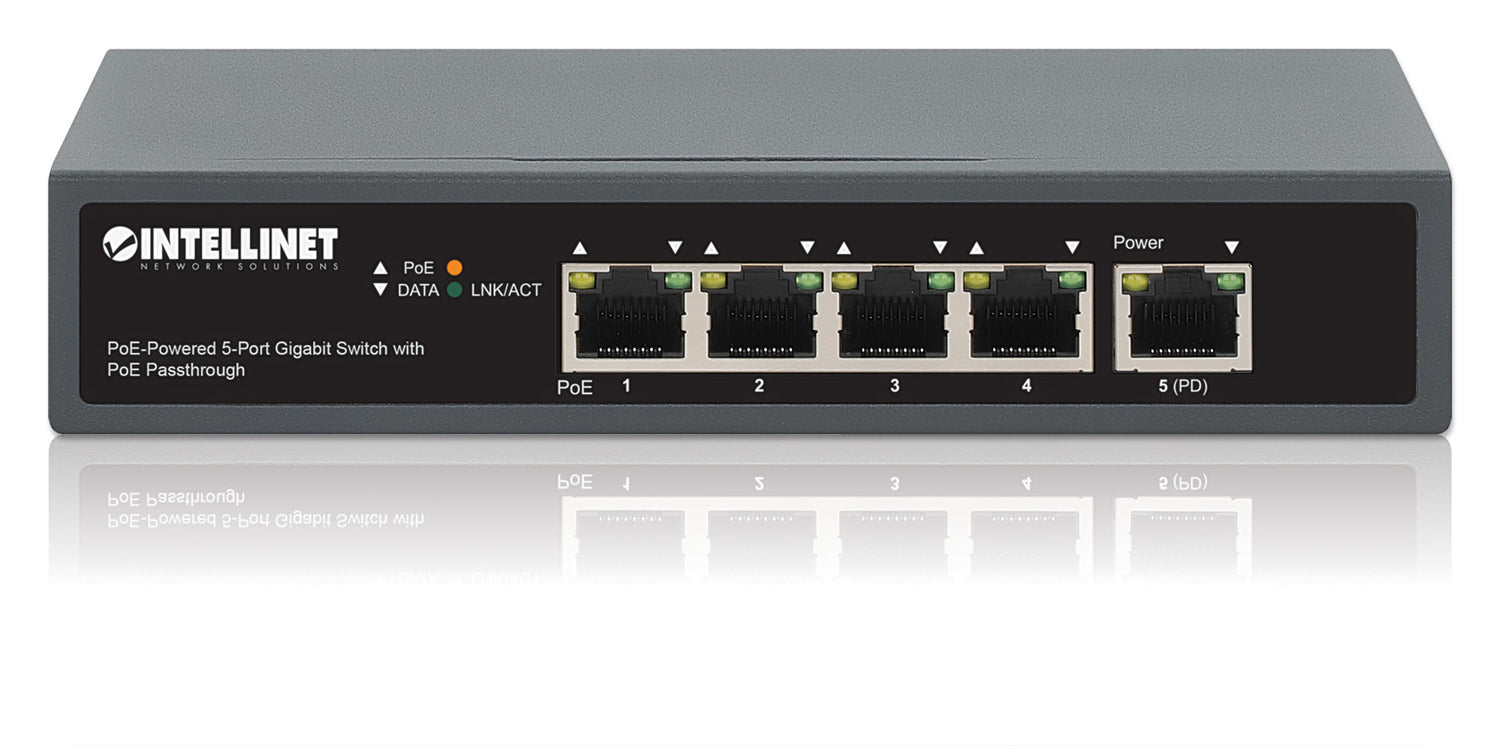

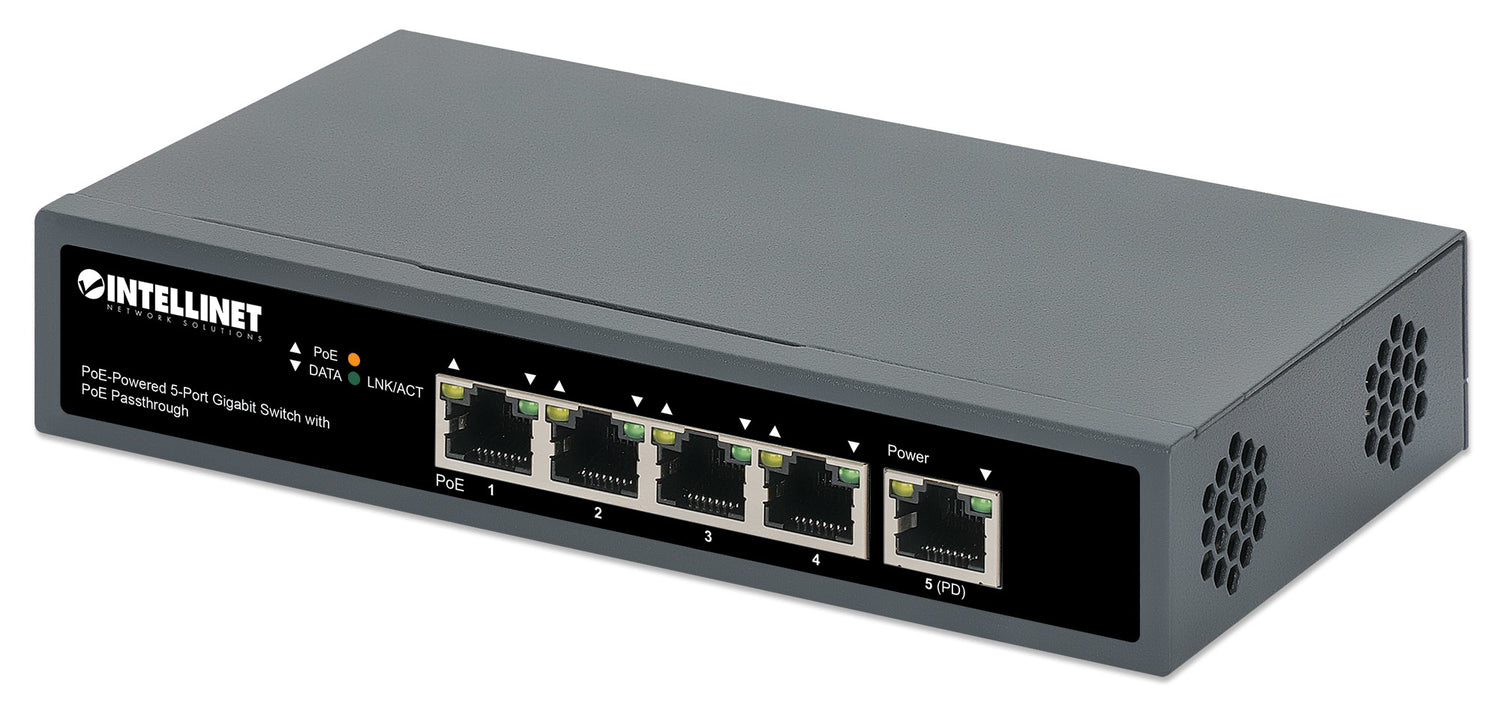

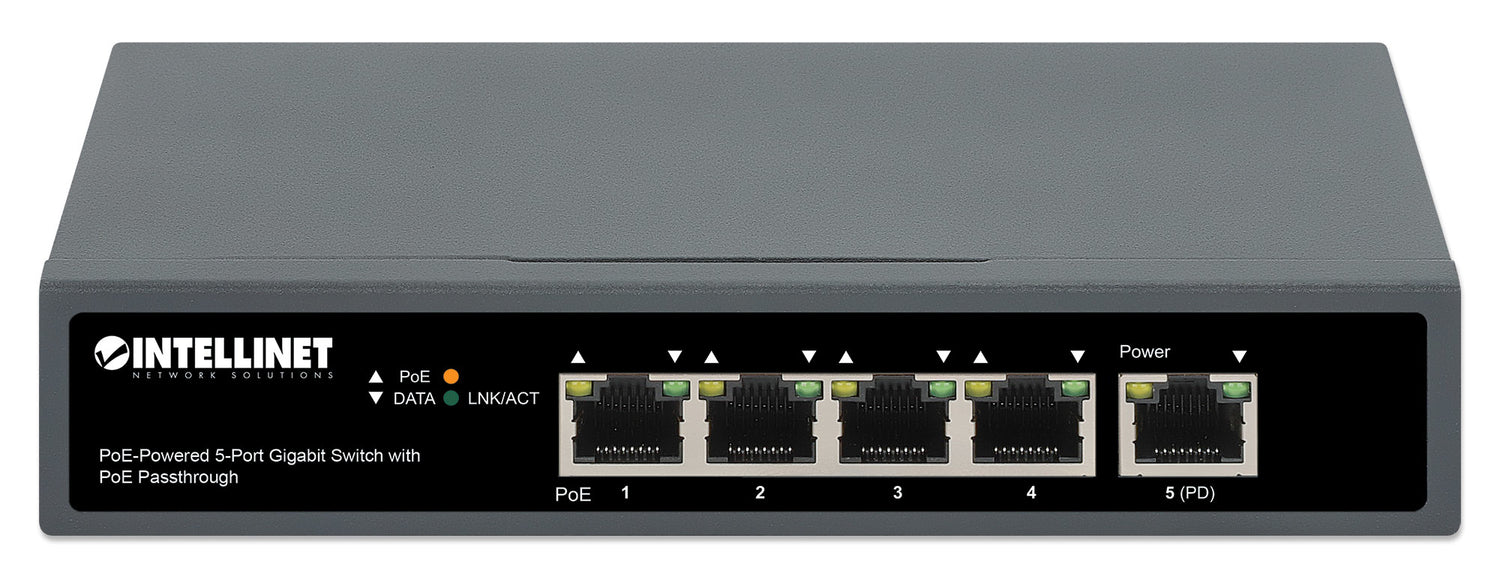

Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant...
Stock: 0 units
Description
Description
Product overview
Get the most out each Power over Ethernet connection with this PoE passthrough switch. The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. Usable as a PoE extender. Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices. Power over Ethernet 802.3bt Compliant. This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The Perfect Workgroup Switch. When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones...
Why choose the Intellinet 5-Port Gigabit Switch with PoE Passthrough, One...?
The Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Basic switching RJ-45 Ethernet ports quantity: 5; Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000); Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1 MB |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 72 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 168 mm |
| Depth | 93 mm |
| Height | 32 mm |
| Weight | 400 g |
| Cables included | AC |
| Manual | Yes |
| Package weight | 900 g |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE, RoHS, UKCA, NDAA |
| Brand | Intellinet |
| Manufacturer part number | 561808 |
| GTIN / UPC | ['0766623561808', '766623561808'] |
