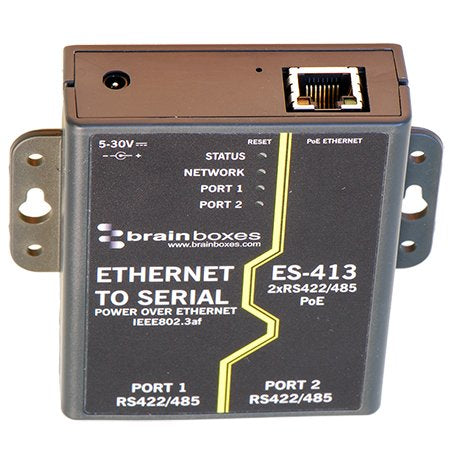

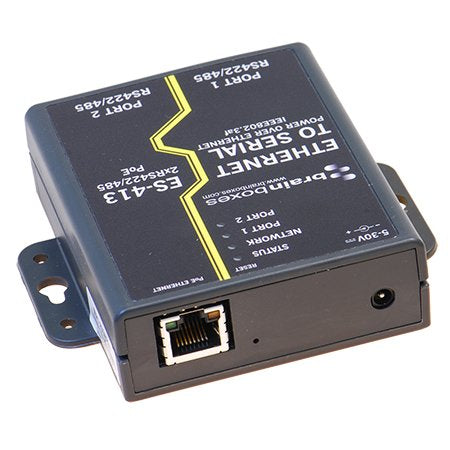

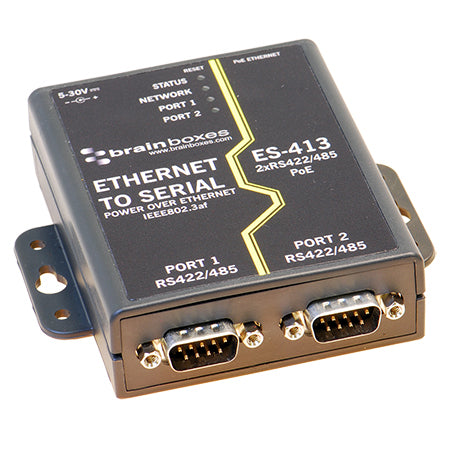

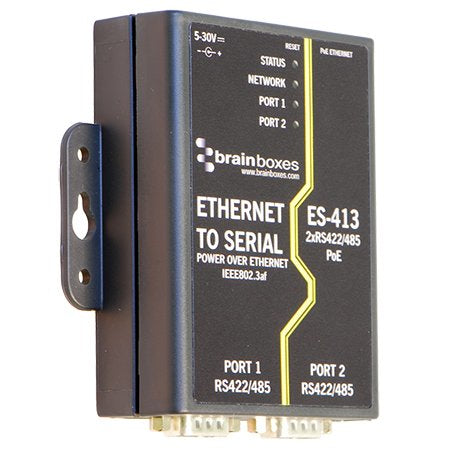

Brainboxes ES-413 serial server RS-422/485
Stock: 0 units
Description
Description
Product overview
Ethernet to Serial device server with Power over Ethernet providing access to two RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Why choose the Brainboxes ES-413 serial server RS-422/485?
The Brainboxes ES-413 serial server RS-422/485 is a serial servers from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Serial ports quantity: 2; Serial interface type: RS-422/485; Ethernet LAN data rates: 10,100 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day office productivity
- Hybrid and remote work
- Field and mobile teams
- Fleet deployments and refresh cycles
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Serial ports quantity | 2 |
| Serial interface type | RS-422/485 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 1 Mbit/s |
| Networking standards | IEEE 802.3af |
| Flow control support | Yes |
| Baud rate | 1000 Kbit/s |
| Auto MDI/MDI-X | Yes |
| Data bits | 5, 6, 7, 8 |
| Flow Control type | RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, Odd, Space |
| Stop bits | 1, 2 |
| Compliance certificates | RoHS |
| Certification | AEO, C-TPAT, Microsoft Certified Gold Partner, WEEE, EMC: CE TAA |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power source type | PoE |
| Input voltage | 5 - 30 V |
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
| LED indicators | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000... |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 |
| Width | 101 mm |
| Depth | 100 mm |
| Height | 27 mm |
| Weight | 131 g |
| Package width | 160 mm |
| Package length | 13.5 cm mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 244 g |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Product colour | Black, White |
| International Protection (IP) code | IP30 |
| User guide | Yes |
| Brand | Brainboxes |
| Manufacturer part number | ES-413 |
| GTIN / UPC | ['0837324003789', '837324003789'] |
