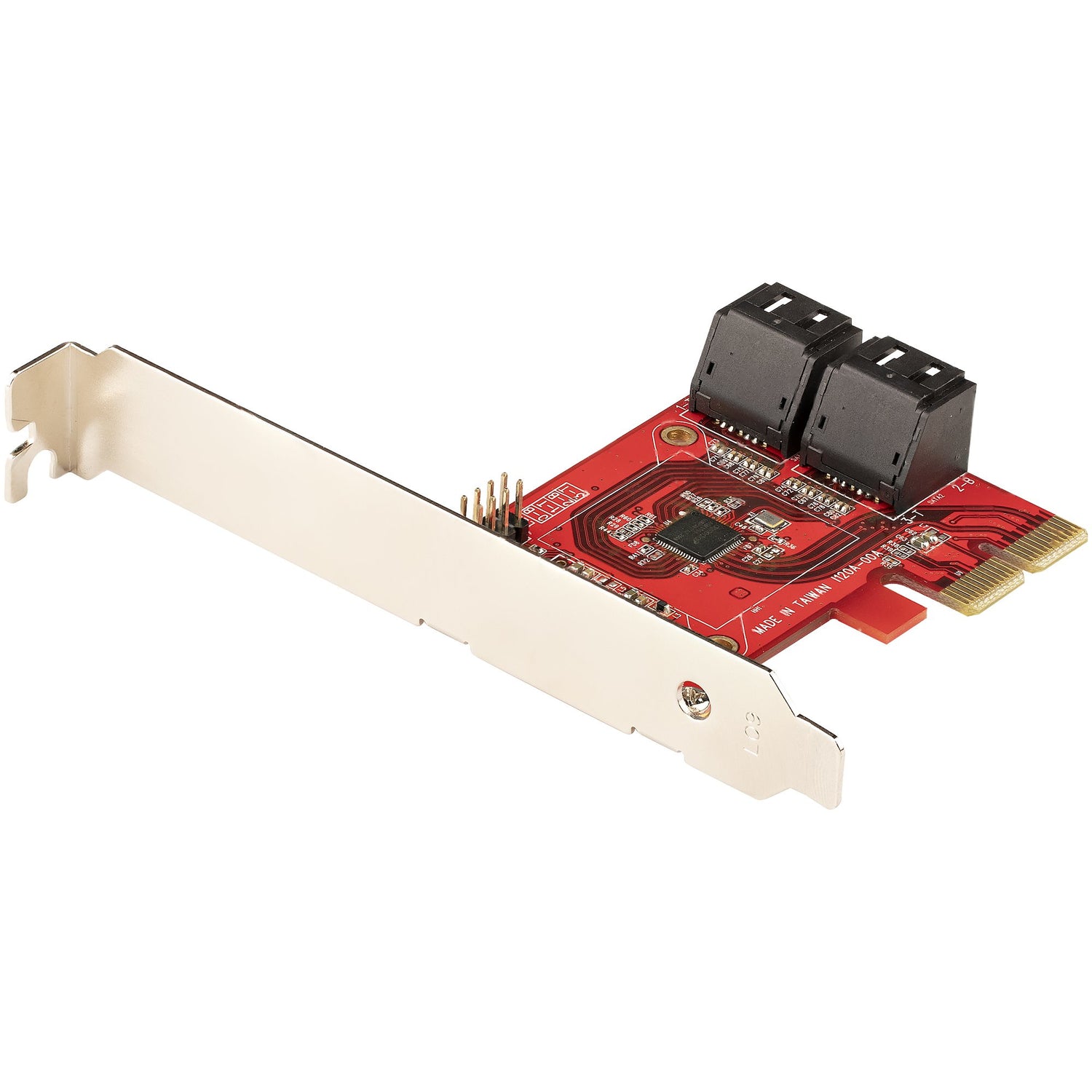

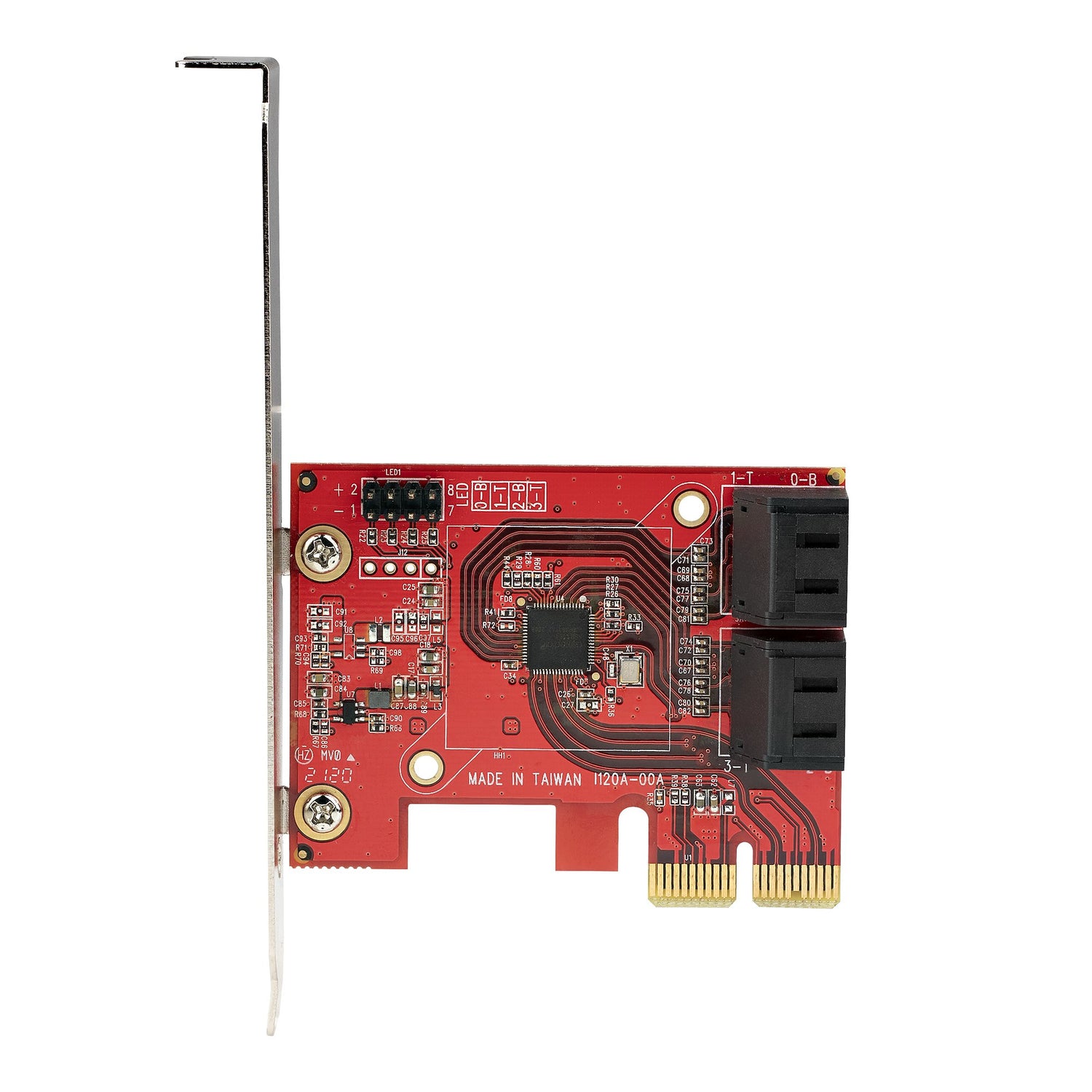

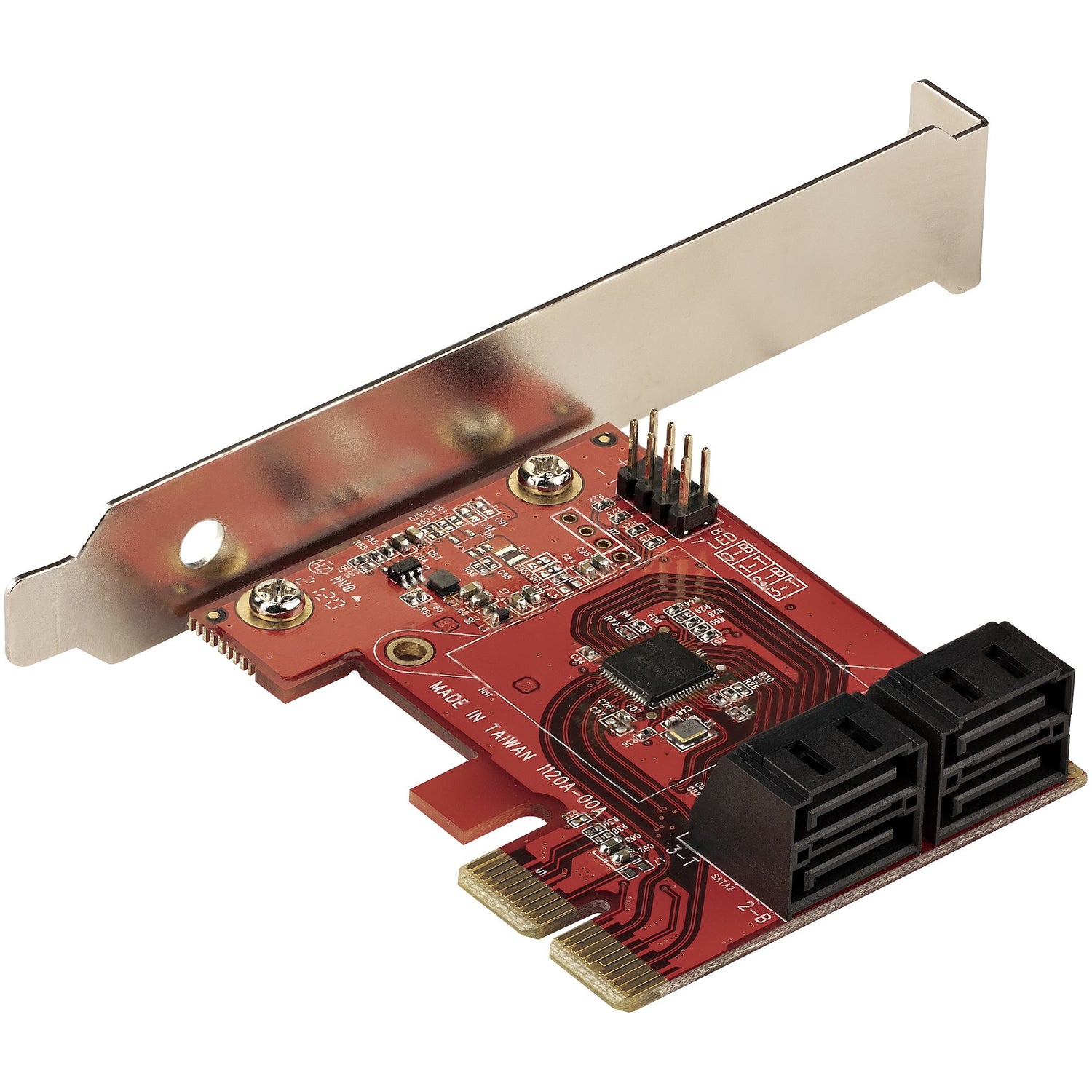

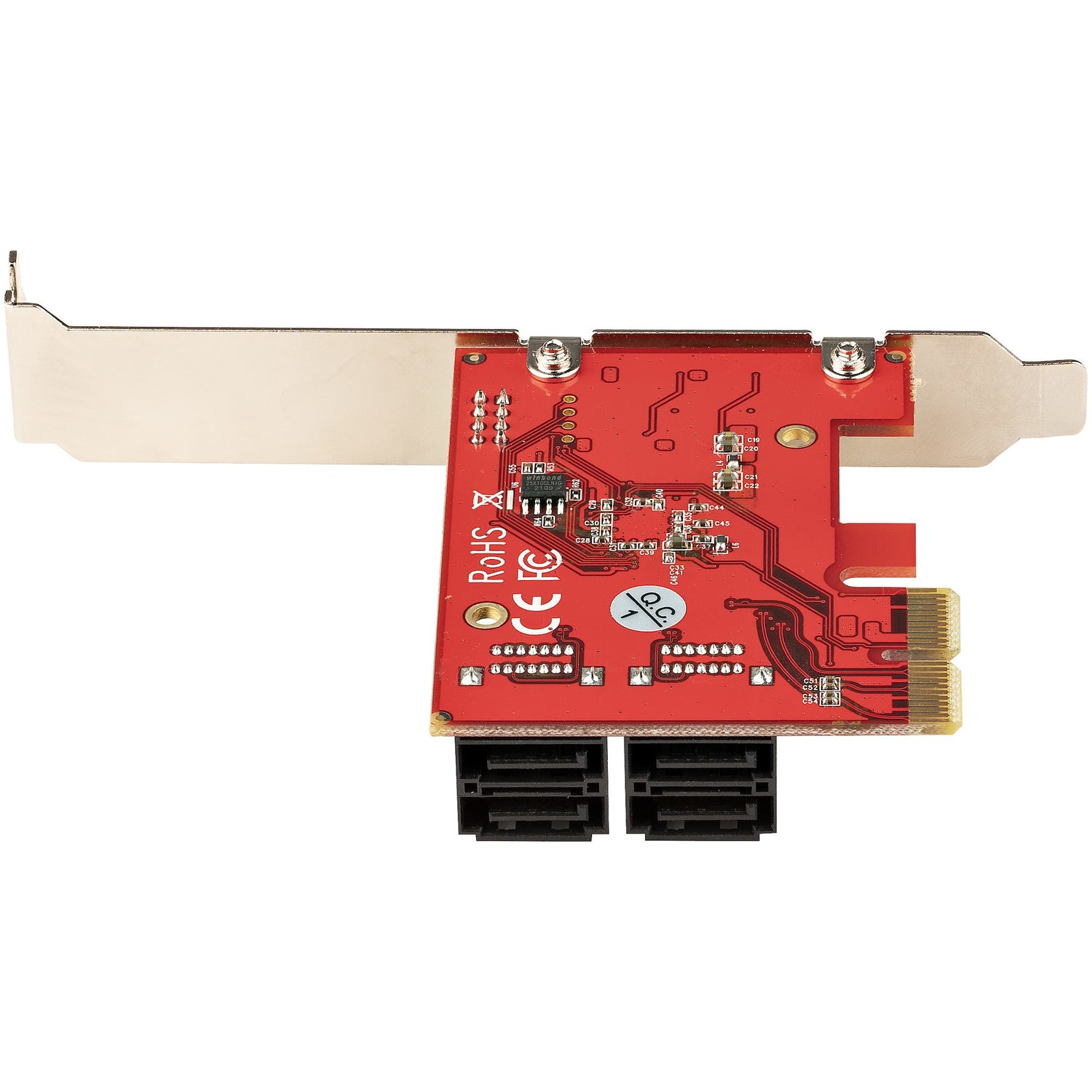

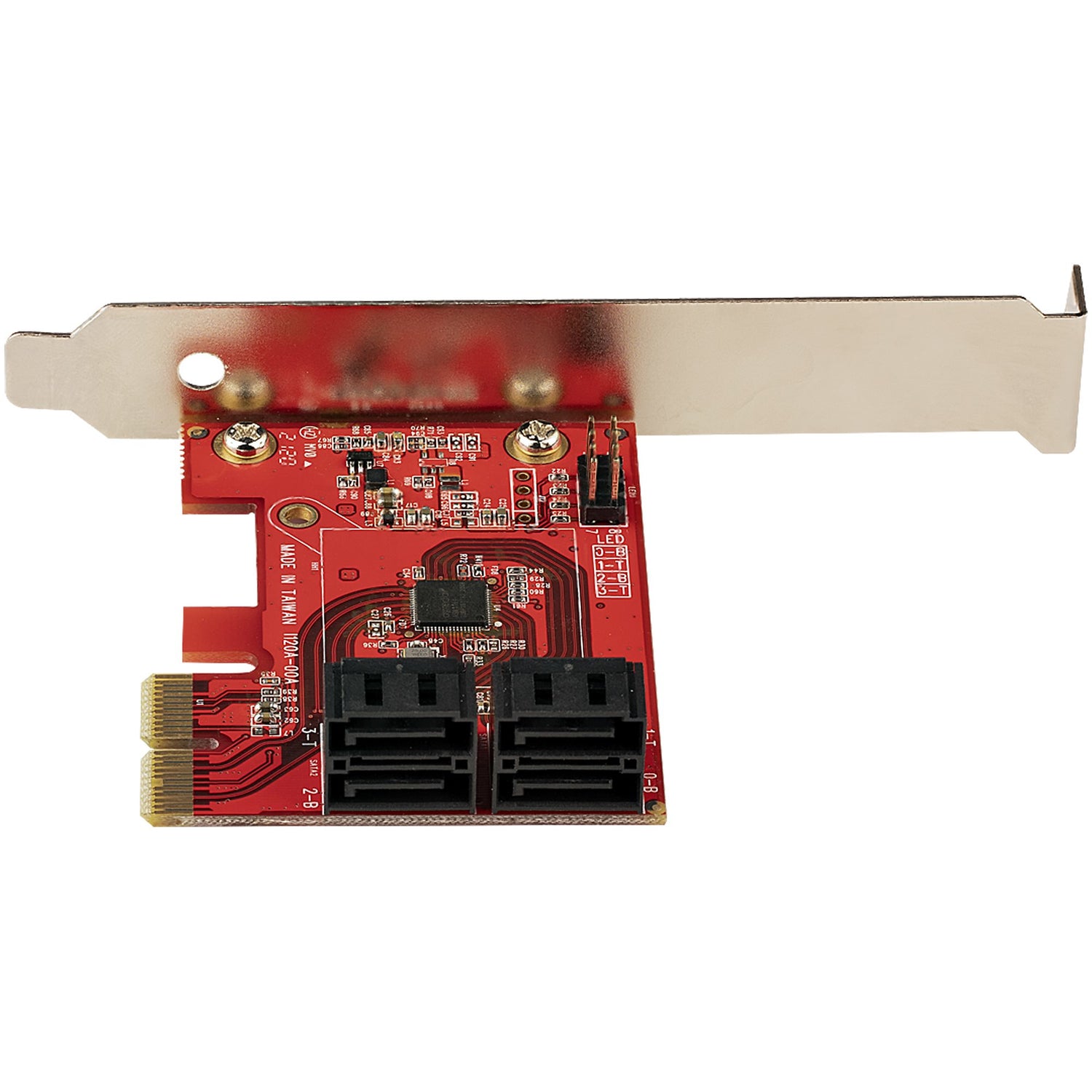

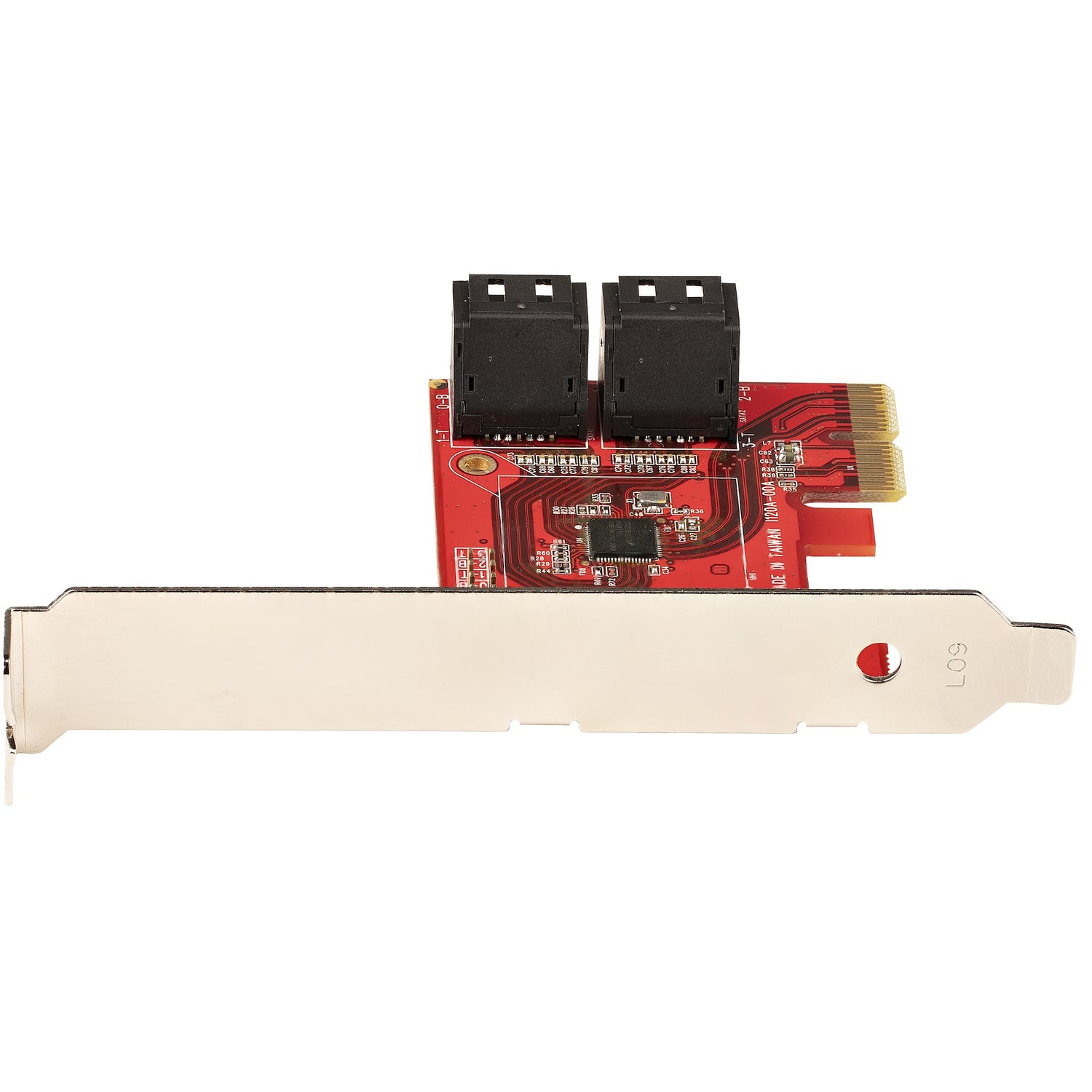

StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter - TAA
Stock: 565 units
StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gb...
Description
Description
Product overview
SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications. ASM1164 to Deliver 4-Port SATA 6Gbps Performance Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance. Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket...
Why choose the StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion...?
The StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: SATA; Expansion card standard: PCIe 3.0. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| Expansion card standard | PCIe 3.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Internal | Yes |
| Product colour | Red |
| Chipset | ASMedia - ASM1164 |
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | CE, RoHS |
| Width | 56 mm |
| Depth | 70 mm |
| Height | 16 mm |
| Weight | 75 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 173 mm |
| Package height | 33 mm |
| Package weight | 115 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 381 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 516 mm |
| Brand | StarTech.com |
| Manufacturer part number | 4P6G-PCIE-SATA-CARD |
| GTIN / UPC | ['0065030893879', '065030893879'] |
