APC Automatic Transfer Switch AP4423A - (8x) C13 + (1x) C19, 3680W, Rack mountable, 1U
Stock: 0 units
Description
Description
Product overview

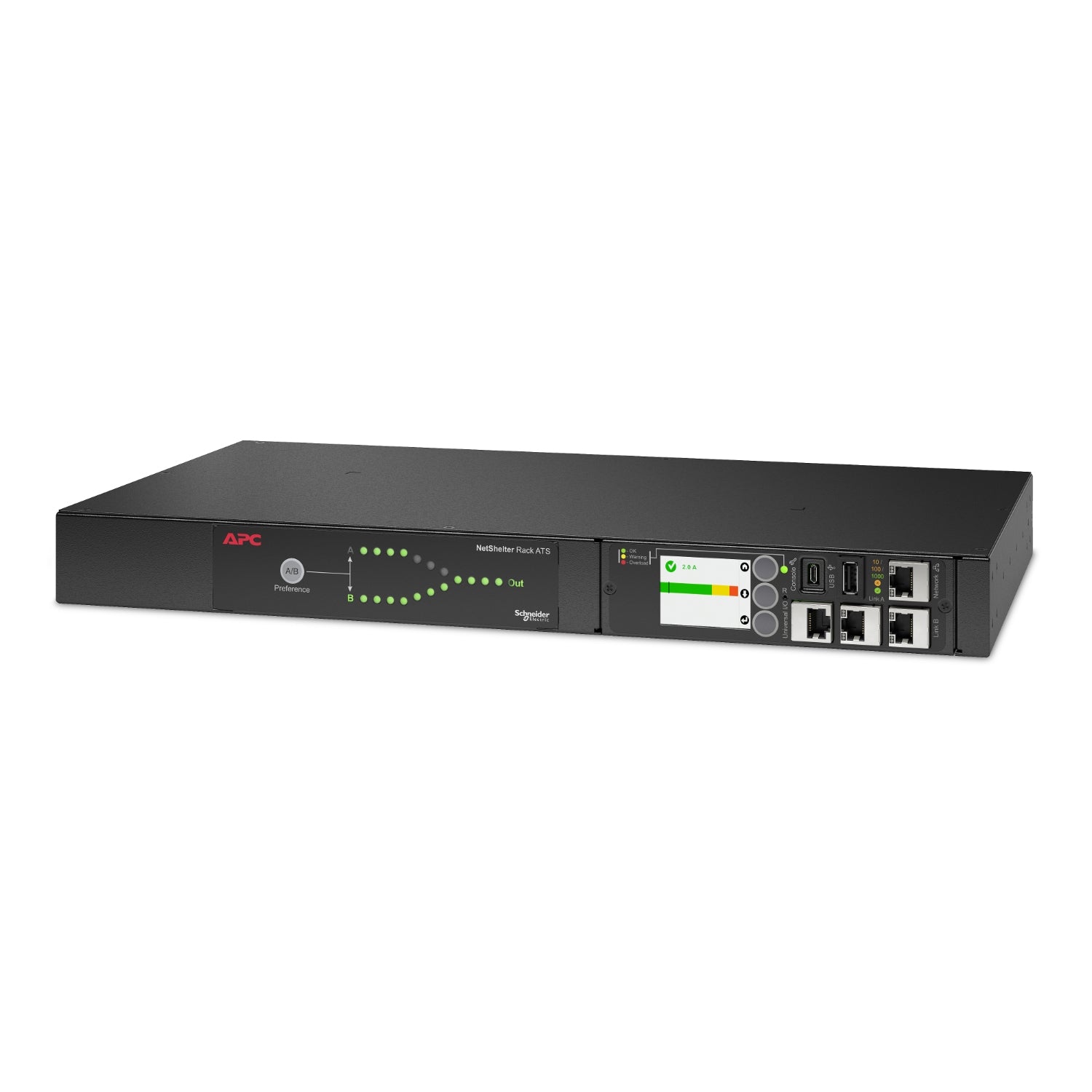

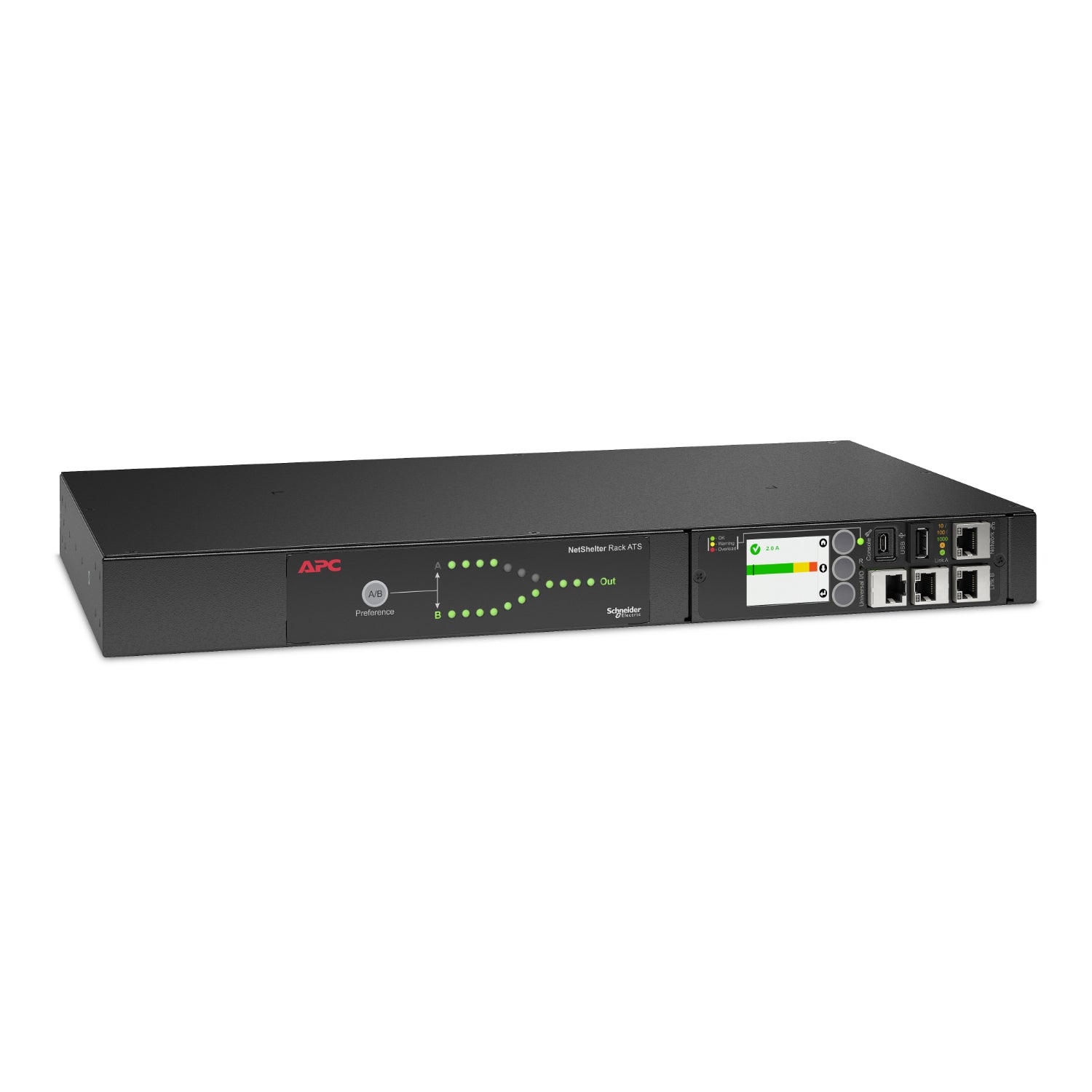

Increase availability. An APC Rack Automatic Transfer Switch makes it possible to connect single-powered hardware to two different power sources, in order to increase the availability of this connected hardware and prevent costly downtime. Because an APC Rack ATS uses two input power cords (not included), it can be connected to two different power sources at the same time. By then connecting single-powered hardware to the Rack ATS, this hardware can have access to 2 separate power sources. If one source fails, the Rack ATS immediately switches to the second feed, without the connected hardware being affected. Easy to use. You can read the status of the APC Rack ATS at a glance via the front panel interface, but you can also manage it remotely thanks to its built-in network management functionality. Convenience. Because this Rack ATS is equipped with multiple outputs, multiple single-powered devices can be connected to the ATS at the same time, so that all benefit from the security of two feeds. Safety. The built-in intelligent interface allows this APC rack ATS to monitor both input power sources, detect deviations in voltage or frequency and then take a user-defined action, such as sending an alarm or switching. Accessories. Connect the APC ATS using 2x the AP9875, (C19-Schuko), AP9876 (C19-IEC309 16A) or AP9877 (C19-C20) and provide the ATS with a temperature and humidity sensor (AP9335TH). You can prevent loose power cords with a retention bracket the AP7769. Warranty extension. The factory warranty of this APC Rackmount Automatic Transfer Switch is 2 years and can be...
Why choose the APC Automatic Transfer Switch AP4423A - (8x) C13 + (1x)...?
The APC Automatic Transfer Switch AP4423A - (8x) C13 + (1x) C19, 3680W... is a automatic transfer switches (atss) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Input operation voltage (min): 207 V; Input operation voltage (max): 253 V; AC input frequency: 50 - 60 Hz. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Input operation voltage (min) | 207 V |
| Input operation voltage (max) | 253 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 A |
| Output current | 16 A |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE, cUL listed, EN 55022 class A, FCC part 15 class A, UL listed |

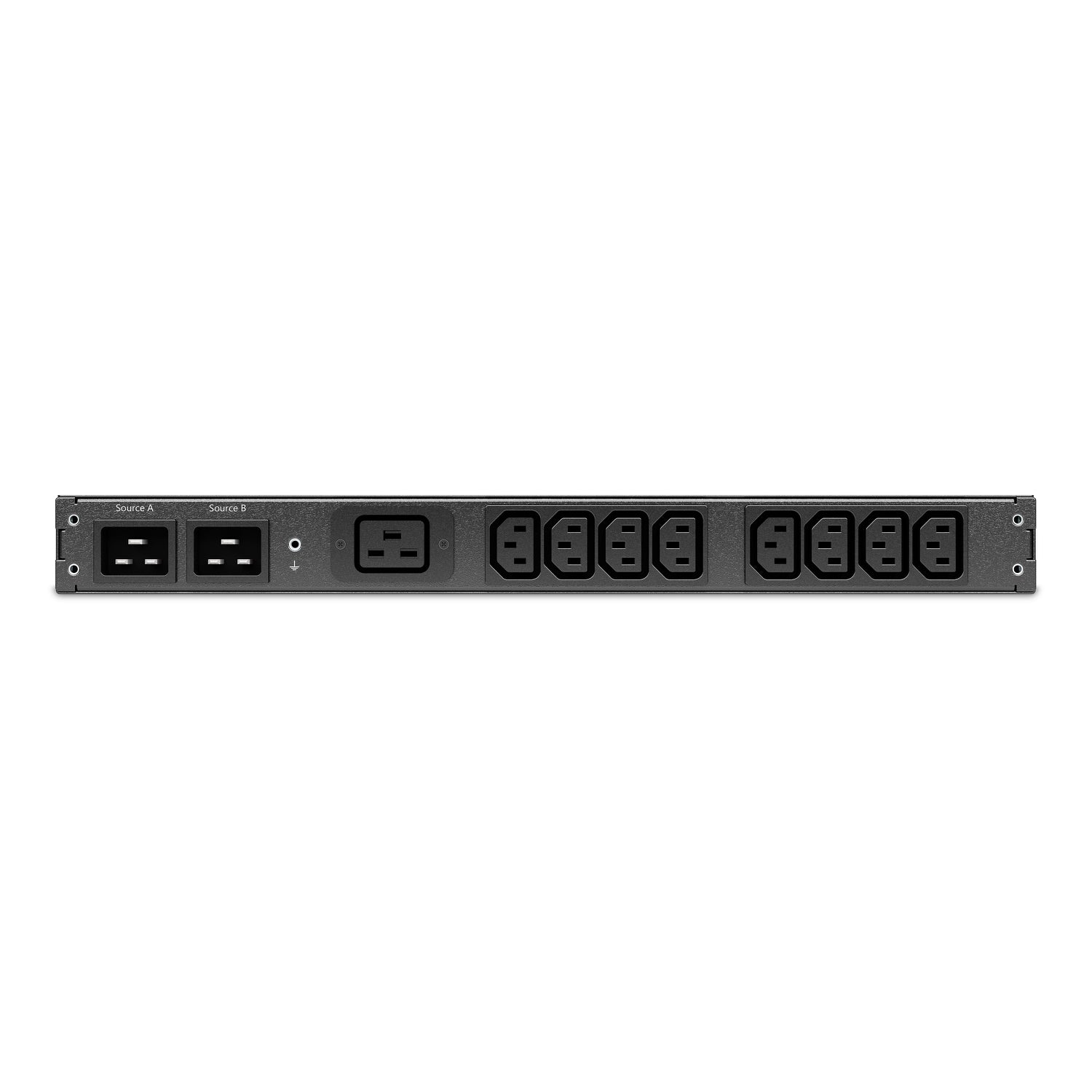

| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Total carbon footprint (kg of CO2e) | 432.5 |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 3.74 kg |
| Package width | 600 mm |
| Package depth | 356 mm |
| Package height | 114 mm |
| Package weight | 5.51 kg |
| Brand | APC |
| Manufacturer part number | AP4423A |
| GTIN / UPC | ['0731304432449', '731304432449'] |
