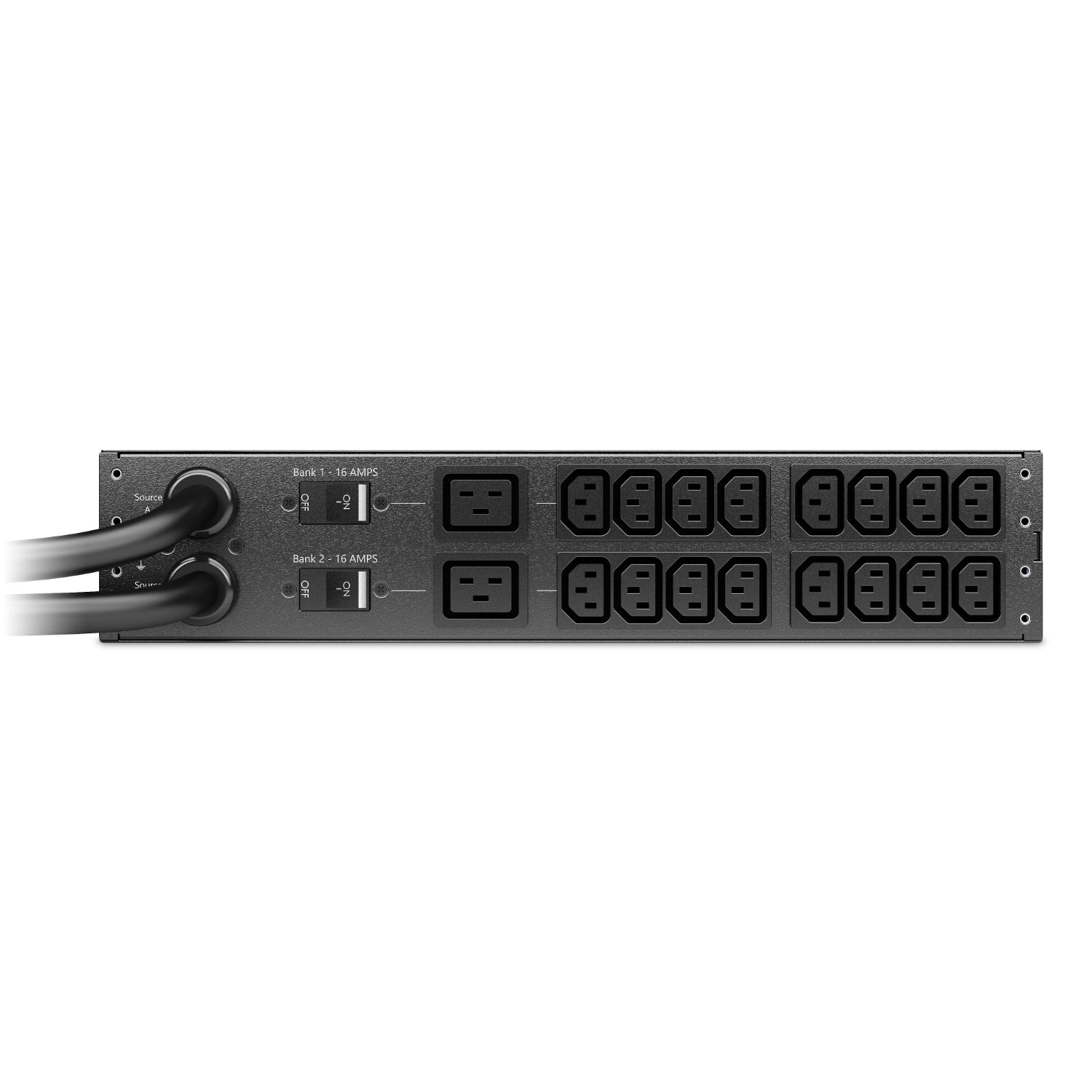

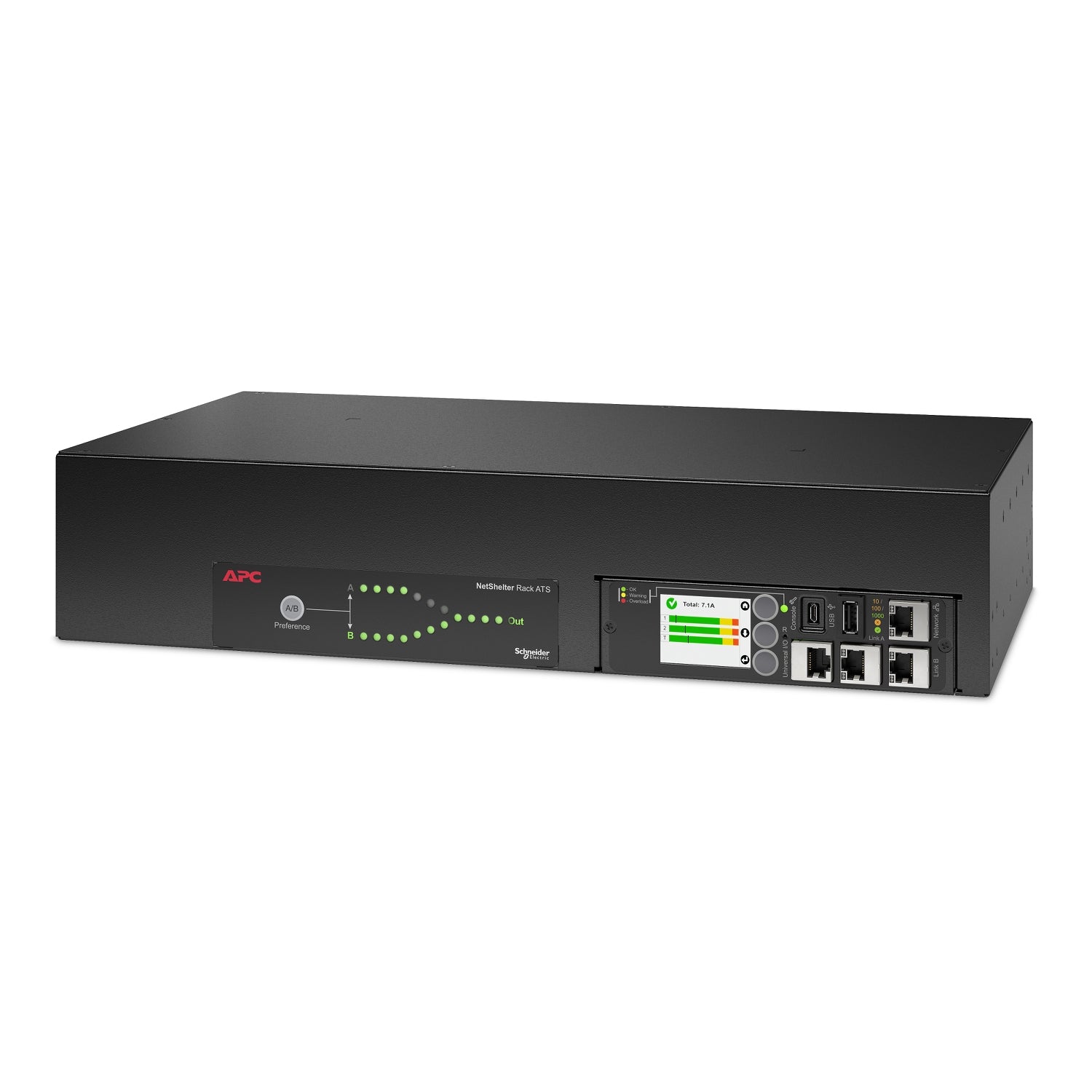

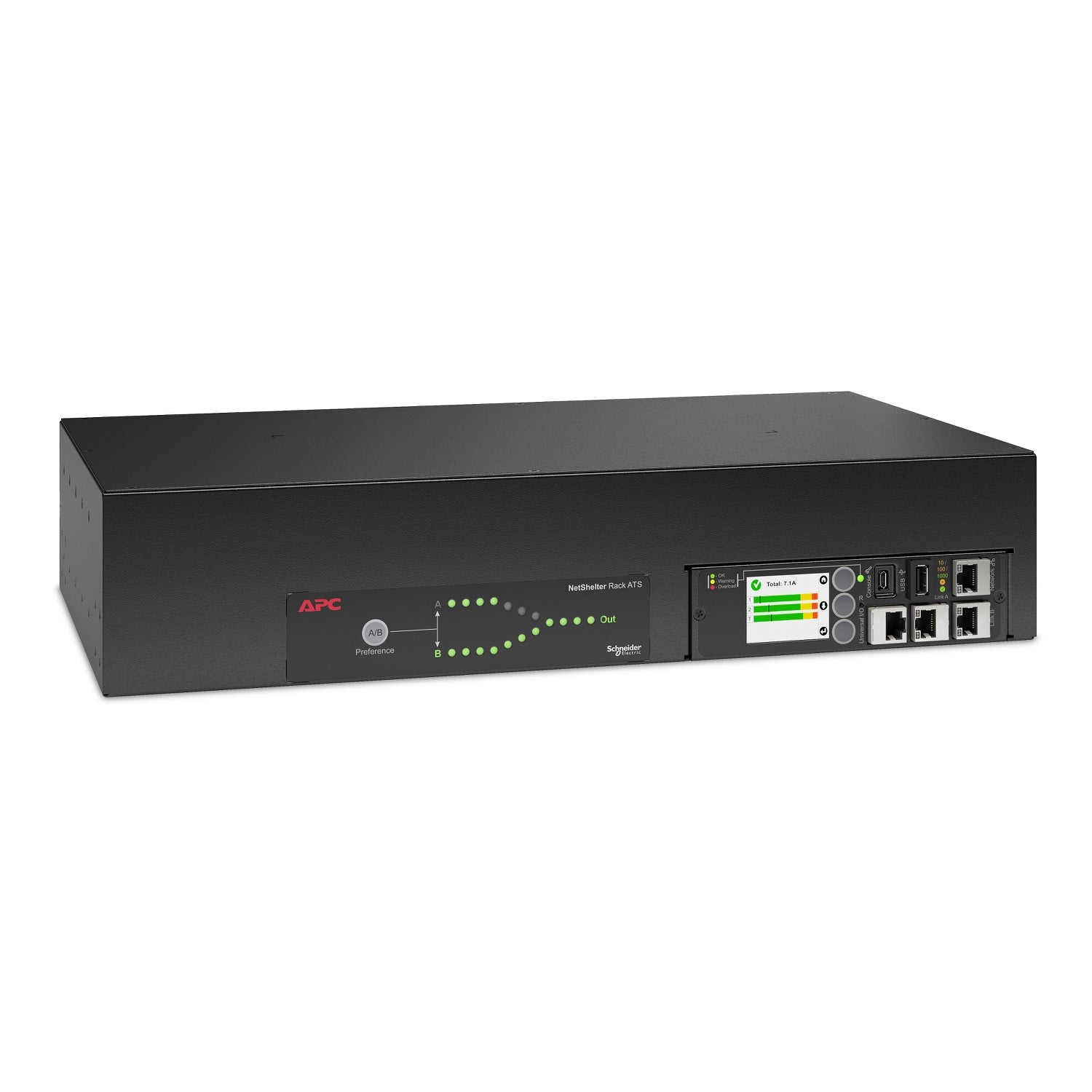

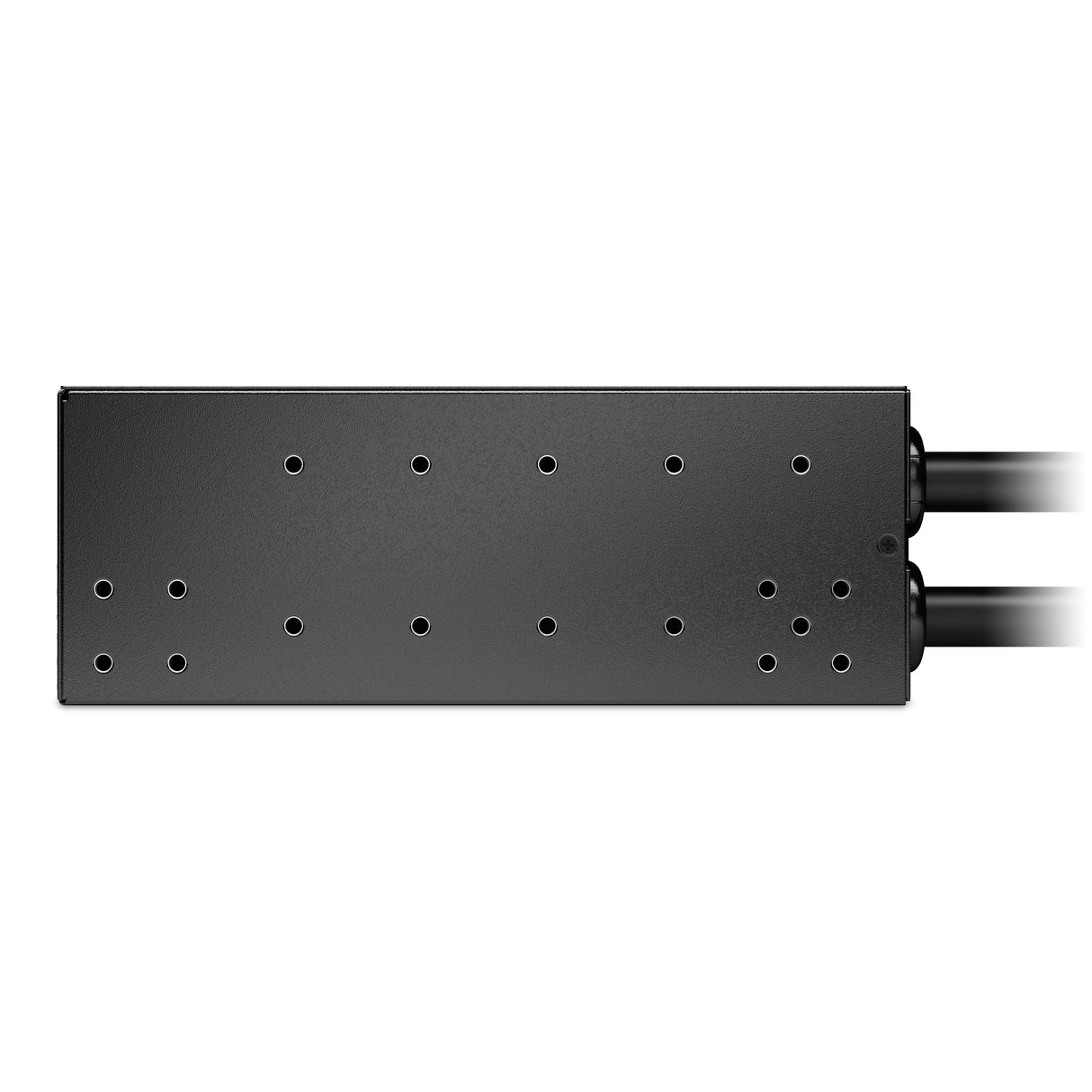

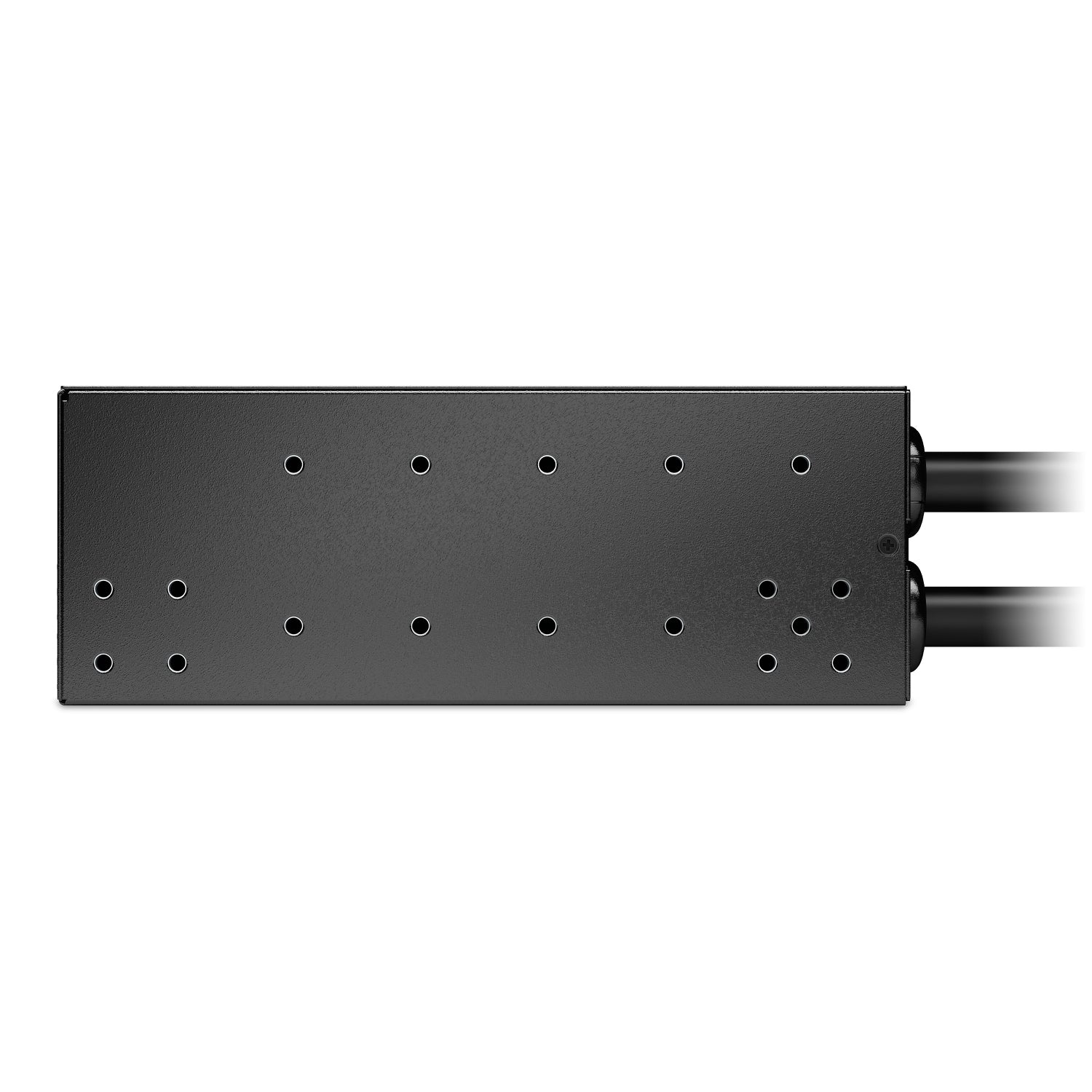

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
Stock: 0 units
Description
Description
Product overview
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Why choose the APC Netshelter Rack Automatic Transfer Switch, 2U, 32A...?
The APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC... is a automatic transfer switches (atss) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Input operation voltage (min): 207 V; Input operation voltage (max): 253 V; AC input frequency: 50 - 60 Hz. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Input operation voltage (min) | 207 V |
| Input operation voltage (max) | 253 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 32 A |
| Output current | 32 A |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| Certification | EN 55022 class A, FCC part 15 class A |
| AC outlets quantity | 18 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Total carbon footprint (kg of CO2e) | 794.41 |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 88 mm |
| Weight | 6.94 kg |
| Brand | APC |
| Manufacturer part number | AP4424A |
| GTIN / UPC | ['0731304432456', '731304432456'] |
