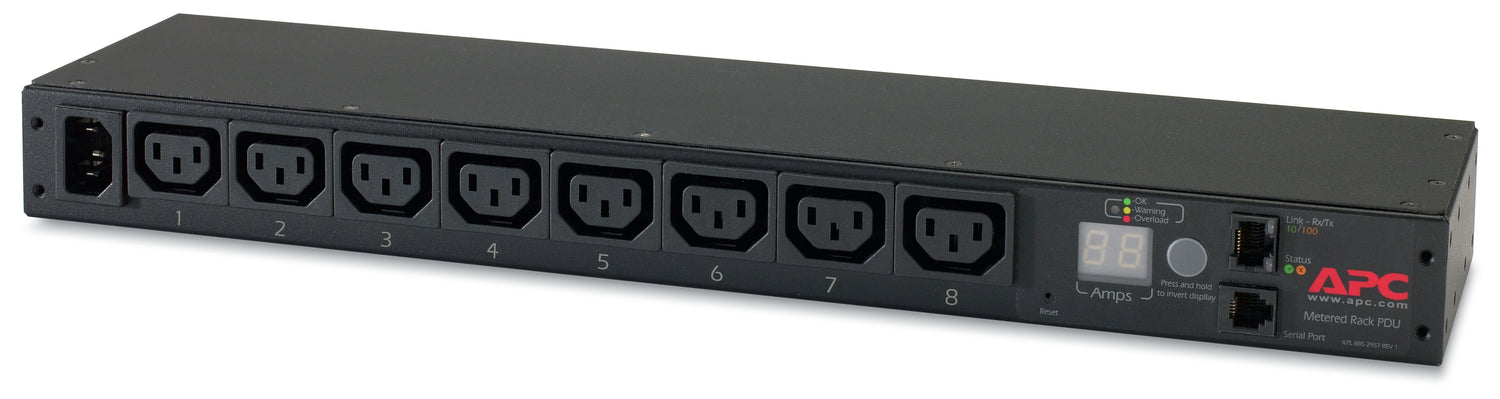

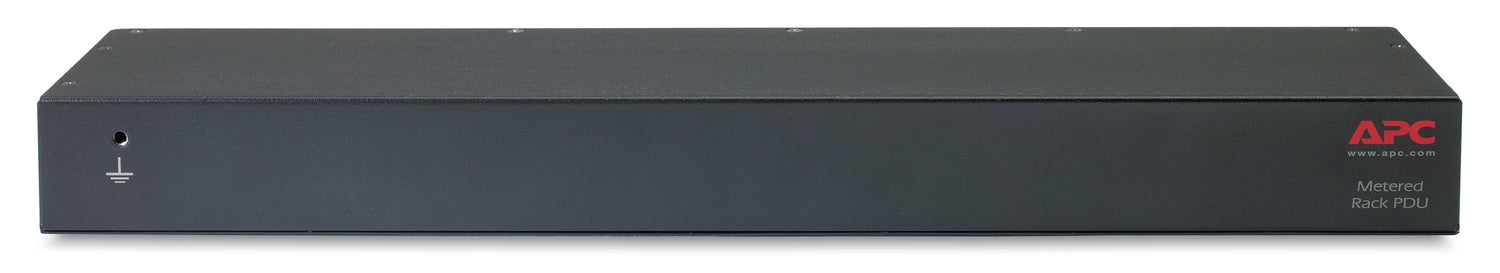

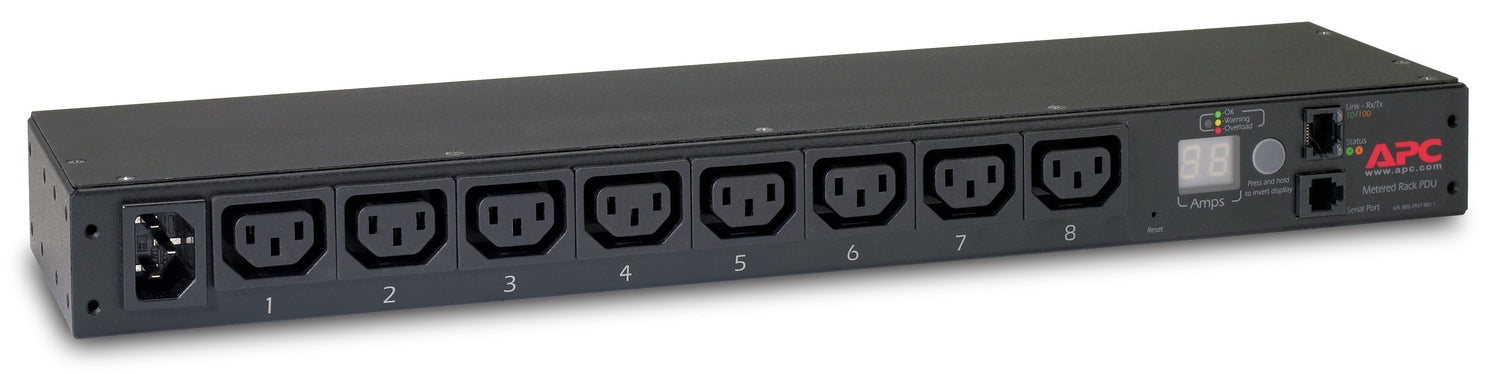

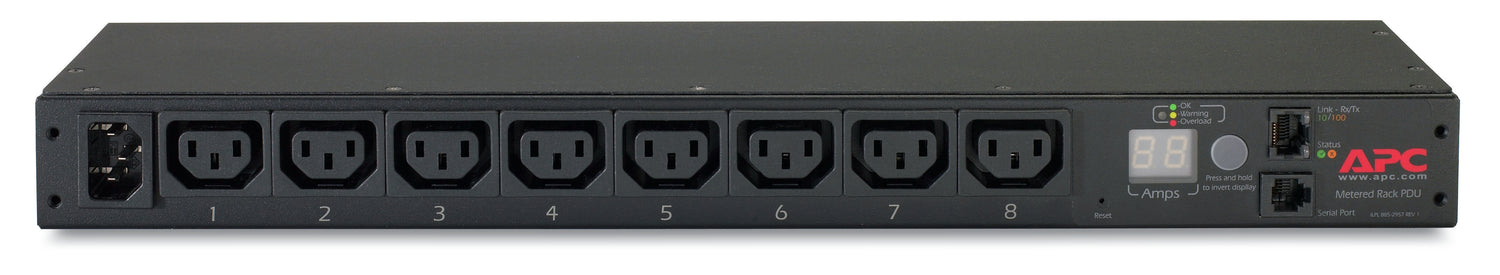

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Stock: 0 units
Description
Description
Product overview
Marketing Features. Local Current Monitoring Display. The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Local and web-based monitoring. Status available to customers both in the data center and remotely. Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Agility. Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source. Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch...
Why choose the APC AP7820B power distribution unit (PDU) 8 AC outlet(s)...?
The APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Metered; Rack capacity: 0U/1U; Mounting: Horizontal/Vertical. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
| LED indicators | Yes |
| Cable length | 1.98 m |
| Monitoring | Current, Power, Voltage |
| Nominal input voltage | 208-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
| Compliance certificates | RoHS |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
| Weight | 1.73 kg |
| Package weight | 2.91 kg |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
| Brand | APC |
| Manufacturer part number | AP7820B |
| GTIN / UPC | ['0731304331506', '731304331506'] |
