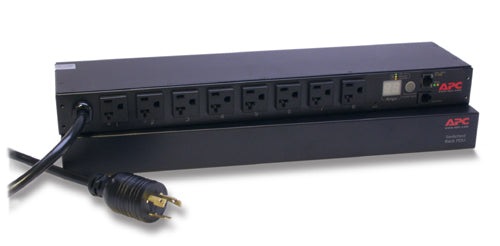

APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Stock: 3 units
APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Description
Description
Product overview
Availability. Network Management Capabilities. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Remote Individual Outlet Control. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment). Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability). Local Current Monitoring Display. The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only). Power Delays. Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function...
Why choose the APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20?
The APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Switched; Rack capacity: 1U; Product colour: Black. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Switched |
| Rack capacity | 1U |
| Product colour | Black |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Input connection type | NEMA L5-20P |
| Cable length | 3.66 m |
| Monitoring | Current |
| Outlet control | Recycle, Turn off |
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 120 V |
| Load capacity | 2400 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Compliance certificates | RoHS |
| Certification | cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 445 mm |
| Depth | 108 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
| Package weight | 3.45 kg |
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 70 mm |
| Brand | APC |
| Manufacturer part number | AP7901B |
| GTIN / UPC | ['0731304331575', '731304331575', '0098379082666', '098379082666'] |
