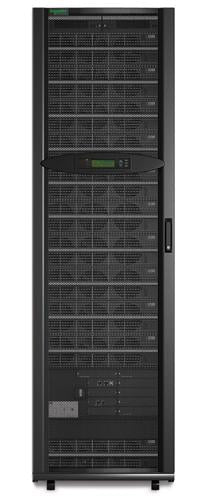

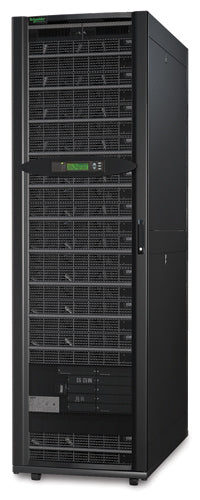

APC Symmetra PX 100kW uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 100000 W
Stock: 0 units
Description
Description
Product overview
Symmetra PX 100kW Scalable to 100kW, 208V with Startup, No Battery. Adjustable voltage sensitivity. Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Adjustable voltage-transfer points. Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Advanced electrical features. Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency. Automatic self-test. Periodic battery self-test ensures early detection of a battery that needs to be replaced. Total Cost of Ownership. Input power factor correction. Minimizes installation costs by enabling the use of smaller generators and cabling. Generator compatible. Ensures clean, uninterrupted power to protected equipment when generator power is used. 5x8 Start-up service included. Required for full coverage of factory warranty. Fully-rated power kVA equals kW. Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads. Agility. Programmable frequency. Ensures compatibility with different input frequencies. Scalable power capacity. Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later. SmartSlot. Customize UPS capabilities with management cards. Sustainability. ENERGY STAR for UPS. Establishes that the efficiency of the UPS is in the top 25% of the market as verified by third party testing. EU CoC for UPS. Ensures that UPSs sold in the EU are highly...
Why choose the APC Symmetra PX 100kW uninterruptible power supply (UPS)...?
The APC Symmetra PX 100kW uninterruptible power supply (UPS)... is a uninterruptible power supplies (upss) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — UPS topology: Double-conversion (Online); Output power capacity: 100 kVA; Output power: 100000 W. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 100 kVA |
| Output power | 100000 W |
| Waveform | Sine |
| Input operation voltage (min) | 177 V |
| Input operation voltage (max) | 239 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Output frequency | 60 Hz |
| Output frequency regulation | 57 - 63 Hz |
| Maximum current | 332 A |
| Input power factor | 0.98 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 67 dB |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| SmartSlot | Yes |
| Automatic battery test | Yes |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Compliance certificates | RoHS |
| Certification | REACH, CE Mark, CSA C22.2 No.107.3-05, EN/IEC 62040-3, Eurobat General Purpose, FCC Part 15 Class A, ISO 14001, ISO 9001, UL 1778 |
| Sustainability certificates | ENERGY STAR |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 2011 mm |
| Weight | 571 kg |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Package weight | 298.9 kg |
| Brand | APC |
| Manufacturer part number | SY100K100F-NB |
