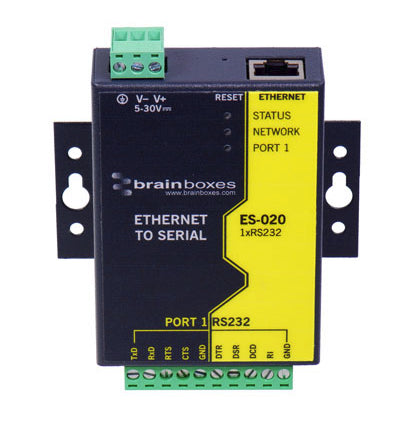

Brainboxes ES-020 serial server RS-232
Stock: 0 units
Description
Description
Product overview
Ethernet 1 Port RS232 10xScrew Terminals Blocks perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Why choose the Brainboxes ES-020 serial server RS-232?
The Brainboxes ES-020 serial server RS-232 is a serial servers from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Serial ports quantity: 1; Serial interface type: RS-232; Ethernet LAN data rates: 10,100 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day office productivity
- Hybrid and remote work
- Field and mobile teams
- Fleet deployments and refresh cycles
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Flow control support | Yes |
| Baud rate | 1000 Kbit/s |
| Auto MDI/MDI-X | Yes |
| Data bits | 5, 6, 7, 8 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Stop bits | 1, 2 |
| Compliance certificates | RoHS |
| Certification | CE |
| Cabling technology | 10/100Base-T(X) |
| Power source type | DC |
| Input voltage | 5 - 30 V |
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
| LED indicators | Yes |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows... |
| Linux operating systems supported | Yes |
| Weight | 118 g |
| Dimensions (WxDxH) | 116 x 100 x 26 mm |
| Package width | 160 mm |
| Package length | 13.5 cm mm |
| Package height | 49 mm |
| Package weight | 225 g |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Product colour | Black, Yellow |
| International Protection (IP) code | IP30 |
| Brand | Brainboxes |
| Manufacturer part number | ES-020 |
| GTIN / UPC | ['0837324002591', '837324002591'] |
