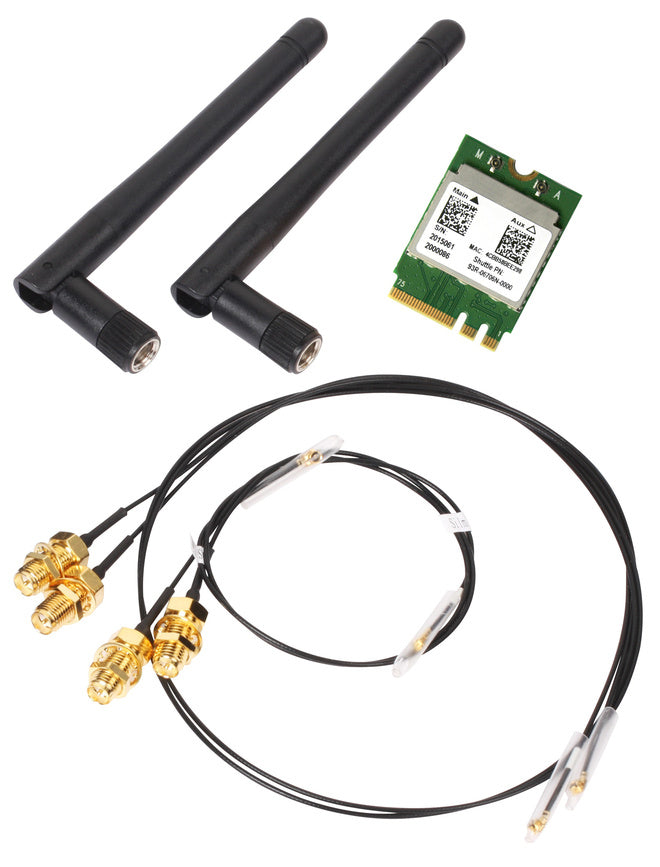

Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas
Stock: 0 units
Description
Description
Product overview
Universal WLAN-ac / Bluetooth Combo Kit with M.2 card. The Shuttle XPC Accessory WLN-M is a wireless LAN kit consisting of a M.2-2230 card, two antennas and appropriate cables. The WLN-M is intended for certain Shuttle barebones of the XPC cube and XPC slim series to equip them with the wireless LAN standard according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 4.0.
Why choose the Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with...?
The Shuttle WLN-M - Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card... is a network cards from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wireless; Host interface: PCI Express; Interface: WLAN / Bluetooth. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| PCI version | 1.1 |
| PCI Card form factor | Full-height |
| Maximum data transfer rate | 433.3 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 433 Mbit/s |
| Security algorithms | AES, WAPI, WPA, WPA2 |
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Bluetooth version | 4.0 |
| Component for | PC |
| Product colour | Green |
| Internal | Yes |
| Antenna | Yes |
| Chipset | RTL8821AE |
| Country of origin | China |
| Compatible products | NC02U, NC03U, NC10U, DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH02Ux... |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64... |
| Linux operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Width | 26.6 mm |
| Depth | 29.9 mm |
| Height | 2.35 mm |
| Antenna length | 10.8 cm mm |
| Antenna diameter | 1 cm mm |
| Drivers included | Yes |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Quick start guide | Yes |
| Bandwidth note | 80 MHz |
| Brand | Shuttle |
| Manufacturer part number | POZ-WLNM01 |
| GTIN / UPC | ['0887993800035', '887993800035'] |
