Shuttle Edge PC SPCEL03 , Intel Atom x6413E, 1x HDMI, 2x 2.5G LAN, 1x COM, DIO (4x in, 4x out), 3x USB, 2x M.2, 12-24V, fanless, 24/7, -20... 60°C, incl. VESA & DIN-RAIL mount
Stock: 0 units
Description
Description
Product overview

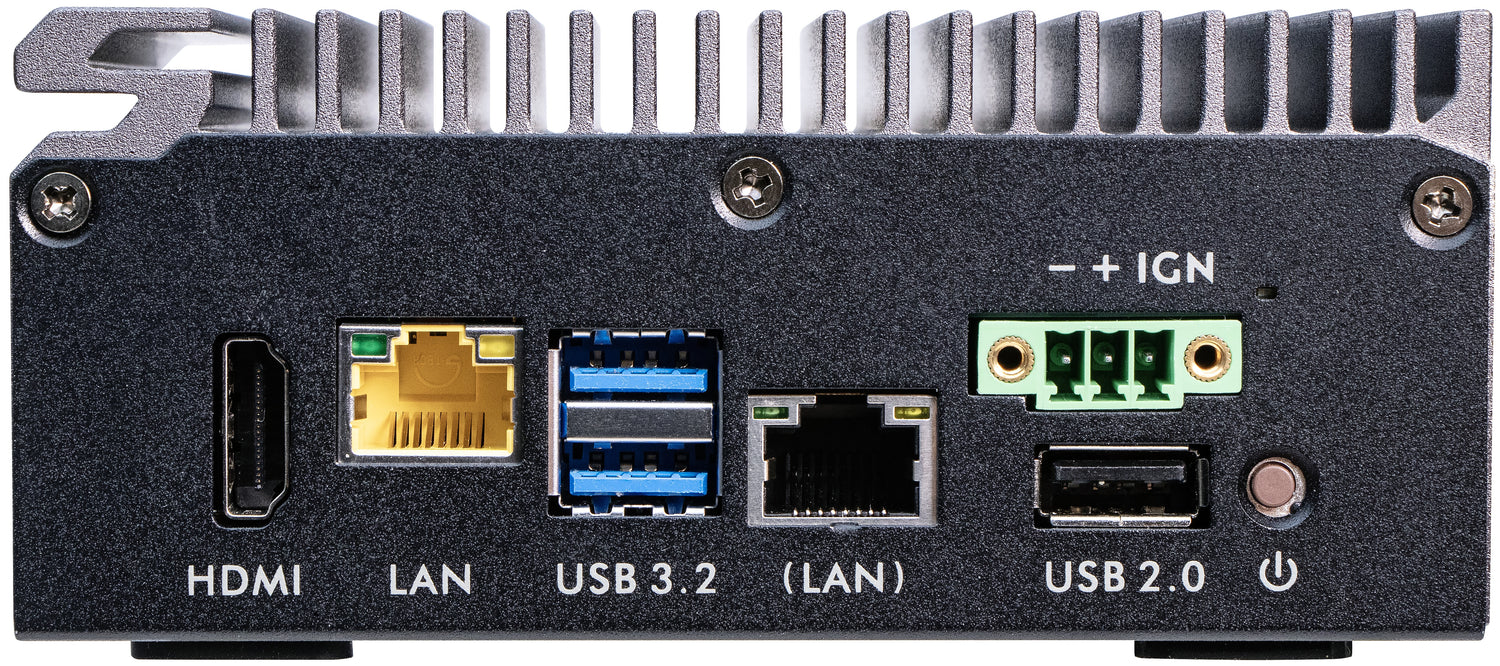

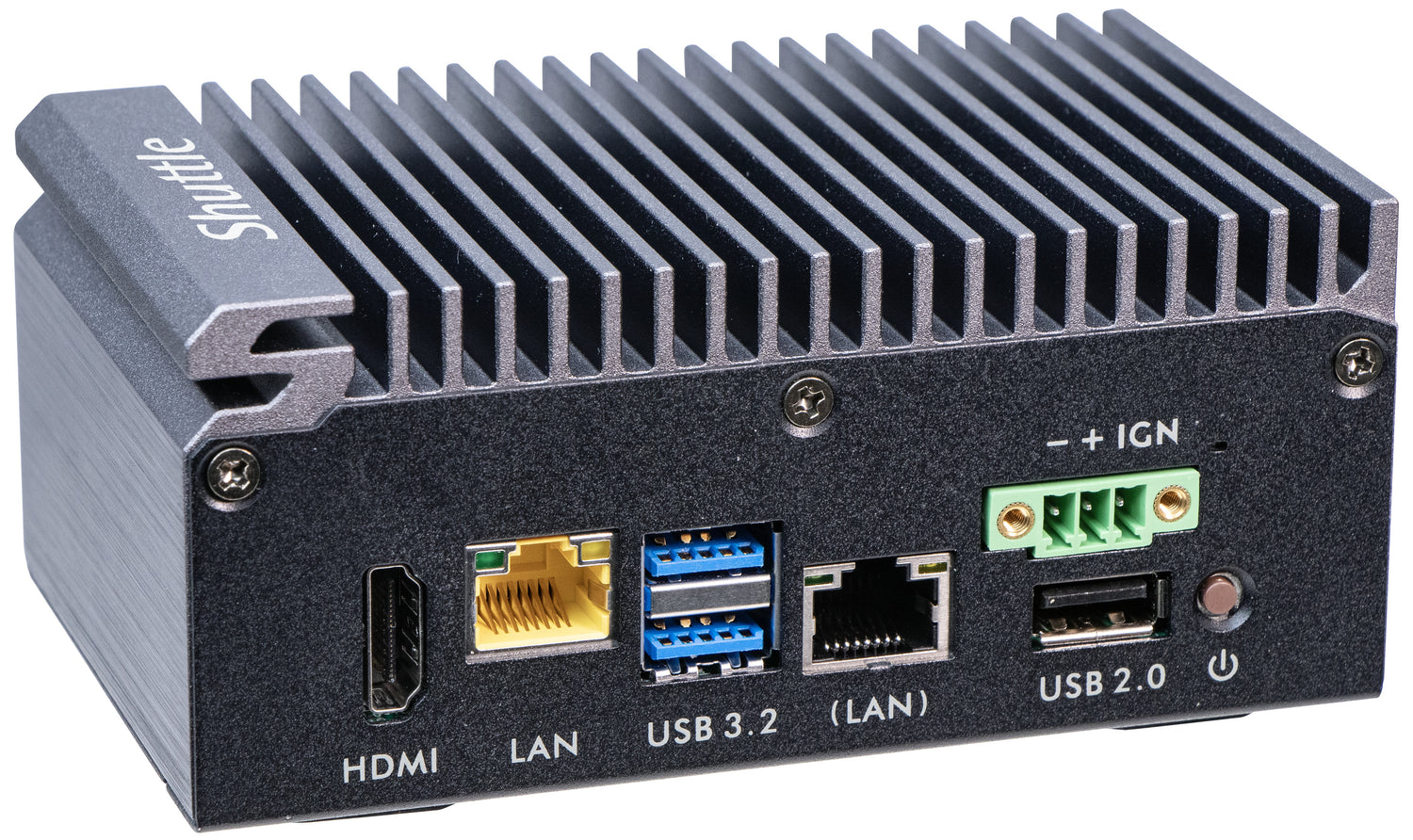

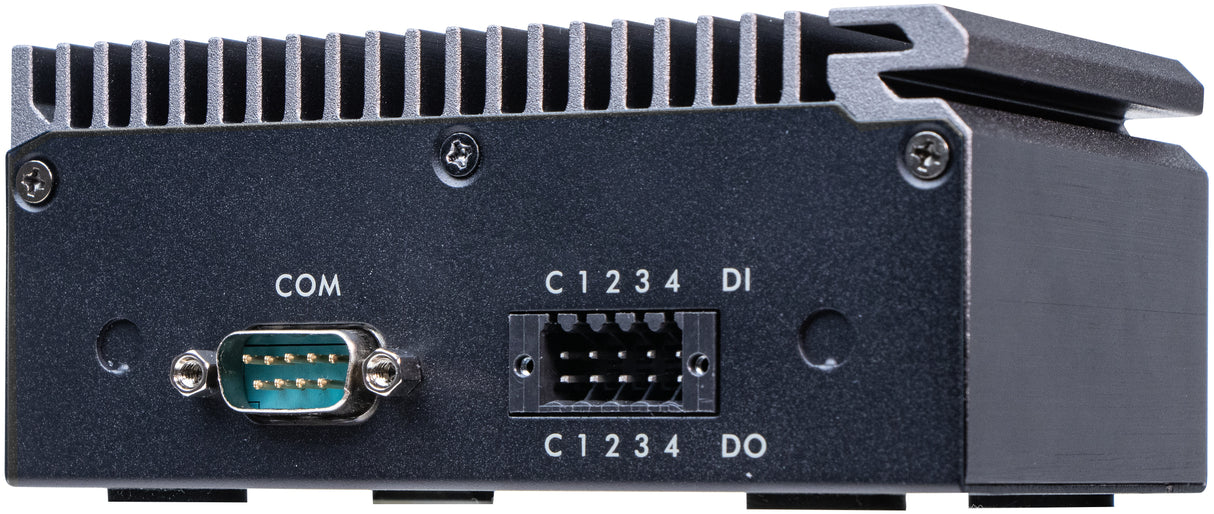

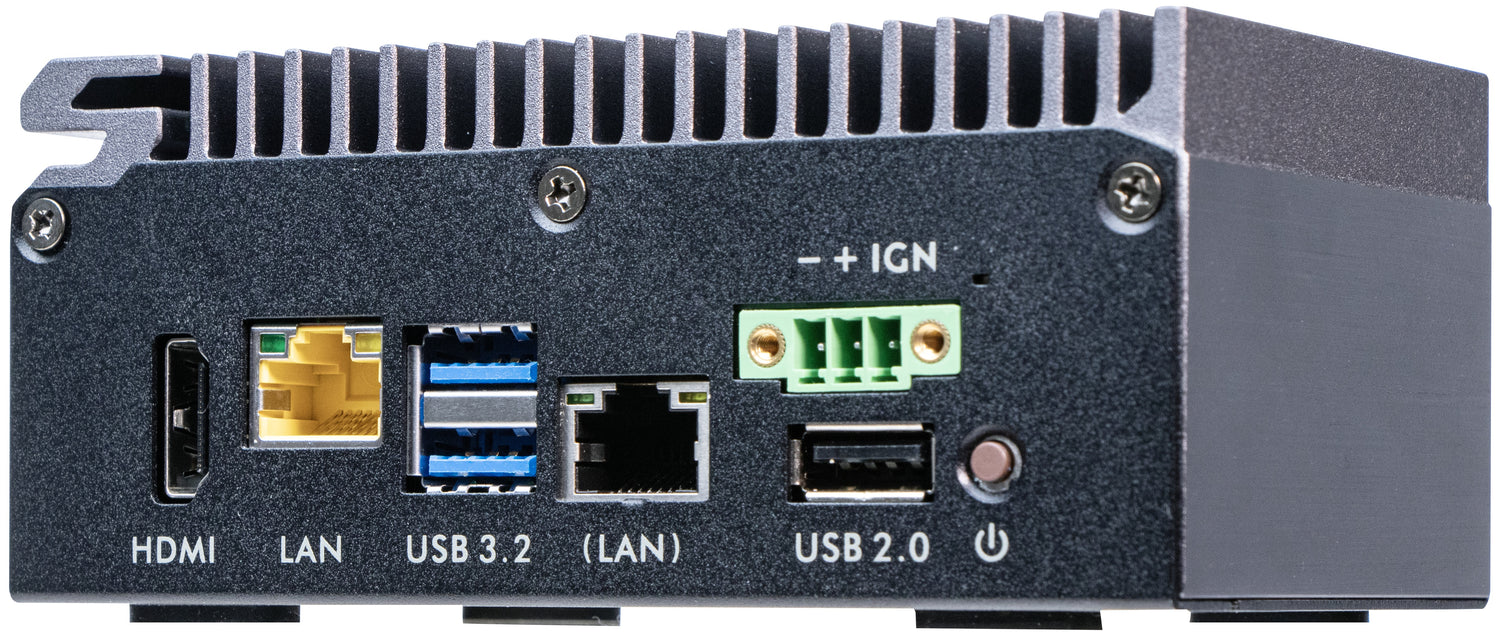

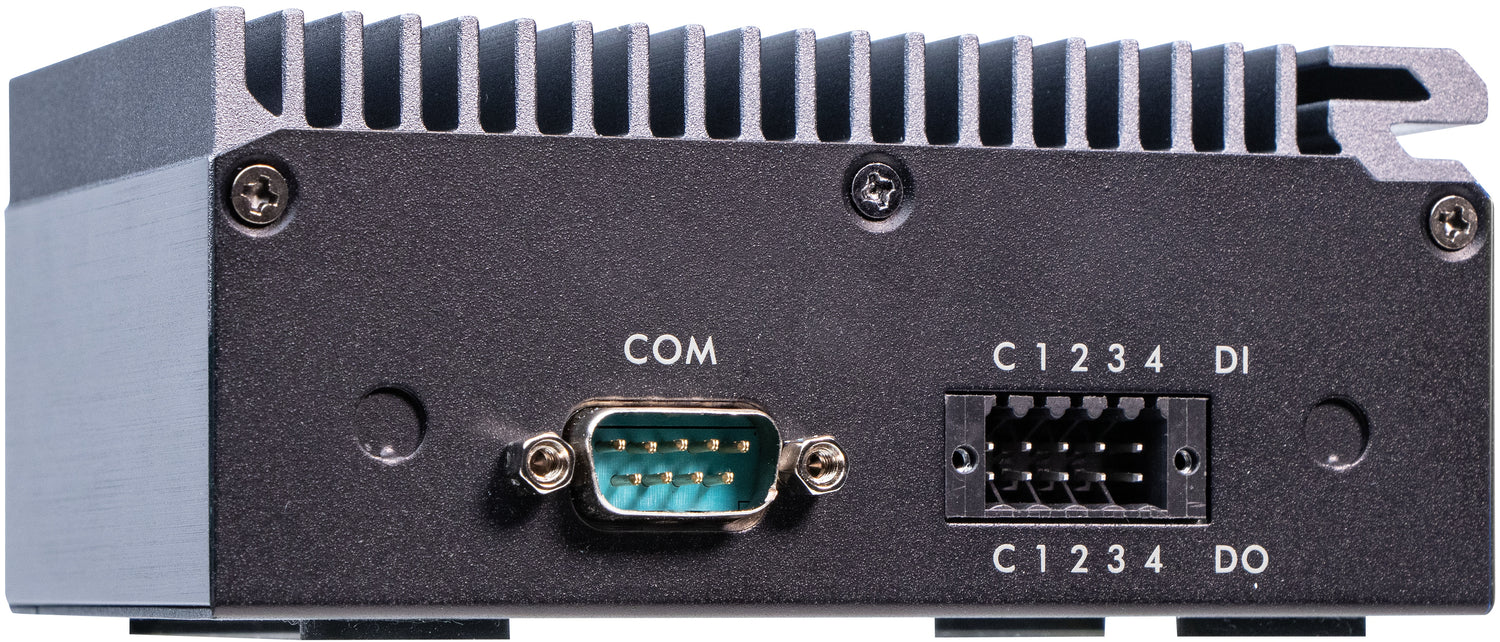

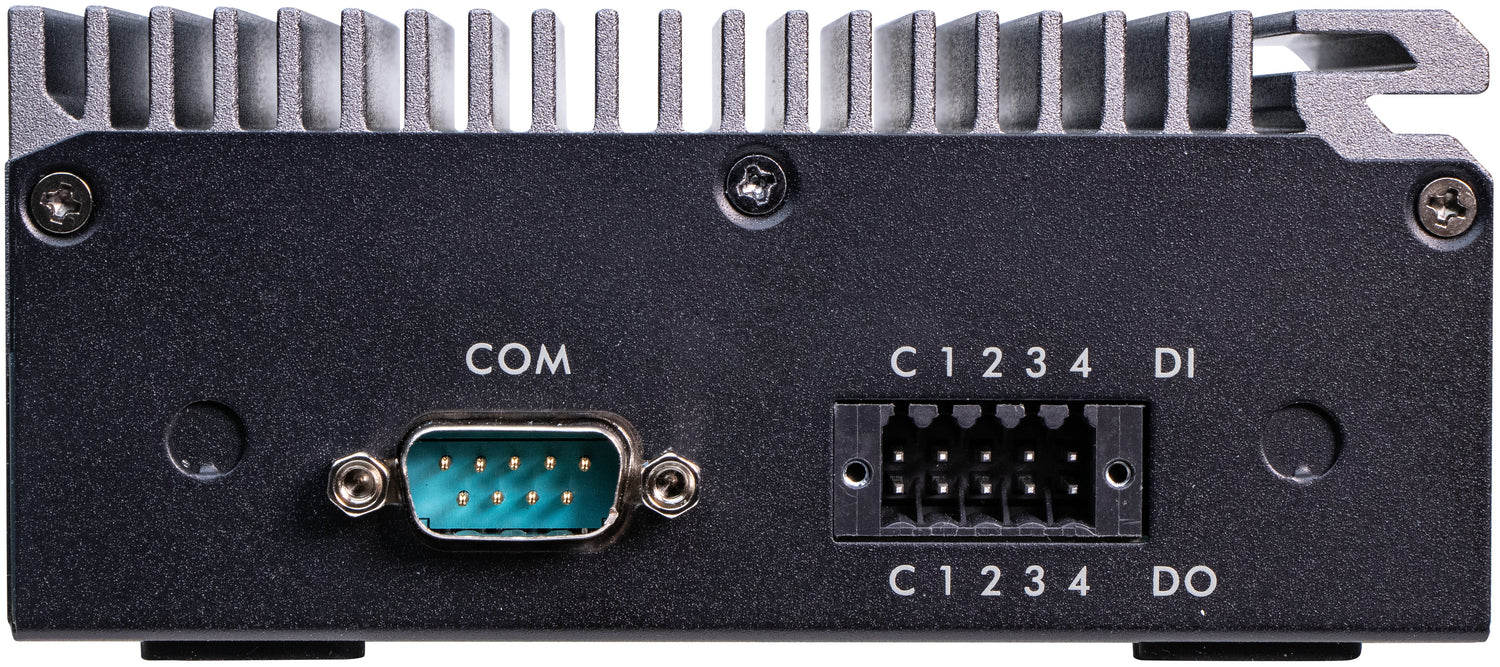

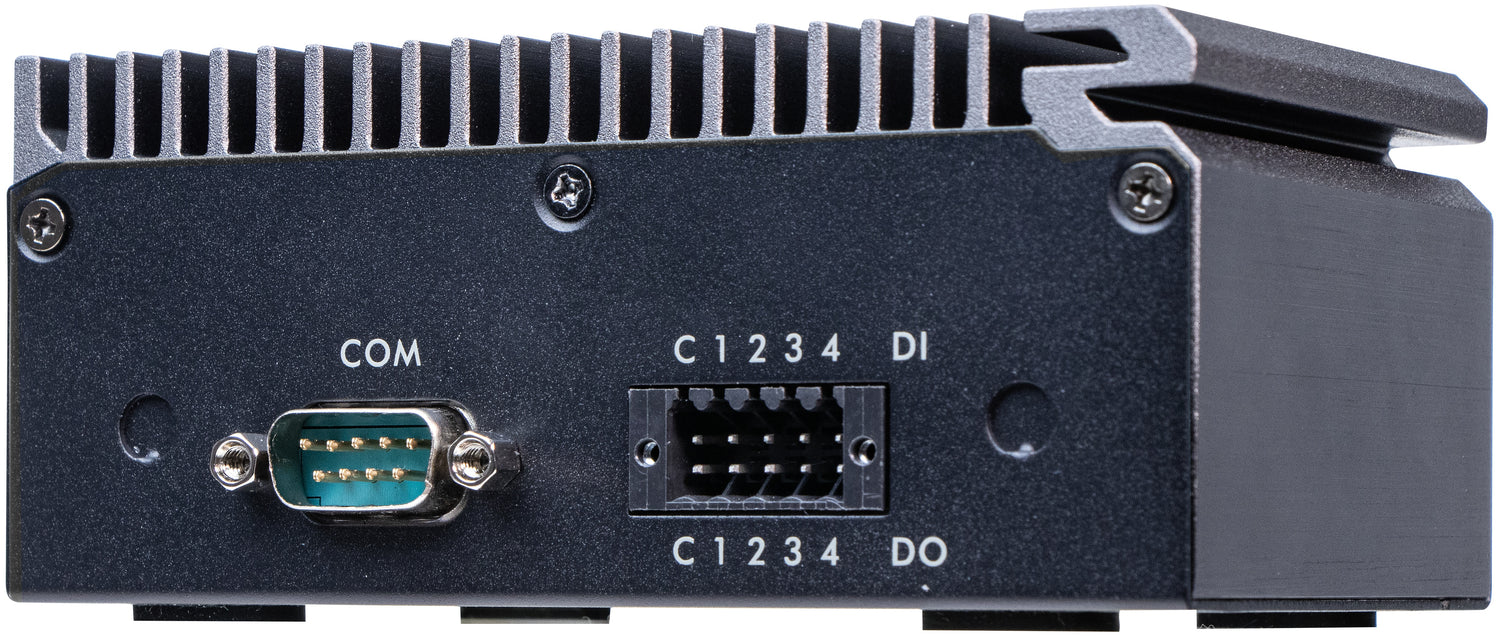

The Shuttle Edge PC SPCEL03 is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 60°C. Inside there is an Intel Atom "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and WLAN card. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
Why choose the Shuttle Edge PC SPCEL03 , Intel Atom x6413E, 1x HDMI, 2x...?
The Shuttle Edge PC SPCEL03 , Intel Atom x6413E, 1x HDMI, 2x 2.5G LAN, 1x... is a pc/workstation barebones from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Processor manufacturer: Intel; Processor family: Intel Atom®; Processor model: x6413E. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | x6413E |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3 GHz |
| Processor frequency | 1.5 GHz |
| Built-in processor | Yes |
| L2 cache | 1.5 MB |
| Thermal Design Power (TDP) | 9 W |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Single-channel |
| Memory voltage | 1.2 V |
| Non-ECC | Yes |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 " |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1493 |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet LAN | Yes |
| LAN controller | Intel I226-V |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Brand | Shuttle |
| Manufacturer part number | SPCEL03 |
| GTIN / UPC | ['0887993007229', '887993007229'] |
