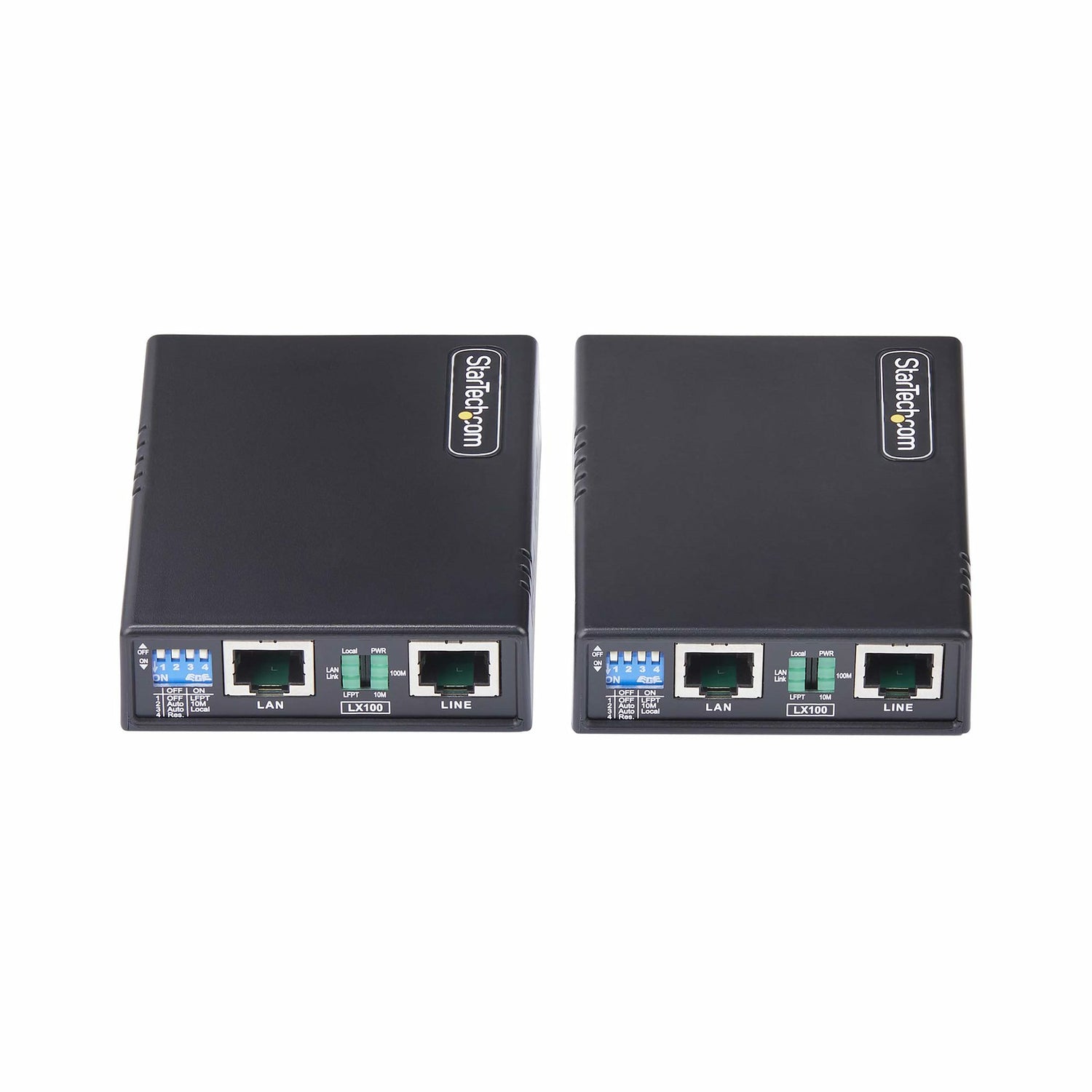

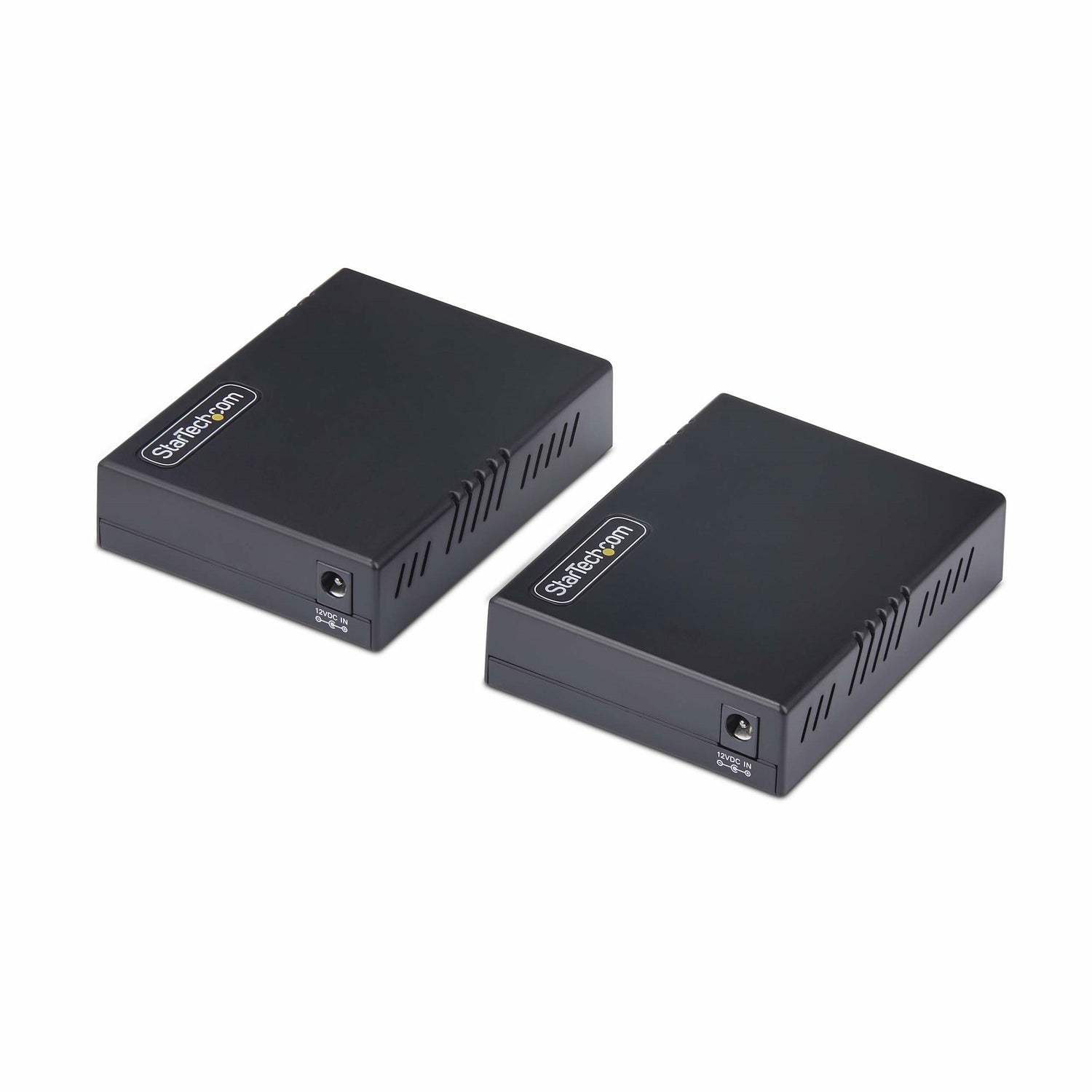

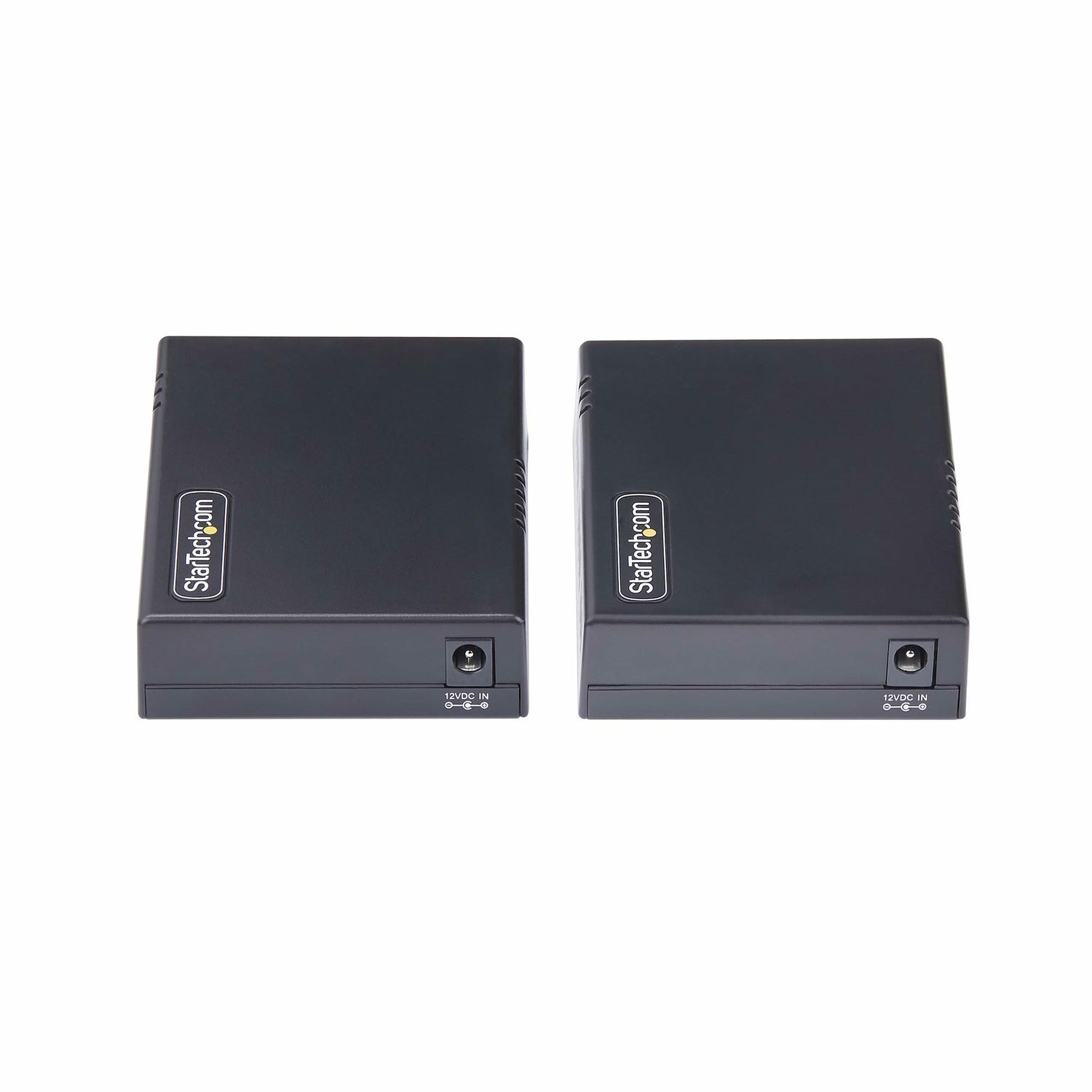

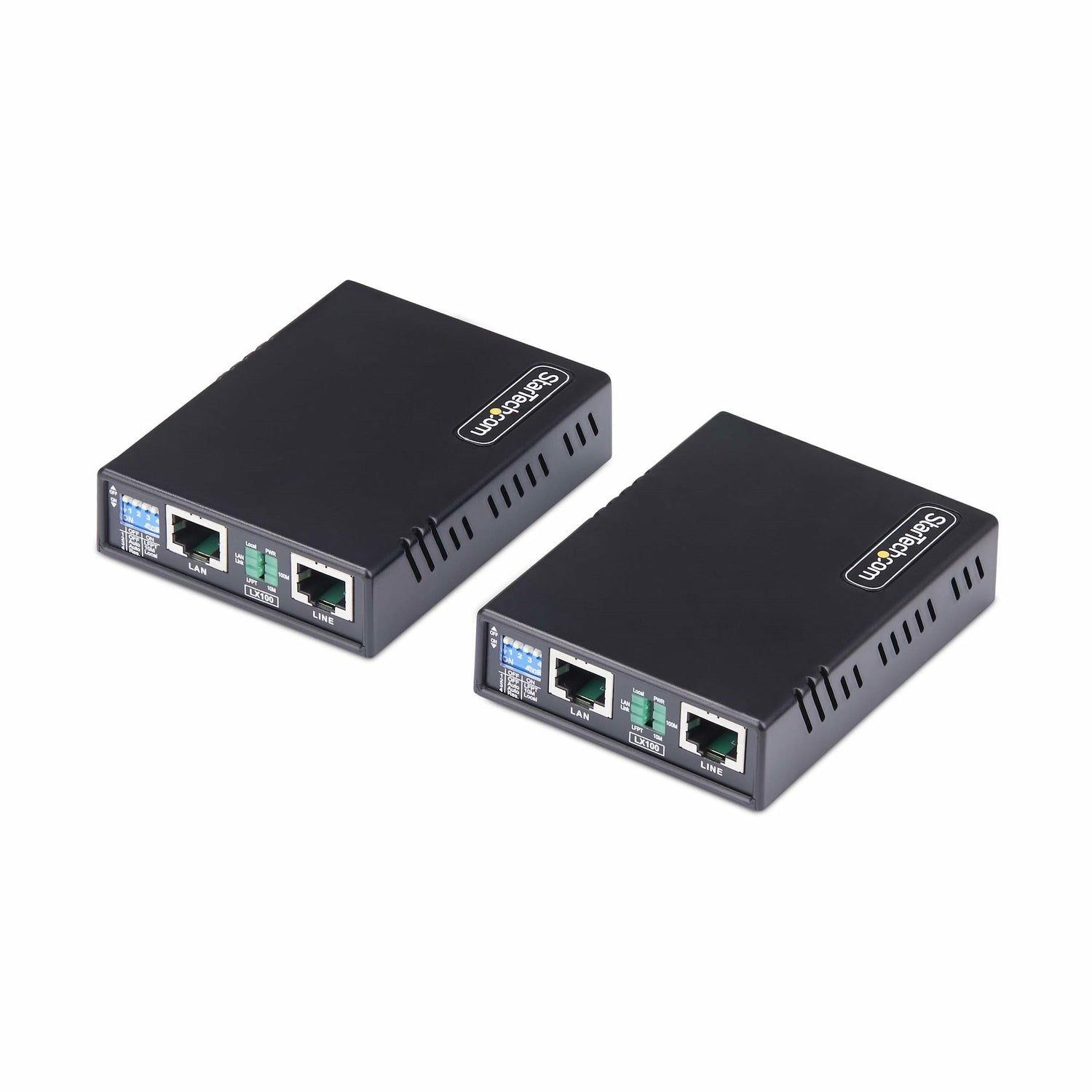

StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Sensors/WiFi APs - TAA
Stock: 279 units
StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long...
Description
Description
Product overview

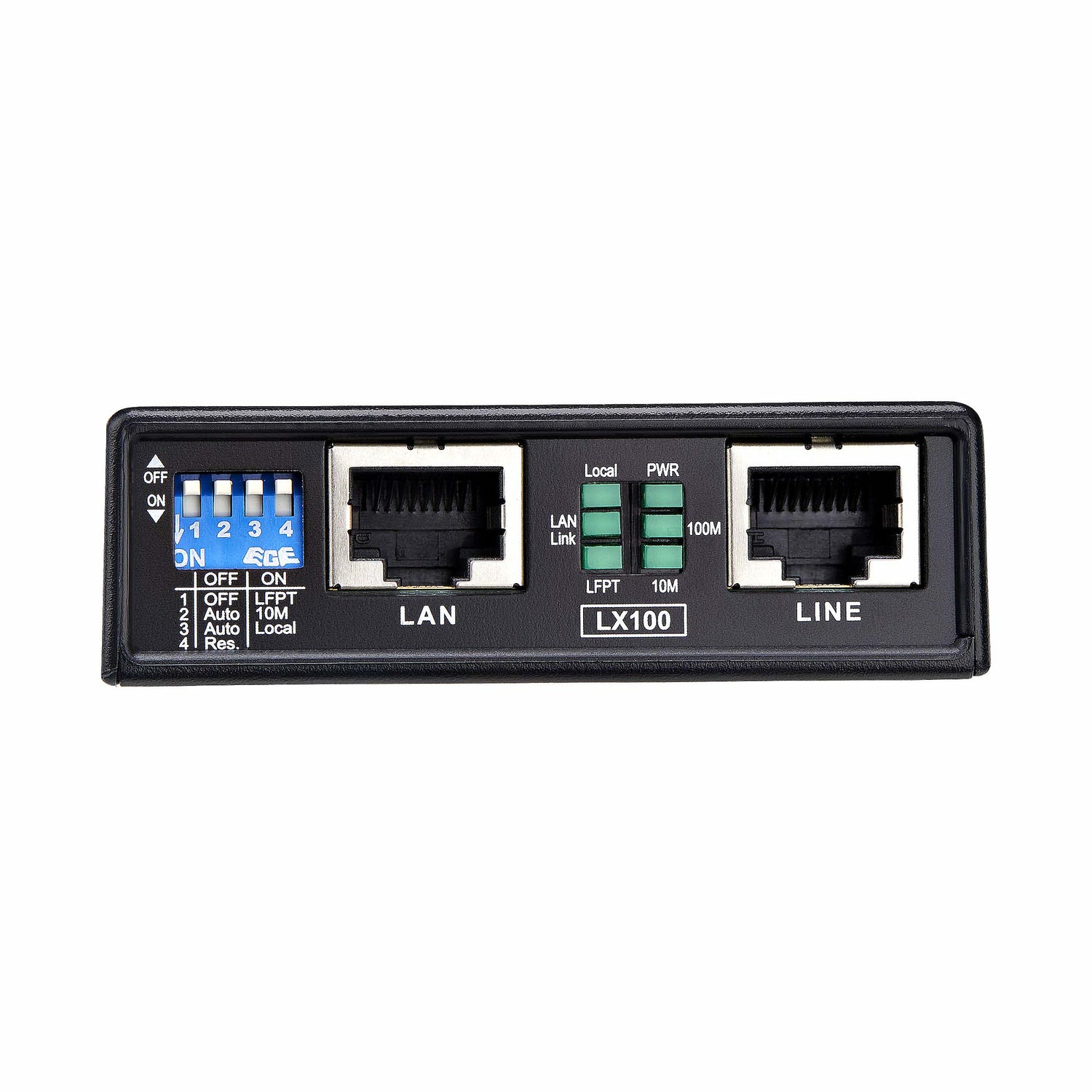

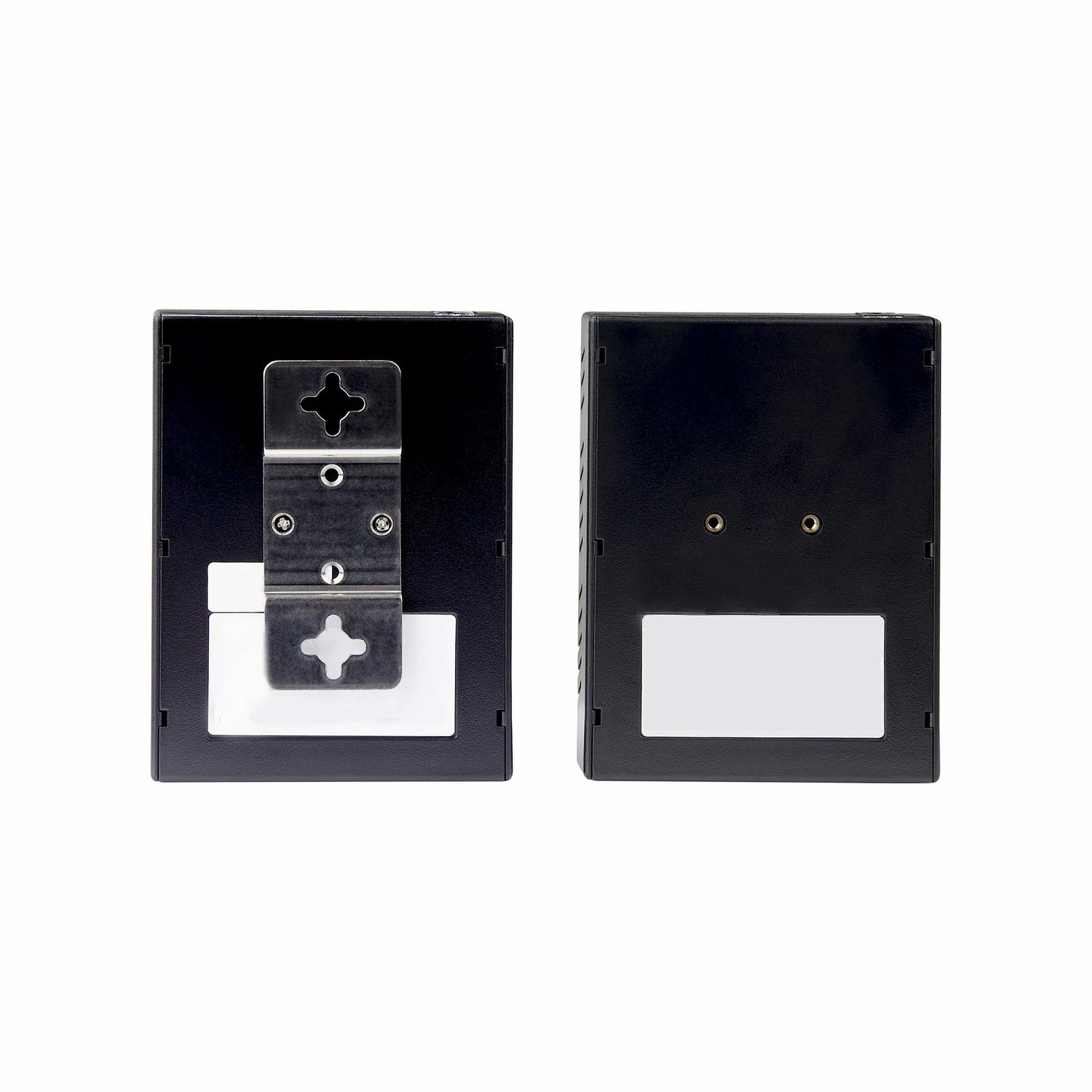

Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity. Extend Network Connectivity The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires. Thoughtful Design The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow to change the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup. Versatile The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units. Being a transparent network device allows the...
Why choose the StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5Mi...?
The StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5Mi (800M)... is a network extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Network transmitter & receiver; Maximum transfer distance: 800 m; Data transfer rate: 100 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 800 m |
| Data transfer rate | 100 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3i, IEEE 802.3u |
| RJ-45 ports quantity (transmitter) | 2 |
| RJ-45 ports quantity (receiver) | 2 |
| DC-in jack | Yes |
| Product colour | Black |
| Housing material | Plastic, Steel |
| LED indicators | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| Output voltage | 12 V |
| Output current | 1 A |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 96 mm |
| Depth | 23 mm |
| Height | 73 mm |
| Weight | 73.5 g |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Package width | 154 mm |
| Package depth | 183 mm |
| Package height | 135 mm |
| Package weight | 900 g |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 515 mm |
| Master (outer) case height | 425 mm |
| Products per master (outer) case | 15 pc(s) |
| Brand | StarTech.com |
| Manufacturer part number | C2-ETHERNET-EXTENDER |
| GTIN / UPC | ['0065030907439', '065030907439'] |
