StarTech.com 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x4 HDMI over Ethernet Distribution Kit with IR and Power Over Cable
Stock: 43 units
StarTech.com 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, ...
Description
Description
Product overview

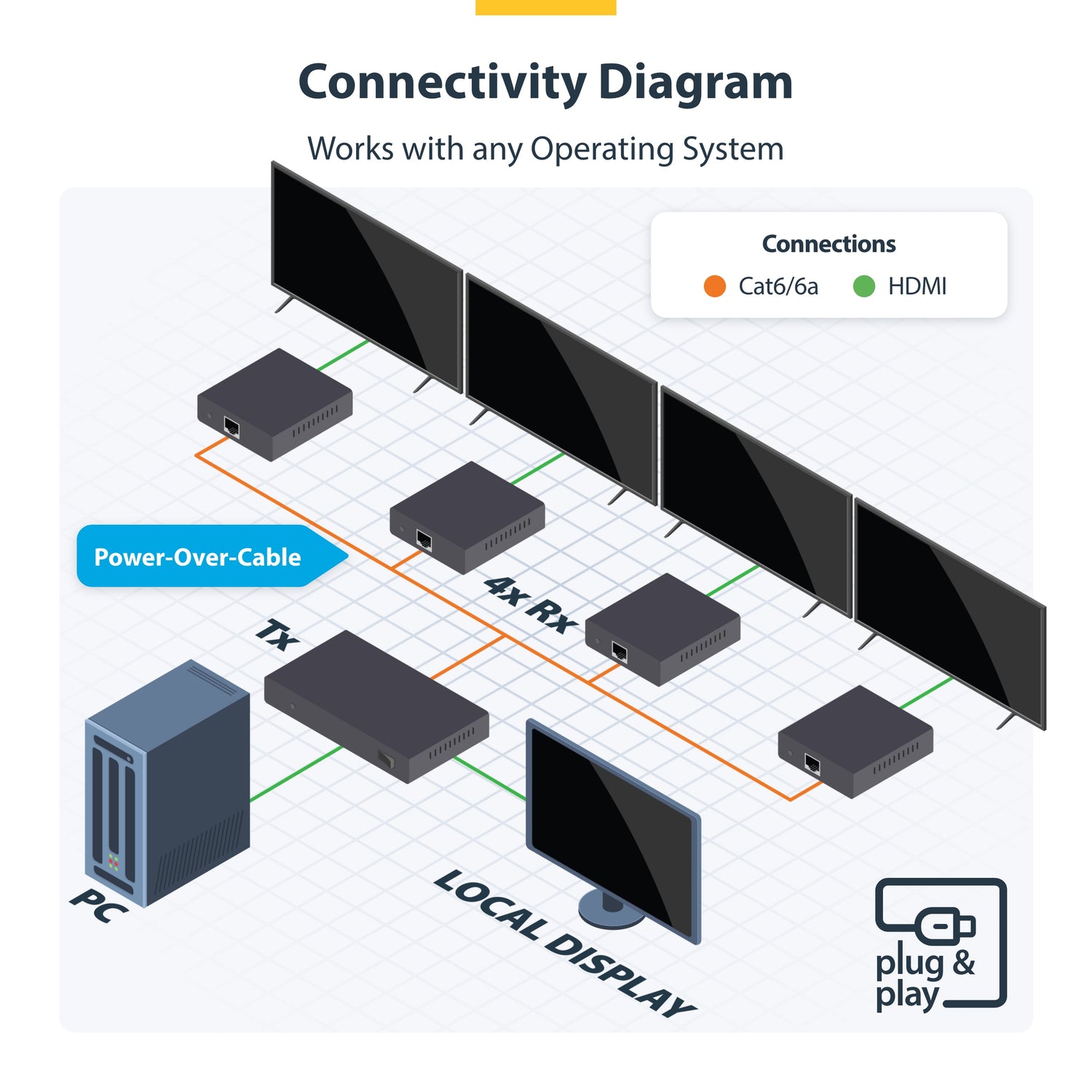

Split and extend a single 4K 60Hz HDMI signal to four HDMI displays over a distance of up to 230ft (70m) with Power over Cable This HDMI extender and splitter delivers reliable 4K AV distribution to four displays over Ethernet cabling for professional AV installations. Enables flexible deployment using Ethernet cables for longer-range and in-wall runs. Ideal for centralized AV distribution in boardrooms, digital signage, educational facilities, and hospitality environments. HDMI Over Ethernet Cabling Extend HDMI signals to four remote displays over CAT6/6a cabling using a single transmitter. Transmitter features a HDMI output providing a direct connection for a local display. Supports 4K 60Hz video and 2 channel audio up to 230ft (70m). Includes IR extension support for remote control of the source device from any connected display. Powered with a Single Power Adapter Single power adapter connects to the transmitter; all four receivers are powered directly over the CAT6/6a cables. Simplifies installation in environments with limited power access and reduces overall cable clutter. No Drivers, Software, or IP Configuration Plug-and-play installation with no additional drivers, software, or network setup required. Supports any operating system including Windows, macOS, and ChromeOS, and is compatible with all hardware platforms including Intel, AMD, and Apple Silicon. Versatile Mounting Options 1x4 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations. Compact form factor enables discreet...
Why choose the StarTech.com 4-Port HDMI Extender and Splitter Over CAT6...?
The StarTech.com 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up... is a av extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 3840 x 2160 pixels; Cable types supported: Cat6, Cat6a. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Chipset | GSV5100 |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Yes |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Connectivity technology | Wired |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 5 |
| Remote (IR) input | 4 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.8 A |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 103 mm |
| Depth | 180 mm |
| Height | 23 mm |
| Weight | 375 g |
| Package width | 423 mm |
| Package depth | 345 mm |
| Package height | 60 mm |
| Package weight | 1.2 kg |
| AC adapter included | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| IR blaster included | Yes |
| Brand | StarTech.com |
| Manufacturer part number | 4K7014IC-EXTEND-HDMI |
| GTIN / UPC | ['0065030916165', '065030916165'] |
