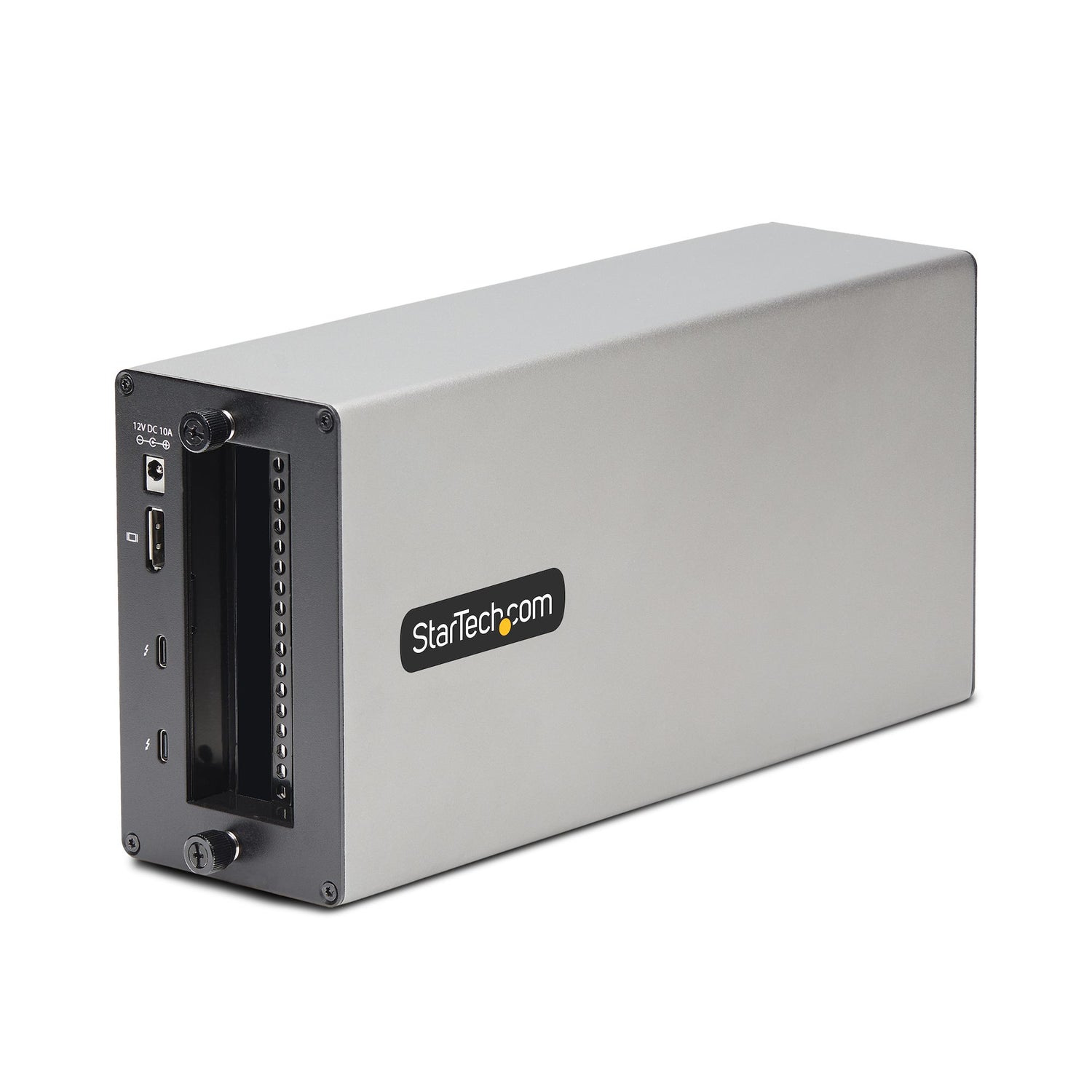

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video...
Stock: 56 units
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosu...
Description
Description
Product overview
Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system. Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions. Enhanced Computer Capabilities Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card. Flexible Card Support The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage. The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal. 8K & 4K...
Why choose the StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External...?
The StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure... is a laptop docks & port replicators from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Host interface: Thunderbolt 3; DisplayPorts quantity: 1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Thunderbolt 3 ports quantity | 2 |
| PCI Express x16 slots | 2 |
| PCIe version | 3.0 |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour | Silver |
| LED indicators | Power |
| Rubber feet | Yes |
| Housing material | Aluminium |
| Built-in fan | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 6 cm mm |
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 3 A |
| Output voltage | 12 V |
| Output current | 10 A |
| Power consumption (max) | 120 W |
| Compatible power plug types | AU, EU, JP, UK, US |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 5 - 65 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Sustainability compliance | Yes |
| Width | 281 mm |
| Depth | 84 mm |
| Height | 142 mm |
| Weight | 1.6 kg |
| Package width | 285 mm |
| Package depth | 353 mm |
| Package height | 143 mm |
| Package weight | 3.4 kg |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Brand | StarTech.com |
| Manufacturer part number | 2TBT3-PCIE-ENCLOSURE |
| GTIN / UPC | ['0065030895002', '065030895002'] |
