ATEN 4-Port DesPlay Input Board
Stock: 0 units
Description
Description
Product overview

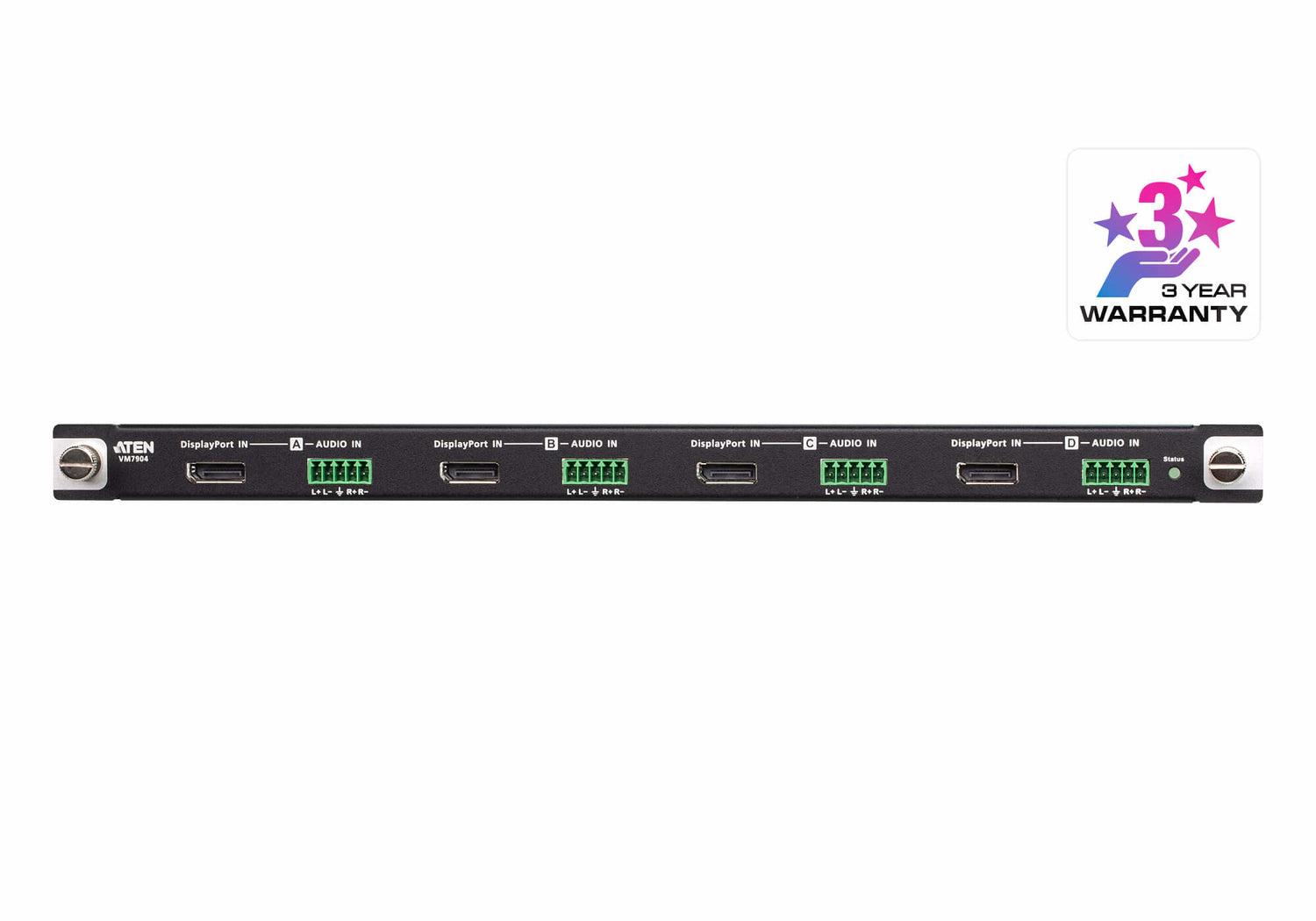

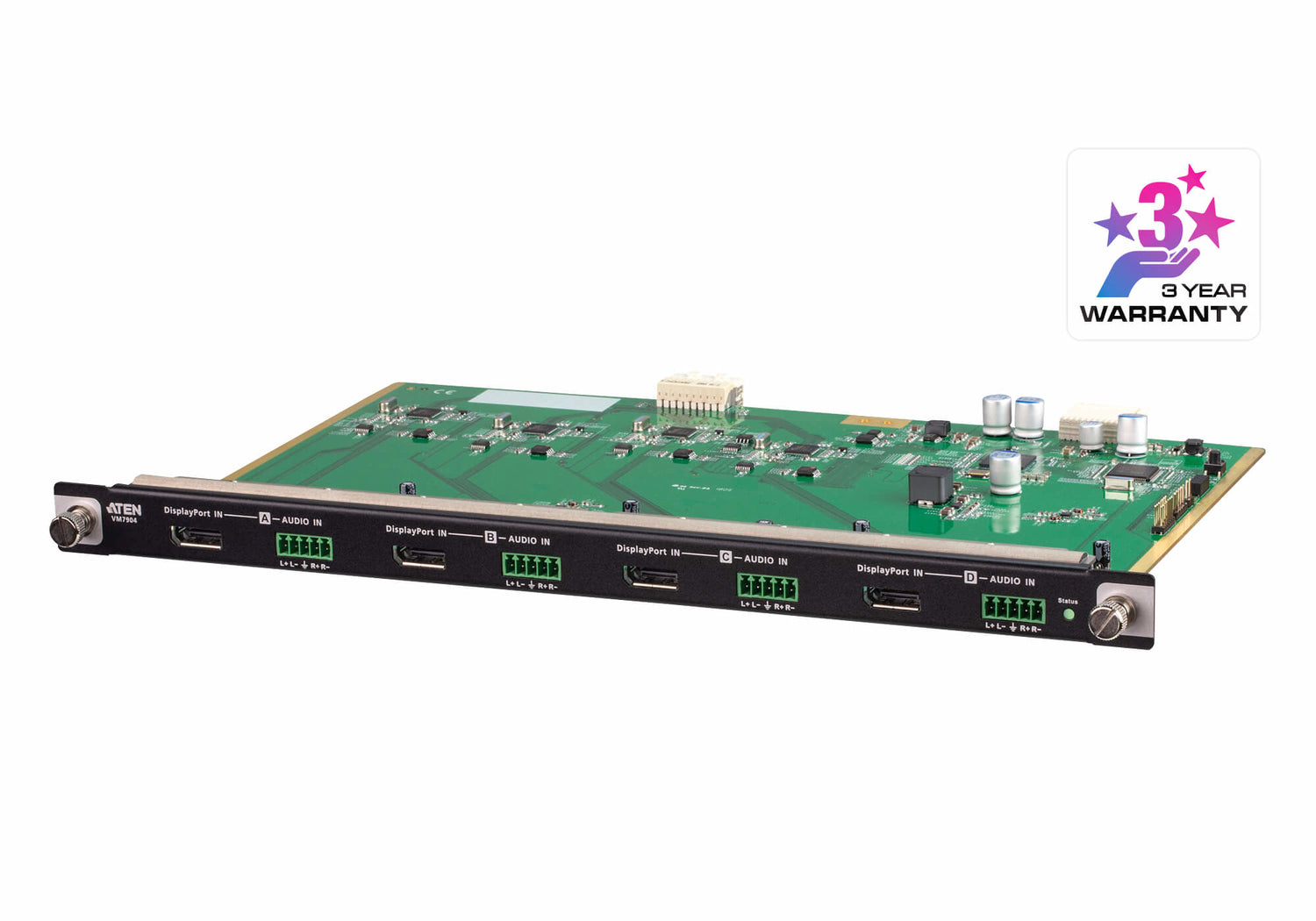

The VM7904 is a 4K DisplayPort Input Board that works with an ATEN Modular Matrix Switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal, the VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output. 1x VM7904 4-Port 4K DisplayPort Input Board 4x Terminal Blocks 1x User Instructions
Why choose the ATEN 4-Port DesPlay Input Board?
The ATEN 4-Port DesPlay Input Board is a matrix switch accessories from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product type: Input board; Product colour: Black, Green; Material: Metal. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product type | Input board |
| Product colour | Black, Green |
| Material | Metal |
| DisplayPorts quantity | 4 |
| Power consumption (typical) | 7.18 W |
| Width | 238 mm |
| Depth | 352 mm |
| Height | 23.3 mm |
| Weight | 550 g |
| Package width | 285 mm |
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 910 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | RoHS |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.25 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.1 kg |
| Brand | ATEN |
| Manufacturer part number | VM7904-AT |
| GTIN / UPC | ['4719264647604', '0672792009570', '672792009570'] |
