ATEN VM0404HA video switch HDMI
Stock: 2 units
ATEN VM0404HA video switch HDMI
Description
Description
Product overview

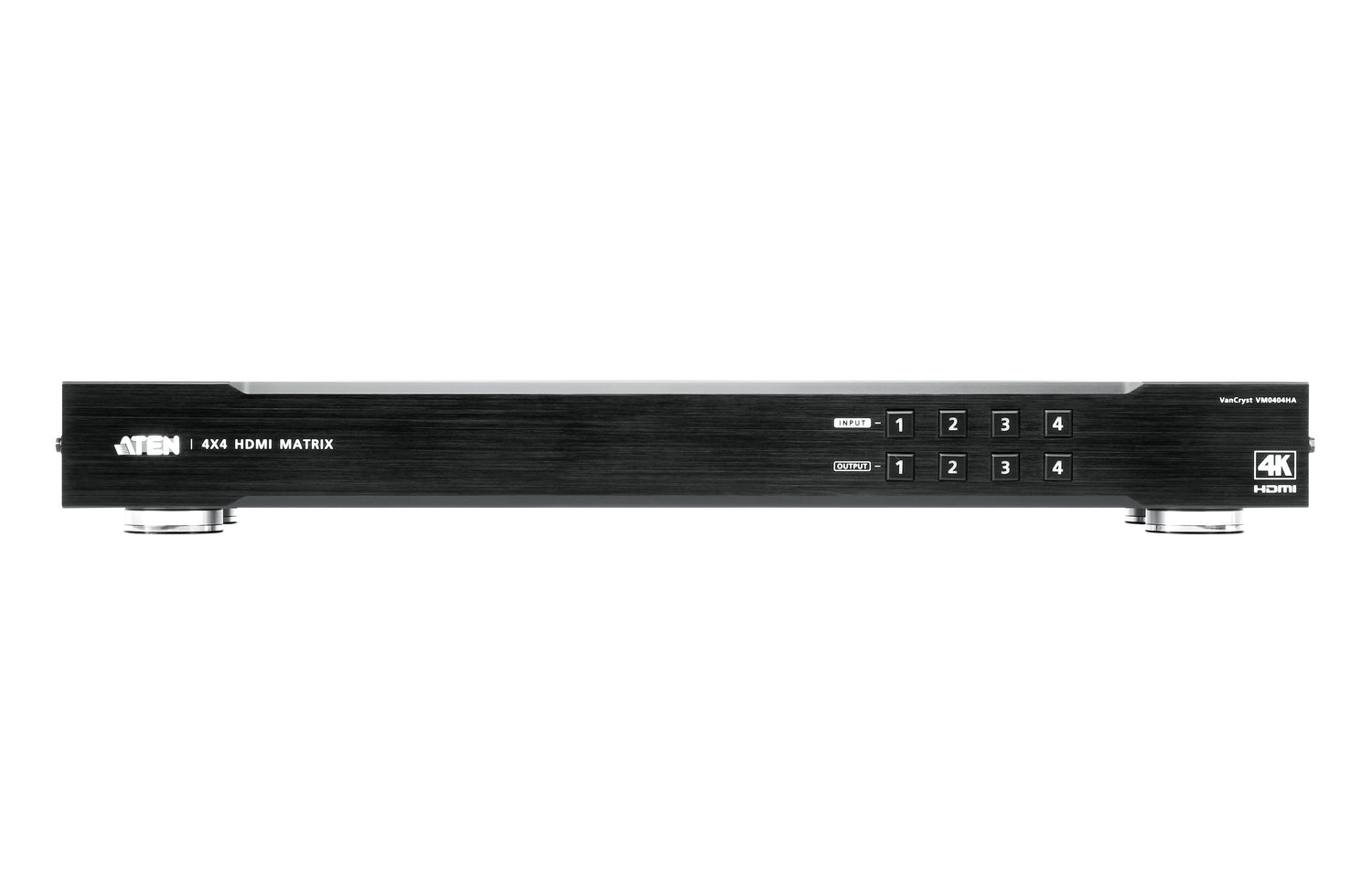

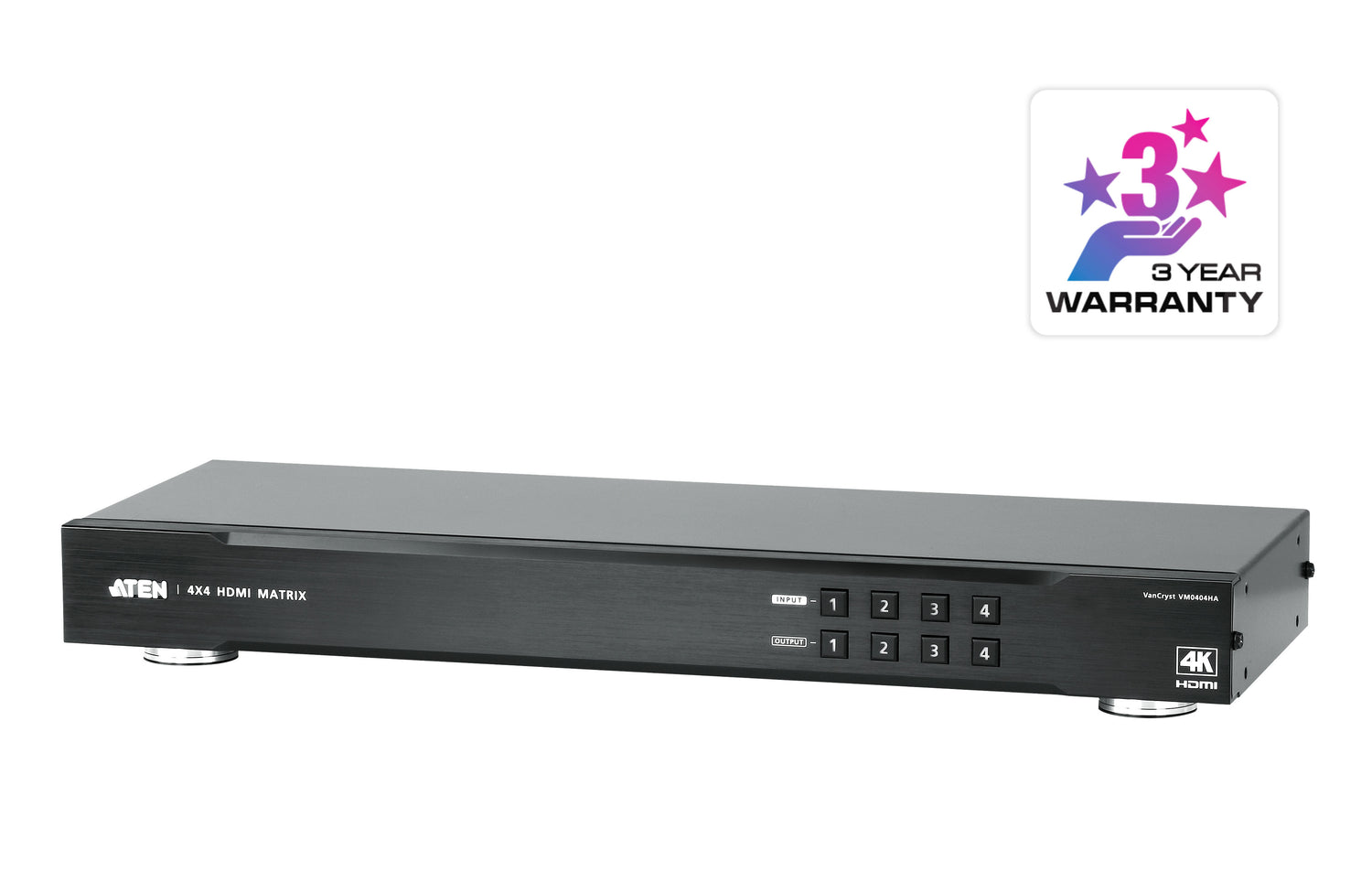

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more. The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
Why choose the ATEN VM0404HA video switch HDMI?
The ATEN VM0404HA video switch HDMI is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Video port type: HDMI; HDMI ports quantity: 8; HDMI in: 4. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |

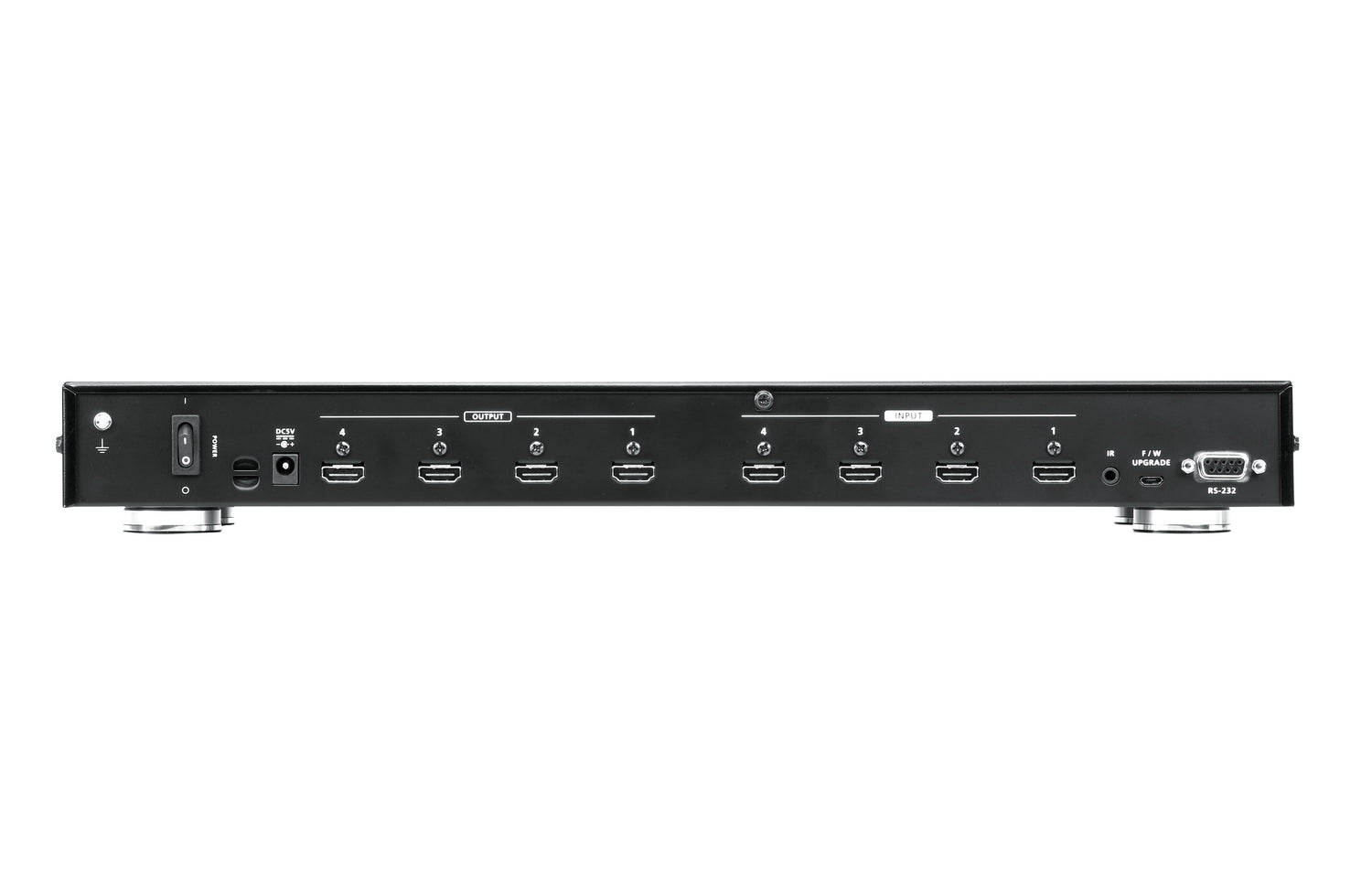

| Video in | 4 x HDMI Type A Female (Black) |
| Video out | 4 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 2160i, 2160p |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Power consumption (typical) | 10.58 W |
| Width | 437.2 mm |
| Depth | 162.9 mm |
| Height | 44 mm |
| Weight | 2.02 kg |
| Remote control included | Yes |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Plug adapter type | EU |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Brand | ATEN |
| Manufacturer part number | VM0404HA |
| GTIN / UPC | ['0672792403644', '672792403644'] |
