SWITCH 9 X 2 4K PRESENTATION MATRIX
Stock: 0 units
Description
Description
Product overview

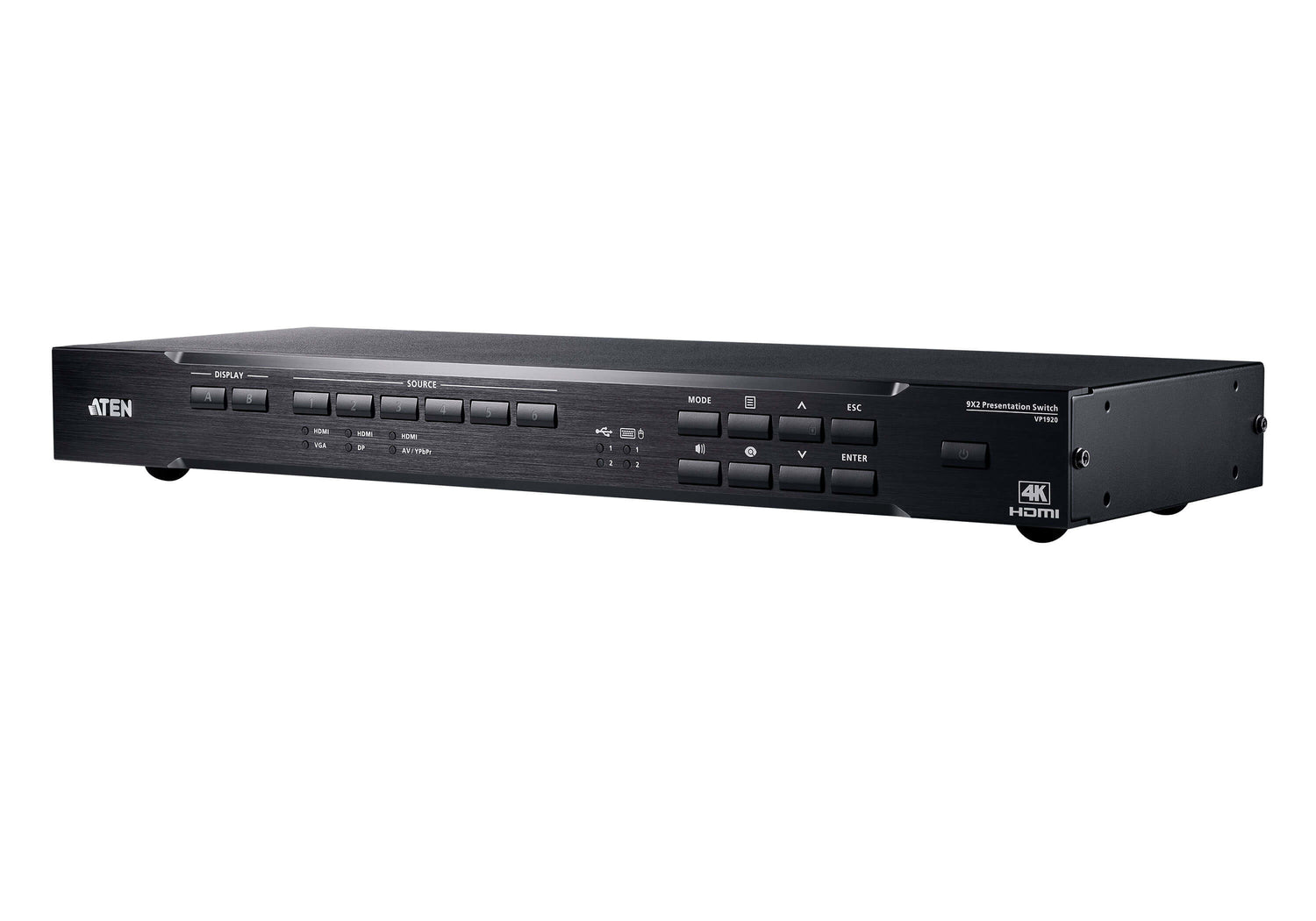

The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations. With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.
Why choose the ATEN VP1920 video switch?
The ATEN VP1920 video switch is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — HDMI ports quantity: 8; HDMI in: 6; Number of HDMI outputs: 2. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| HDMI ports quantity | 8 |
| HDMI in | 6 |
| Number of HDMI outputs | 2 |
| VGA (D-Sub) ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| DisplayPorts quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 2 |
| Digital audio coaxial out | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| RS-232 ports | 1 |
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Remote control type | IR |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Rack capacity | 1U |
| Heat dissipation | 60 BTU/h |
| HDCP version | 1.4 |
| AC input voltage | 100 - 240 V |
| AC adapter frequency | 50 / 60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 7.3 W |
| Width | 437.2 mm |
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 2.36 kg |
| Quantity per pack | 1 pc(s) |
| Power cord included | Yes |
| Remote control included | Yes |
| Brand | ATEN |
| Manufacturer part number | VP1920 |
| GTIN / UPC | ['0672792008016', '672792008016'] |
