Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch with PoE Passthrough, One PD PoE Port with 95 W Power Input, Seven PSE PoE Ports, PoE Power Budget up to 120 W, IEEE 802.3at/af Compliant...
Stock: 0 units
Description
Description
Product overview
The PoE Passthrough Industrial Switch — Save installation costs with PoE and get the most out each PoE connection. The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE sources, easily handling up to 95 W. Equipped with eight Gigabit Ethernet ports, this switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter. Usable as a PoE extender. Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls. This Switch can also accept power through a DC power adapter or an industrial power supply, providing up to 120 W to compatible devices. Ideal for harsh industrial environments. With its rugged, protective metal housing, the switch operates reliably and quietly, even in extreme temperatures from -20 to 75℃ (-4 – 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and...
Why choose the Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch...?
The Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch with PoE... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Basic switching RJ-45 Ethernet ports quantity: 8; Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000); Cable types supported: Cat5e. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9200 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |

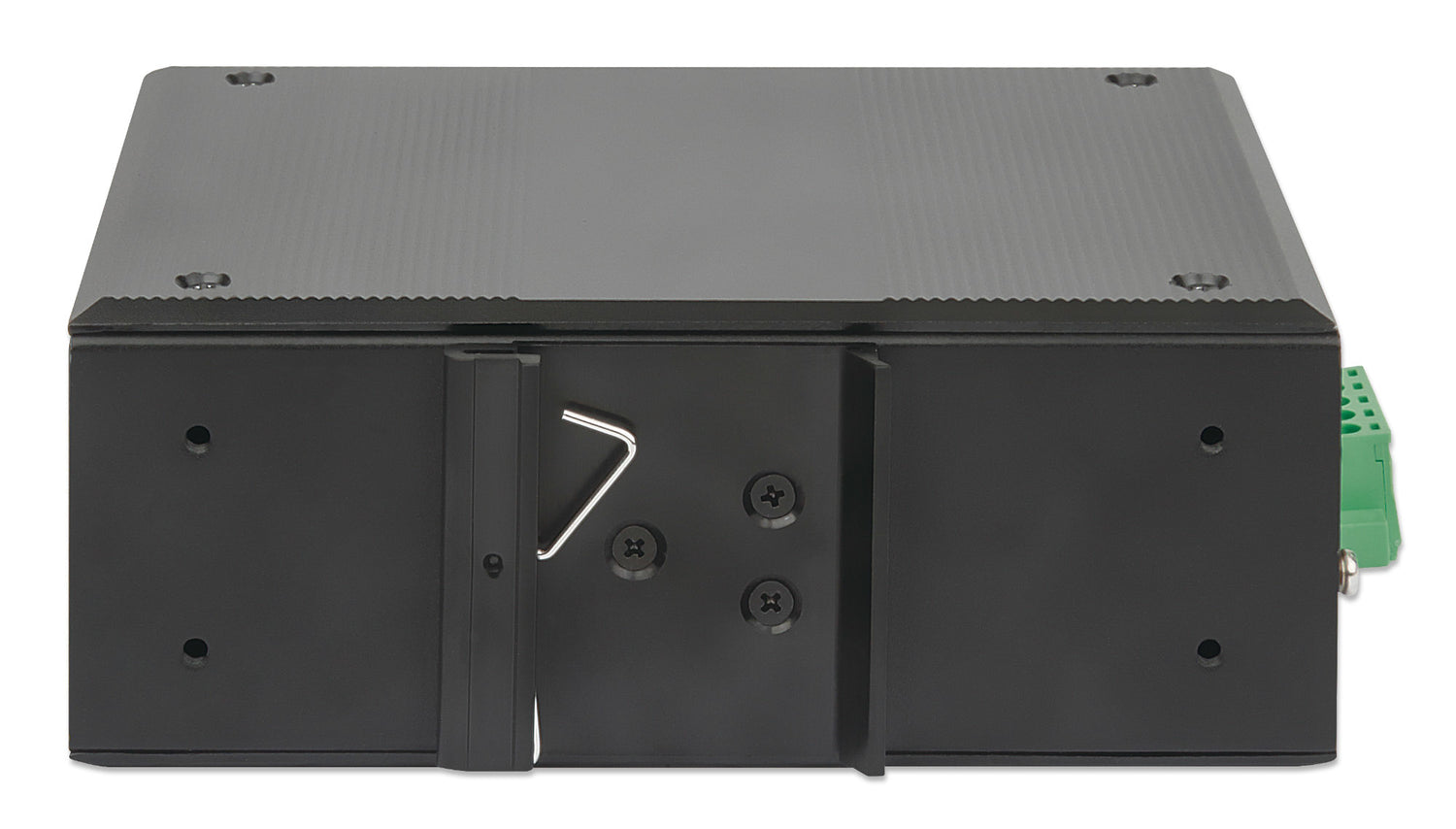

| DIN rail mounting | Yes |
| Fanless | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 48 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operating temperature (T-T) | -20 - 75 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |

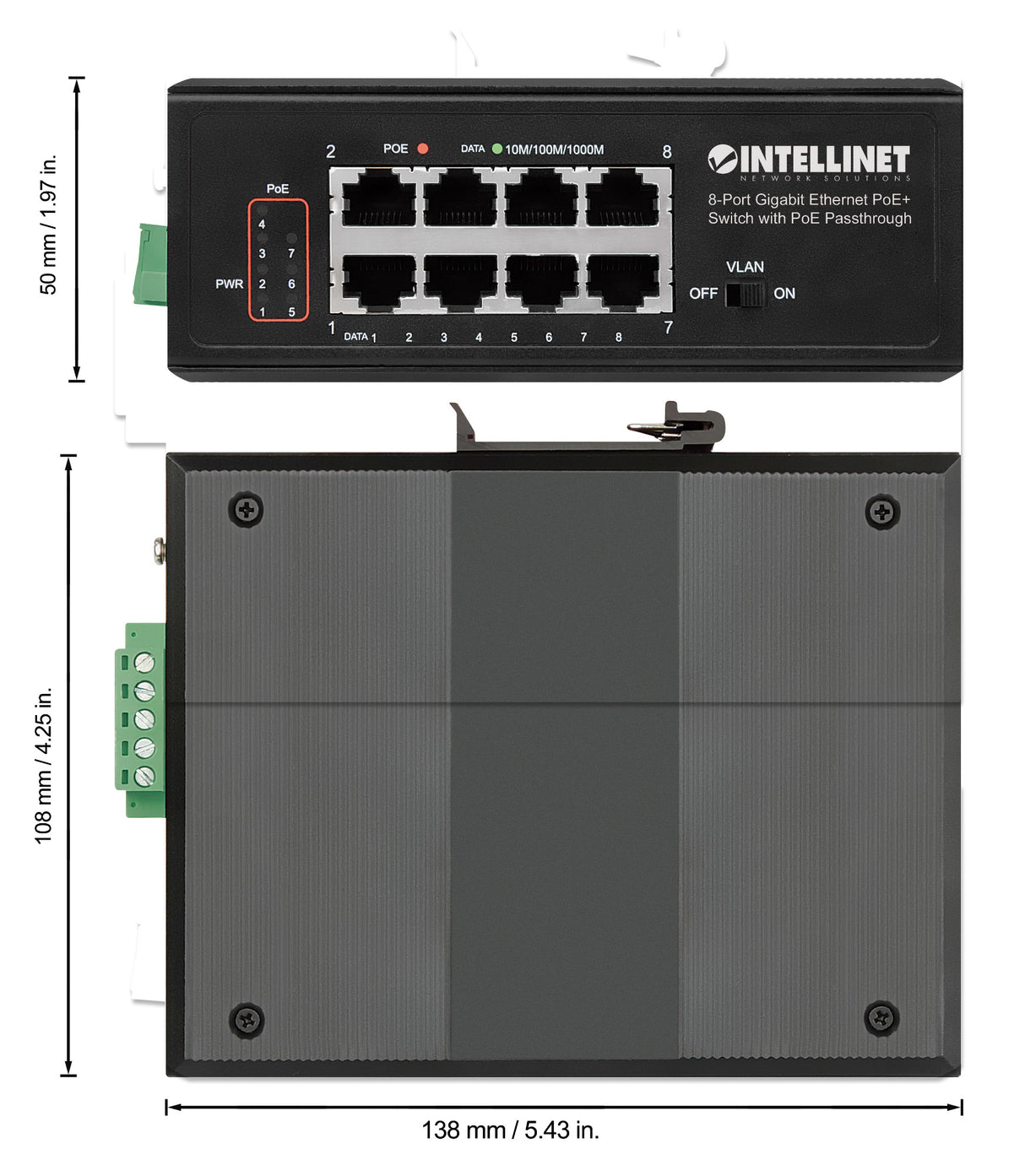

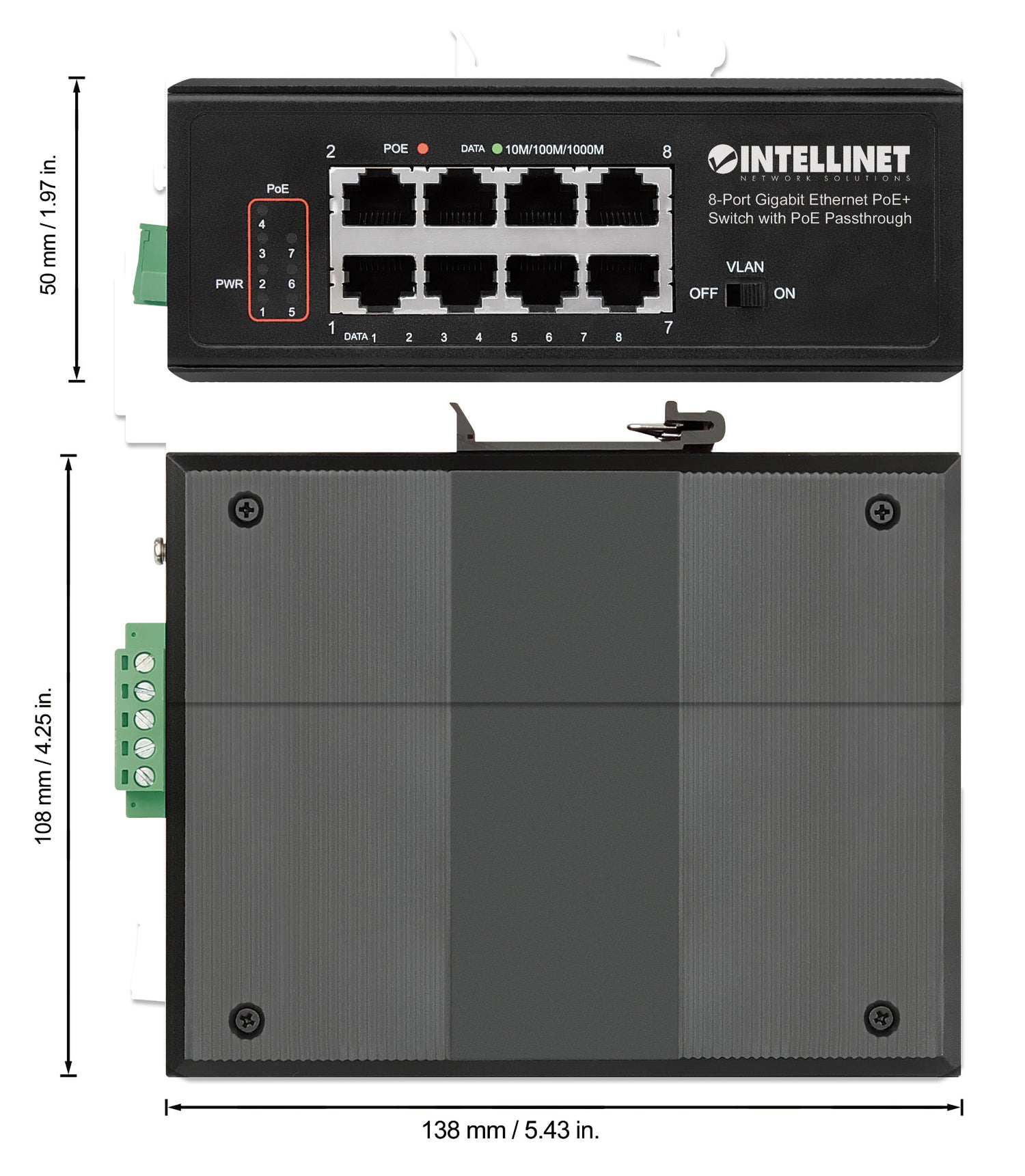

| Width | 138 mm |
| Depth | 108 mm |
| Height | 50 mm |
| Weight | 673 g |
| User guide | Yes |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UL |
| Certification | FCC B, CE, RoHS |
| Brand | Intellinet |
| Manufacturer part number | 561624 |
| GTIN / UPC | ['0766623561624', '766623561624'] |
