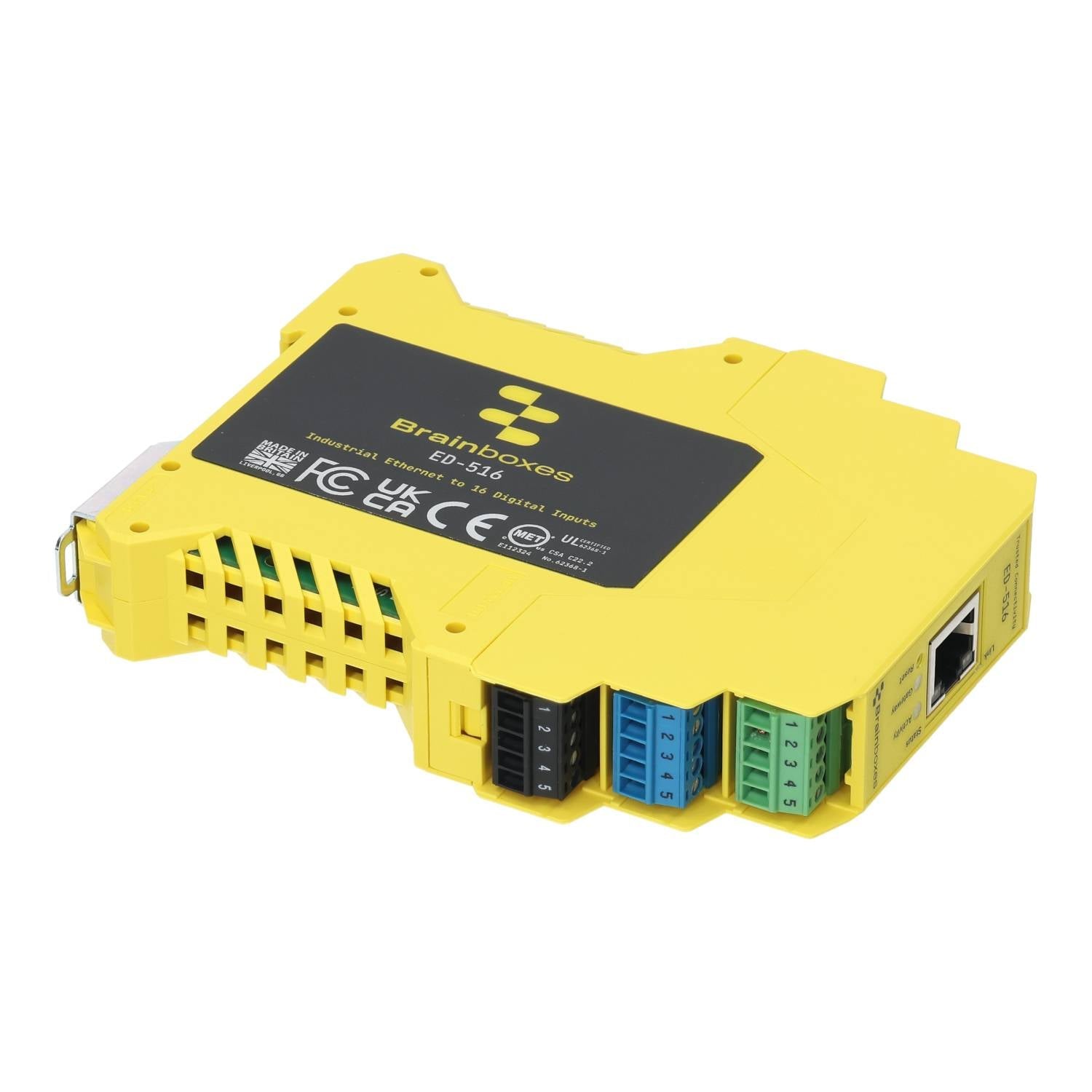

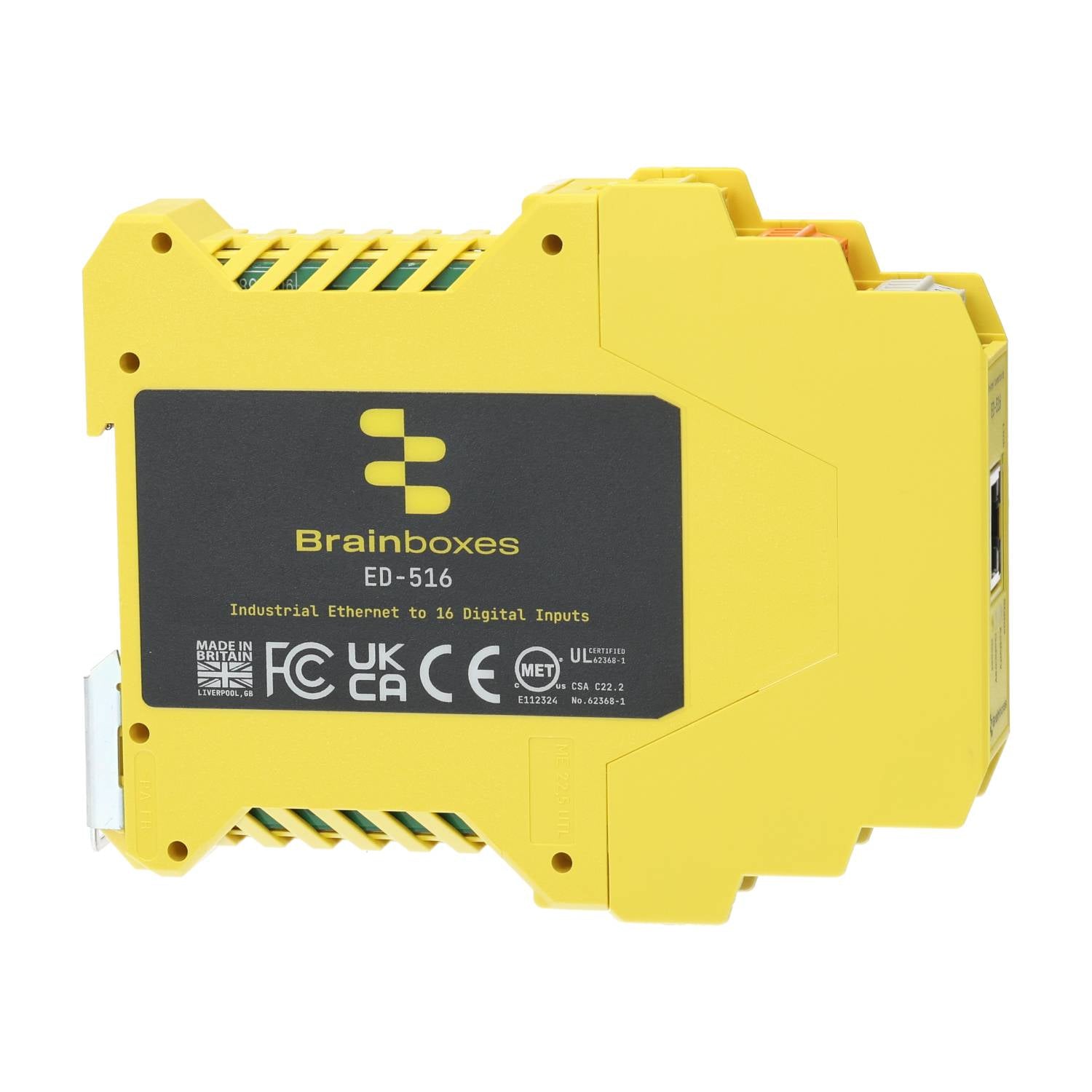

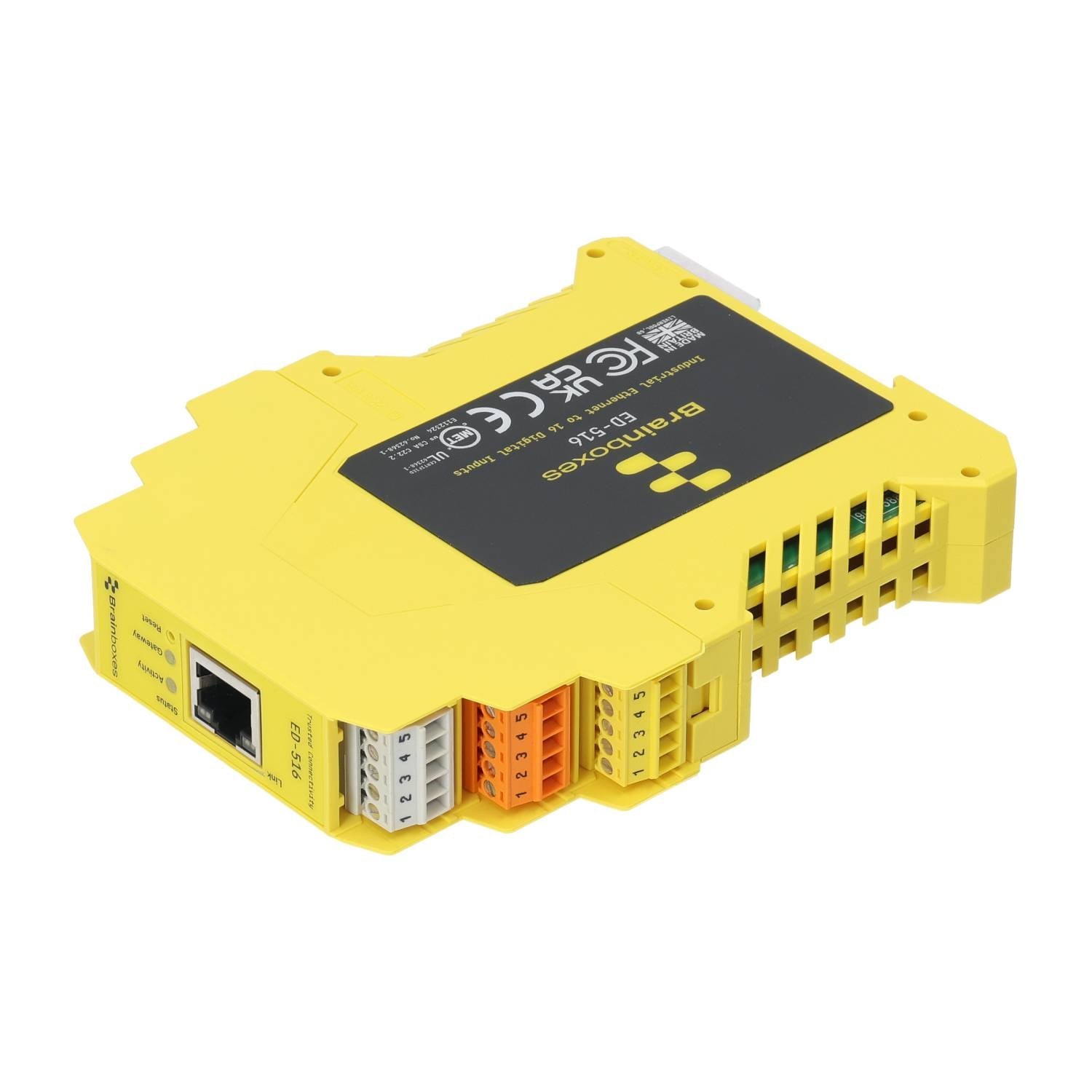

Brainboxes ED-516 digital/analogue I/O module
Stock: 0 units
Description
Description
Product overview
Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices. The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
Why choose the Brainboxes ED-516 digital/analogue I/O module?
The Brainboxes ED-516 digital/analogue I/O module is a digital & analog i/o modules from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Module type: Digital; Signal direction: Input; Digital input channels quantity: 16 channels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Module type | Digital |
| Signal direction | Input |
| Digital input channels quantity | 16 channels |
| Digital output channels quantity | 0 channels |
| Ethernet LAN (RJ-45) ports | 1 |

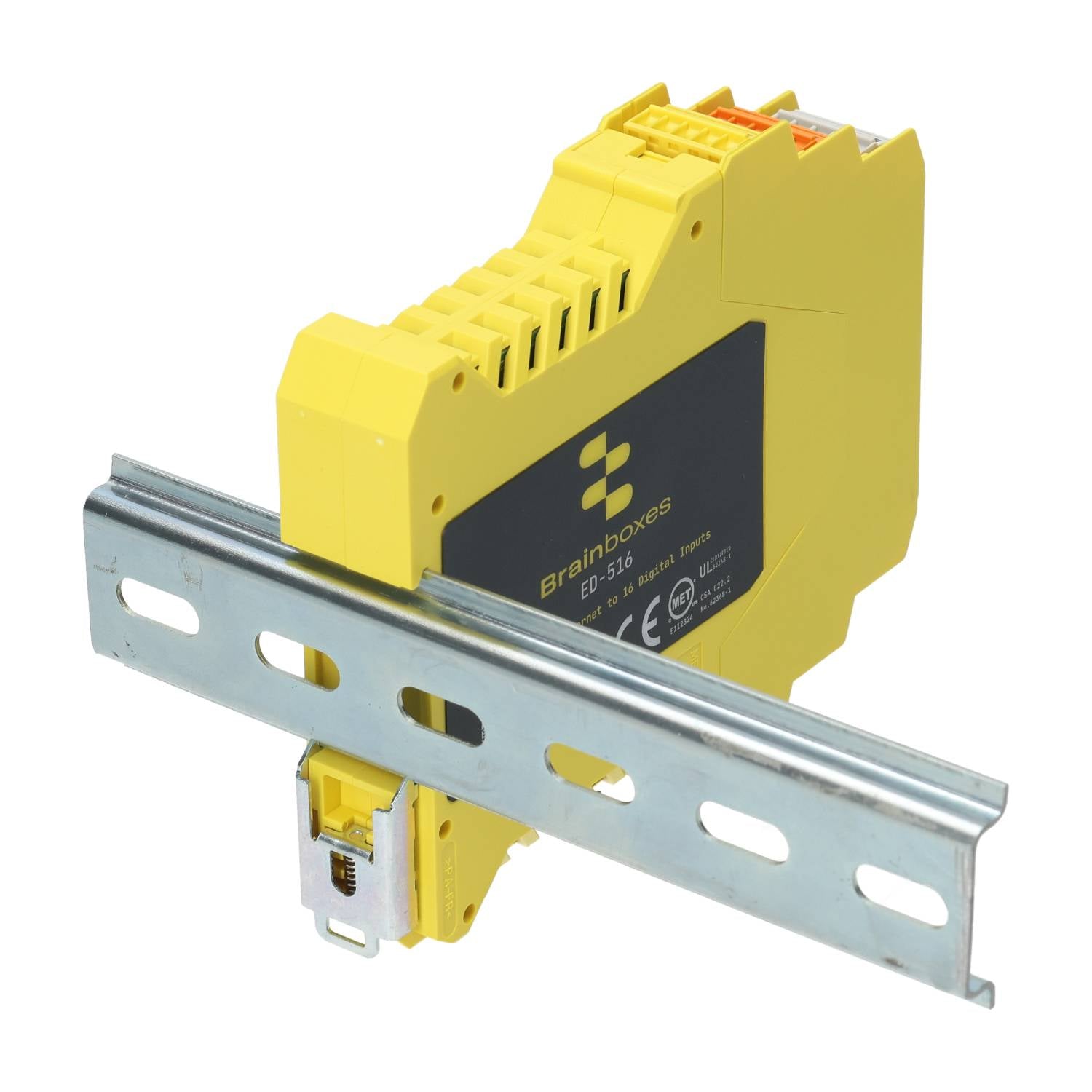

| DIN rail mounting | Yes |
| Product colour | Yellow |
| Power consumption | 100 mA |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 129 mm |
| Depth | 102 mm |
| Height | 49 mm |
| Weight | 134 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 230 g |
| Brand | Brainboxes |
| Manufacturer part number | ED-516 |
| GTIN / UPC | ['0837324003185', '837324003185'] |
