ATEN CL6700MW KVM switch Rack mounting Black
Stock: 0 units
Description
Description
Product overview

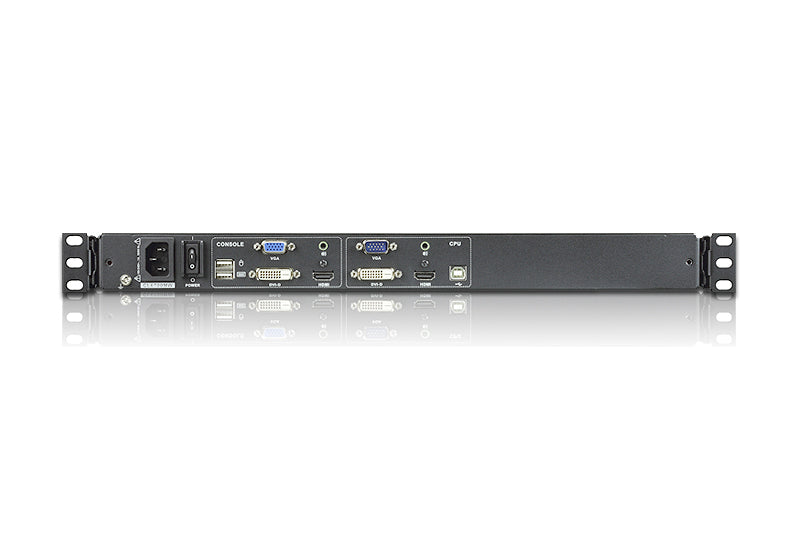

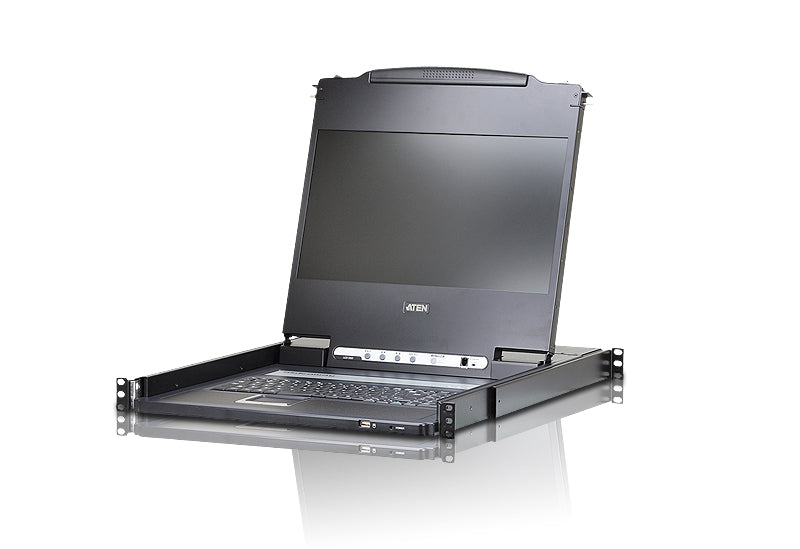

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-definition monitor to the console port, and/or an HDMI compatible switch to the KVM port. The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers. Features: -Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack -Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available...
Why choose the ATEN CL6700MW KVM switch Rack mounting Black?
The ATEN CL6700MW KVM switch Rack mounting Black is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 1; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 2 |
| Console ports | DVI-D, HDMI |
| Console USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| HD type | Full HD |
| Maximum resolution | 1920 x 1080 pixels |
| Video bandwidth | 60 Hz |
| DDC/DDC2 supported | Yes |
| DDC2B support | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.9 cm (17.3") " |
| On Screen Display (OSD) | Yes |
| Power source | AC |
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 19.4 W |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 480 mm |
| Depth | 589.2 mm |
| Height | 44 mm |
| Weight | 11.4 kg |
| Brand | ATEN |
| Manufacturer part number | CL6700MW |
| GTIN / UPC | ['0672792402760', '672792402760', '4719264641916'] |
