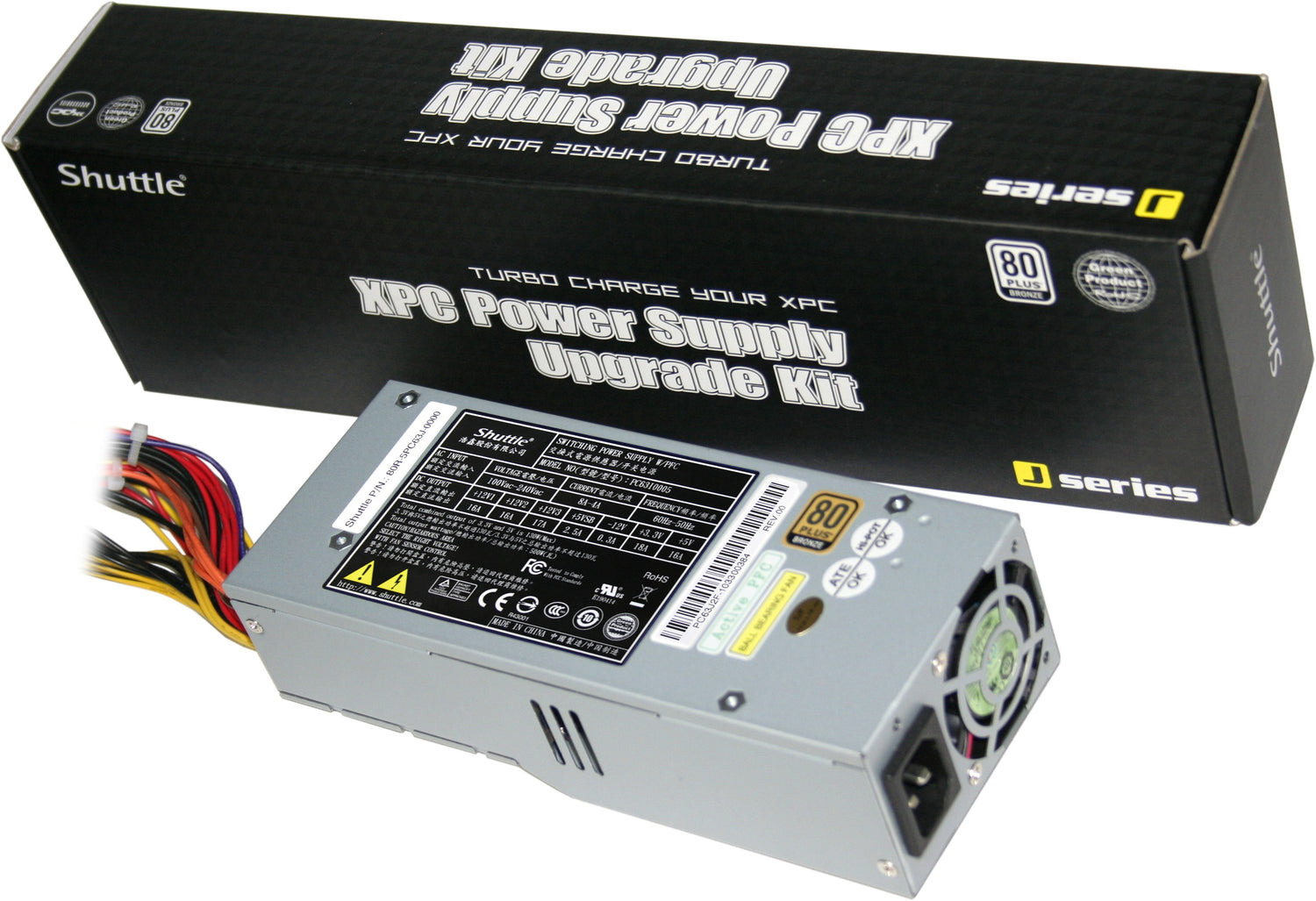

Shuttle PC63J power supply unit 500 W 20+4 pin ATX Grey
Stock: 0 units
Description
Description
Product overview
The Shuttle XPC Accessory PC63J is a new high-end power supply with a maximum output wattage of 500W suitable for certain XPCs of the H, J and R series. With a low noise level of only 30dB, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR® compliant systems. Benefit from less power consumption and less energy costs using PC63J.
Why choose the Shuttle PC63J power supply unit 500 W 20+4 pin ATX Grey?
The Shuttle PC63J power supply unit 500 W 20+4 pin ATX Grey is a power supply units from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Total power: 500 W; AC input voltage: 100 - 240 V; AC input frequency: 50 - 60 Hz. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8/4 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+12V3,+3.3V,+5V,+5Vsb,-12V A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 17 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Efficiency | 82% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Noise level | 30 dB |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | SH67H3, SH67H7, SN78SH7, SG45H7, SP45H7, SX58H7(Pro), SG41J1/J4, SH55J2, SX58J3, SH61R4, SH81R4, SZ68R5, SZ77R5, SX79R5, SH87R6, SZ87R6, SH97R6, SH110R4, SH170R6 (Plus), SZ170R8(V2), SZ270R8(P) |
| Product colour | Grey |
| Fan diameter | 5 cm mm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Certification | FCC class B, CE, BSMI, CCC |
| Safety | cUL, TÜV, CB, BSMI, CCC |
| Width | 82 mm |
| Depth | 200 mm |
| Height | 53 mm |
| Weight | 1.1 kg |
| Brand | Shuttle |
| Manufacturer part number | PC63J |
| GTIN / UPC | ['8116860054458', '0115970733763', '115970733763', '0811686005445', '811686005445', '0887993800073', '887993800073'] |
