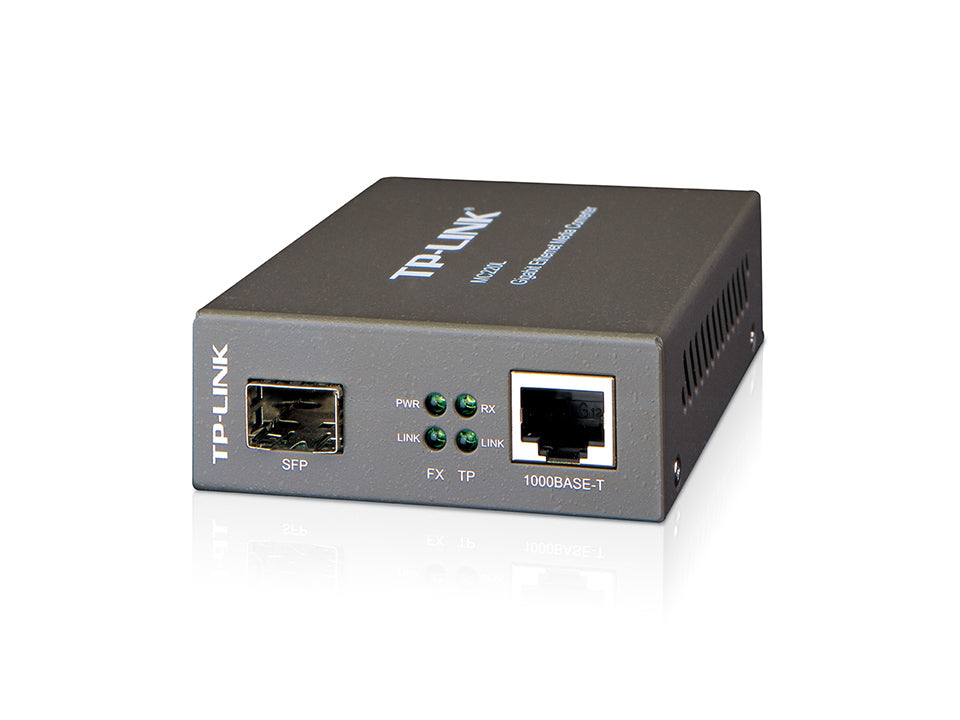

TP-Link Gigabit SFP Media Converter
Stock: 0 units
Description
Description
Product overview
Complies with IEEE 802.3ab and IEEE 802.3z. FX port supports hot-swappable. Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber. The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Why choose the TP-Link Gigabit SFP Media Converter?
The TP-Link Gigabit SFP Media Converter is a network media converters from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum data transfer rate: 1000 Mbit/s; Ethernet interface type: Gigabit Ethernet; Ethernet LAN data rates: 1000 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 5e, 5 |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| LED indicators | Link |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power consumption (max) | 1.7 W |
| External power adapter | Yes |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 420 g |
| Certification | FCC, CE |
| Harmonized System (HS) code | 85176990 |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| Full duplex | Yes |
| Brand | TP-Link |
| Manufacturer part number | MC220L V1 |
| GTIN / UPC | ['0845973030476', '845973030476', '4056203026428', '6935364081294', '6935364030476'] |
