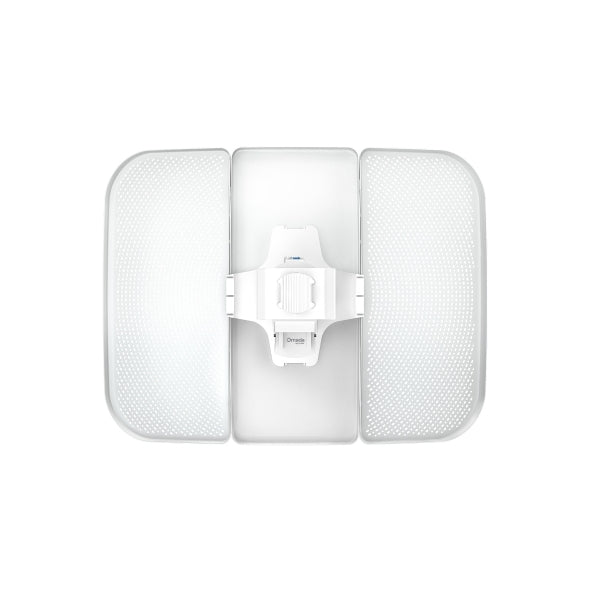

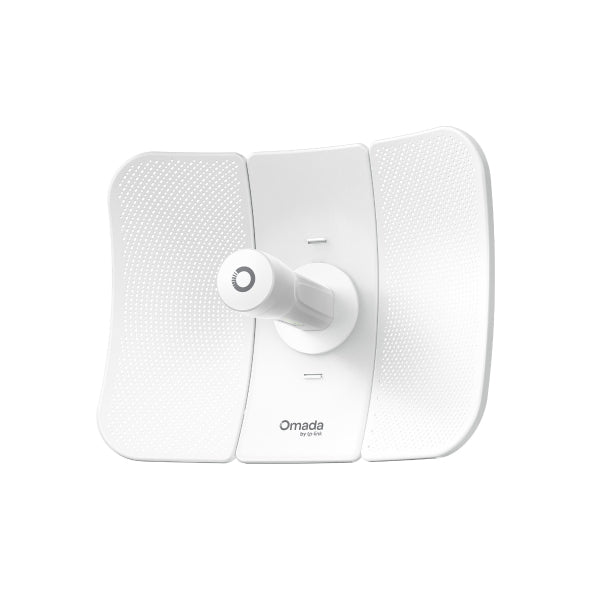

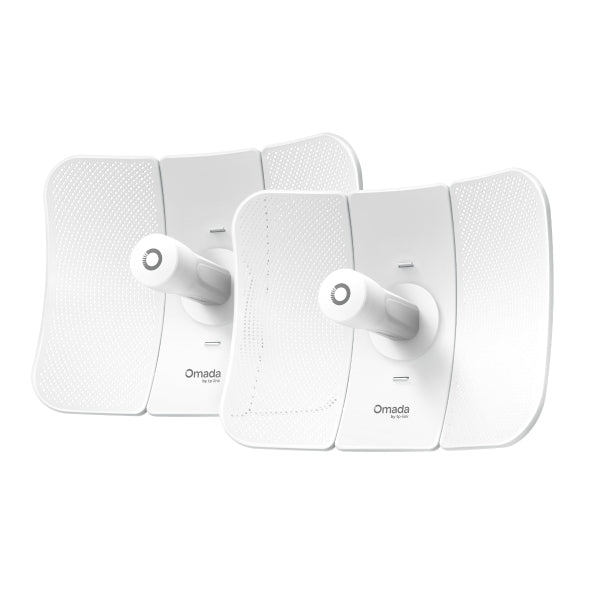

TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White
Stock: 2 units
TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White
Description
Description
Product overview
Product Overview. Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical. Business-Grade 15-km Ultra-Range Wi-Fi Connectivity. It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments. Effortless Plug-and-Play Setup. Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments. App-Guided Alignment for Optimal Performance. Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance. Simple Deployment with PoE Support. 1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply. Outdoor-Ready Design for Extreme Conditions. Beam Bridge 5 UR KIT supports...
Why choose the TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White?
The TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White is a bridges & repeaters from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum data transfer rate: 867 Mbit/s; Maximum transfer distance: 15000 m; Antenna design: External. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna design | External |
| Antenna type | 2x2 |
| Antenna gain level (max) | 23 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 5.150 - 5.850 GHz |
| Signal strength | 27 dBm |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Output power (dBm) | 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C, FCC (Conducted Power) 5 GHz: 27 dBm in U-NII-1, 27 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 5 GHz:... |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Product type | Network bridge |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 360000 h |
| Power source type | PoE |
| Power consumption (typical) | 15.8 W |
| Power consumption (max) | 15.8 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 158 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Compliance certificates | Federal Communications Commission (FCC) |
| Brand | TP-Link |
| Manufacturer part number | BEAM BRIDGE 5 UR KIT |
| GTIN / UPC | ['1210002603782', '1210002603799', '0840460601566', '840460601566'] |
