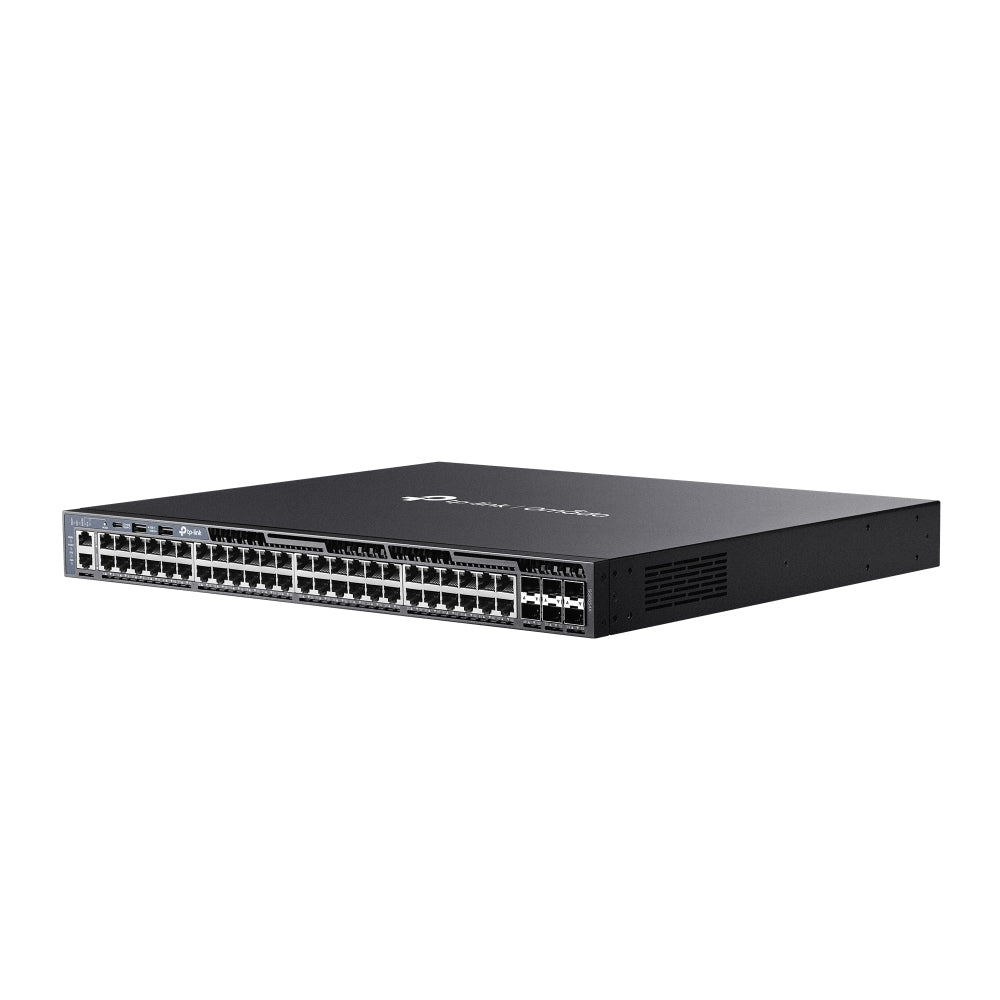

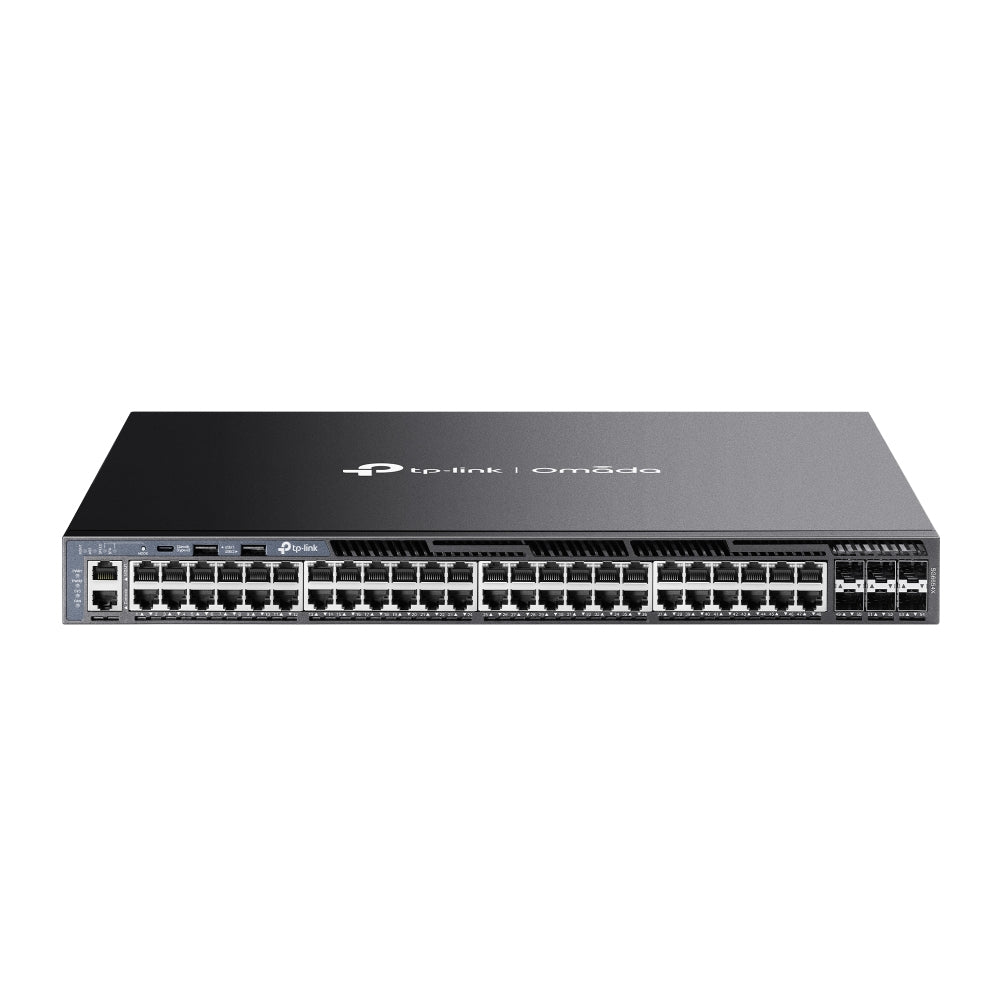

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
Stock: 0 units
Description
Description
Product overview
What This Product Does. Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks. High-speed Connectivity and Powerful Stacking. 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance. Abundant Layer 3 Capabilities. Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups. Highly Available. Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology. Enhanced Security Functions. Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell. Omada SDN. Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network...
Why choose the TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch...?
The TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G... is a network switches from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Switch layer: L3; Quality of Service (QoS) support: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 2 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.7 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IGMP entries | 2048 |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Multicast support | Yes |
| Brand | TP-Link |
| Manufacturer part number | SG6654X |
| GTIN / UPC | ['4895252501452', '4895252501469', '0840030705977', '840030705977'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
