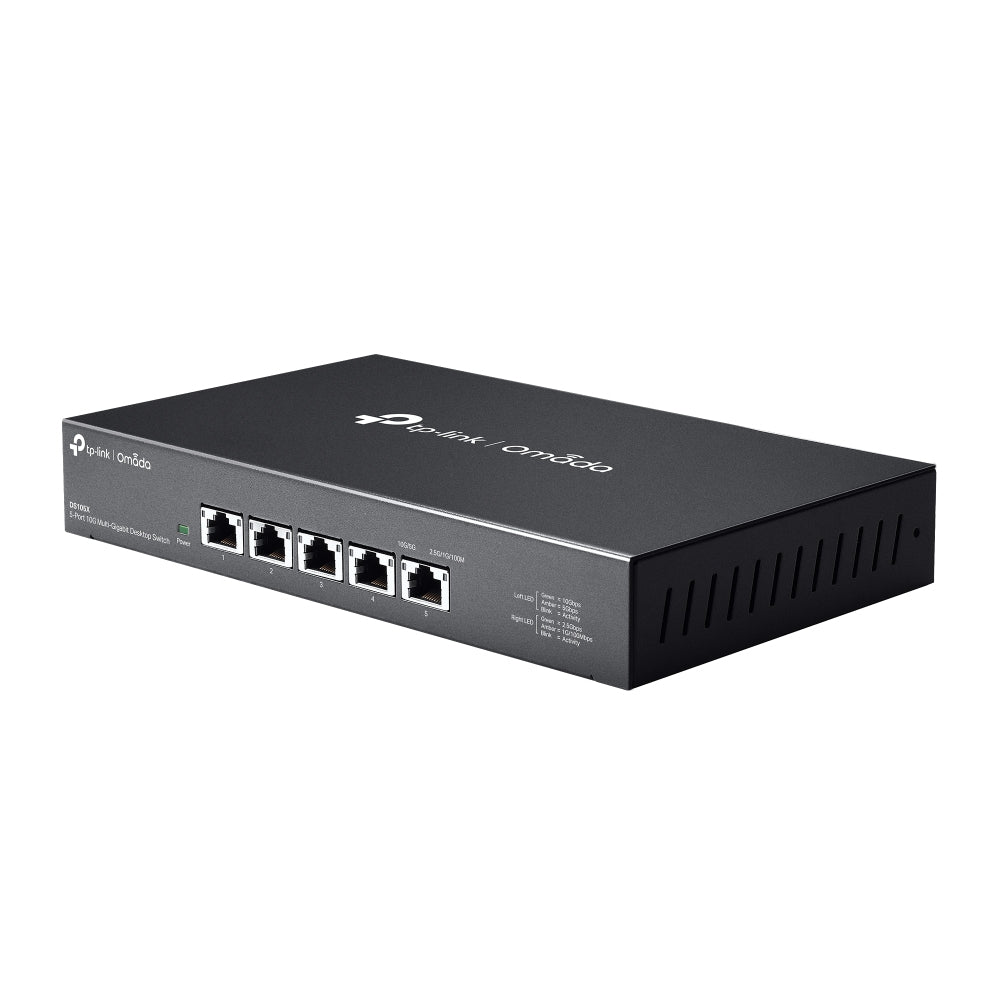

TP-Link Omada DS105X network switch Unmanaged 10G Ethernet (100/1000/10000) Black
Stock: 0 units
Description
Description
Product overview
TP-Link Omada DS105X. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Wall mountable
Why choose the TP-Link Omada DS105X network switch Unmanaged 10G Ethernet...?
The TP-Link Omada DS105X network switch Unmanaged 10G Ethernet... is a network switches from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Quality of Service (QoS) support: Yes; Basic switching RJ-45 Ethernet ports quantity: 5. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |

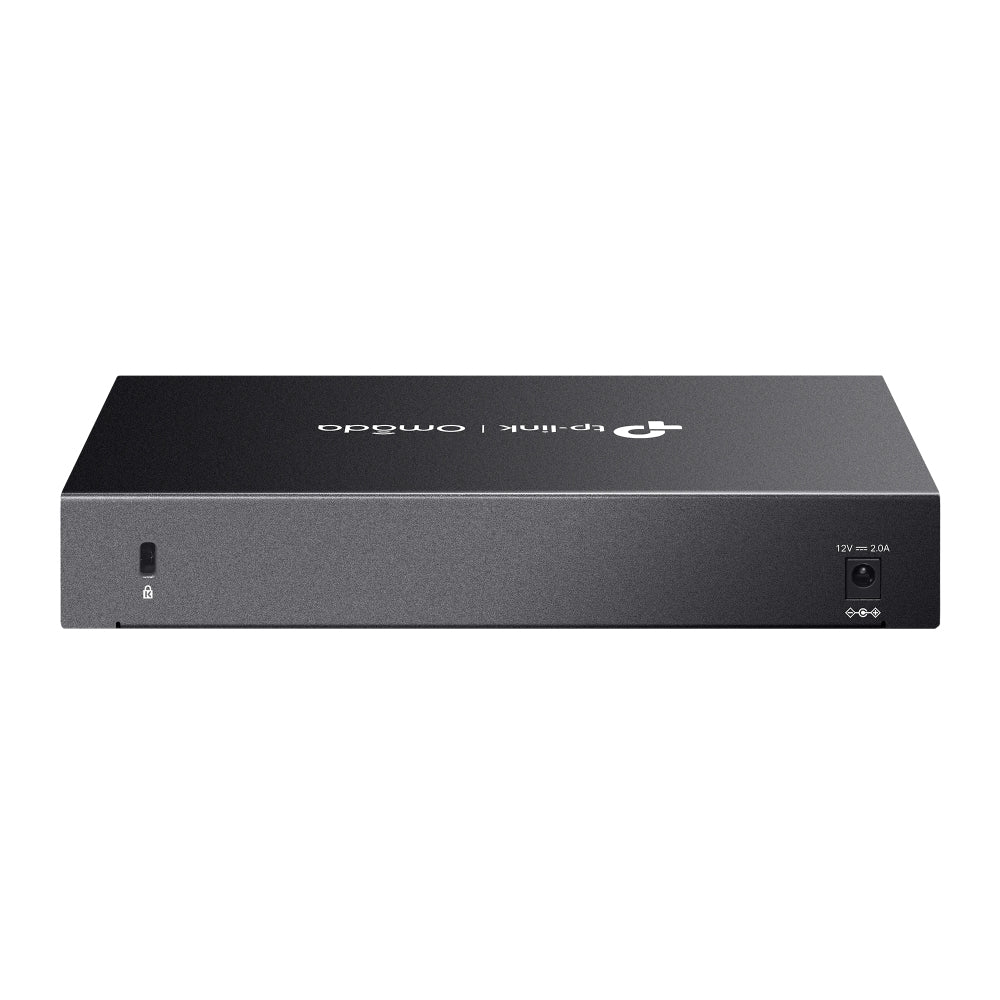

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 100 Gbit/s |
| Forwarding rate | 74.4 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| IGMP snooping | Yes |
| Multicast support | Yes |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |

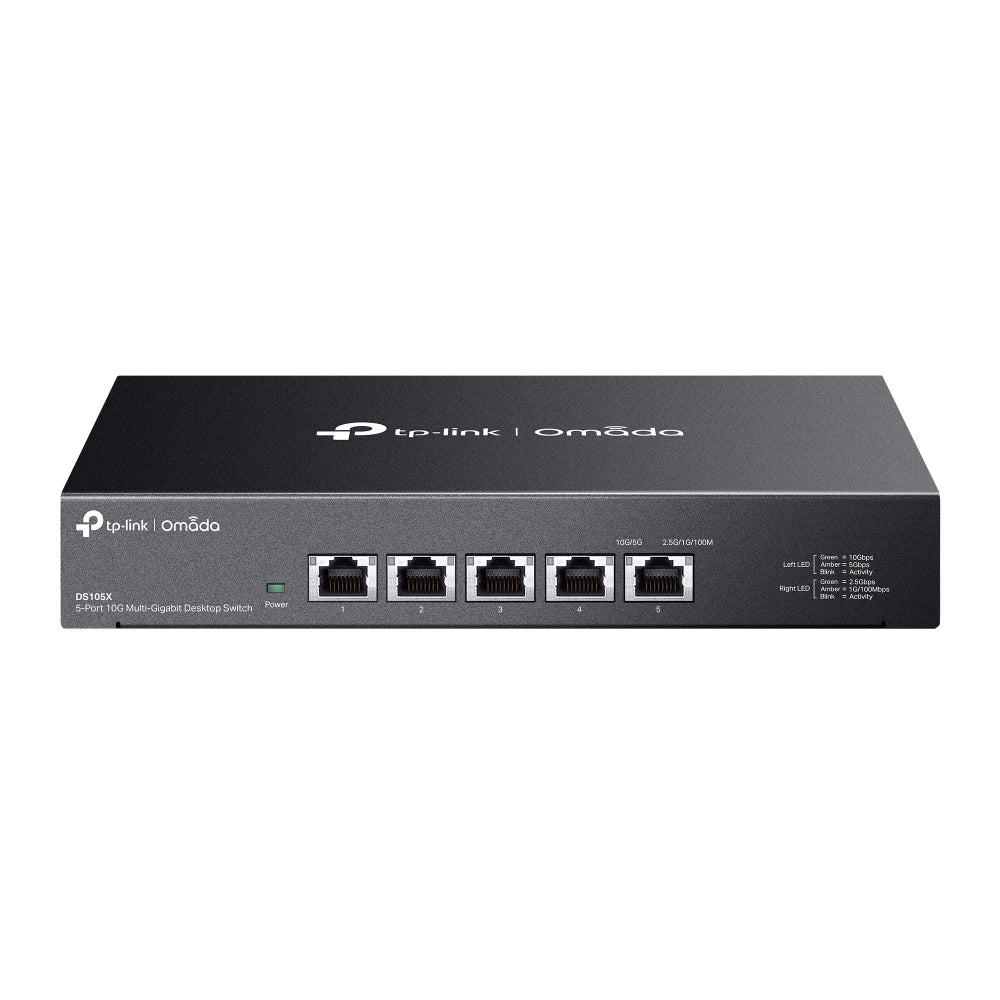

| LED indicators | Activity, Link, Power |

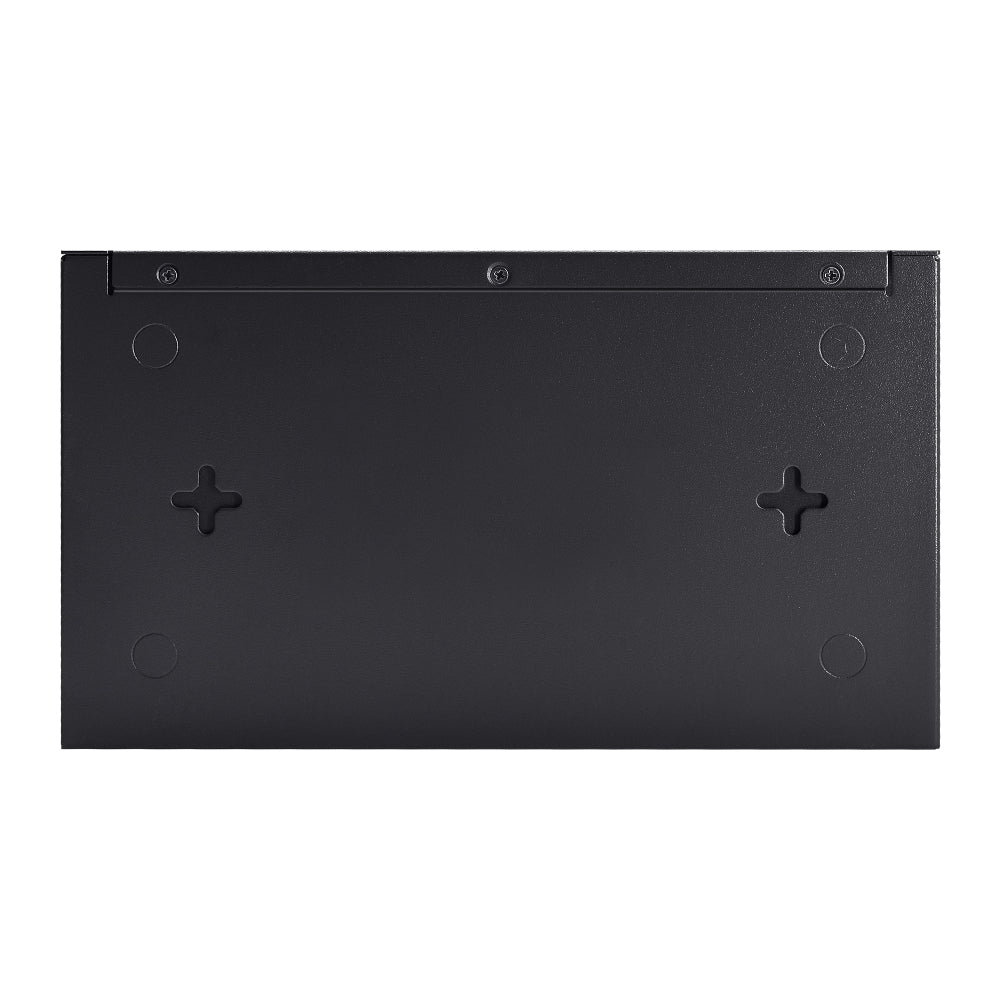

| Wall mountable | Yes |
| Plug and Play | Yes |
| Fanless | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (max) | 25.19 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 85.65 BTU/h |
| Brand | TP-Link |
| Manufacturer part number | DS105X |
| GTIN / UPC | ['0840030712456', '840030712456', '4895252507546'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
