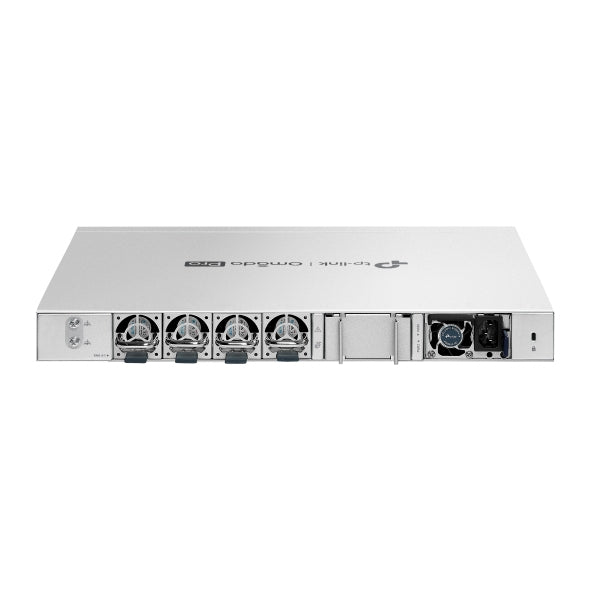

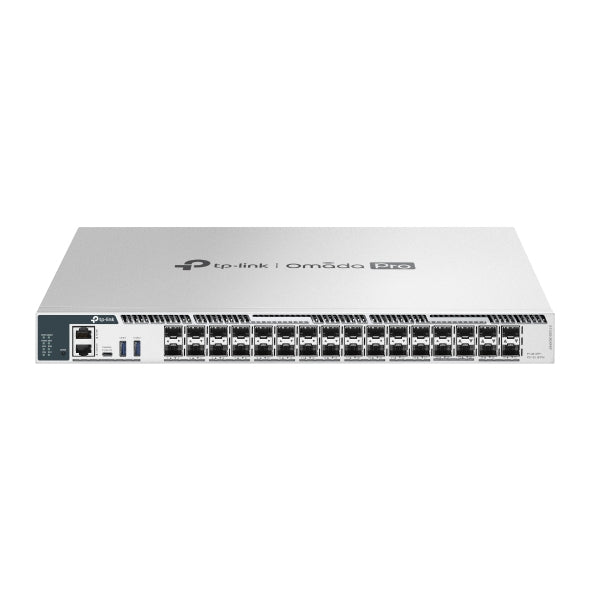

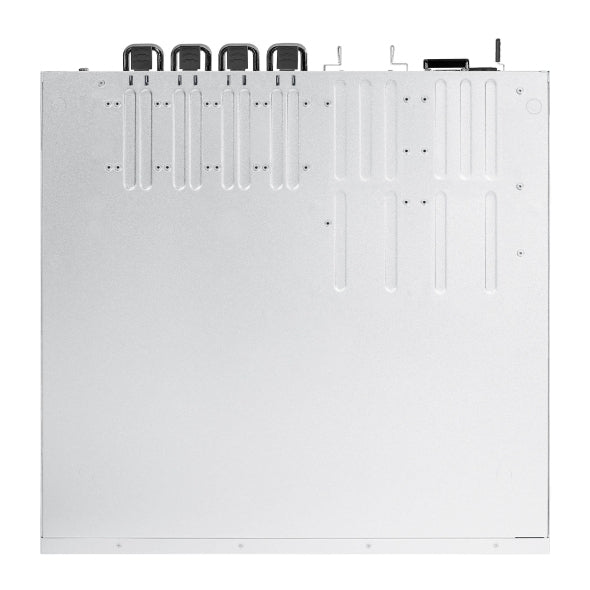

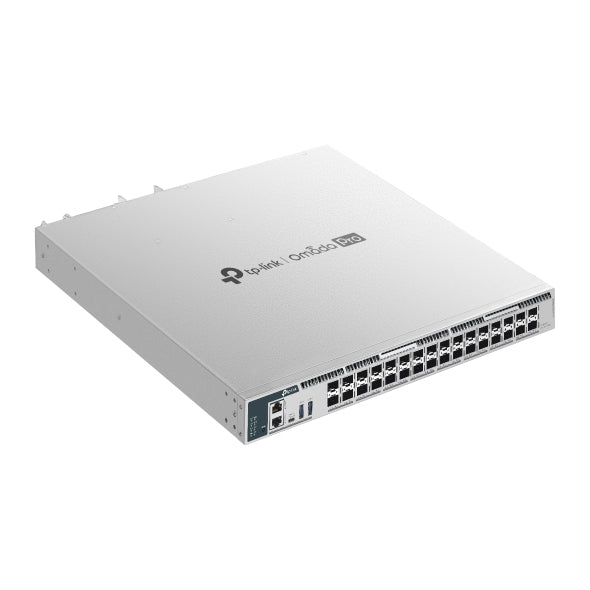

TP-Link Omada Pro S7500-26XF6Y network switch Managed L3 1U Grey
Stock: 0 units
Description
Description
Product overview
What This Product Does. Omada Pro S7500-26XF6Y is a high-performance L3 managed switch tailored for the aggregation layer, featuring L3 routing, fast 25 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 26× 10 Gbps SFP+ slots, 6× 25 Gbps SFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-26XF6Y offers a dependable networking solution for enterprises, campus, and ISPs. High-speed Connectivity and Powerful Stacking. 26× 10 Gbps SFP+ slots and 6× 25 Gbps SFP28 slots provide up to 820 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy. Abundant Layer 3 Capabilities. Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability. Comprehensive Security Functions. Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks. Highly Available. Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second...
Why choose the TP-Link Omada Pro S7500-26XF6Y network switch Managed L3 1U...?
The TP-Link Omada Pro S7500-26XF6Y network switch Managed L3 1U Grey is a network switches from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Switch layer: L3; Quality of Service (QoS) support: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 26 |
| Console port | RJ-45/USB Type-C |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1p |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN |
| Switching capacity | 820 Gbit/s |
| Forwarding rate | 610.1 Mpps |
| MAC address table | 128 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Multicast support | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Brand | TP-Link |
| Manufacturer part number | S7500-26XF6Y |
| GTIN / UPC | ['4895252505399', '0840030711244', '840030711244'] |
