Product overview

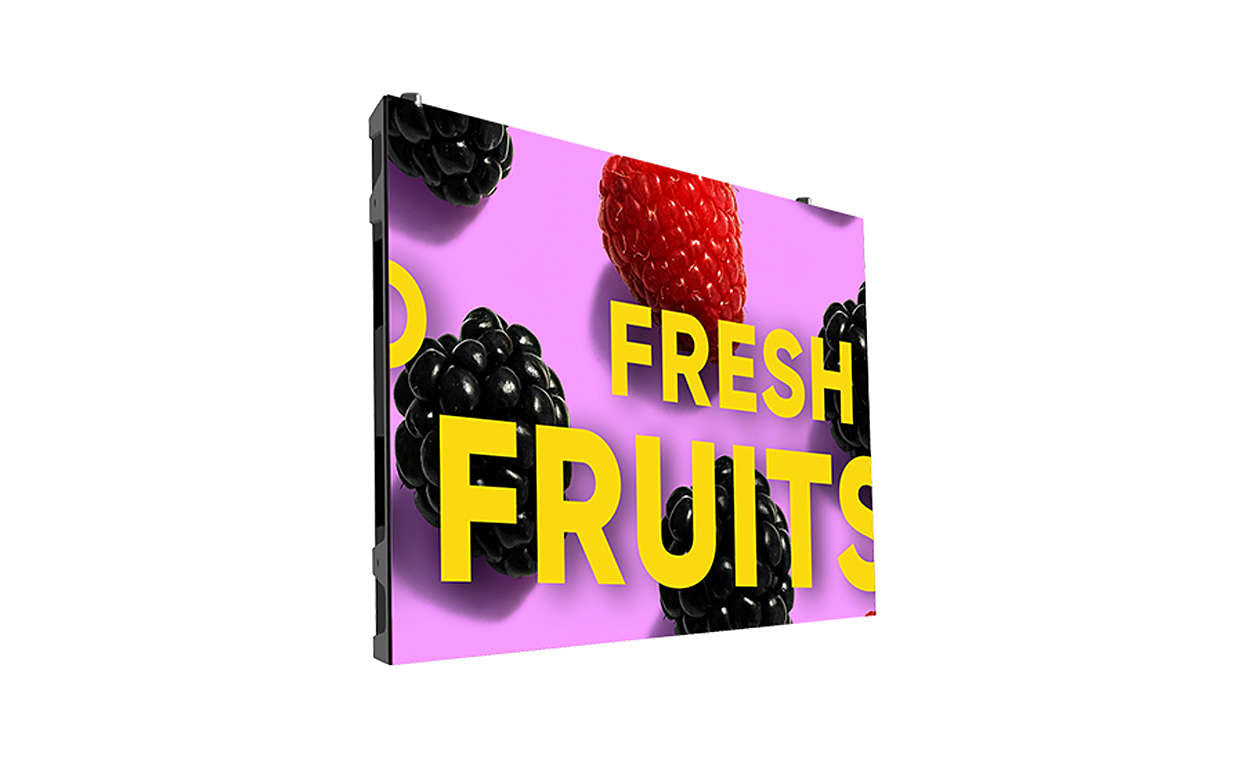

Unleash your imagination even more. No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results. Available in 3 dimensions. Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners. Conformal coating and ingress protection. Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion. Dynamic Panel Connect. Mix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance - resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel. Dynamic Power Saving. Philips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows the display to dynamically save on power consumption. Factory calibrated. Every...
Why choose the Philips 22BDL7524L Direct view LED (DVLED) Indoor?
The Philips 22BDL7524L Direct view LED (DVLED) Indoor is a video wall displays from Philips, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Display technology: Direct view LED (DVLED); Display diagonal: 55.9 cm (22") "; Display resolution: 208 x 104 pixels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstations and open-plan offices
- Meeting rooms and huddle spaces
- Digital signage and reception areas
- Control rooms and monitoring desks
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Display technology | Direct view LED (DVLED) |
| Display diagonal | 55.9 cm (22") " |
| Display resolution | 208 x 104 pixels |
| Aspect ratio | 2:1 |
| Display brightness | 2750 cd/m² |
| Colour temperature (min) | 4000 K |
| Colour temperature (max) | 9500 K |
| Contrast ratio (typical) | 11000:1 |
| Display refresh rates supported | 50 Hz, 60 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 155° |
| Brightness uniformity | 0 - 97% |
| Colour depth | 14 bit |
| Panel life | 100000 h |
| Display area | 0.125 m² |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| Panel material | Aluminium |
| Purpose | Commercial |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (typical) | 26.9 W |
| Power consumption (max) | 80.6 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Width | 500 mm |
| Depth | 40 mm |
| Height | 250 mm |
| Weight | 3.22 kg |
| Module width | 25 cm mm |
| Module height | 25 cm mm |
| Cables included | AC, LAN (RJ-45) |
| Package width | 650 mm |
| Package depth | 224 mm |
| Brand | Philips |
| Manufacturer part number | 22BDL7524L/00 |
| GTIN / UPC | ['8712581781231'] |
