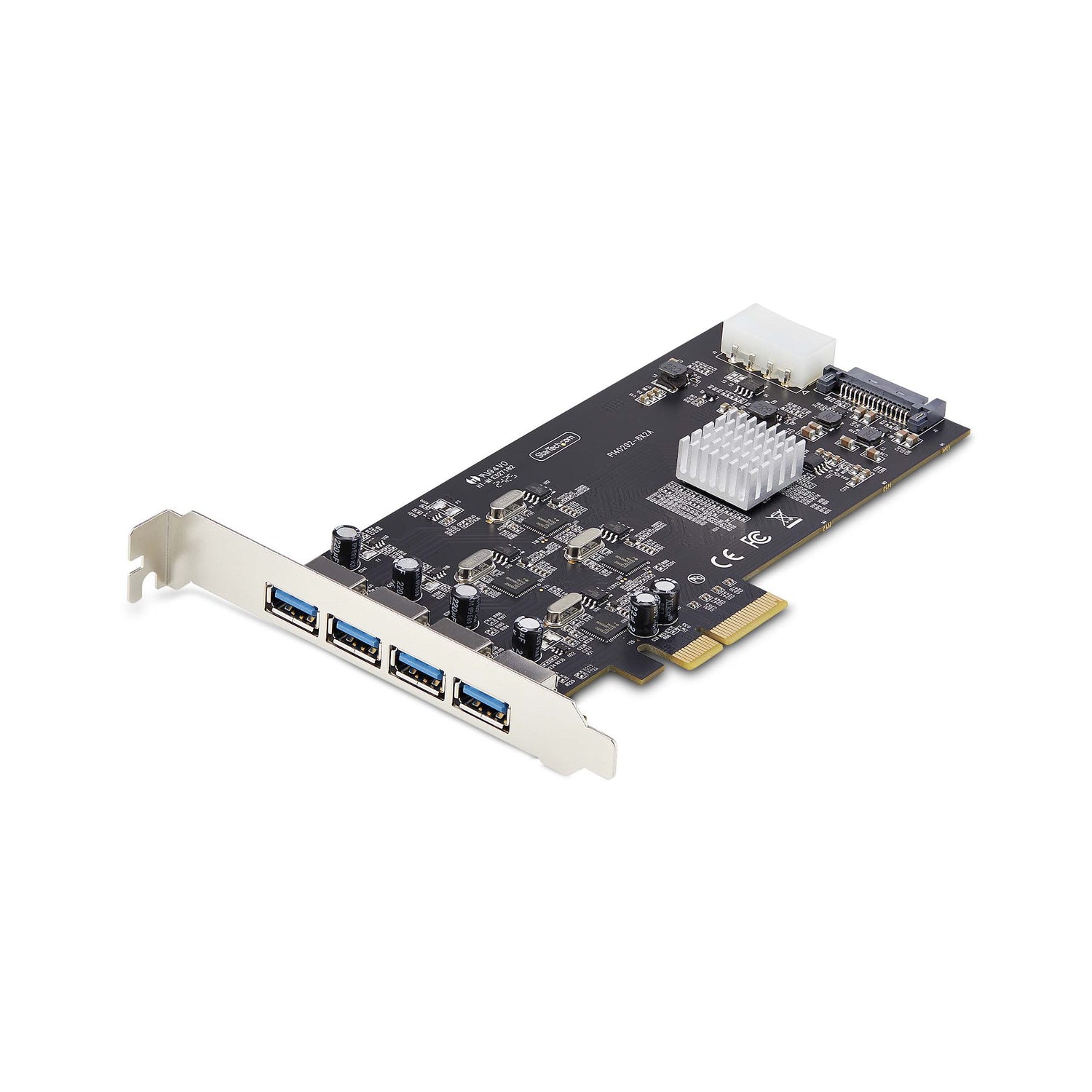

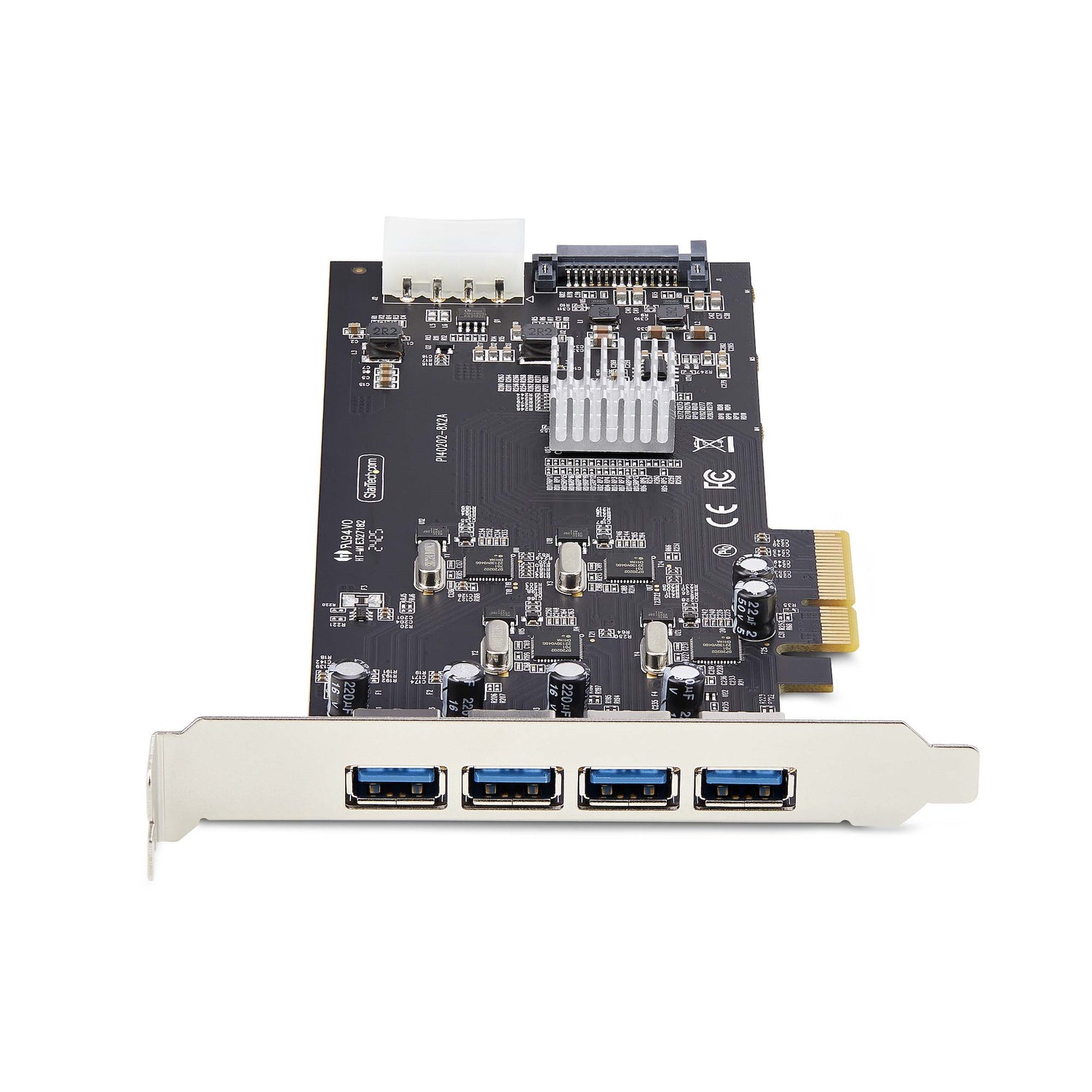

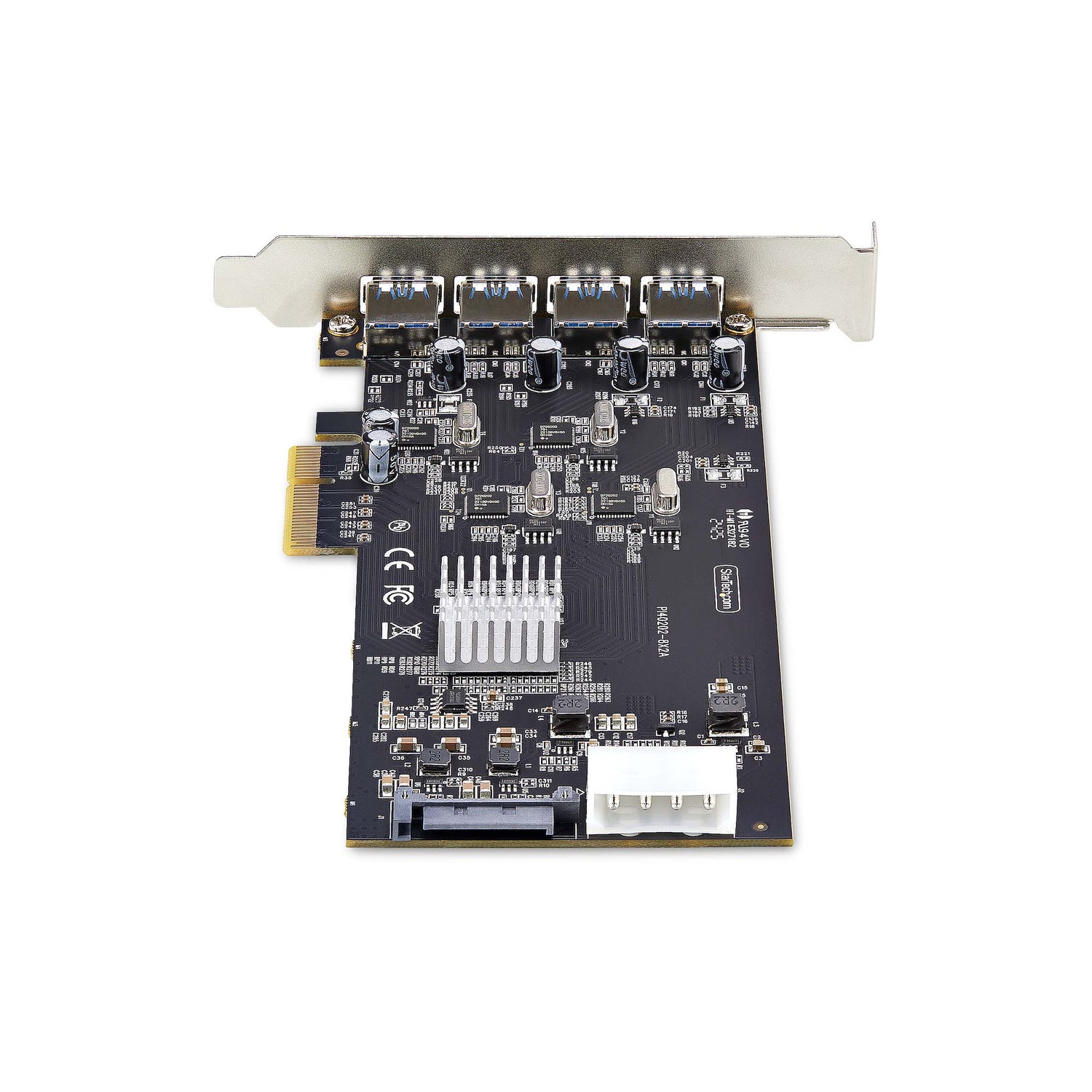

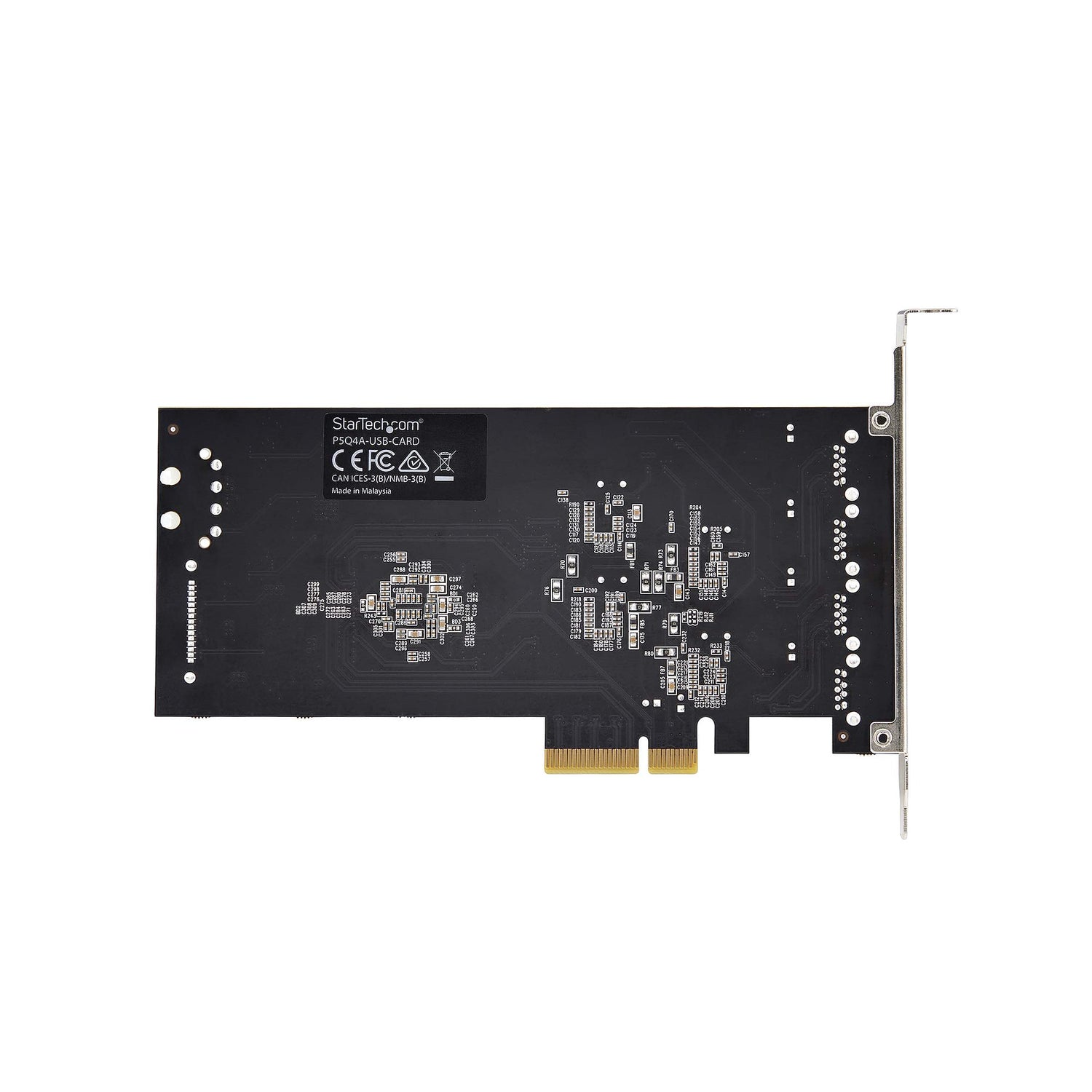

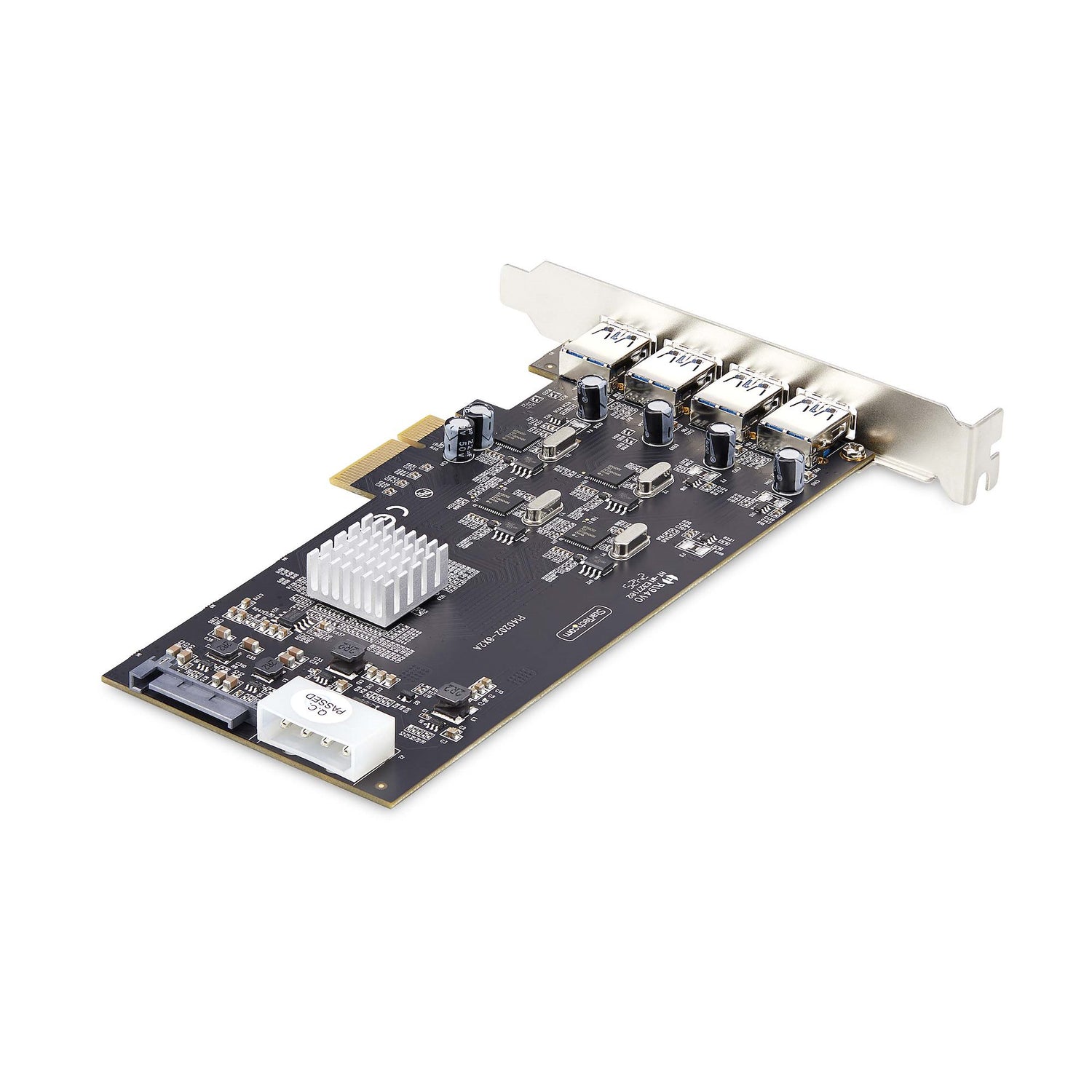

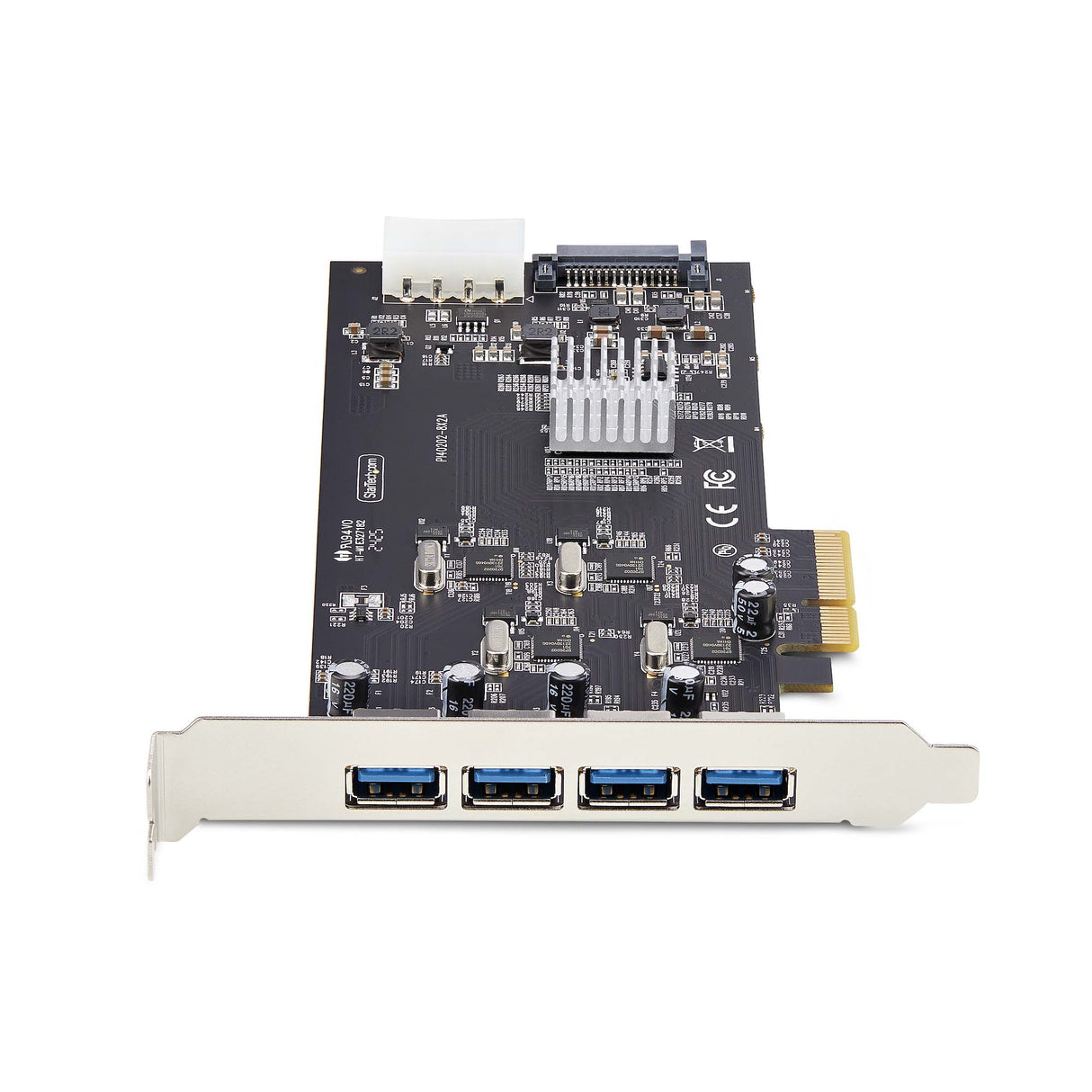

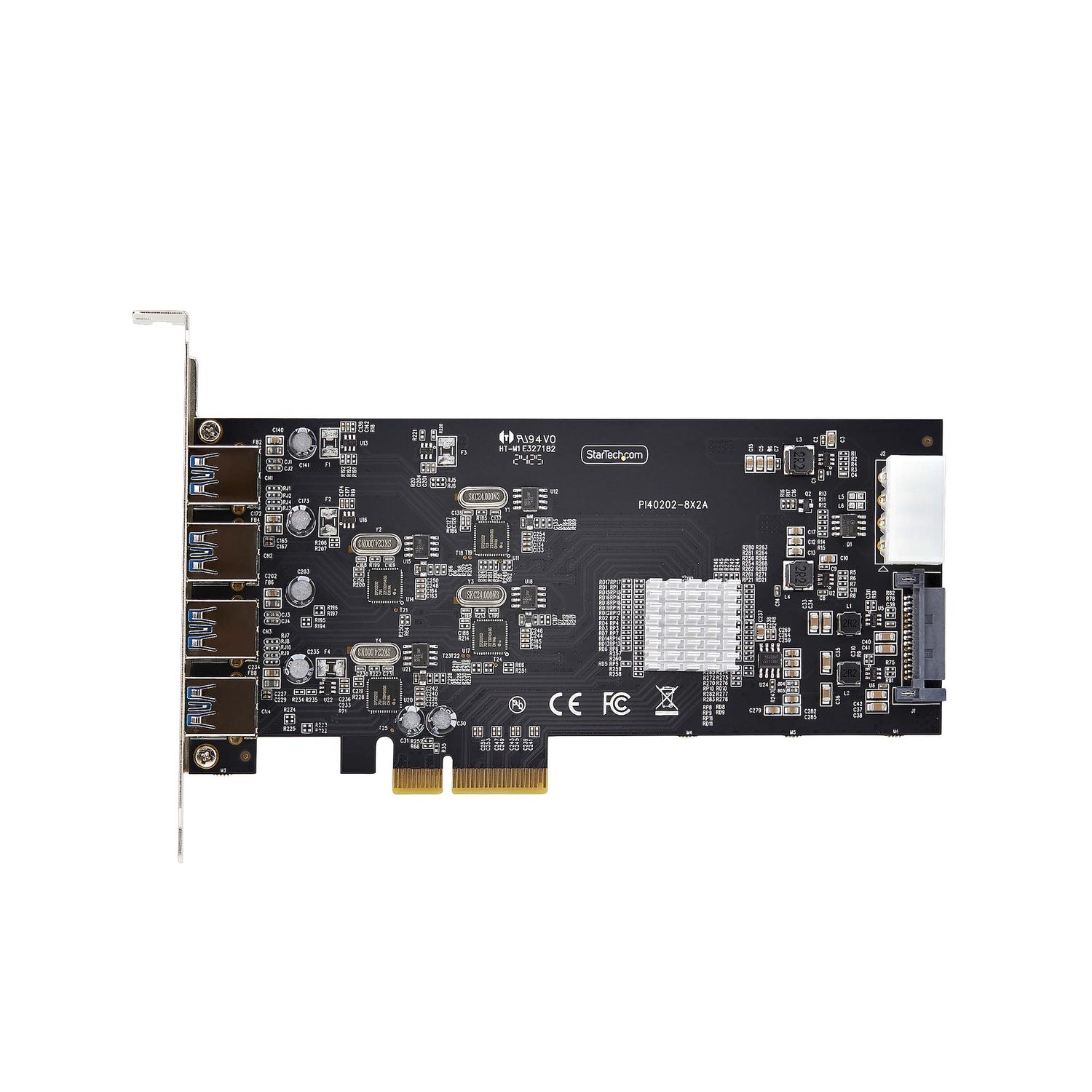

StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports, Windows/Linux
Stock: 489 units
StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expan...
Description
Description
Product overview
Add four 5Gbps USB Type-A ports through PCI Express Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection. Dedicated USB 5Gbps Per Port When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps. Charge USB Devices This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient. Compatibility The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, and Linux. The expansion card supports hardware platforms such as Intel and AMD, and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
Why choose the StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI...?
The StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: USB 3.2 Gen 1 (3.1 Gen 1); Expansion card form factor: Full-height / Low-profile. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| SATA power connector type | SATA 15-pin |
| Internal | Yes |
| Product colour | Black |
| Chipset | Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 120 mm |
| Depth | 169 mm |
| Height | 19 mm |
| Weight | 100 g |
| Quick installation guide | Yes |
| Package width | 144 mm |
| Package depth | 207 mm |
| Package height | 33 mm |
| Package weight | 110 g |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 457 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 324 mm |
| Brand | StarTech.com |
| Manufacturer part number | P5Q4A-USB-CARD |
| GTIN / UPC | ['0065030912761', '065030912761'] |
