StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux
Stock: 617 units
StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI...
Description
Description
Product overview

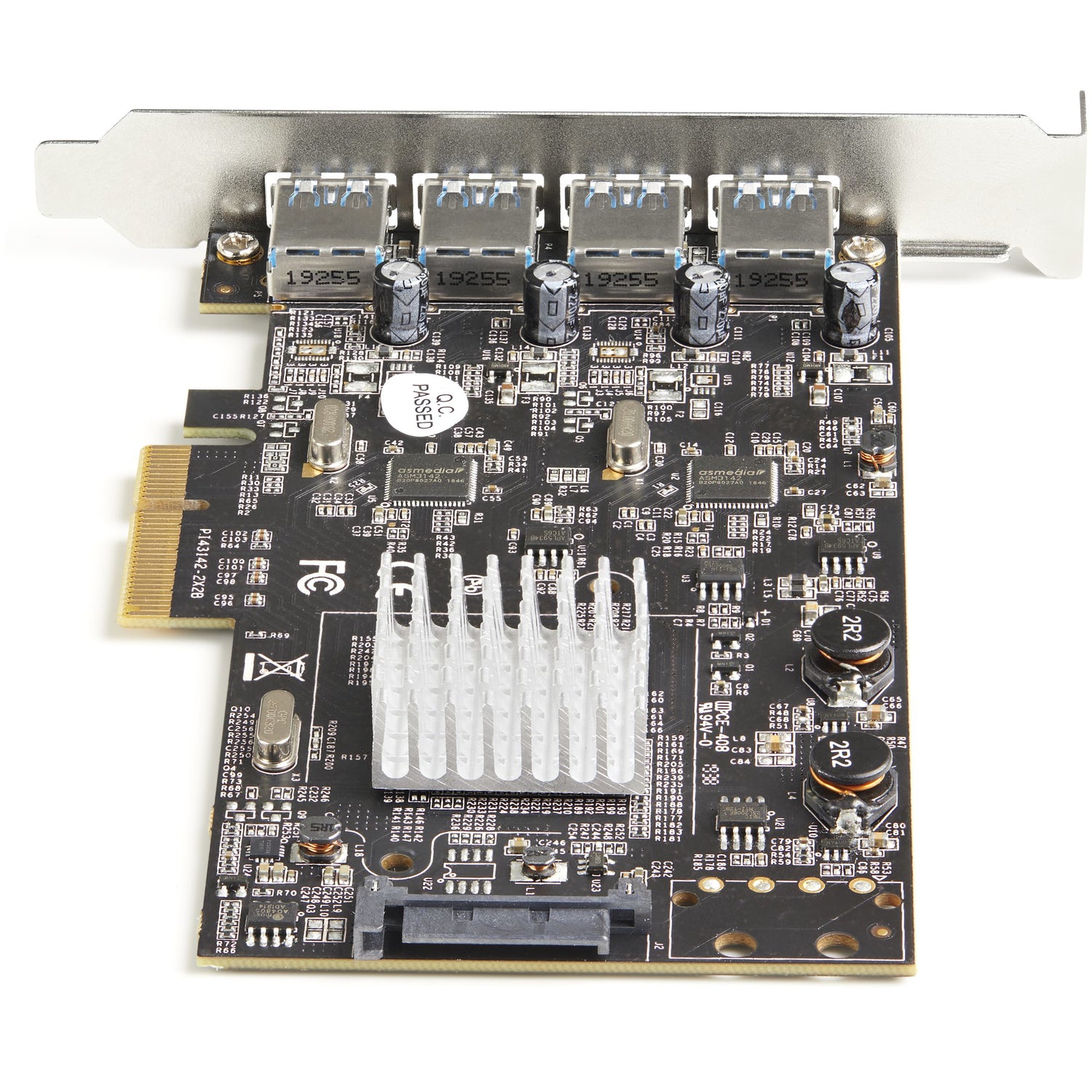

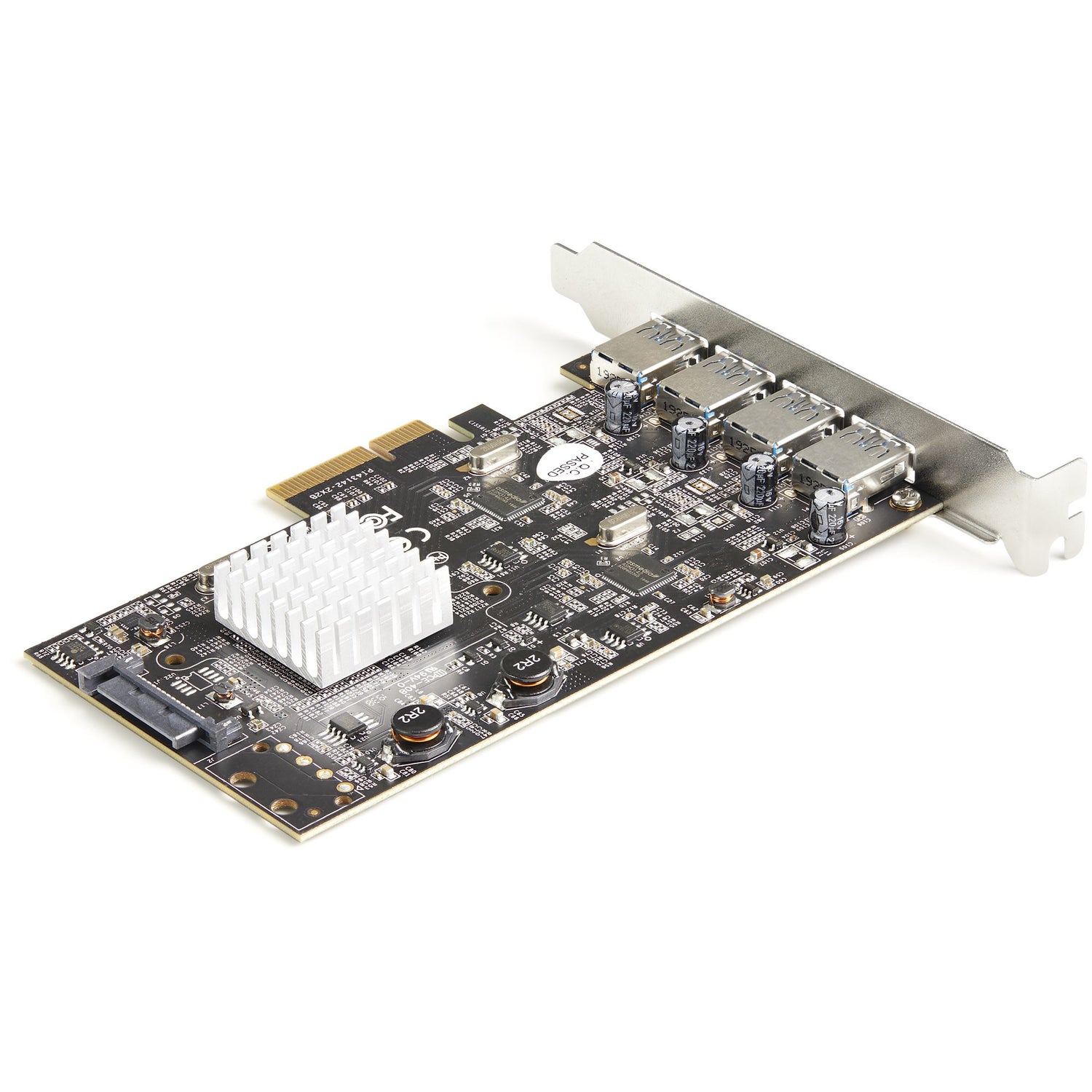

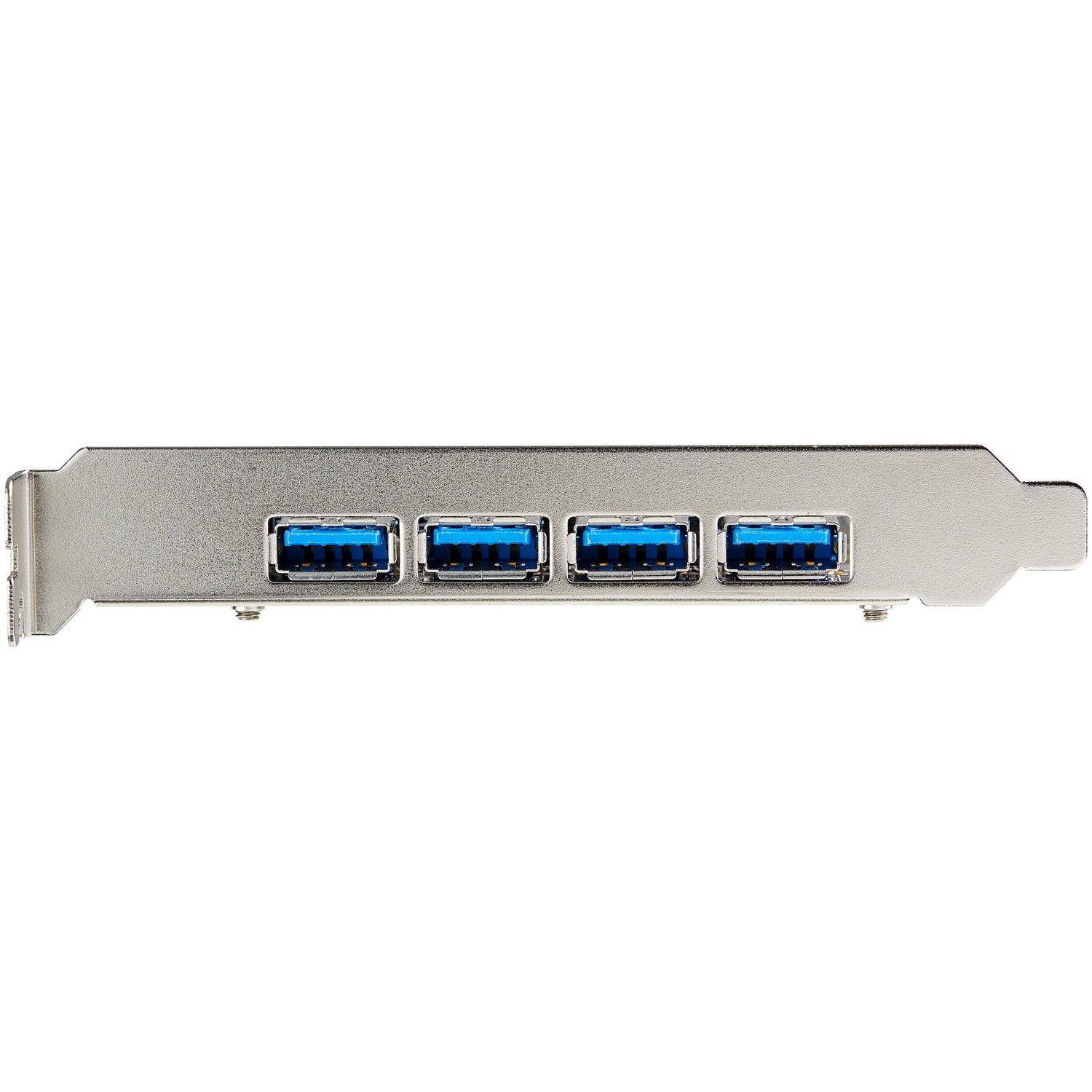

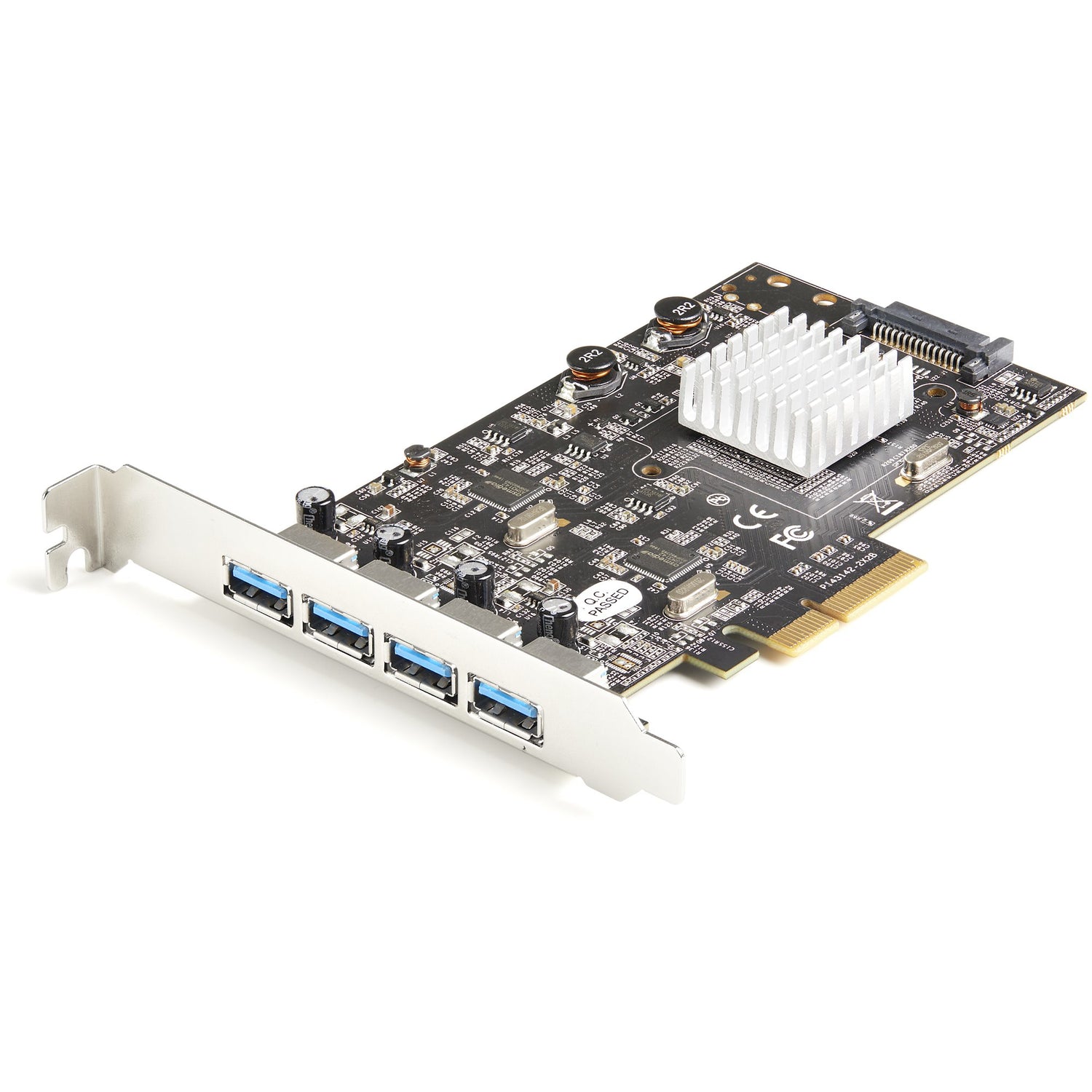

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports. Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices. Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps). SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices. Wide Installation...
Why choose the StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2...?
The StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: USB 3.2 Gen 2 (3.1 Gen 2); Expansion card standard: PCIe 3.0. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Internal SATA ports quantity | 1 |
| SATA power connector type | SATA 15-pin |
| Internal | Yes |
| Product colour | Black, Metallic |
| Mean time between failures (MTBF) | 40000 h |
| Chipset | ASMedia - ASM3142, ASMedia - ASM1812 |
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
| Output voltage | 5 V |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Width | 150 mm |
| Depth | 120 mm |
| Height | 19 mm |
| Weight | 125 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 217 mm |
| Package depth | 151 mm |
| Package height | 36 mm |
| Package weight | 180 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 454 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 325 mm |
| Brand | StarTech.com |
| Manufacturer part number | PEXUSB314A2V2 |
| GTIN / UPC | ['0065030887410', '065030887410'] |
