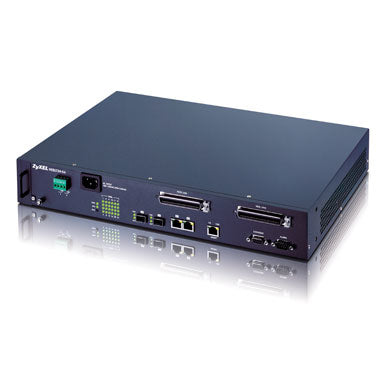

Zyxel VES1724-56 network switch Managed 1.5U Black
Stock: 0 units
Description
Description
Product overview
Compliant with ITU-T G.993.2, G994.1 and G.997.1. The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE. Ultra high-speed transmission with 30a profile support. The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports. Triple Play ready. The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire. Complete QoS for service differentiation. The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Why choose the Zyxel VES1724-56 network switch Managed 1.5U Black?
The Zyxel VES1724-56 network switch Managed 1.5U Black is a network switches from Zyxel, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Quality of Service (QoS) support: Yes; Web-based management: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | MIB II, RFC1493, 2674 and 1757 MIB, and private MIB |
| Basic switching RJ-45 Ethernet ports quantity | 3 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Multicast VLAN, Port-based VLAN |
| MAC address table | 256 entries |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| MAC address entries | Static MAC address entries |
| Multicast support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Rack mounting | Yes |
| Form factor | 1.5U |
| Product colour | Black |
| Firmware upgradeable | Yes |
| AC input voltage | 100 - 264 V |
| AC input frequency | 60 Hz |
| DC input voltage | 36 - 72 V |
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 66 mm |
| Weight | 5 kg |
| Package width | 560 mm |
| Package depth | 523 mm |
| Package height | 675 mm |
| Package weight | 6.7 kg |
| Certification | RoHS K.20 ETSI300-019 EN60950-1 CSA60950-1 UL60950-1 IEC60950-1 EMC FCC - Class A EN55022 - A ETSI300-386 |
| Brand | Zyxel |
| Manufacturer part number | VES1724-56 |
| GTIN / UPC | ['0760559122638', '760559122638'] |
