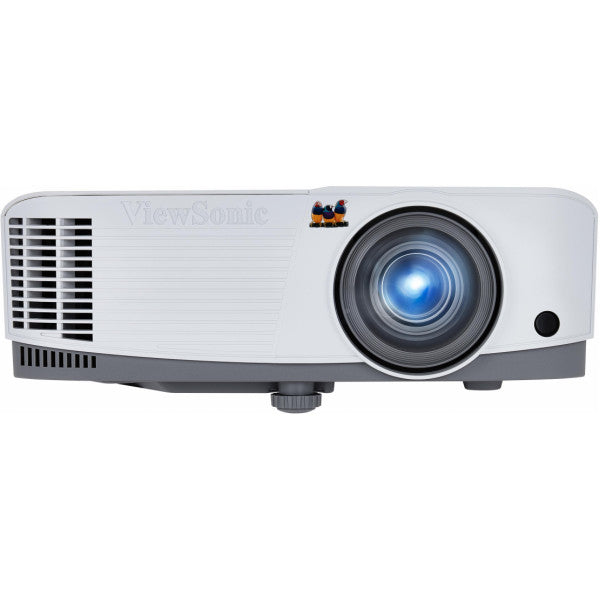

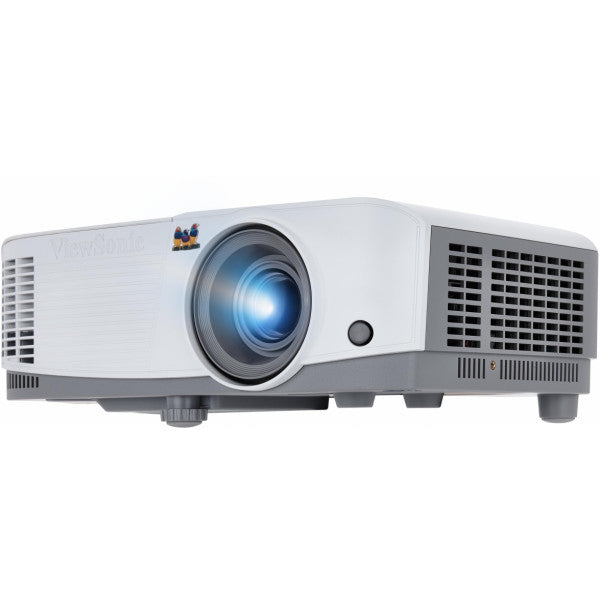

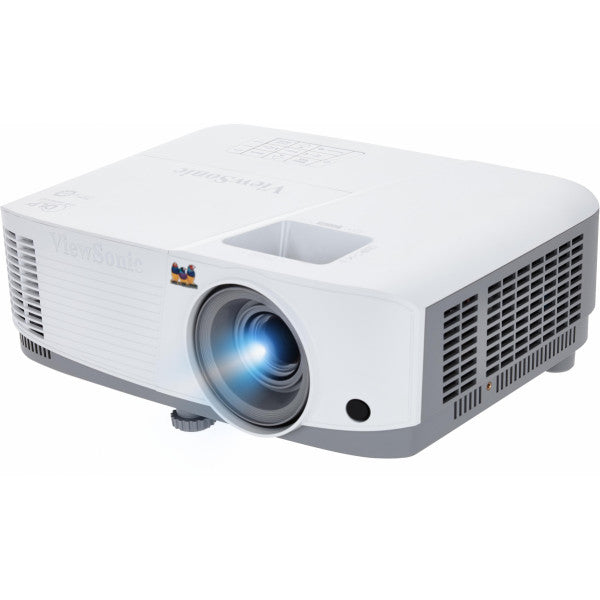

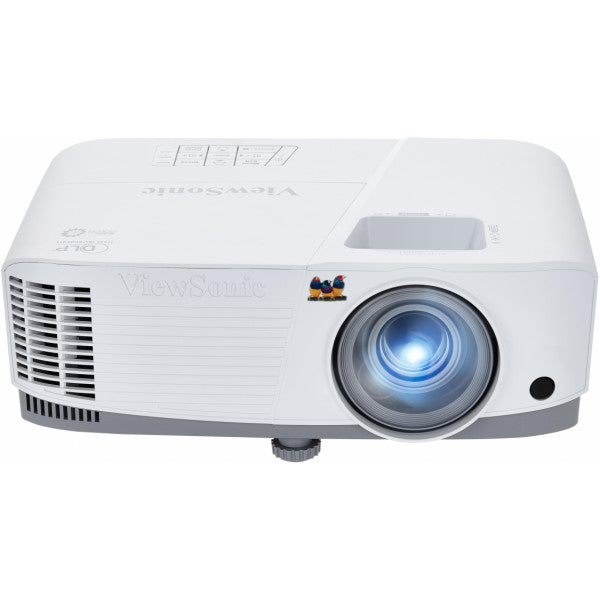

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
Stock: 24 units
Viewsonic PA503W data projector Standard throw projector 3800 ANSI ...
Description
Description
Product overview

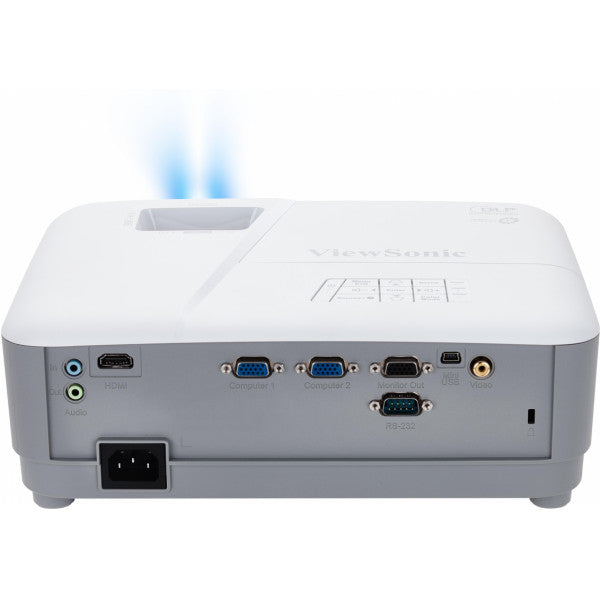

Description. The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
Why choose the Viewsonic PA503W data projector Standard throw projector...?
The Viewsonic PA503W data projector Standard throw projector 3800 ANSI... is a data projectors from Viewsonic, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Screen size compatibility: 762 - 7620 mm (30 - 300") "; Projection distance: 1 - 10.98 m; Projector brightness: 3800 ANSI lumens. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstations and open-plan offices
- Meeting rooms and huddle spaces
- Digital signage and reception areas
- Control rooms and monitoring desks
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Screen size compatibility | 762 - 7620 mm (30 - 300") " |
| Projection distance | 1 - 10.98 m |
| Projector brightness | 3800 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 22000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") " |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
| Focus | Manual |
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.55-1.7 |
| Offset | 100% |
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Mini-USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| AC (power) in | Yes |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Brand | Viewsonic |
| Manufacturer part number | PA503W |
| GTIN / UPC | ['0766907904918', '766907904918'] |
