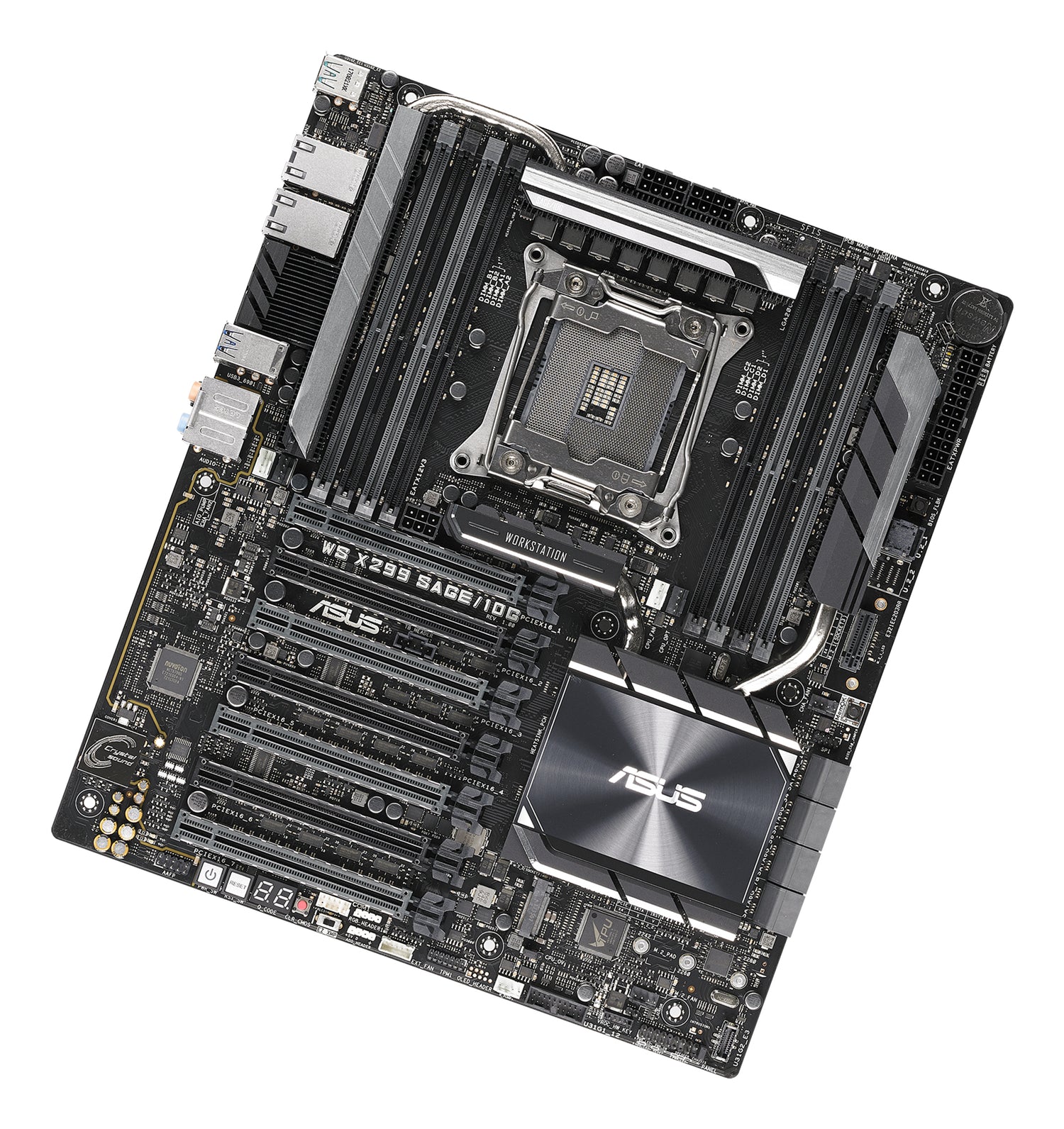

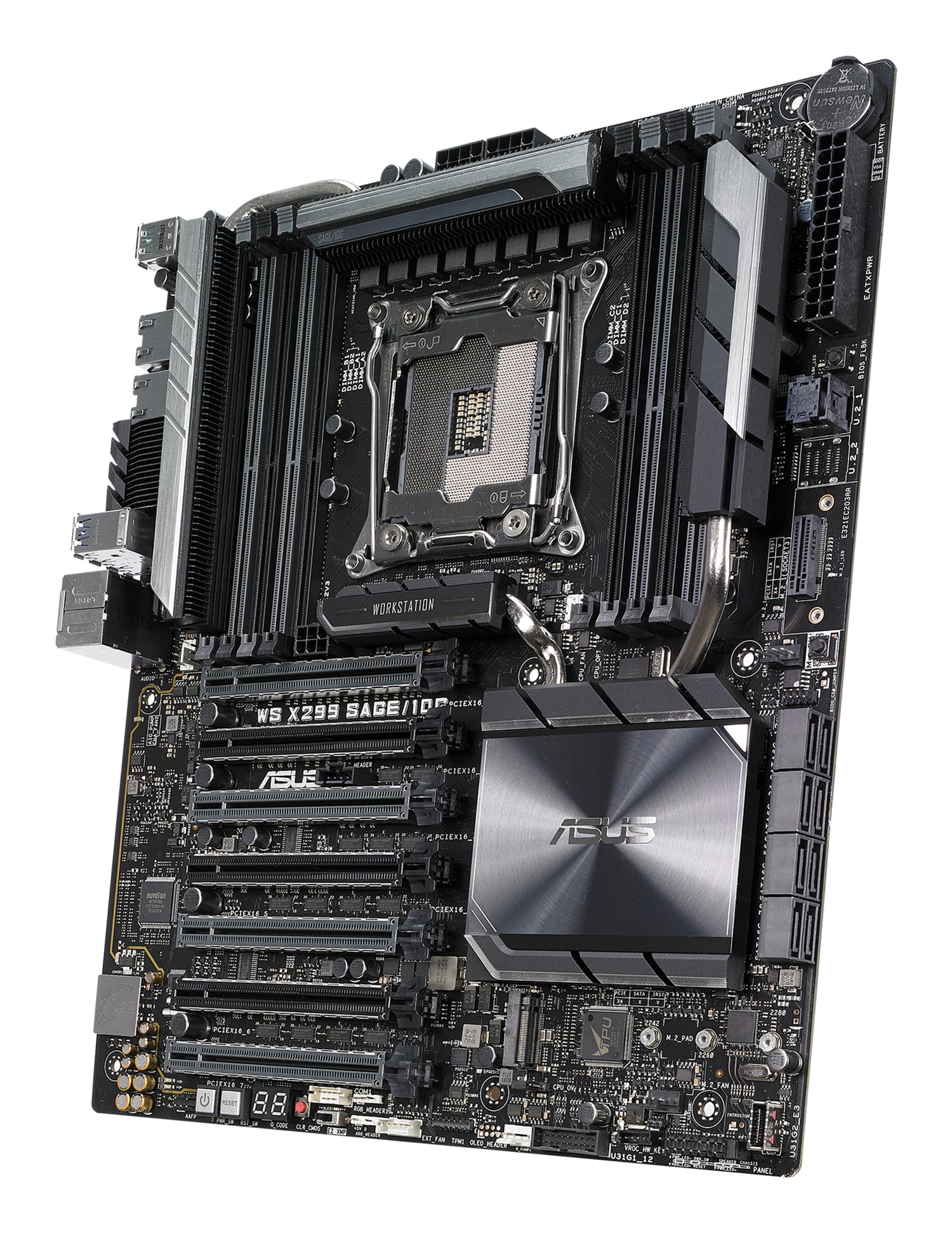

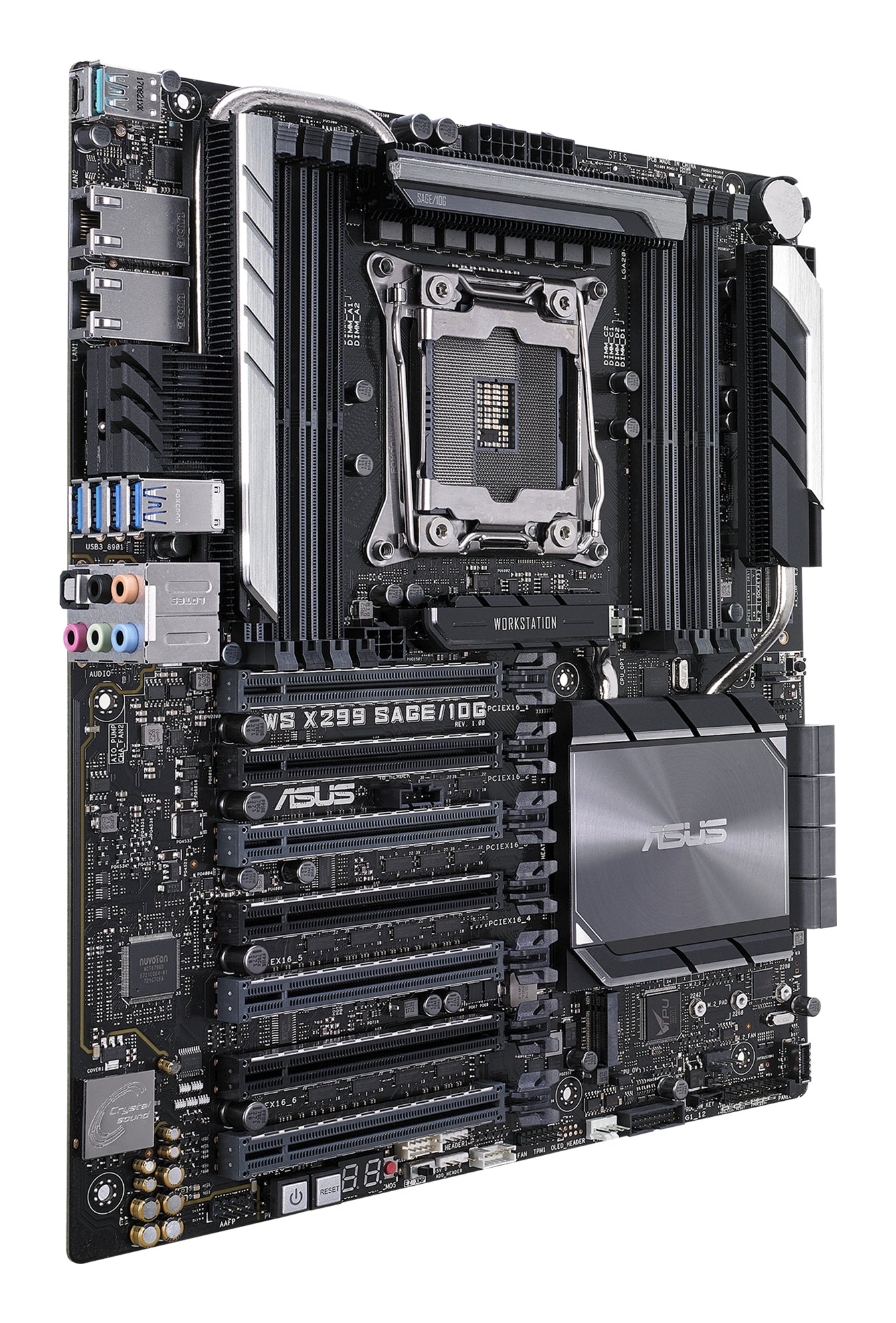

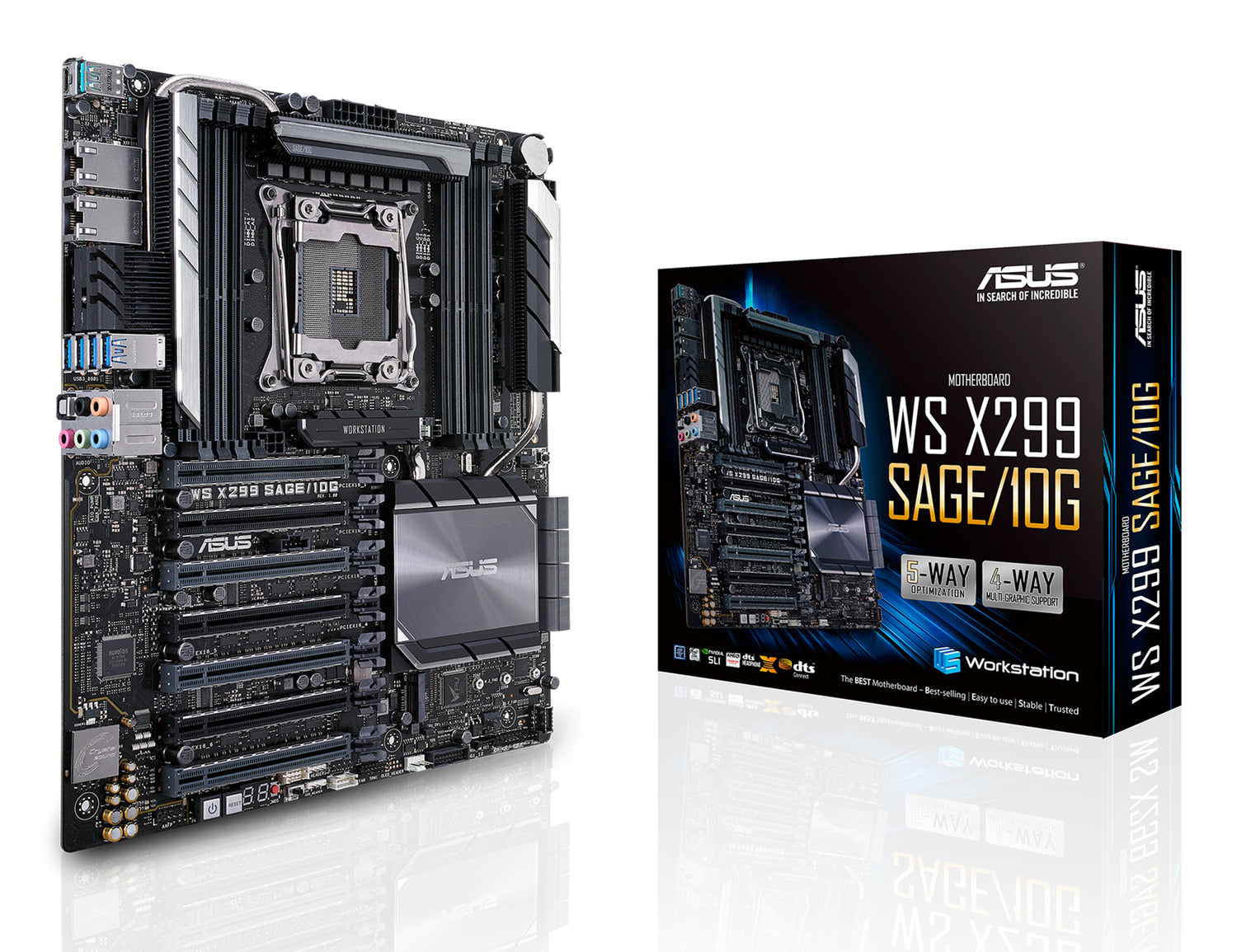

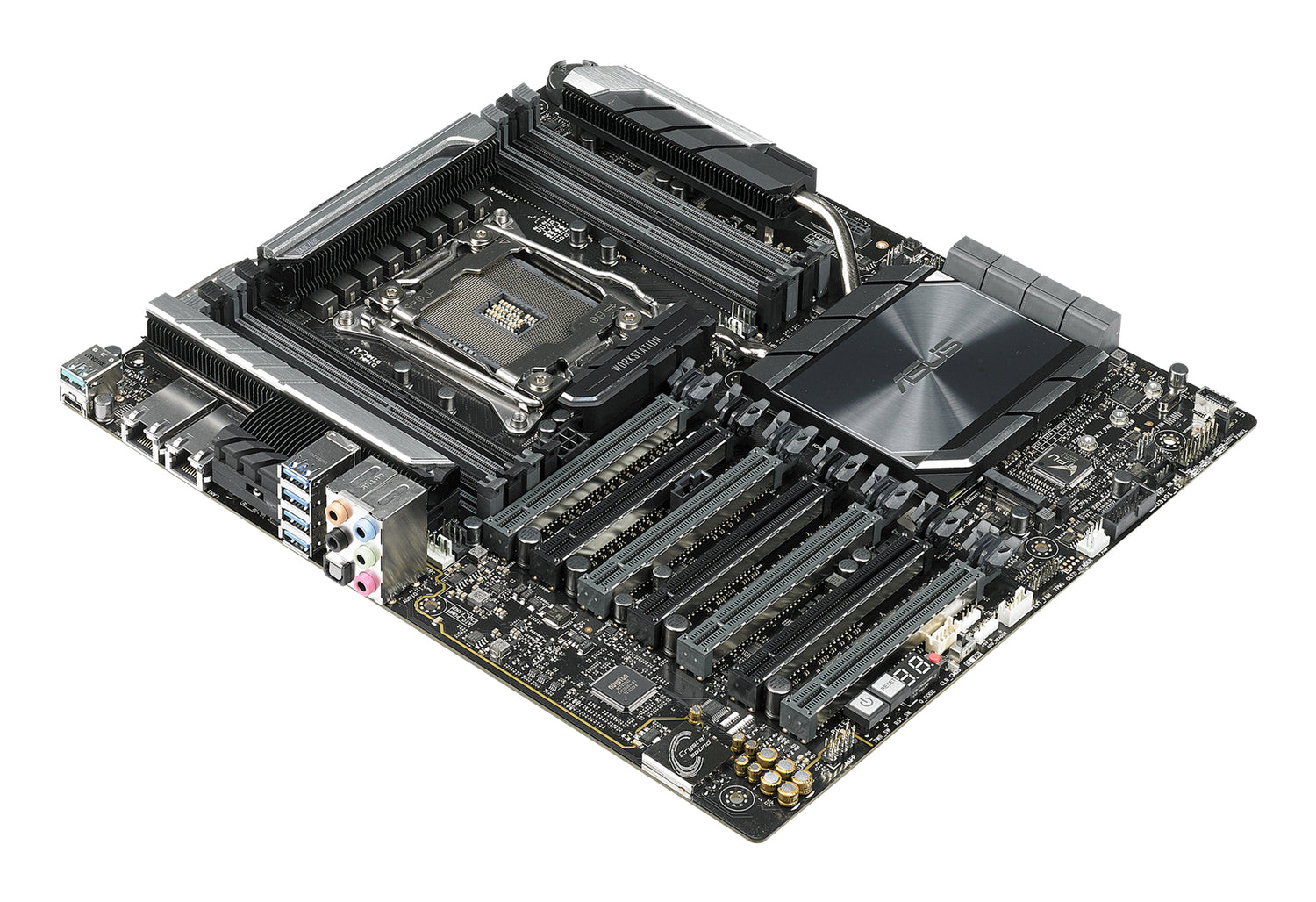

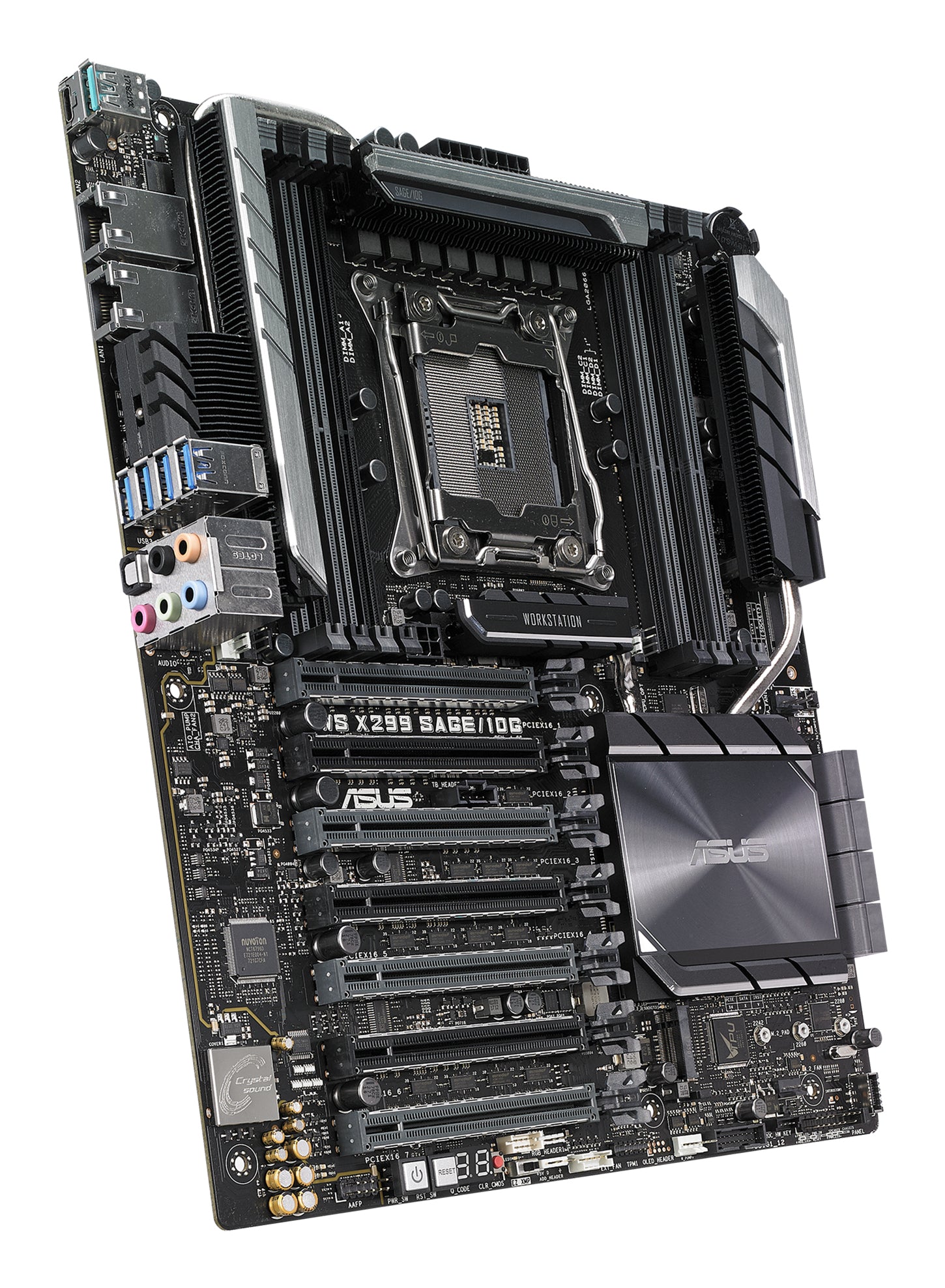

ASUS WS X299 SAGE/10G Intel® X299 LGA 2066 (Socket R4) SSI CEB
Stock: 0 units
Description
Description
Product overview
The new WS X299 Sage/10G motherboard delivers a blend of tremendous GPU performance with up to Quad-SLI support, server-grade validation and comprehensive cooling options to provide the perfect system build for training neural networks and crunching other scalable compute loads. It shares the same refined aesthetics as WS X299 Sage/10G and adds dual 10 Gigabit Ethernet ports with the Intel X550AT2 10GBASE-T controller for uncompromising networking performance. Dual PLX chips extend the number of PCIe lanes to provide additional expansion slots, giving you robust connectivity options to configure your system with the tools you need to get your job done. Workstation exclusive. Dual onboard 10G LAN. Featuring dual onboard 10G LAN ports backed by the cutting-edge Intel X550AT2 10GBASE-T Ethernet controller, WS X299 Sage/10G provides server-class connectivity that supports high-density, high-bandwidth and low-latency access-layer networks. With data-rates up to 10Gbps, WS X299 Sage/10G is able to transfer 4K videos and other large files in a fraction of the time required by conventional networking gear. The onboard controller negates the need to allocate a PCI Express slot to a dedicated network card, saving valuable space for other components. Multi-GPU support. WS X299 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. With performance beyond 15.23 TFLOPS*, NVIDIA Quadro is the perfect...
Why choose the ASUS WS X299 SAGE/10G Intel® X299 LGA 2066 (Socket R4) SSI...?
The ASUS WS X299 SAGE/10G Intel® X299 LGA 2066 (Socket R4) SSI CEB is a motherboards from ASUS, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Processor manufacturer: Intel; Processor socket: LGA 2066 (Socket R4); Supported processor sockets: LGA 2066. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Supported processor sockets | LGA 2066 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 512 GB |
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550-AT2 |
| Motherboard chipset | Intel® X299 |
| Audio chip | Realtek ALC S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | Intel |
| Certification | CE |
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
| Brand | ASUS |
| Manufacturer part number | 90SW00H0-M0EAY0 |
| GTIN / UPC | ['0753459461204', '753459461204', '4712900952001'] |
