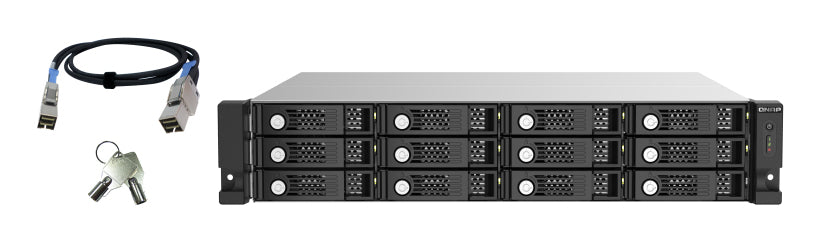

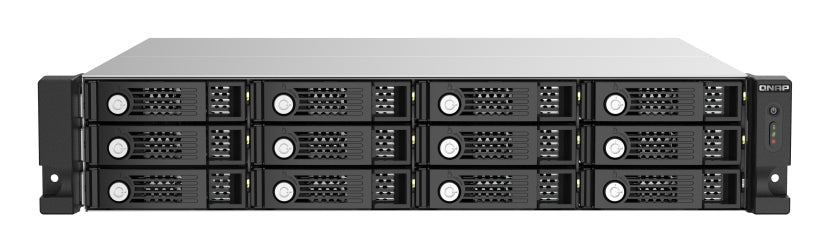

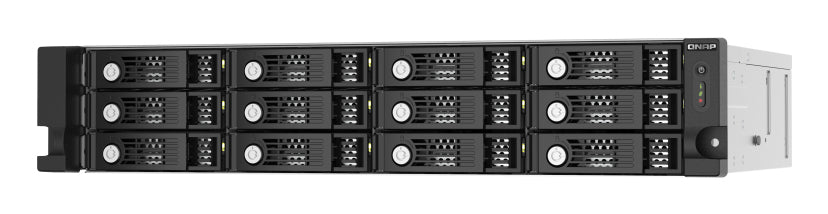

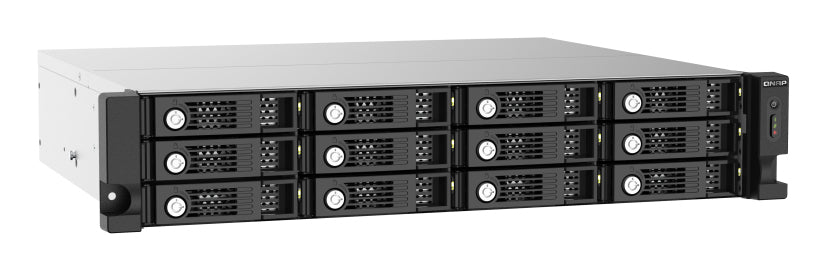

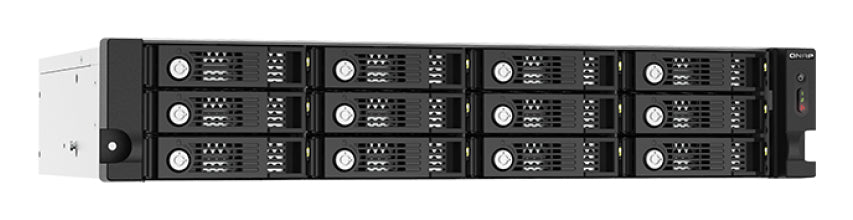

Boîtier d'extension JBOD SAS 12 Gbit/s rackable 2U à 12 baies avec expandeur SAS, 2,5/3
Stock: 0 units
Description
Description
Product overview
The TL-R1220Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 3.4PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1220Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1220Sep-RP can achieve smoother data transmission and continuous system operation. Achieve up to 96Gb/s with link aggregation. The TL-R1220Sep-RP is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1220Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed. Supports SAS DataBolt technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1220Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1220Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer...
Why choose the QNAP TL-R1220Sep-RP HDD/SSD enclosure Black, Grey 2.5/3.5"?
The QNAP TL-R1220Sep-RP HDD/SSD enclosure Black, Grey 2.5/3.5" is a storage drive enclosures from QNAP, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of storage drives supported: 12; Storage drive size: 2.5/3.5"; Supported storage drive interfaces: SAS-3, Serial ATA III. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Backups and archiving
- Workstation performance upgrades
- Media and creative workflows
- Server and NAS capacity expansion
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of storage drives supported | 12 |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Hot-swap | Yes |
| Product type | HDD/SSD enclosure |
| Product colour | Black, Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Key lock | Yes |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm mm |
| Data transfer rate | 12 Gbit/s |
| Noise level | 33.9 dB |
| Power source type | AC |
| AC adapter input voltage | 100-240 V |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 482.2 mm |
| Depth | 423.8 mm |
| Height | 88.6 mm |
| Weight | 10.7 kg |
| Package width | 595 mm |
| Package depth | 600 mm |
| Package height | 270 mm |
| Package weight | 14 kg |
| Package type | Box |
| Number of keys included | 2 pc(s) |
| Cables included | AC, MiniSAS |
| Screws included | Yes |
| Manual | Yes |
| Warranty period | 5 year(s) |
| Harmonized System (HS) code | 84733080 |
| Brand | QNAP |
| Manufacturer part number | TL-R1220SEP-RP |
| GTIN / UPC | ['4713213518571', '0885022020607', '885022020607', '5054444659350'] |
