KVM DVI DUAL LINK À 2 PORTS
Stock: 2 units
KVM DVI DUAL LINK À 2 PORTS
Description
Description
Product overview

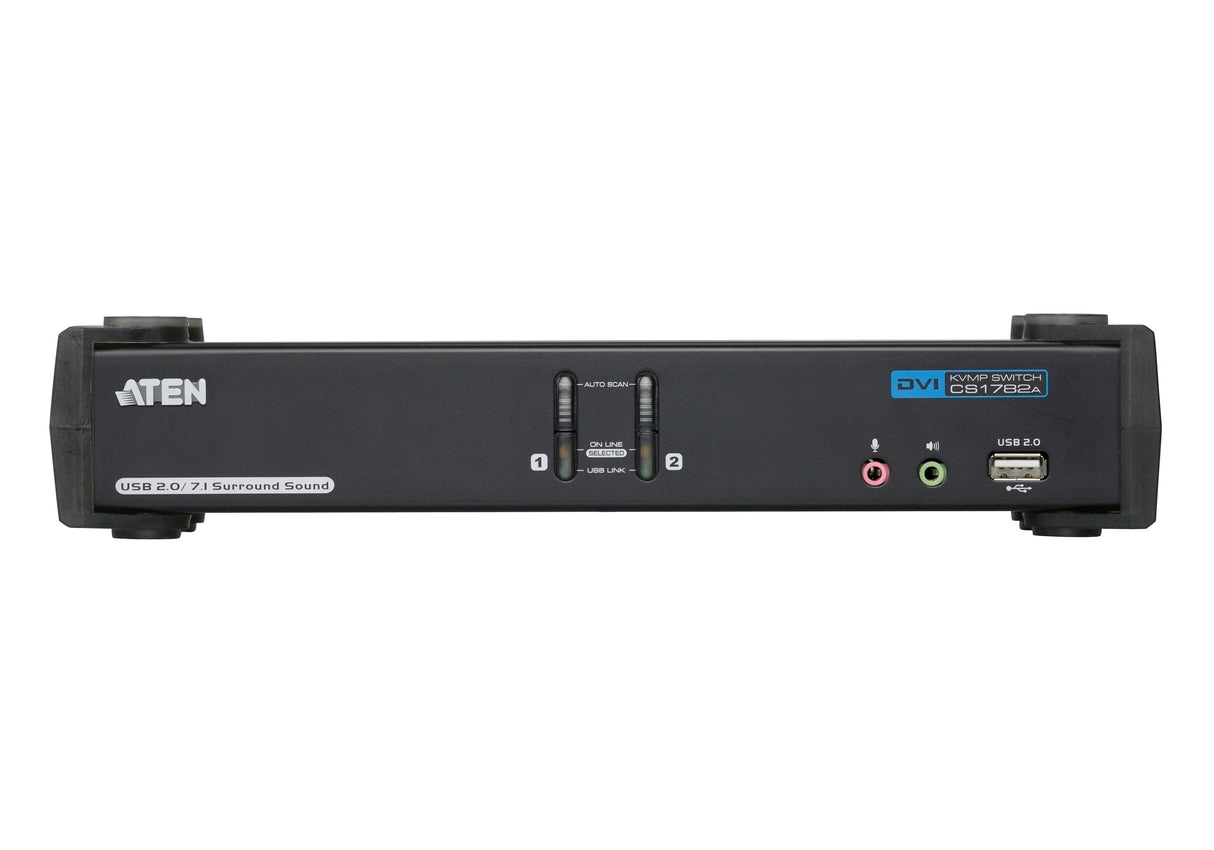

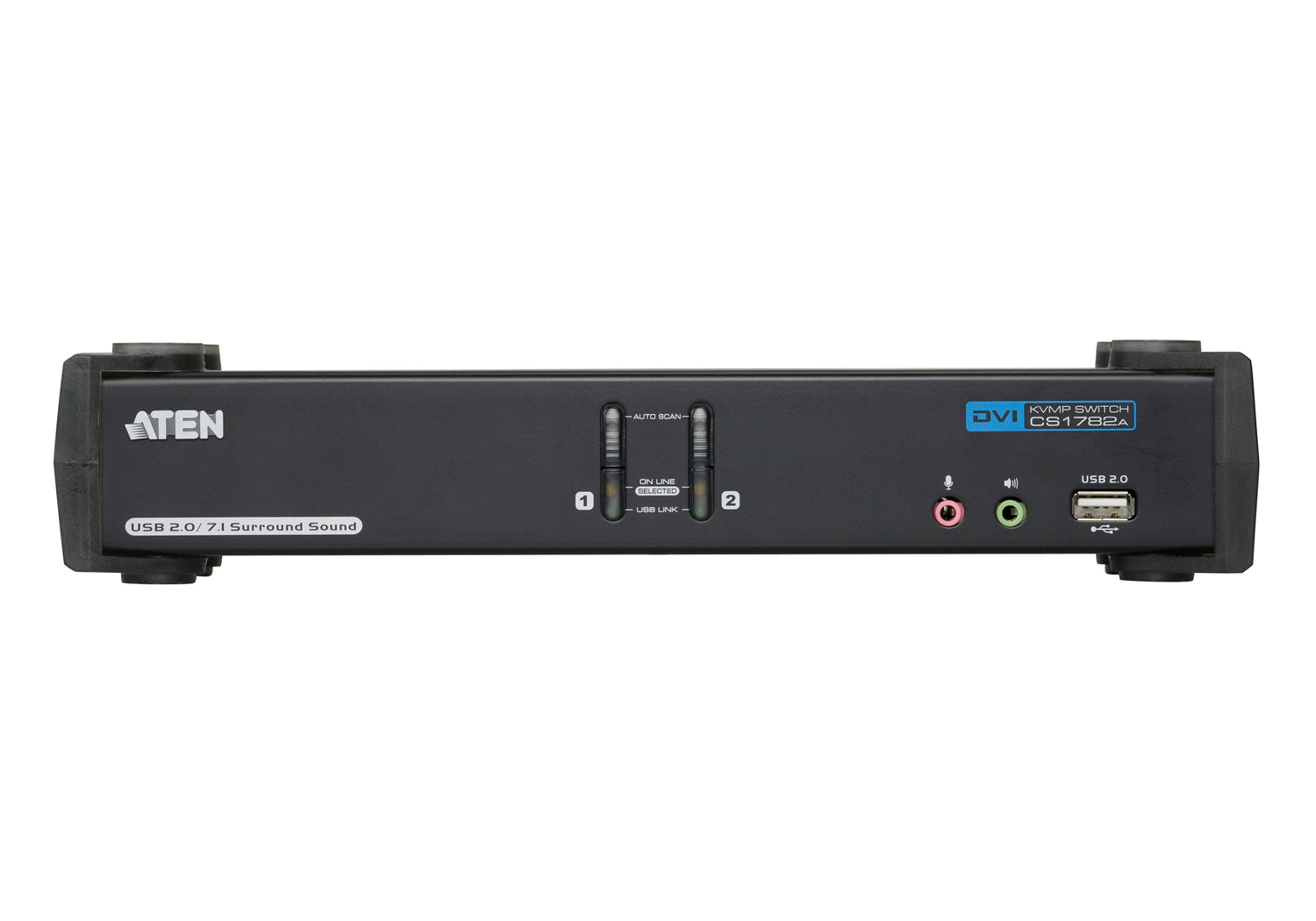

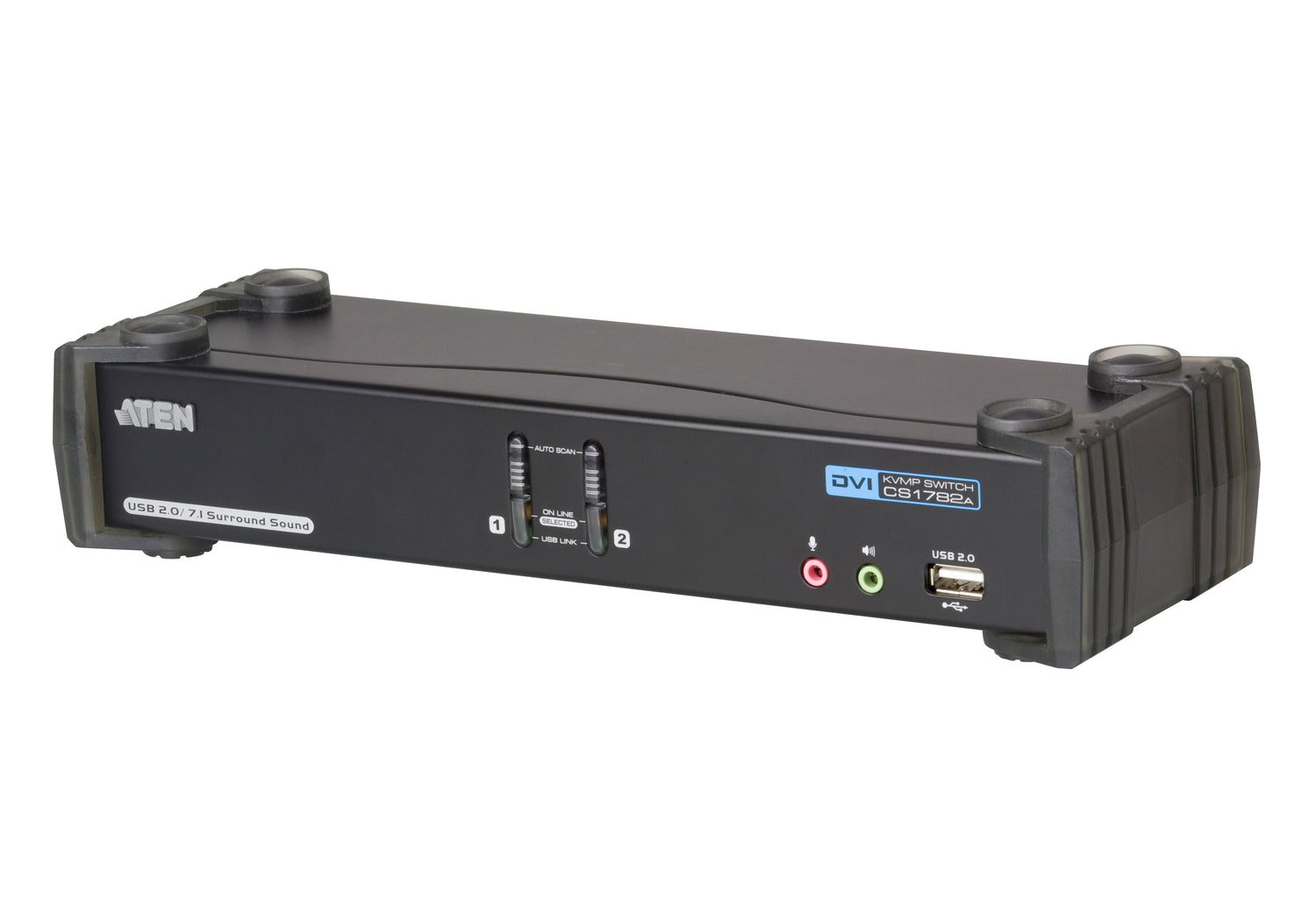

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
Why choose the ATEN AT-CS1782A?
The ATEN AT-CS1782A is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 2; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 3 |

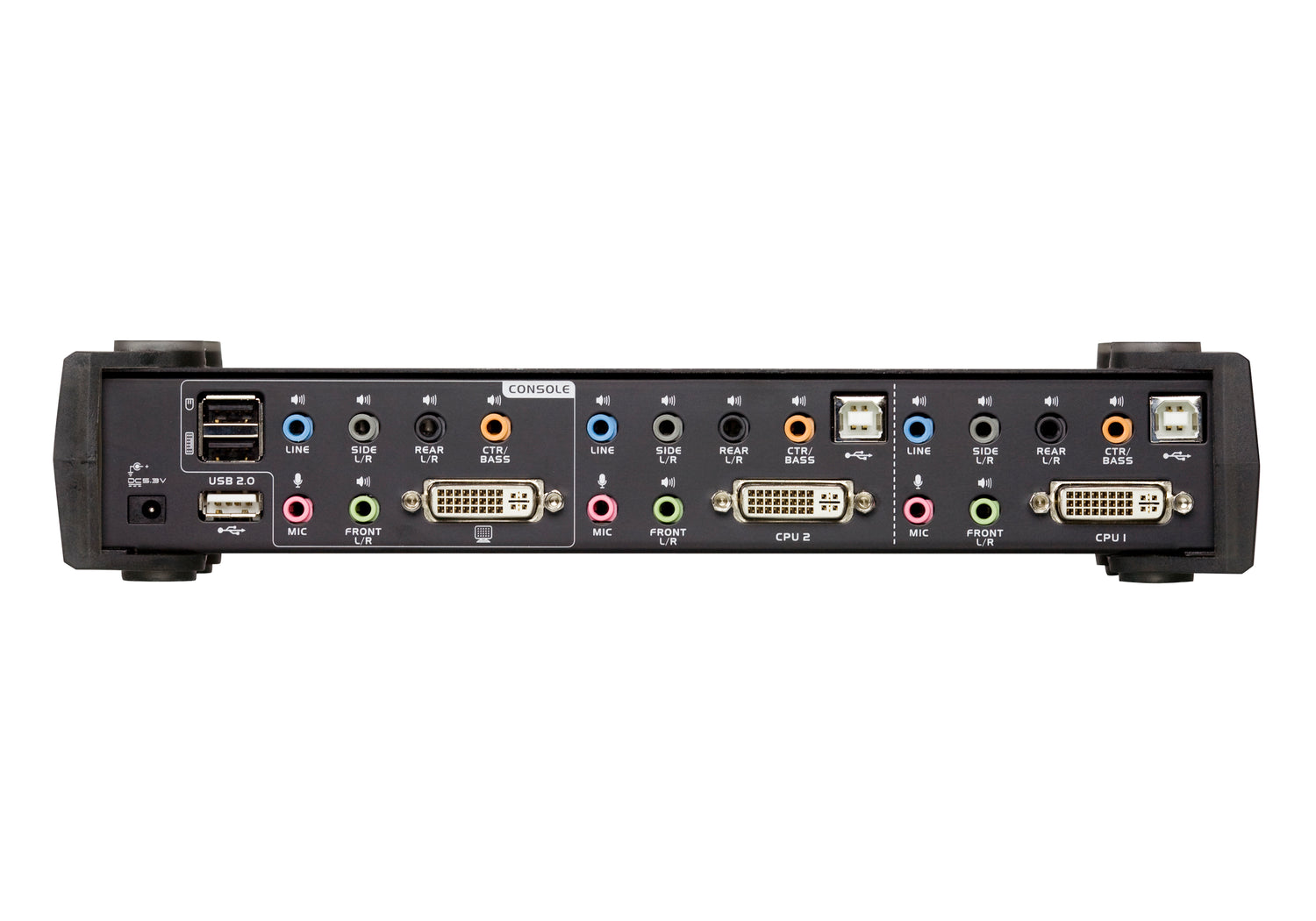

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 3 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| DC-in jack | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Audio channels | 7.1 |
| Power on detection | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 9 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Brand | ATEN |
| Manufacturer part number | CS1782A |
| GTIN / UPC | ['0672792002397', '672792002397', '0151903025994', '151903025994', '6727920023974', '4582380322607', '5052180169461', '5054484345435', '5054533345430', '0165421682522', '165421682522', '5054629577226'] |
