StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity
Stock: 254 units
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card -...
Description
Description
Product overview

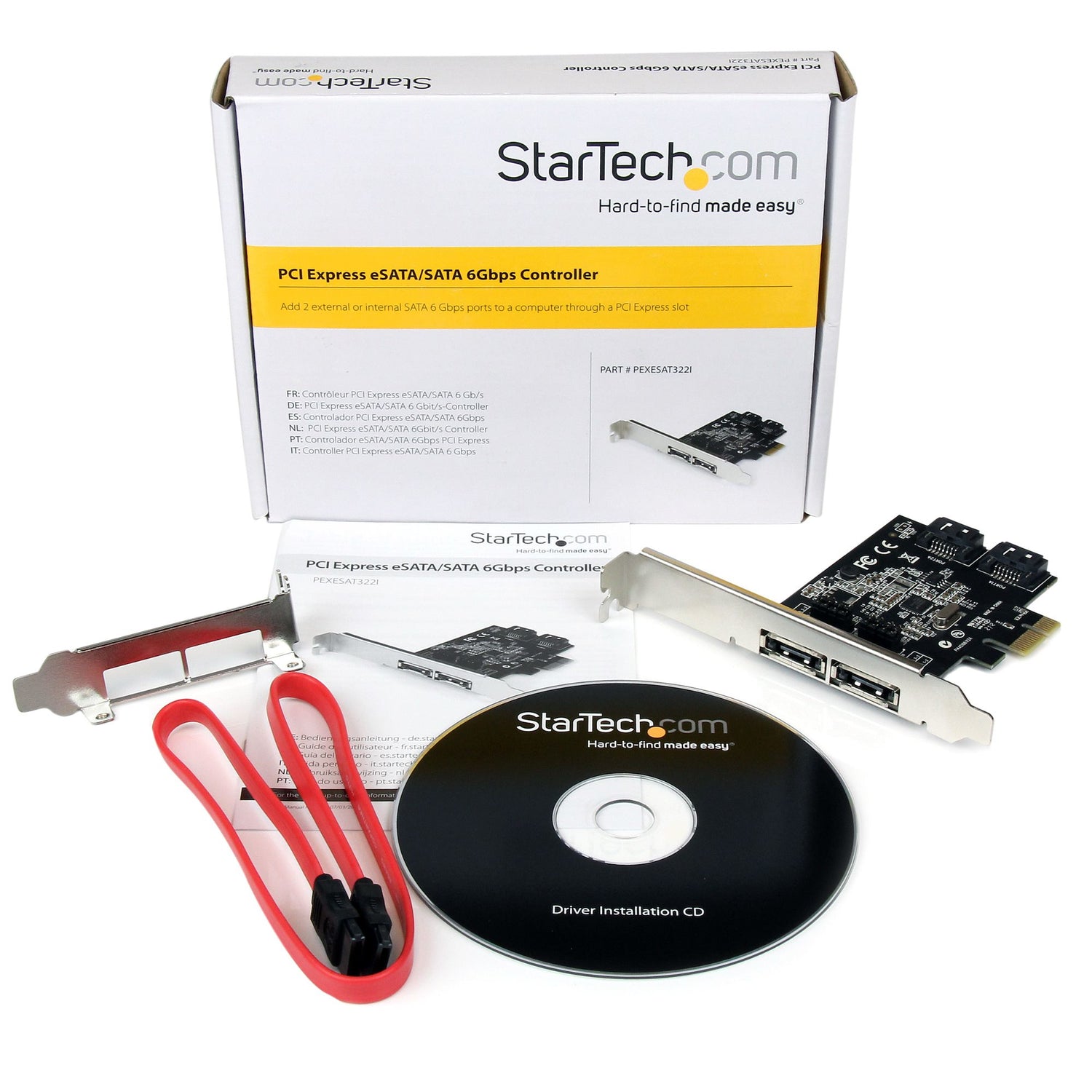

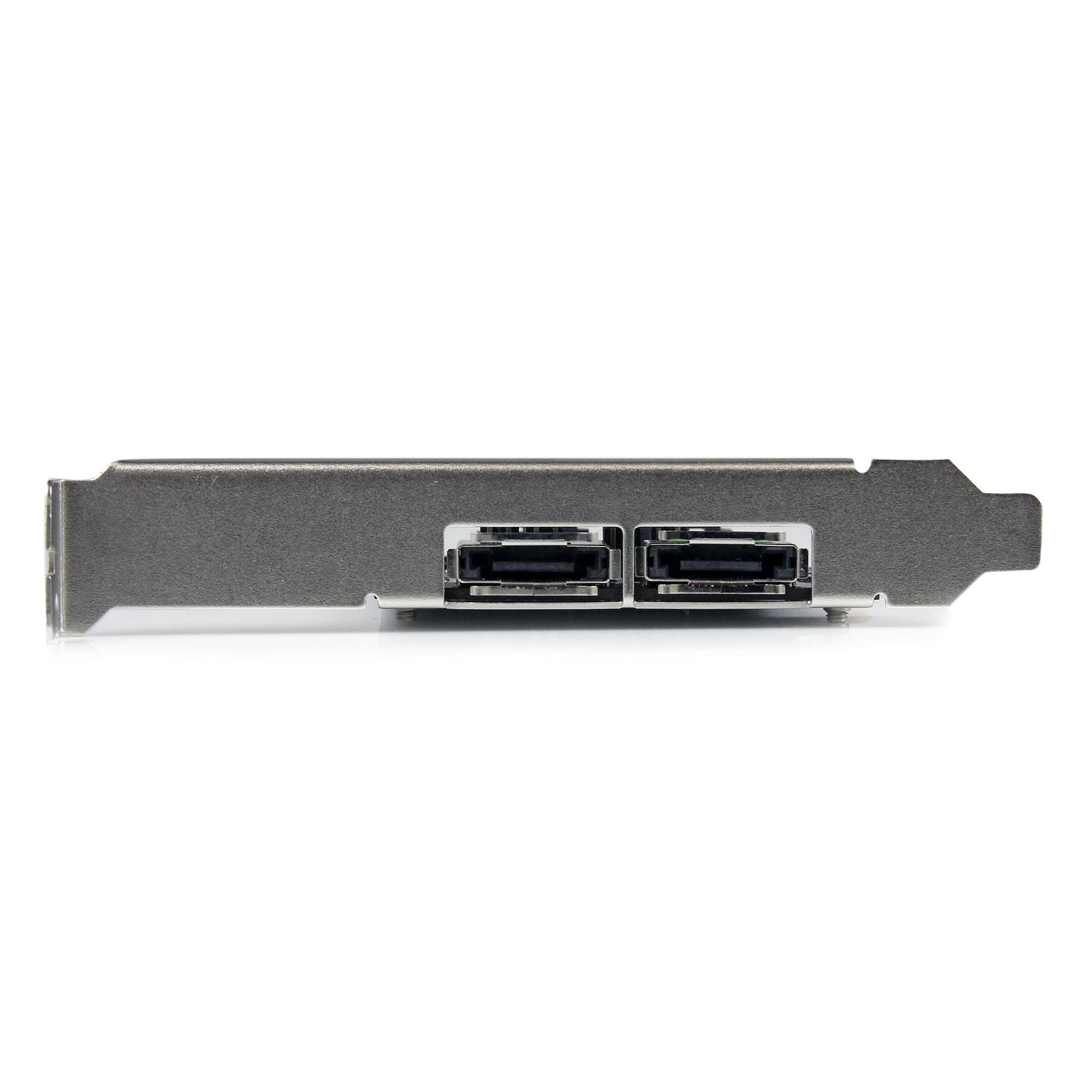

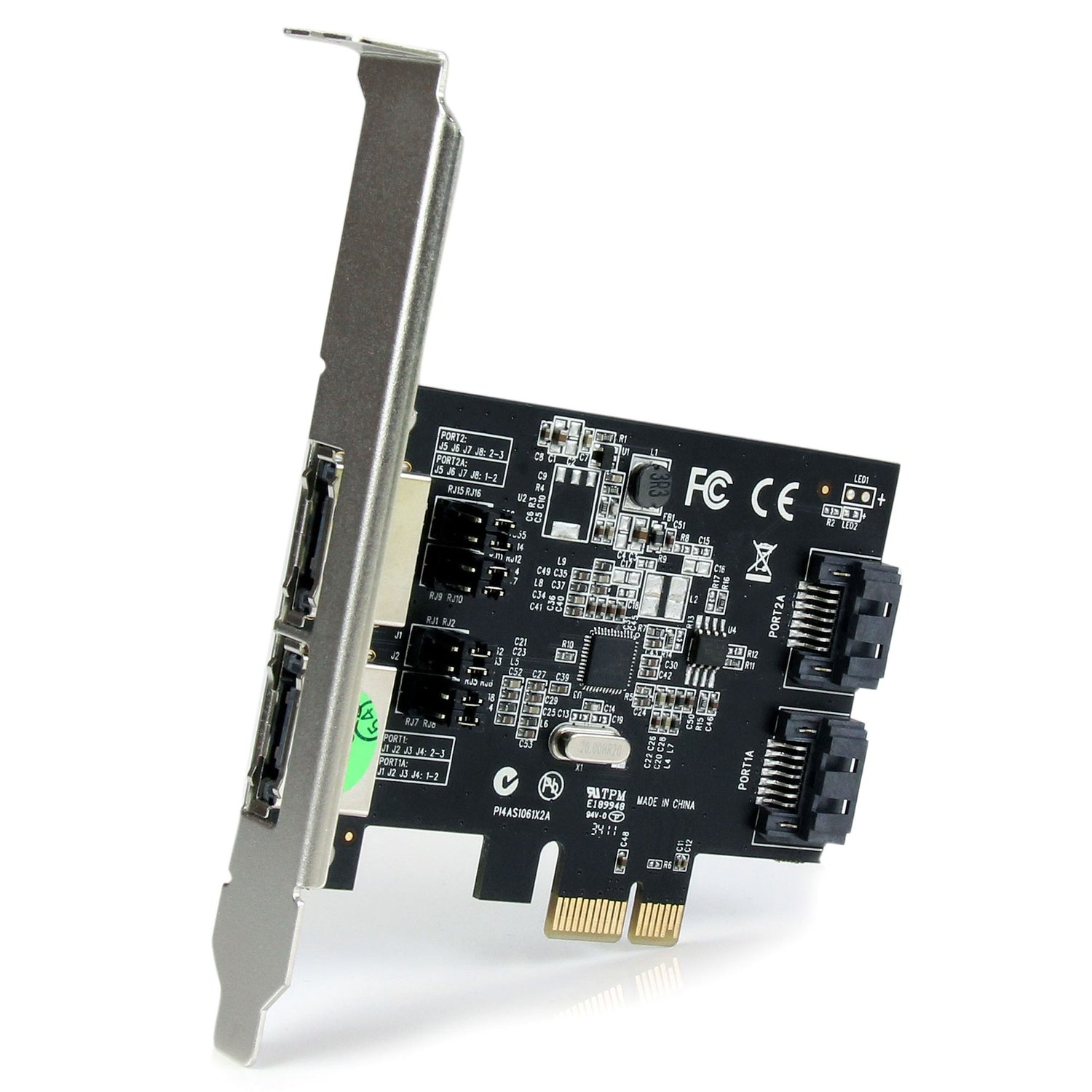

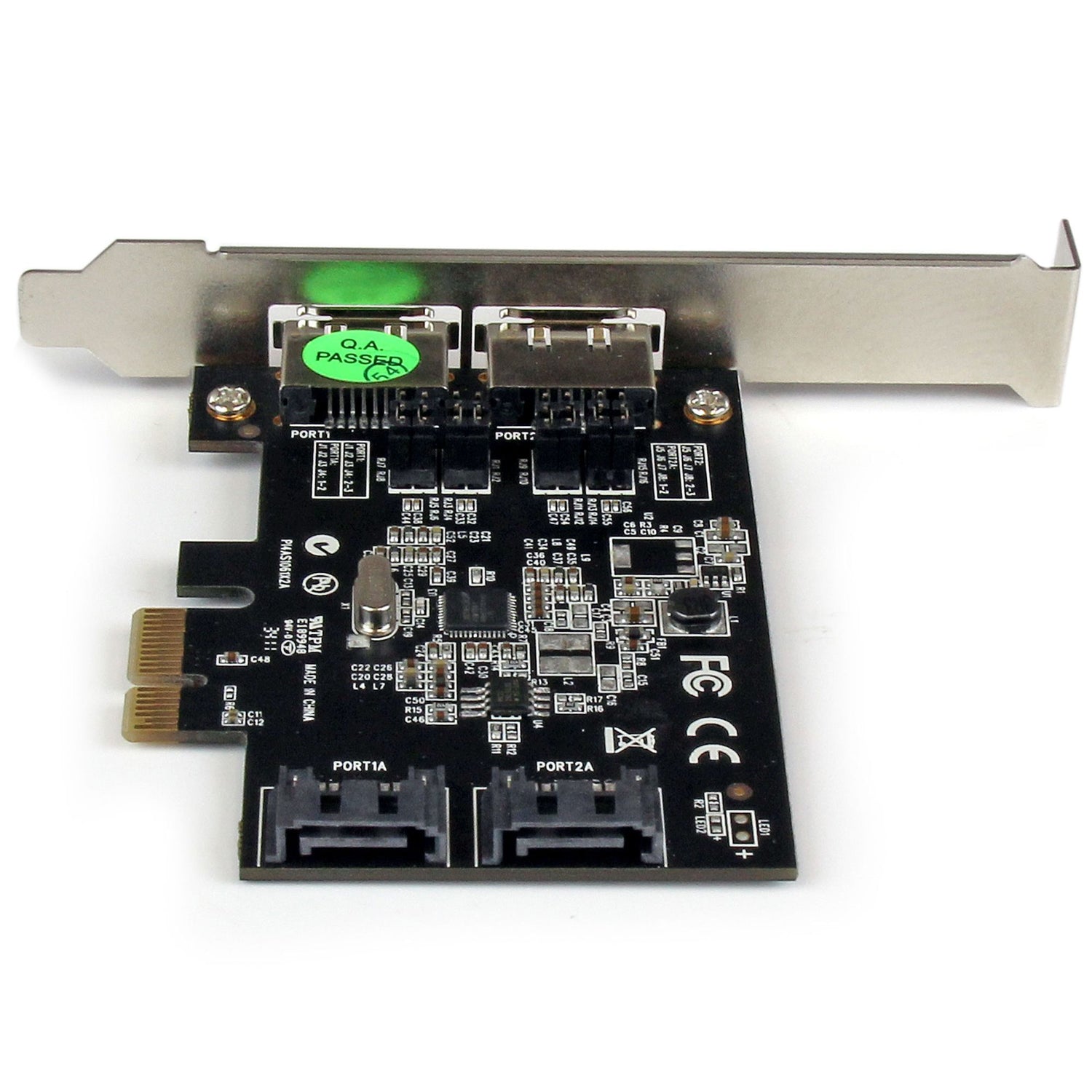

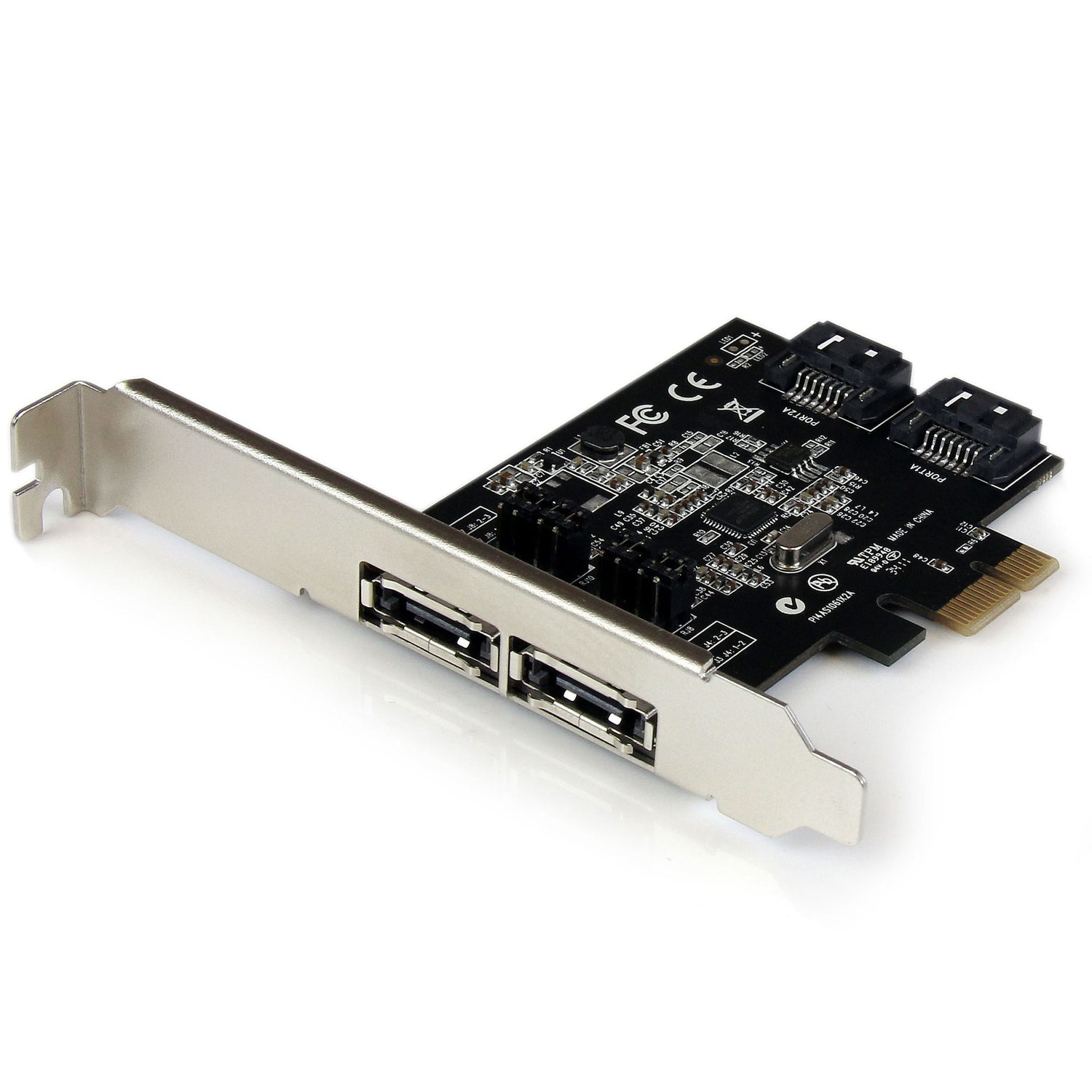

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray). The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
Why choose the StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA...?
The StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: SATA; SATA revision: 3.0. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| SATA revision | 3.0 |
| eSATA ports quantity | 2 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
| Internal | Yes |
| Certification | CE, FCC, REACH |
| Chipset | ASMedia - ASM1061 |
| Logical block addressing (LBA) support | 48 bit |
| Native Command Queuing (NCQ) | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64... |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | RoHS |
| Width | 92 mm |
| Depth | 121 mm |
| Height | 20 mm |
| Weight | 48 g |
| Quantity | 1 |
| Cables included | SATA |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 216 mm |
| Package depth | 148 mm |
| Package height | 36 mm |
| Package weight | 152 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 451 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 325 mm |
| Brand | StarTech.com |
| Manufacturer part number | PEXESAT322I |
| GTIN / UPC | ['0065030848428', '065030848428', '0172304231487', '172304231487', '5706998929327'] |
