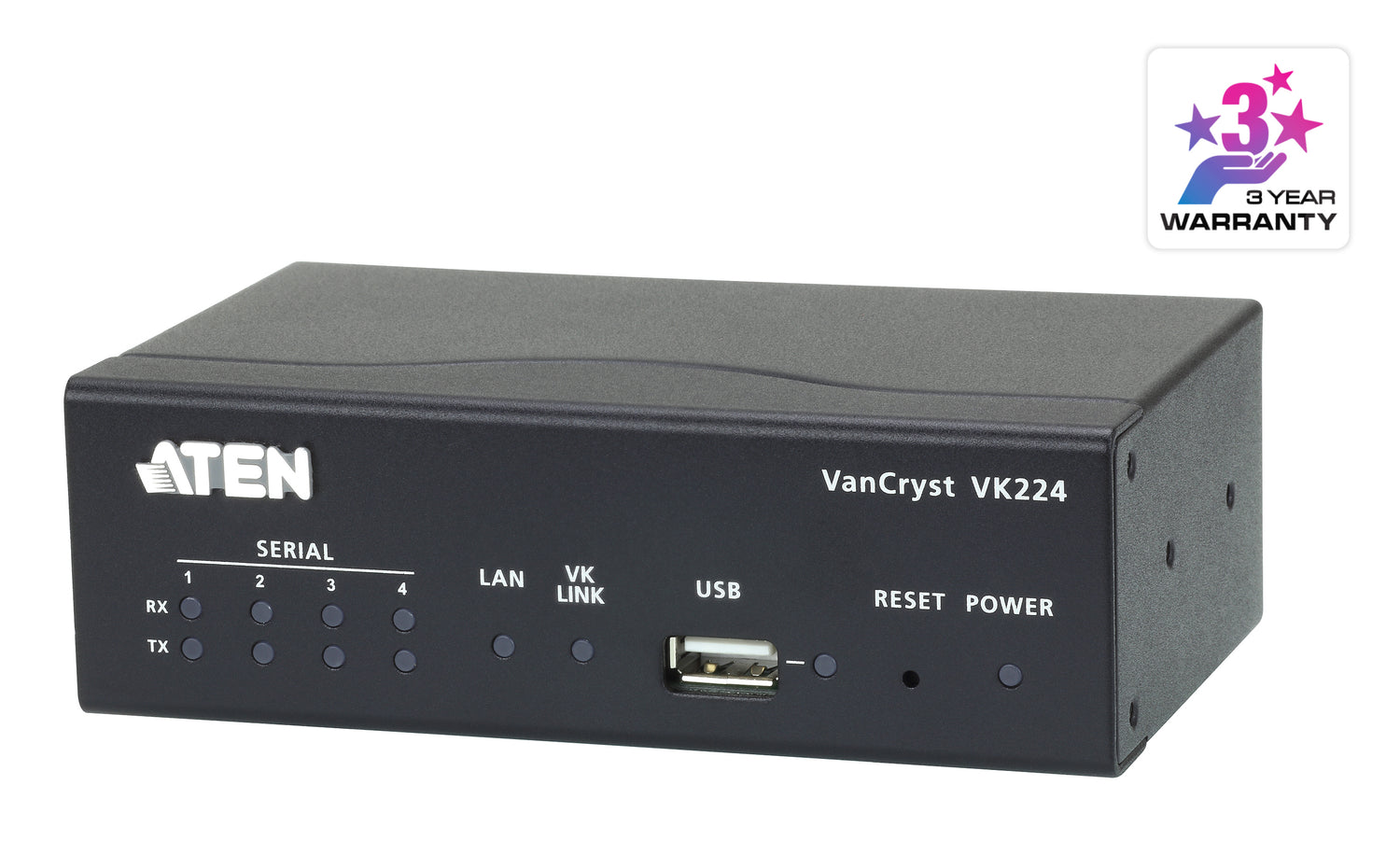

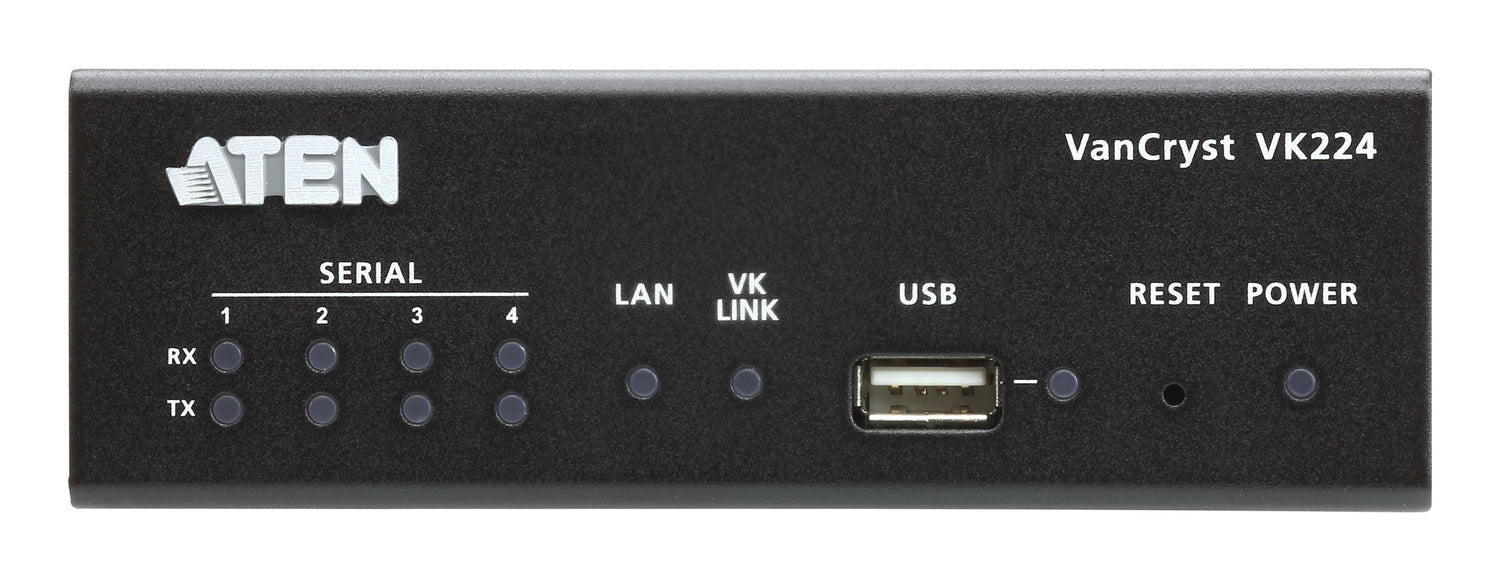

ATEN 4-Port Serial Expansion Box
Stock: 0 units
Description
Description
Product overview
The VK224 provides Ethernet-to-serial connectivity with 4 bi-directional RS-232 / 422 / 485 serial ports. It allows users to remotely access serial devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications. What’s more, the VK224 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional serial devices through an ATEN controller in any environments where more serial devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.
Why choose the ATEN 4-Port Serial Expansion Box?
The ATEN 4-Port Serial Expansion Box is a serial switch boxes from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Storage temperature (T-T): -20 - 60 °C; Manual: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 60 °C |
| Manual | Yes |
| Package height | 160 mm |
| Package width | 59 mm |
| Package weight | 710 g |
| Package depth | 239 mm |
| Product colour | Black |
| Material | Metal |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case net weight | 2.75 kg |

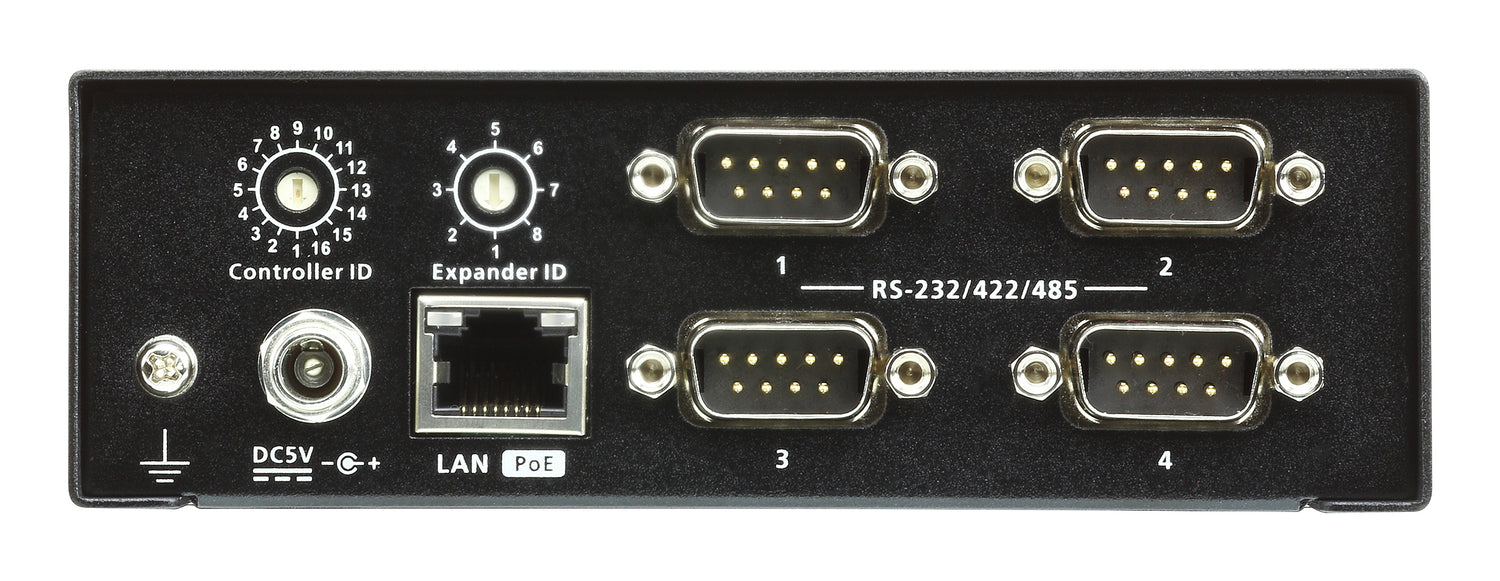

| I/O ports | 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Dimensions (WxDxH) | 76 x 130 x 42 mm |
| Weight | 450 g |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 3.89 kg |
| Brand | ATEN |
| Manufacturer part number | VK224 |
| GTIN / UPC | ['4719264643682', '0672792006739', '672792006739'] |
