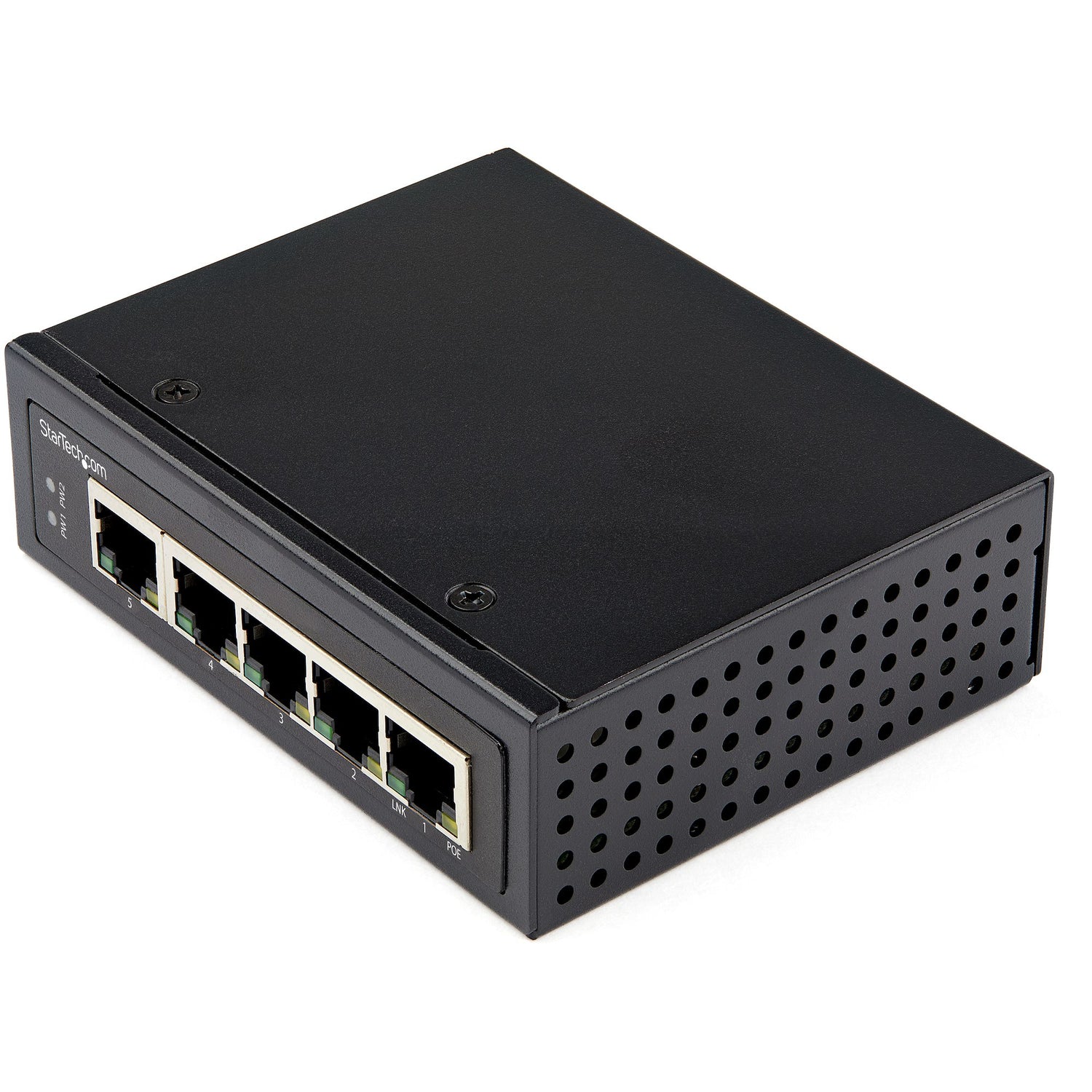

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C - TAA
Stock: 55 units
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Ove...
Description
Description
Product overview
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs. For Demanding Environments Where No Fiber Connections Are Required Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: • Cameras • Sensors • Wi-Fi Access Points High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time. Truly Industrial for Devices That Must Function Under Harsh Conditions Industrial features include: • Operating Temperature Range: -40 C to 75 C • IP-30 rated housing • Vibration, shock, and free-fall standard testing This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C; for long-term reliability. A Flexible & Easy-to-Deploy Solution Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
Why choose the StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W...?
The StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over... is a network switches from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Basic switching RJ-45 Ethernet ports quantity: 5; Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Supported network protocols | CSMA/CD |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Safety | EN60950-1 |
| Maximum cable length | 100 m |
| Mean time between failures (MTBF) | 538451 h |
| DC input voltage | 48 - 56 V |
| Surge protection | Yes |
| Surge protection voltage | 2 kV |
| Power plug type | Type N |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Terminal block port | Yes |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 150.6 g |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Package width | 168 mm |
| Package depth | 214 mm |
| Package height | 68 mm |
| Brand | StarTech.com |
| Manufacturer part number | IESC1G50UP |
| GTIN / UPC | ['0065030889629', '065030889629'] |
