Commutateur Ethernet industriel durci non manageable à 5 ports Gigabit PoE avec 1 port SFP - DI
Stock: 0 units
Description
Description
Product overview

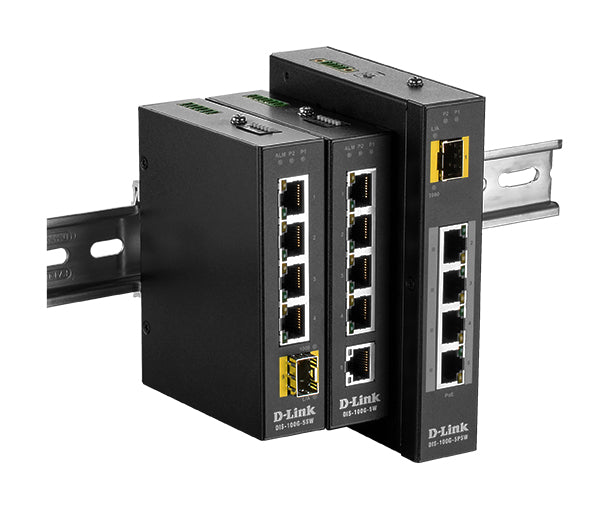

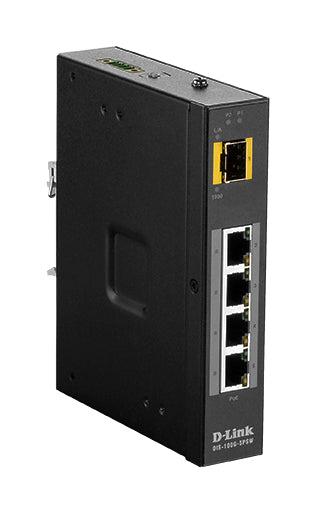

Unmanaged Plug and Play with SFP and PoE. Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames. Gigabit Connectivity with PoE and SFP slots. Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts. Officially Certified. Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures. Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C. Strong Build. The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. PoE Support. With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort. Fast Deployment. For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. Fanless Design. With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat. Discrete Size. Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
Why choose the D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X)...?
The D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4... is a network switches from D-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Switch layer: L2; Traffic shaping: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Traffic shaping | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Multicast support | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Power |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Electromagnetic compatibility | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
| DC input voltage | 12 - 58 V |
| Power consumption (max) | 120.2 W |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 54 - 58 V |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 410.12 BTU/h |
| Width | 139 mm |
| Depth | 29 mm |
| Height | 107 mm |
| Brand | D-Link |
| Manufacturer part number | DIS-100G-5PSW |
| GTIN / UPC | ['0790069437885', '790069437885'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
