Carte mère de station de travail ASUS Pro WS WRX90E-SAGE SE EEB, AMD Ryzen Threadripper P
Stock: 0 units
Description
Description
Product overview

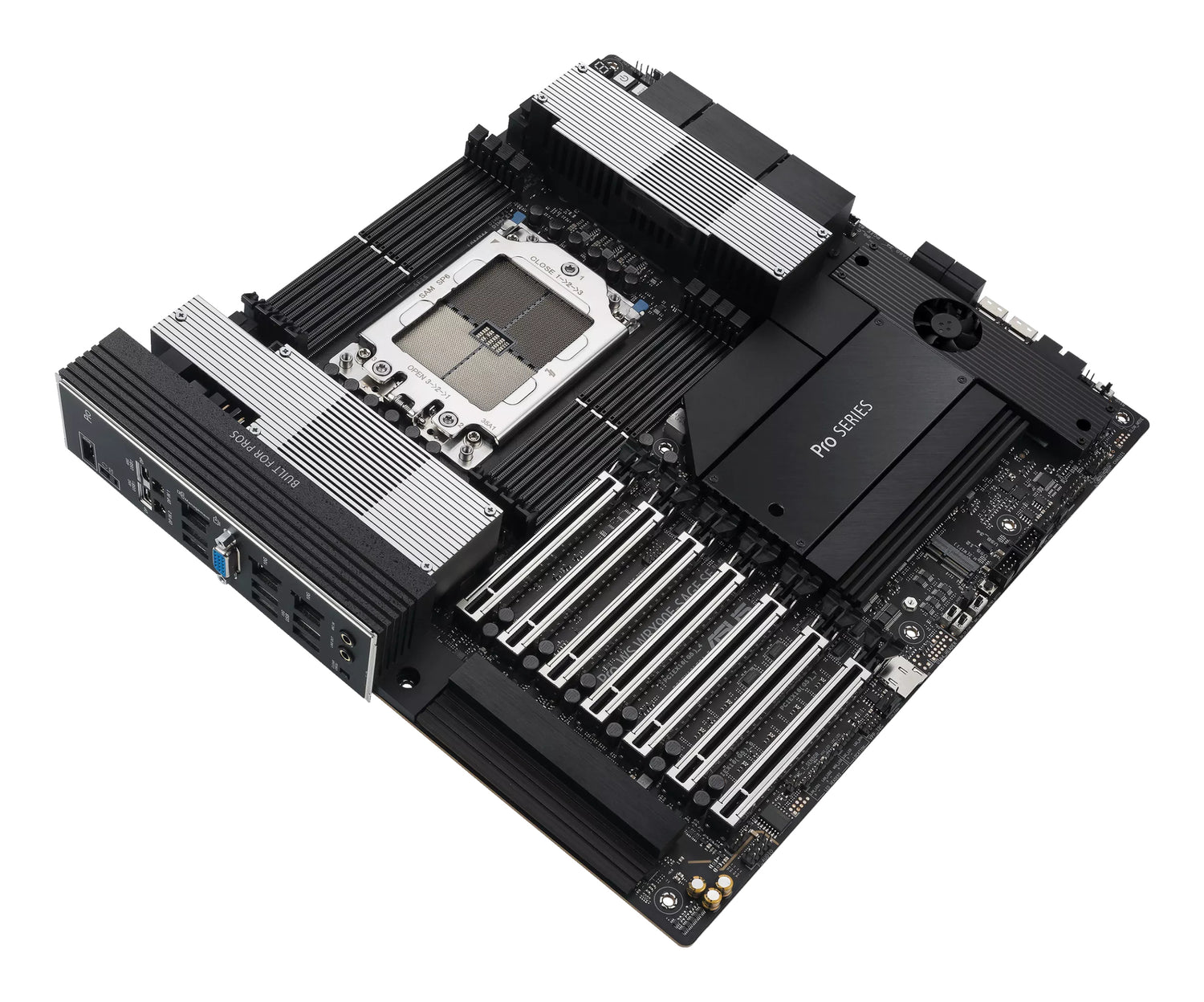

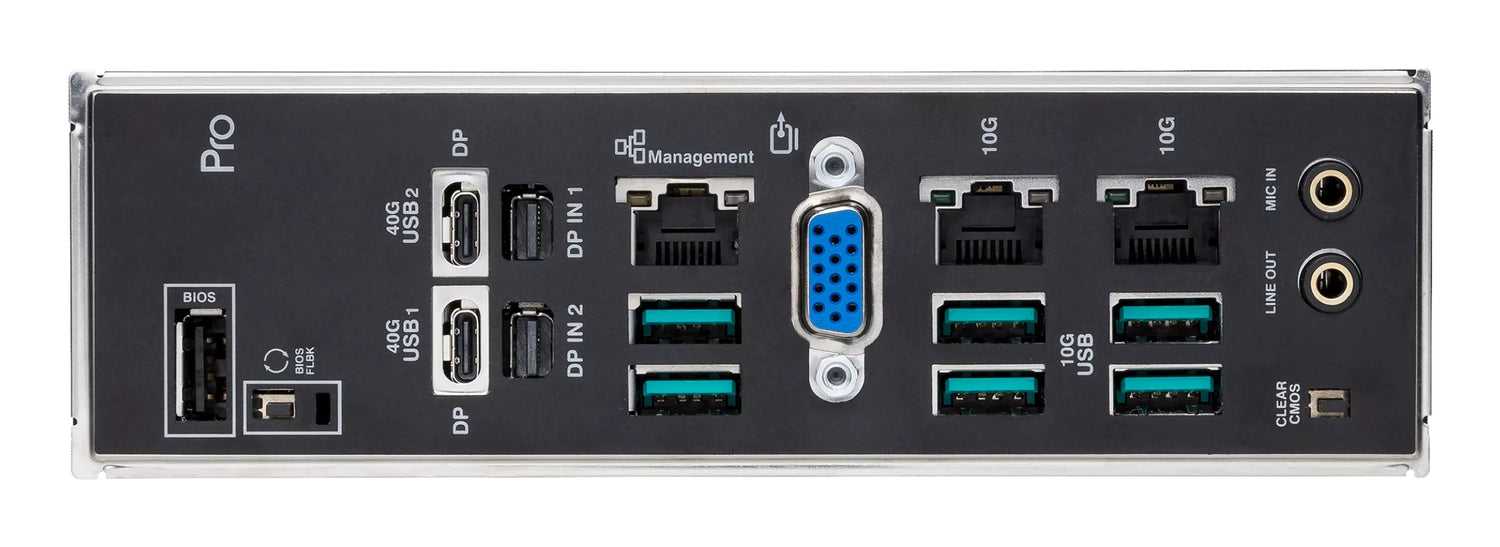

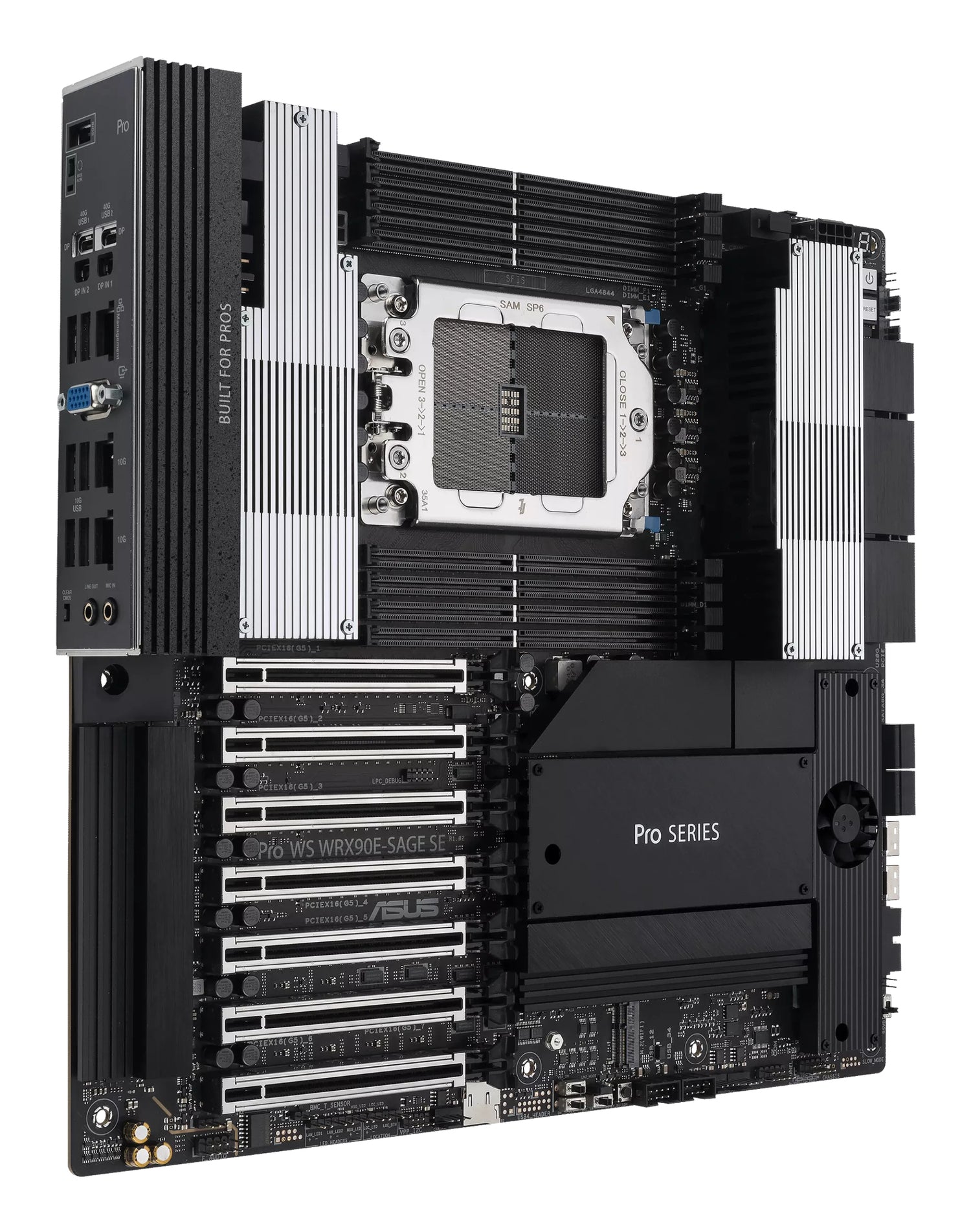

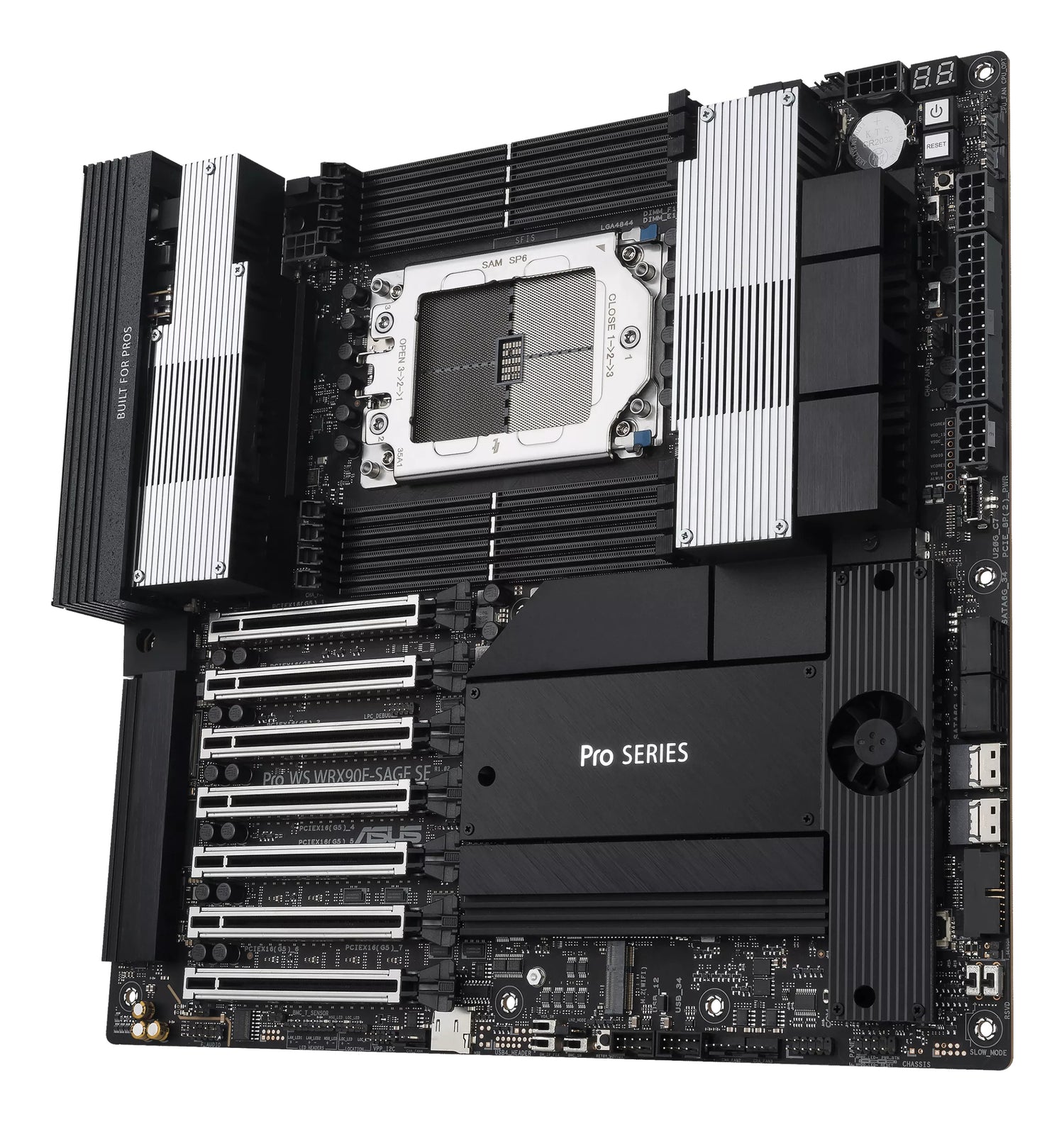

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim. ULTRAFAST CONNECTIVITY. Multi-GPU Support. The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications. ULTRAFAST CONNECTIVITY. Ultrafast Networking. Intel® X710-AT2 dual 10 Gb Ethernet. Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency. 1 Gb Ethernet Dedicated to BMC. The Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller. Ultrafast Networking. Embrace Next-Generation USB4®. The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators. * The MiniDP In port at the back panel needs to be connected to a discrete graphics card via the bundled MiniDP to DP cable. High Capacity Storage. M.2 PCIe 5.0 slots. The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple...
Why choose the ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB?
The ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB is a motherboards from ASUS, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Processor manufacturer: AMD; Processor socket: Socket sTR5; Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper PRO 7000 WX-Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 2 TB GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Motherboard chipset | AMD WRX90 |
| Audio chip | Realtek ALC1220P |
| Product colour | Aluminium, Black |
| Component for | Workstation |
| Brand | ASUS |
| Manufacturer part number | 90MB1FW0-M0EAY0 |
| GTIN / UPC | ['4711387441145', '0197105441149', '197105441149'] |
