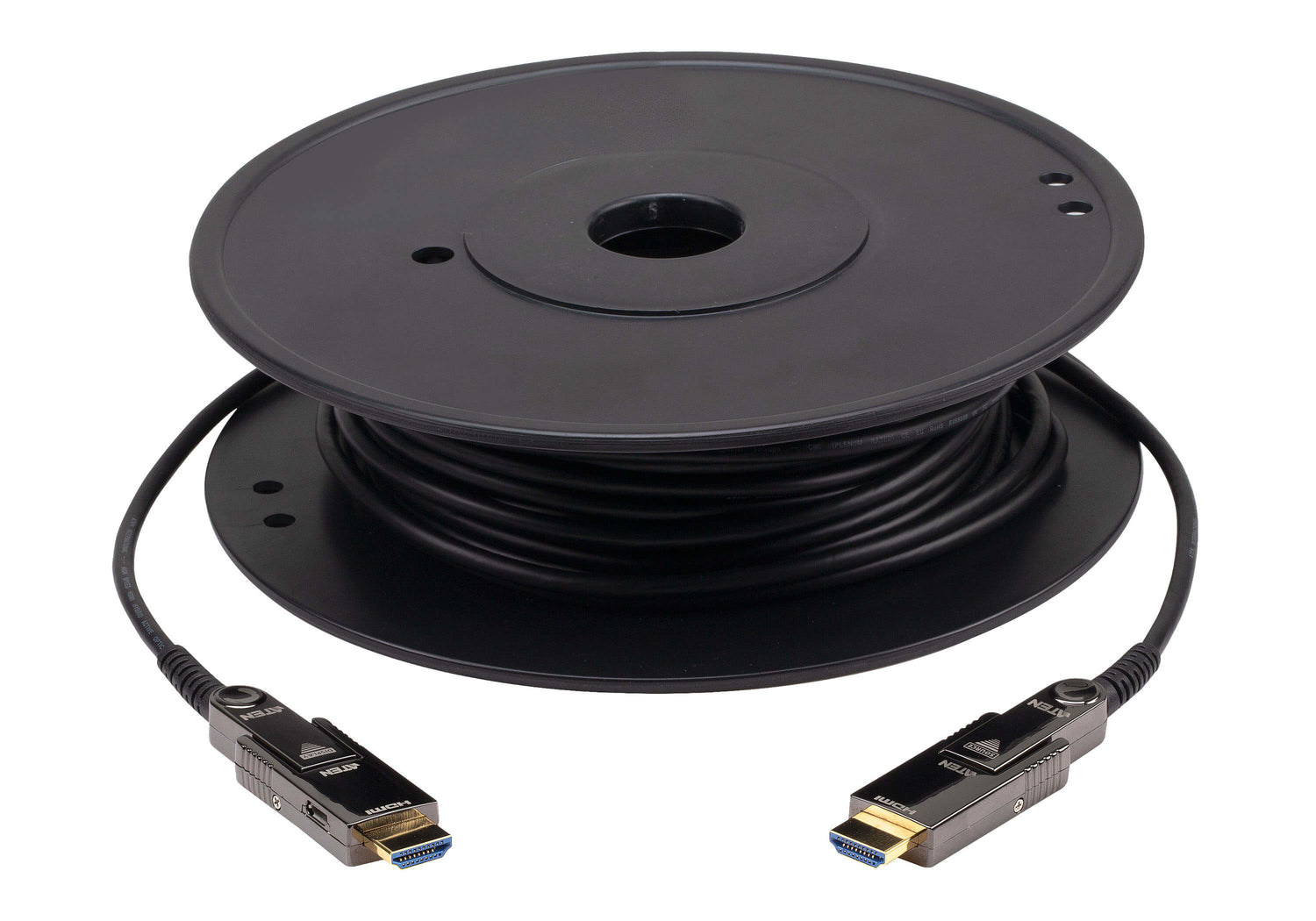

ATEN 20M True 4K HDMI Active Optical Cable
Stock: 10 units
ATEN 20M True 4K HDMI Active Optical Cable
Description
Description
Product overview
ATEN VE7832A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 20 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar. Engineered to meet the latest trend of integrator-friendly design, the VE7832A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Why choose the ATEN 20M True 4K HDMI Active Optical Cable?
The ATEN 20M True 4K HDMI Active Optical Cable is a hdmi cables from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Cable length: 20 m; Connector 1: HDMI Type D (Micro); Connector 2: HDMI Type D (Micro). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Cable length | 20 m |
| Connector 1 | HDMI Type D (Micro) |
| Connector 2 | HDMI Type D (Micro) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Dolby technologies | Dolby TrueHD, DTS-HD Master Audio |
| Pull-resistant connector(s) | Yes |
| Pull-off force | 10 kg |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| Bandwidth | 600 MHz |
| Maximum refresh rate | 60 Hz |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Cable jacket material | Plenum (OFNP) |
| Bending radius (min) | 2 cm mm |
| Cable shielding | Aluminum mylar foil |
| Plug and Play | Yes |
| Colour sampling | 4:4:4 |
| Extended display identification data (EDID) | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certification | CE, FCC, RoHS2, UL CMP-OF |
| Cable diameter | 4.5 mm |
| Weight | 950 g |
| Package volume | 3964.359 cm³ |
| Interface adapters included | Micro HDMI female - HDMI male |
| Manual | Yes |
| Screwdriver included | Yes |
| Package width | 225 mm |
| Brand | ATEN |
| Manufacturer part number | VE7832A-AT |
| GTIN / UPC | ['4710469341625', '0672792013430', '672792013430'] |
