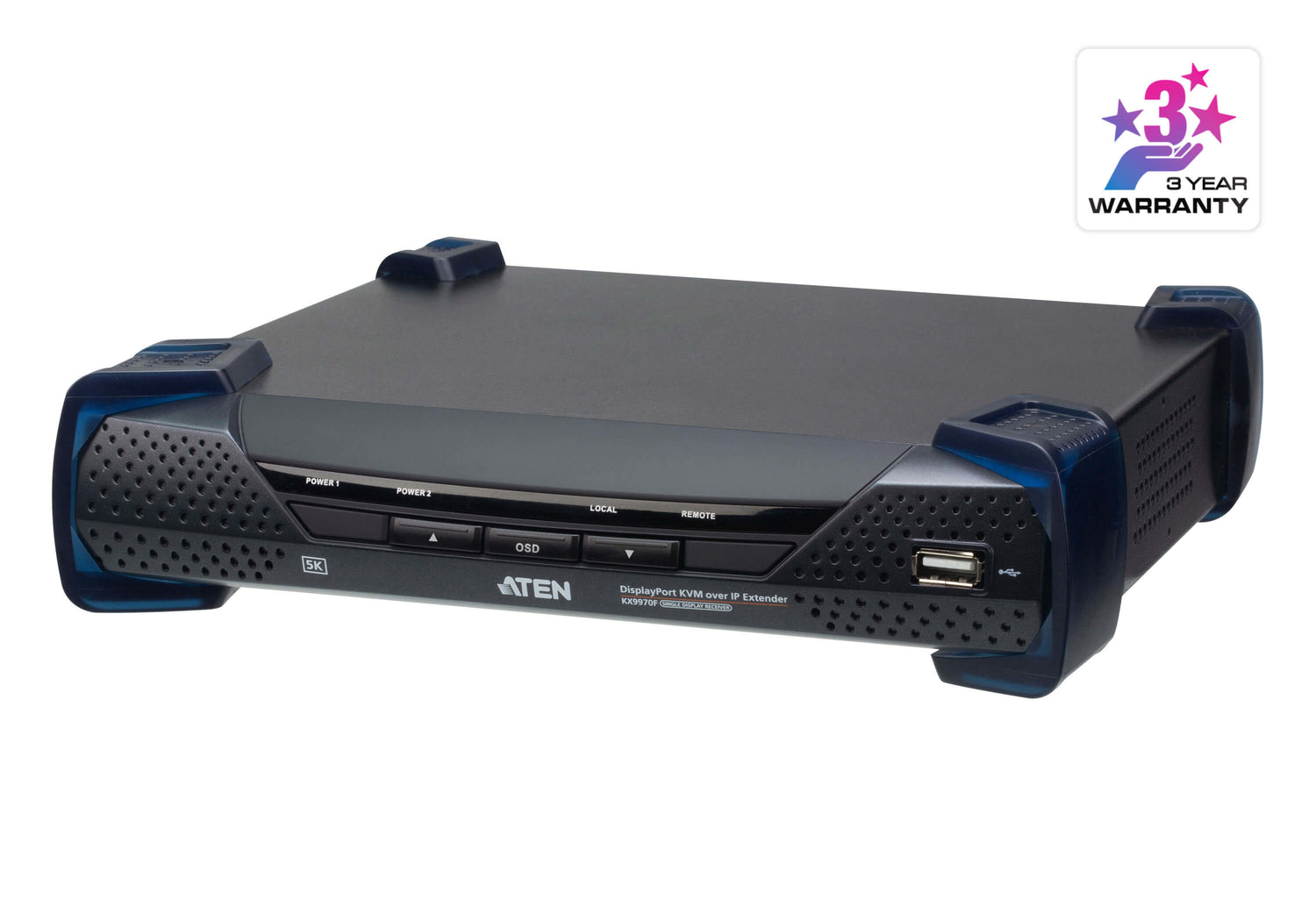

ATEN KX9970FR KVM extender Receiver
Stock: 0 units
Description
Description
Product overview
The KX9970FR 5K DisplayPort KVM over IP receiver is a high performance IP- based Single Display receiver, where the transmitter can transmit a computer’s keyboard, video, mouse, and USB signals to the receiver for providing separate console accesses from both the transmitter’s and receiver’s locations. The setup allows extended access to computer systems via a USB console (USB keyboard, USB mouse, DisplayPort monitor) over Intranet, enabling users to place the computers in secure and temperature-controlled environments, which may be isolated from the user workstation. The KX9970FR support one DisplayPort video display for delivering video resolutions of up to 5K (5120 x 2880 @ 30 Hz), and offer flawless and lossless video quality with extremely low latency. KX9970FR is equipped with two SFP+ slots. 10-Gbps SFP+ fiber module expansions are supported for fiber optic network connections and a transmission distance of up to 10 km. For connection flexibility, both the KX9970F transmitter and receiver models can be connected either directly to each other or via a high-speed network over a copper-based or fiber-based LAN. The KX9970FR also features dual power supply capability for power redundancy to ensure reliable services. The KX9970FR can be set up at the workstation, mounted onto a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender, the KX9970FR can be installed in flexible configurations, including point to point, point to multipoint, multipoint to point, and multipoint to multipoint. When combined with the KVM over IP...
Why choose the ATEN KX9970FR KVM extender Receiver?
The ATEN KX9970FR KVM extender Receiver is a kvm extenders from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Receiver; Connectivity technology: Wired; Maximum digital resolution: 5120 x 2880 pixels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 144 Hz |
| KVM port selection | OSD, Push-buttons |
| Supported resolutions | 5120 x 2880 @ 30 Hz, 5120 x 1440 @ 60 Hz, 4096 x 2160 @ 60 Hz (4:4:4), 2560 x 1440 @ 144 Hz, 1920 x 1080 @ 240 Hz (CVT-RB) |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| Installed SFP+ modules quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Power consumption (receiver) (max) | 17.71 W |
| DC-in jack | Yes |
| DC voltage | 12 V |
| Receiver width | 22.4 cm mm |
| Receiver depth | 22.6 cm mm |
| Receiver height | 5.3 cm mm |
| Receiver weight | 1.38 kg |
| AC adapter included | Yes |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Brand | ATEN |
| Manufacturer part number | KX9970FR |
| GTIN / UPC | ['0672792013621', '672792013621', '4710469341793'] |
