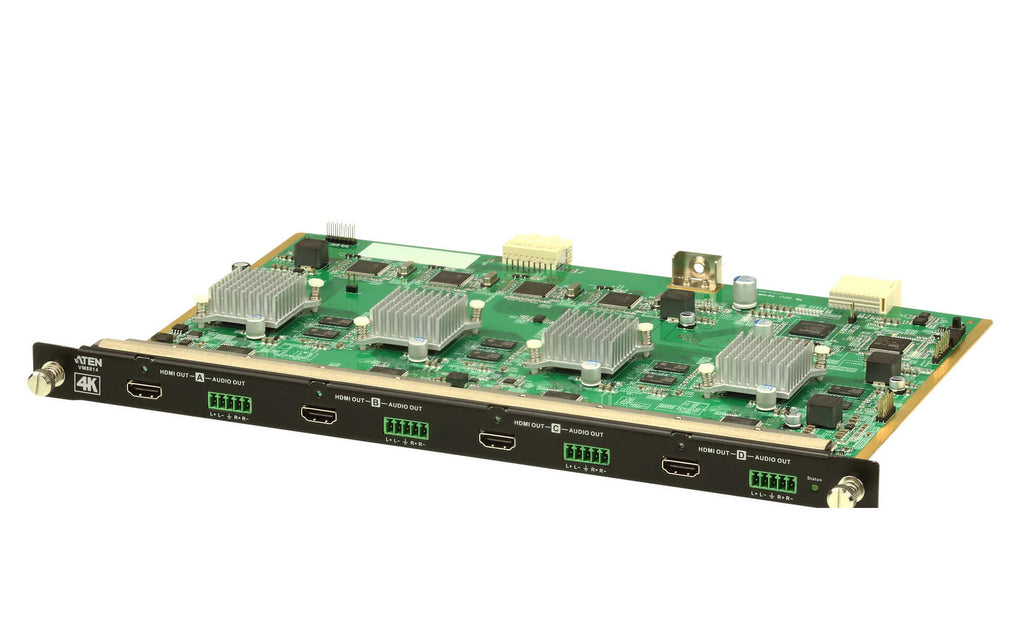

ATEN 4-Port 4K HDMI Output Board With Scaler
Stock: 0 units
Description
Description
Product overview
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction. Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Why choose the ATEN 4-Port 4K HDMI Output Board With Scaler?
The ATEN 4-Port 4K HDMI Output Board With Scaler is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Video port type: HDMI; Number of HDMI outputs: 4; Material: Metal. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Video port type | HDMI |
| Number of HDMI outputs | 4 |
| Material | Metal |
| Product colour | Green, Grey |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Bandwidth | 10.2 Gbit/s |
| LED indicators | Yes |
| Bandwidth | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Output impedance | 100 Ω |
| Heat dissipation | 94 BTU/h |
| HDCP version | 2.2 |
| Power consumption (typical) | 20 W |
| Width | 238 mm |
| Depth | 23.3 mm |
| Height | 352 mm |
| Weight | 1.02 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
| Brand | ATEN |
| Manufacturer part number | VM8814-AT |
| GTIN / UPC | ['0672792008153', '672792008153', '4719264646218'] |
