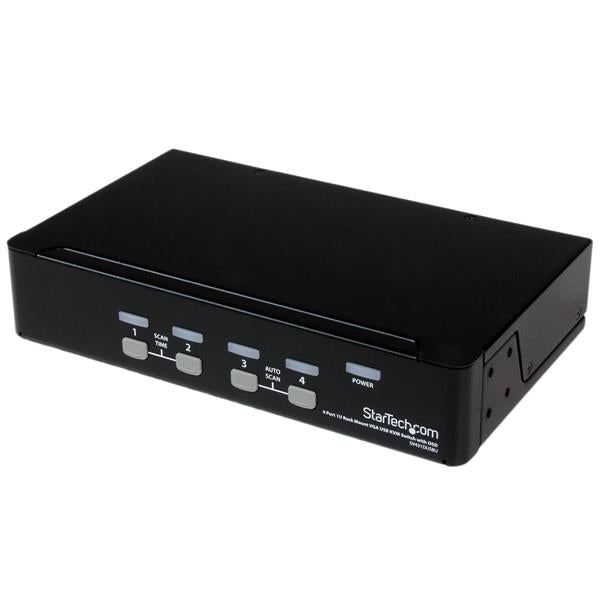

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD - TAA
Stock: 95 units
StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD - TAA
Description
Description
Product overview

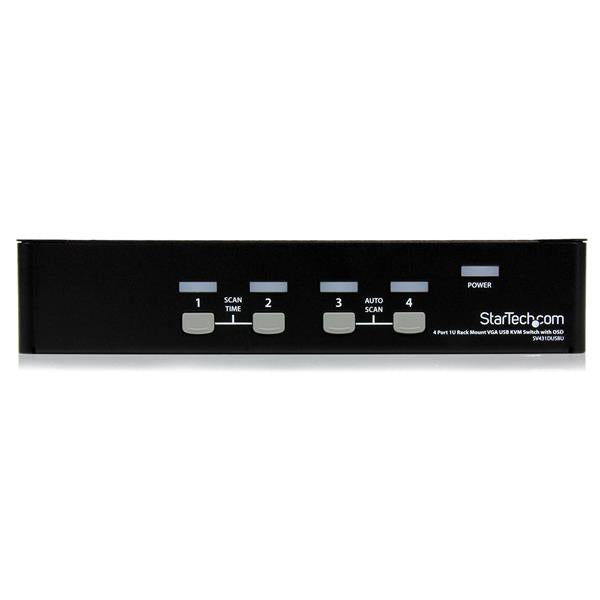

Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor). Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options. Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Rackmount your KVM switch If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM. The SV431DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below: 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
Why choose the StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD...?
The StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD - TAA is a kvm switches from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 4; Video port type: VGA; VGA (D-Sub) ports quantity: 5. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 4 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 5 |

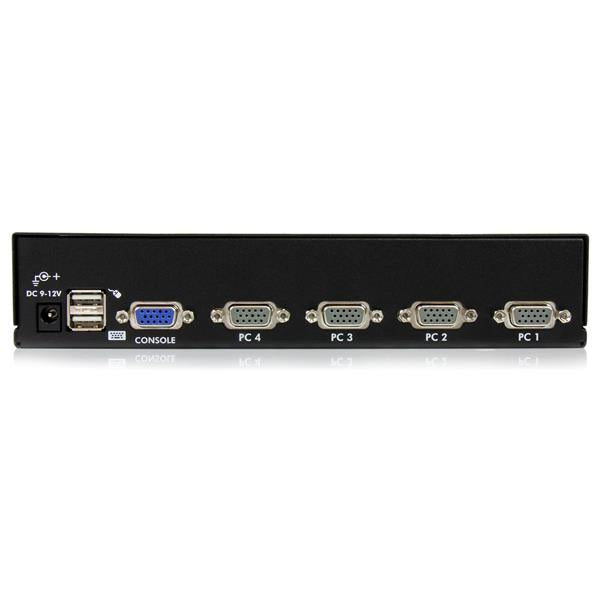

| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, FCC, TAA, REACH |
| On Screen Display (OSD) | Yes |
| Input voltage | 110 - 240 V |
| Input current | 0.2 A |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 43 mm |
| Weight | 957 g |
| Package width | 412 mm |
| Package depth | 215 mm |
| Package height | 92 mm |
| Package weight | 1.6 kg |
| Brand | StarTech.com |
| Manufacturer part number | SV431DUSBU |
| GTIN / UPC | ['0065030837231', '065030837231', '0777785982806', '777785982806', '0617407485448', '617407485448', '5704174275749'] |
