StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment
Stock: 51 units
StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment
Description
Description
Product overview

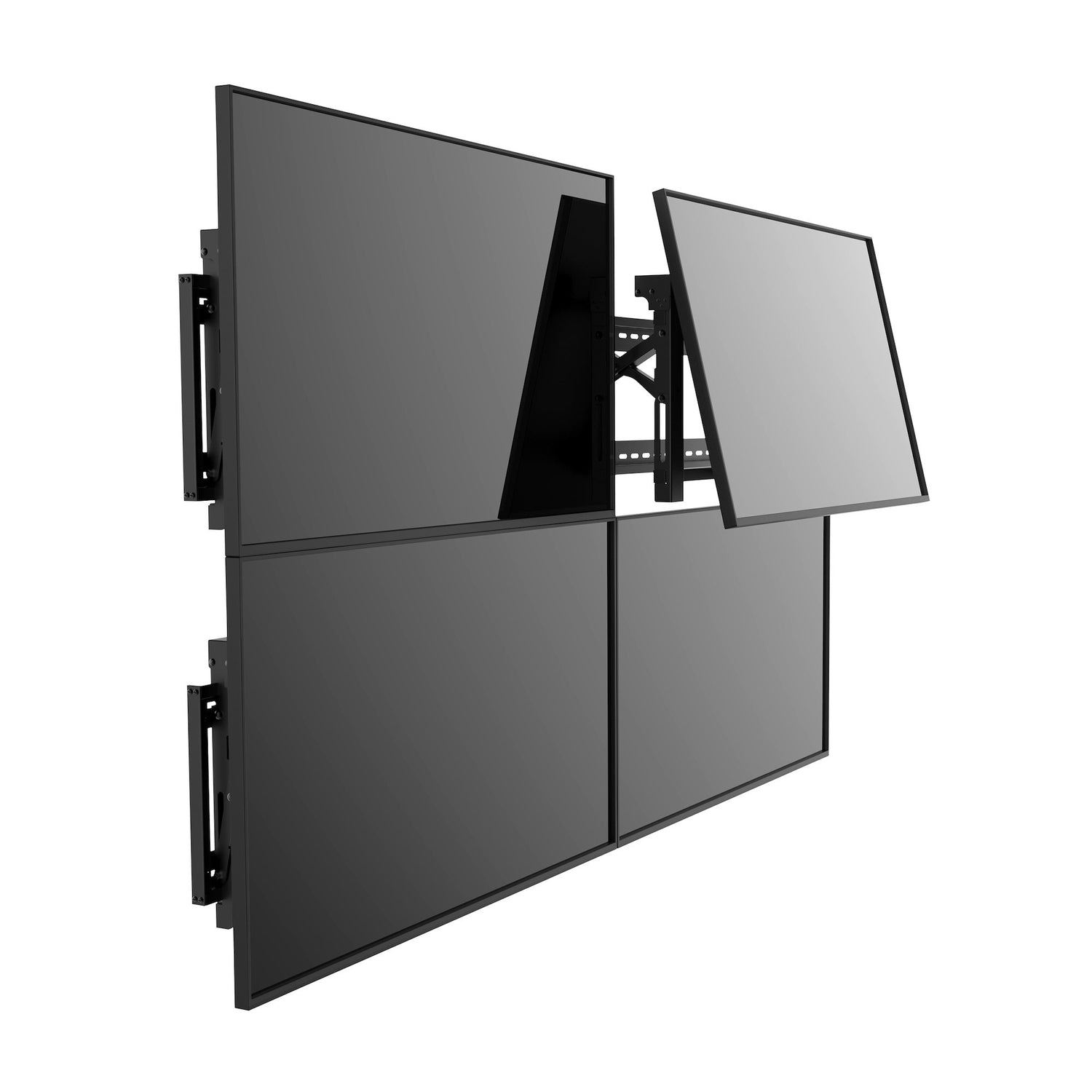

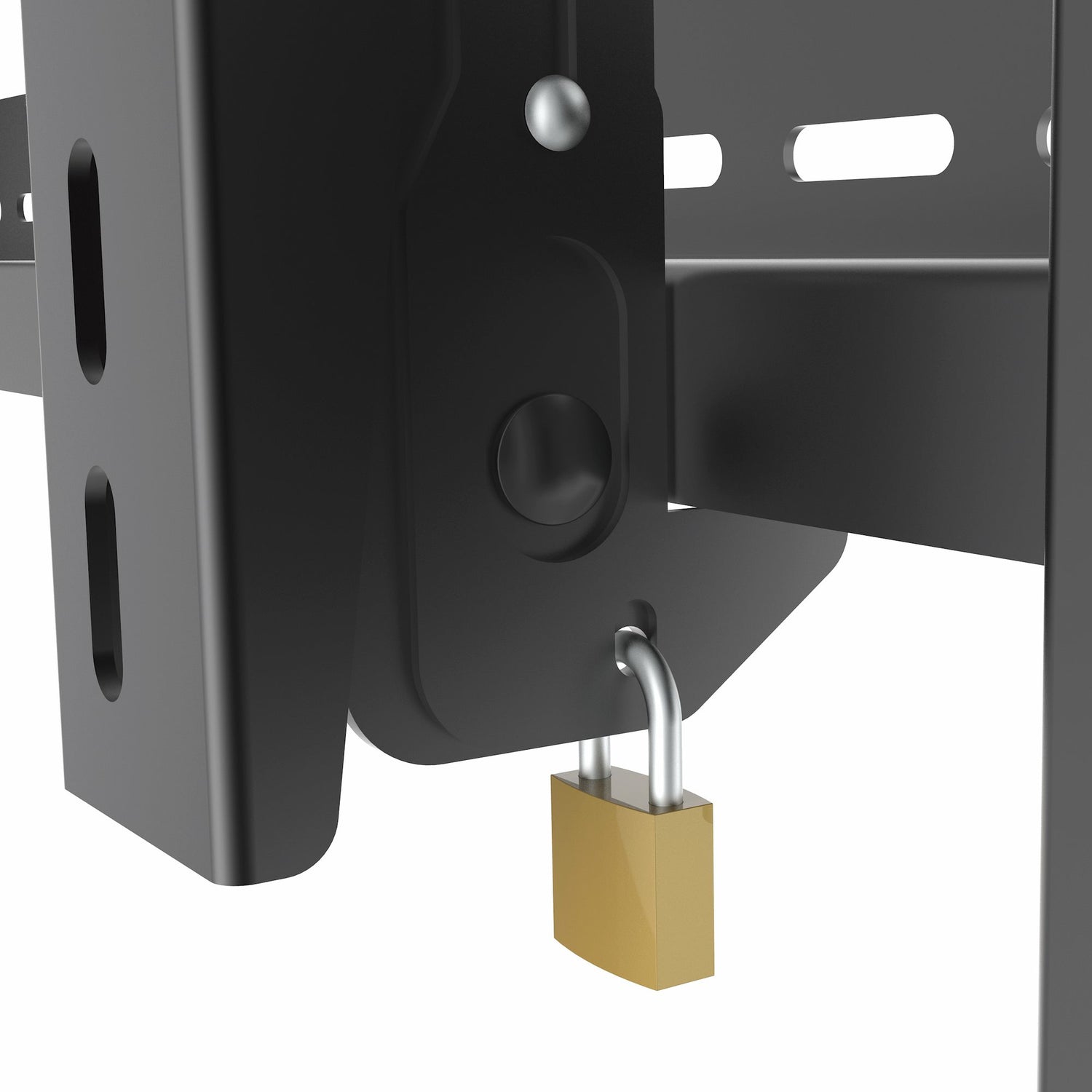

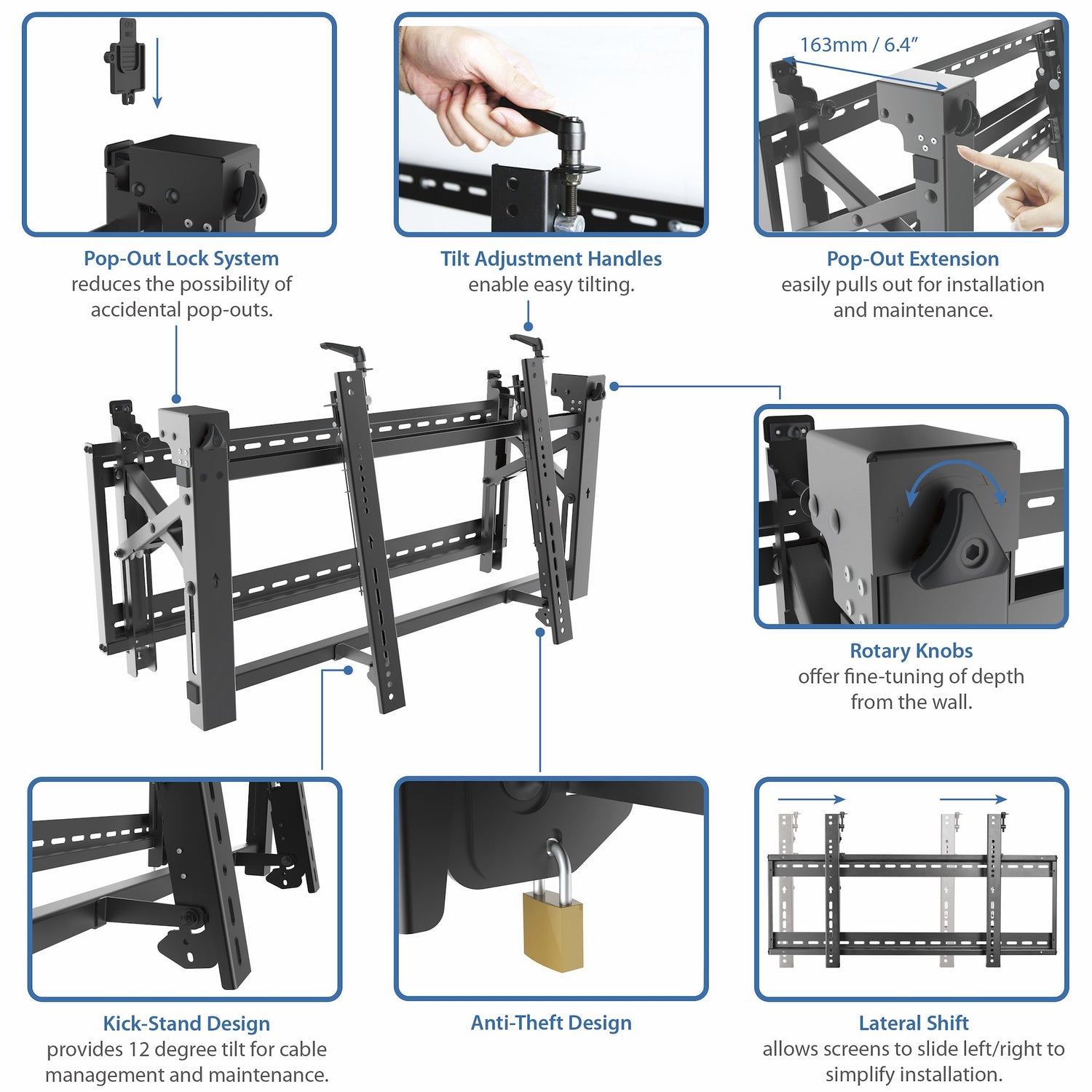

TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall. A Versatile Video Wall Mounting System Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg). Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required). Align Your Displays Seamlessly With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required. The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall. Easy Installation and Maintenance This video-wall mounting system is designed for easy set-up and...
Why choose the StarTech.com Video Wall Mount - Pop-Out Design...?
The StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment is a signage display mounts from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum weight capacity: 70 kg; Minimum screen size: 114.3 cm (45") "; Number of displays supported: 1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstations and open-plan offices
- Meeting rooms and huddle spaces
- Digital signage and reception areas
- Control rooms and monitoring desks
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum weight capacity | 70 kg |
| Minimum screen size | 114.3 cm (45") " |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") " |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 mm |
| Tilt angle range | -5 - 3° |
| Swivel angle range | -1.2 - 1.2° |
| Distance to the wall (min) | 14.2 cm mm |
| Distance to the wall (max) | 30.6 cm mm |
| Product colour | Black |
| Housing material | Aluminium, Steel |
| Accepts padlock | Yes |
| Certification | CE, REACH |
| Width | 306 mm |
| Depth | 934 mm |
| Depth (max) | 93.4 cm mm |
| Height | 483 mm |
| Weight | 13.5 kg |
| Package width | 515 mm |
| Package depth | 1035 mm |
| Package height | 210 mm |
| Package weight | 16.4 kg |
| Manual | Yes |
| Screws included | Yes |
| Number of screws | 26 |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Washers included | Yes |
| Number of washers included | 6 |
| Spacer included | Yes |
| Number of spacers included | 12 |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case width | 516 mm |
| Master (outer) case length | 1040 mm |
| Master (outer) case height | 211 mm |
| Products per master (outer) case | 1 pc(s) |
| Brand | StarTech.com |
| Manufacturer part number | VIDWALLMNT |
| GTIN / UPC | ['0065030870030', '065030870030'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
