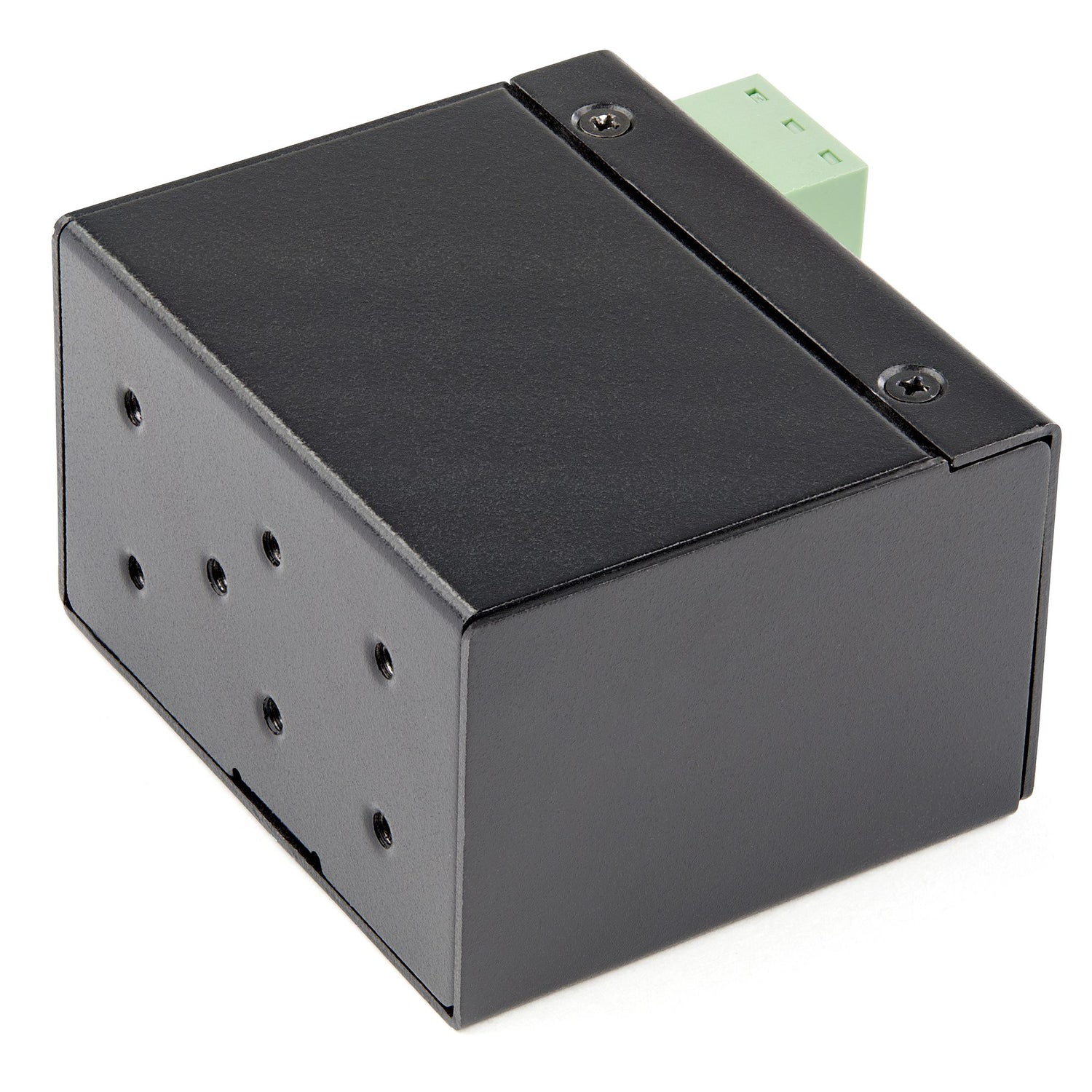

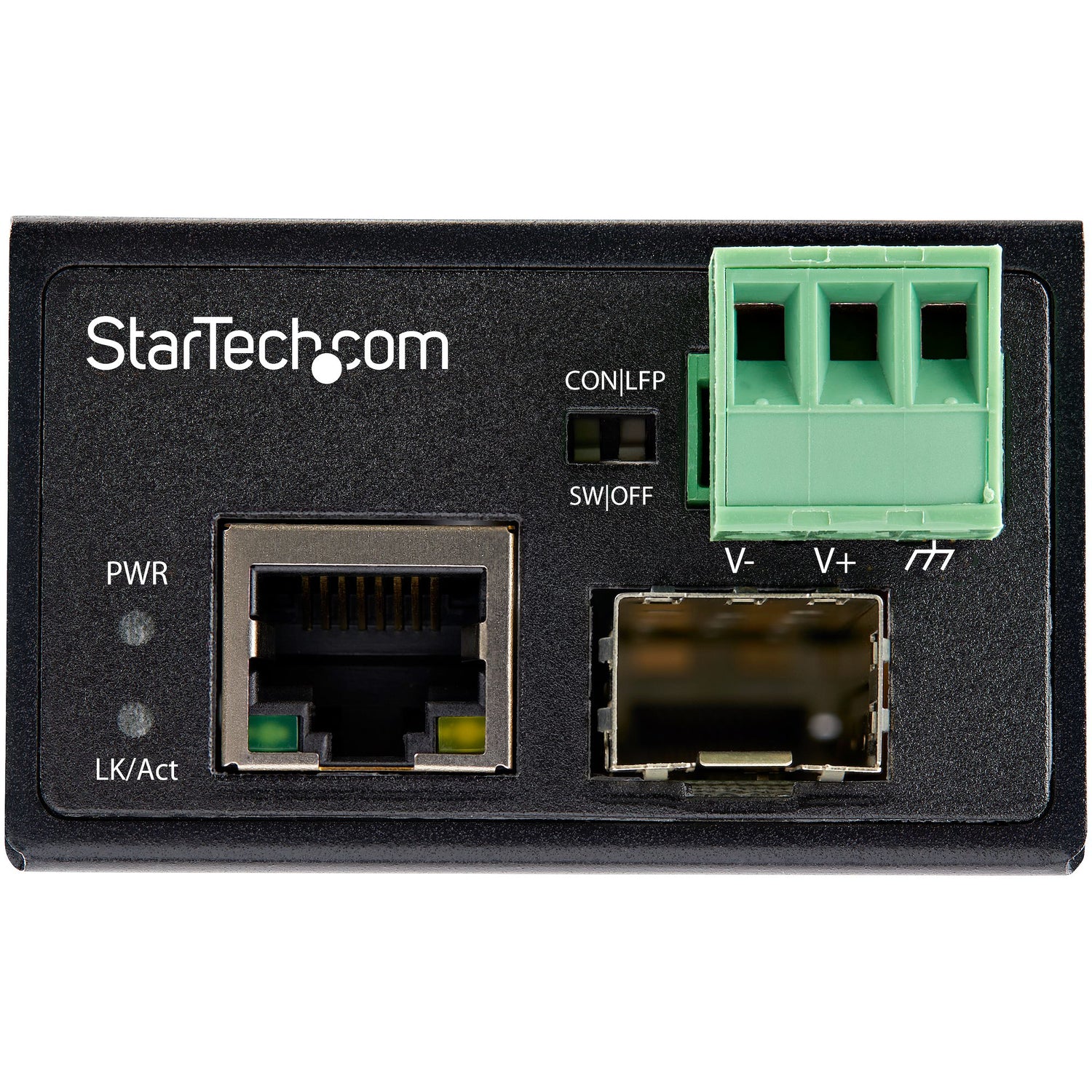

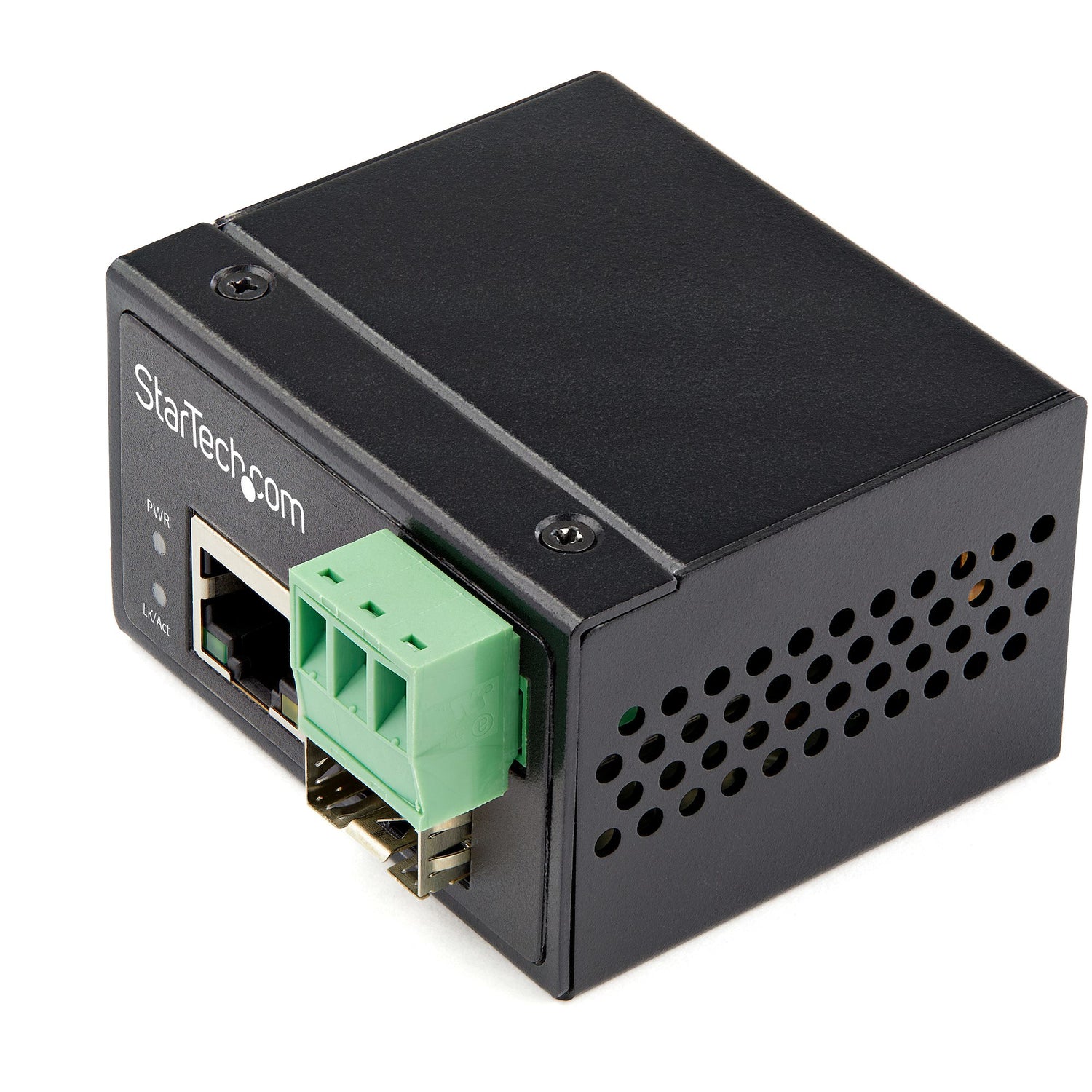

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA
Stock: 63 units
StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps...
Description
Description
Product overview
10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: • Vibration: EN 60068-2-6 • Shock: EN 60068-2-27 • Free-Fall: EN 60068-2-32 Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Why choose the StarTech.com Industrial Fiber to Ethernet Media Converter...?
The StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps... is a network media converters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum data transfer rate: 100 Mbit/s; Converter input interface: 10Base-T, 100Base-TX; Converter output interface: 100Base-FX. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Duplex system | Full |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 500000 h |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Input voltage | 12 - 56 V |
| Power consumption (typical) | 1.92 W |
| Power plug type | Type N |
| Width | 36 mm |
| Depth | 59 mm |
| Height | 50 mm |
| Weight | 81.4 g |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| User guide | Yes |
| Package width | 106 mm |
| Package depth | 161 mm |
| Package height | 68 mm |
| Package weight | 242.4 g |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 252 mm |
| Products per master (outer) case | 20 pc(s) |
| Brand | StarTech.com |
| Manufacturer part number | IMC100MSFP |
| GTIN / UPC | ['0065030889667', '065030889667'] |
